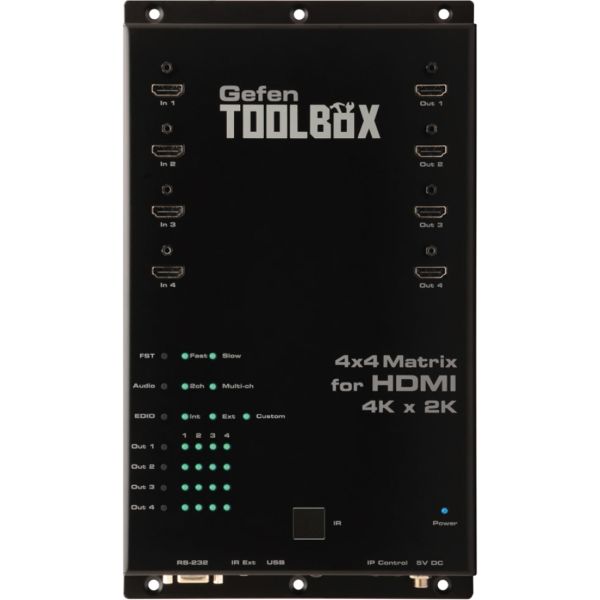

Gefen 4x4 Matrix for HDMI with Ultra HD 4K x 2K Support

Name: Gefen 4x4 Matrix for HDMI with Ultra HD 4K x 2K Support
Brand: GEFEN INC
SKU: 3212AN
Price: 844.99 USD
Availability: InStock

GEFEN INC

PCN#

3212AN

MFG#

GTB-HD4K2K-444-BLK

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$844.99

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

3840 × 2160
4 x 4
Display, TV
4 x HDMI Out

Product Condition: New and Factory Fresh

Shipping Weight: 4 lbs.

Gefen 4x4 Matrix for HDMI with Ultra HD 4K x 2K Support

Overview

Tech Specs

Specifications

Manufacturer	Gefen, Inc
Manufacturer Part Number	GTB-HD4K2K-444-BLK
Manufacturer Website Address	http://www.gefen.com
Brand Name	Gefen
Product Name	4x4 Matrix for HDMI with Ultra HD 4K x 2K Support
Marketing Information	Route four Ultra Hi-Def sources to four Ultra HD displays with FST, 3DTV, and 4K x 2K Ultra High-Definition support The GefenToolBox 4x4 Matrix for HDMI 4Kx2K is a compact and lightweight alternative to rack-mounted matrixes. It allows up to four Ultra High Definition 4K x 2K or 1080p Full HD sources to be routed to up to four Ultra HD displays. This product supports resolutions up to 4K x 2K (3840 x 2160@30Hz). Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby® TrueHD, and DTS-HD® Master Audio™ are also supported. Each Hi-Def source can be routed to any of the connected displays using the front panel push-button controls, the included IR remote, RS-232 serial control interface, or through IP, using Telnet, UDP, and the built-in web server interface. LED indicators on the top panel display the current routing status, FST mode, audio configuration, and EDID settings.
Packaged Quantity	1
Product Type	Audio/Video Switchbox

Technical Information

Connectivity Technology	Cable
Number of Input Devices Supported	4
Device Supported	Display TV
Number of Displays Supported	4

Video

Maximum Video Resolution	3840 × 2160
Maximum Video Bandwidth	300 MHz

Interfaces/Ports

HDMI In	Yes
HDMI Out	Yes
USB	Yes
Serial Port	Yes
Connectivity (RJ-45)	Yes
Number of Connectivity (RJ-45) Ports	1
Number of USB Ports	1
Number of HDMI Inputs	4
Number of HDMI Outputs	4

Power Description

Input Voltage	5 V DC
Power Consumption	13 W

Physical Characteristics

Product Color	Black
Height	11.9"
Width	6.9"
Depth	1"

Miscellaneous

Package Contents

4x4 Matrix for HDMI with Ultra HD 4K x 2K Support
1 x DB-9 Cable
1 x IR Remote
1 x 5V DC Power Supply
1 x AC Power Cord
1 x Quick-Start Guide
