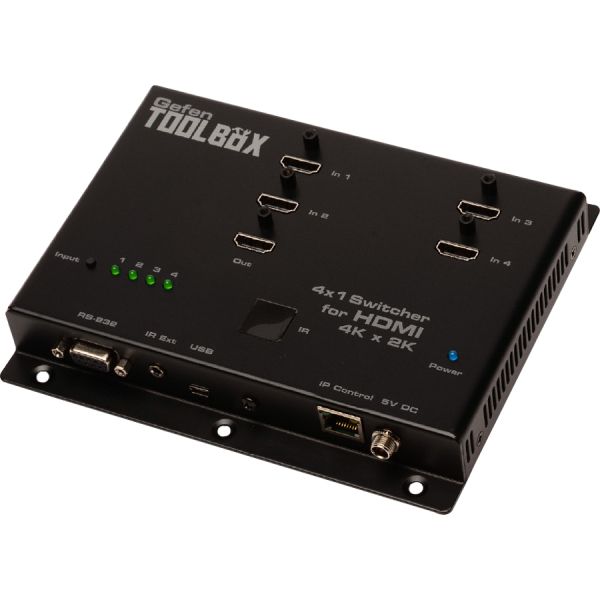

Gefen 4x1 Switcher for HDMI with Ultra HD 4K x 2K Support

Name: Gefen 4x1 Switcher for HDMI with Ultra HD 4K x 2K Support
Brand: GEFEN INC
SKU: 3190AN
Price: 428.17 USD
Availability: InStock

GEFEN INC

PCN#

3190AN

MFG#

GTB-HD4K2K-441-BLK

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$428.17

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

3840 × 2160
1080i4 x 1
TV
1 x HDMI Out

Product Condition: New and Factory Fresh

Shipping Weight: 3 lbs.

Gefen 4x1 Switcher for HDMI with Ultra HD 4K x 2K Support

Overview

Tech Specs

Specifications

Manufacturer	Gefen, Inc
Manufacturer Part Number	GTB-HD4K2K-441-BLK
Manufacturer Website Address	http://www.gefen.com
Brand Name	Gefen
Product Line	GefenToolBox
Product Name	4x1 Switcher for HDMI with Ultra HD 4K x 2K Support
Marketing Information	Switch four Hi-Def sources to one Ultra HD display with 3DTV and 4K x 2K Ultra High-Definition support The GefenToolBox 4x1 Switcher for HDMI 4Kx2K is a compact and lightweight alternative to rack-mounted matrixes. It allows up to four Ultra High Definition 4K x 2K or Full HD 1080p sources to be routed to one Ultra HD display. This product supports resolutions up to 3840 x 2160 (4K x 2K). HDCP, Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby® TrueHD, and DTS-HD® Master Audio™ are also supported. Each Hi-Def source can be switched to the display using the front panel push-button controls, the included IR remote, RS-232 serial control interface, or through IP, using Telnet, UDP, and the built-in web server interface. LED indicators on the top panel display the current switching status.
Product Type	Audio/Video Switchbox

Technical Information

Connectivity Technology	Cable
Number of Input Devices Supported	4
Device Supported	TV
Number of Displays Supported	1

Video

Maximum Video Resolution	3840 × 2160
Scan Format	1080i
Maximum Video Bandwidth	300 MHz

Interfaces/Ports

HDMI In	Yes
HDMI Out	Yes
USB	Yes
Serial Port	Yes
Connectivity (RJ-45)	Yes
Number of Connectivity (RJ-45) Ports	1
Number of USB Ports	1
Number of HDMI Inputs	4
Number of HDMI Outputs	1

Media & Performance

Media Type Supported

Twisted Pair

Power Description

Input Voltage	5 V DC
Power Consumption	13 W

Physical Characteristics

Product Color	Black
Form Factor	Surface-mountable
Height	5.8"
Width	6.9"
Depth	1"

Miscellaneous

Package Contents

4x1 Switcher for HDMI with Ultra HD 4K x 2K Support
1 x 5V DC Power Supply
1 x IR Remote Control
1 x Quick-Start Guide
