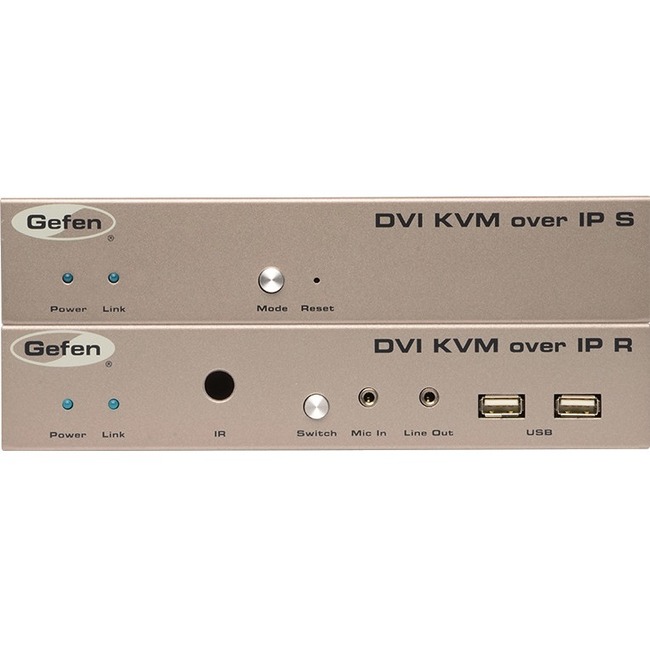

Gefen DVI KVM over IP

Name: Gefen DVI KVM over IP
Brand: GEFEN INC
SKU: 3186AN
Price: 382.57 USD
Availability: InStock

GEFEN INC

PCN#

3186AN

MFG#

EXT-DVIKVM-LANTX

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$382.57

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 Computer(s)
330 ft Range
WUXGA
1900 x 1200 Maximum Video Resolution
1 x Network (RJ
45)
1 x USB
1 x DVI
Rack
mountable
1U

Product Condition: New and Factory Fresh

Shipping Weight: 5 lbs.

Gefen DVI KVM over IP

Overview

Tech Specs

Specifications

Manufacturer	Gefen, Inc
Manufacturer Part Number	EXT-DVIKVM-LANTX
Manufacturer Website Address	http://www.gefen.com
Brand Name	Gefen
Product Name	DVI KVM over IP
Marketing Information	Extend and Distribute DVI, USB, RS-232, IR, and 2-way audio over a Local Area Network using any combination of HDMI, DVI, and VGA Senders and Receivers The DVI KVM over IP extends DVI, USB, 2-way analog audio, RS-232, and IR, over a Gigabit Local Area Network. Resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) are supported. The Gefen Video over IP products can be used as a "Virtual Matrix". When using HDCP-encrypted content, only HDMI Senders and Receiver units can accept and display the content. HDMI digital audio is also supported when using HDMI sources and displays with HDMI-to-DVI adapters. The Sender and Receiver units can be automatically or manually configured to unique IP addresses to allow the connection of multiple Senders and Receivers to the same network. Multiple Receiver units can simultaneously connect to any Sender unit within the network to create a virtual crosspoint matrix of 256 Senders and up to a theoretical limit of just over 65,000 units total, depending on the network bandwidth and number of ports on the network switch. Each Receiver unit has a built-in Ethernet switch and two additional RJ-45 Ethernet ports to allow for the connection of computers and other IP-enabled devices. USB 2.0 data rates up to 480 Mbps are supported in addition to backward-compatibility with USB 1.1. Each Receiver unit provides two USB ports with up to 500mA current draw per connector, providing access to keyboard, mouse, and other compatible devices. Bi-directional analog audio capability allows audio to be transported between the Sender and the Receiver units. The built-in mic pre-amp on the Receiver unit ensures compatibility with a variety of microphones. IR commands from the Receiver side can be extended to sources connected to any of the Senders units. RS-232 serial control can also be extended between each Sender and Receiver unit. The built-in Web server interface makes set-up and configuration simple and intuitive. The DVI KVM over IP is perfect for large scale remote workstation access and digital signage applications.
Packaged Quantity	1
Product Type	KVM Extender

Technical Information

Connectivity Technology	Wired
KVM Technology	Digital
Number of Computers Supported	1
Maximum Operating Distance	330 ft

Video

Graphic Mode	WUXGA
Maximum Video Resolution	1900 x 1200

Interfaces/Ports

Network (RJ-45)	Yes
USB	Yes
DVI	Yes
Headphone	Yes
Microphone	Yes
Number of Network (RJ-45) Ports	1
Number of USB Ports	1
Number of DVI Ports	1

Power Description

Power Consumption

10 W

Physical Characteristics

Rack Height	1U
Form Factor	Rack-mountable
Transmitter Height	1.70"
Transmitter Width	8.40"
Transmitter Depth	4.50"

Miscellaneous

Package Contents

DVI KVM over IP
1 x 6 ft. DVI Cable (M-M)
1 x 6 ft. USB Cable
1 x 6 ft. DB-9 Cable
1 x L-shaped Mounting Bracket with Screws
1 x 5V DC Power Supply
1 x Quick-Start Guide
