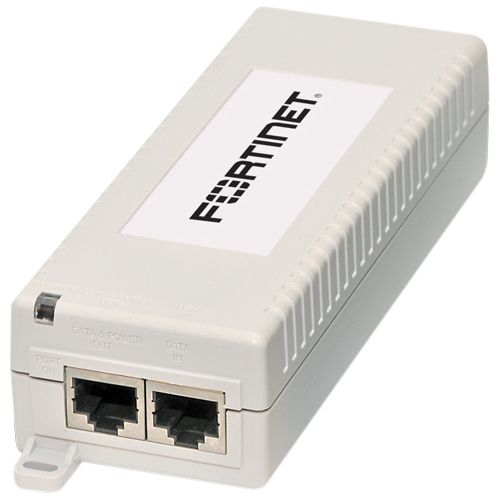

Fortinet FortiAP GPI-115 Power over Ethernet Injector

by
FORTINET
PCN#
GU8828
MFG#
GPI-115
$73.08
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 110 V AC, 220 V AC Input
  • 50 V DC Output
  • 1 x 10/100/1000Base

Show more

Product Condition: New and Factory Fresh
Limited Warranty1 Year
Shipping Weight: 1 lbs.
Fortinet FortiAP GPI-115 Power over Ethernet Injector
Tech Specs
Specifications

Manufacturer

Fortinet, Inc

Manufacturer Part Number

GPI-115

Manufacturer Website Address

http://www.fortinet.com

Brand Name

Fortinet

Product Line

FortiAP

Product Model

GPI-115

Product Name

FortiAP GPI-115 Power over Ethernet Injector

Marketing Information

The GPI-115 single port Power over Ethernet (PoE) injector offers a fully IEEE 802.3af-compliant solution for the FortiAP wireless access point family, and other 802.3af-based devices. This mid-span power injector supplies up to 15.4 Watts of Gigabit Ethernet PoE and works with legacy network devices. The GPI-115 PoE Injector uses an intelligent auto-sensing algorithm to supply power to devices that accept 802.3af PoE connections.

Product Type

PoE Injector
Power Description

Input Voltage

  • 110 V AC
  • 220 V AC

Maximum Output Voltage

50 V DC

Maximum Input Current

500 mA

Minimum Frequency

47 Hz

Maximum Frequency

63 Hz

Maximum Output Power

15.40 W
Interfaces/Ports

Input Ports

1 x 10/100/1000Base-T

Output Ports

1 x 10/100/1000Base-T
Physical Characteristics

Height

1.3"

Width

2.1"

Length

5.5"

Weight (Approximate)

7.04 oz
Miscellaneous

Compatibility

Wireless Access Points

Certifications & Standards

  • IEEE 802.3af compliant
  • CE
  • FCC Part 15, Class B
  • EN 55022 Class B
  • EN 55024
  • VCCI
  • UL/CUL Per IEC 60950-1
  • GS Mark Per IEC 60950-1

Environmentally Friendly

Yes
Warranty

Limited Warranty

1 Year
