THERMAL IMAGER 640X480 60 HZ SR 1X THERMAL IMAGER 1 X HDMI CAB

Unmatched shooting flexibility

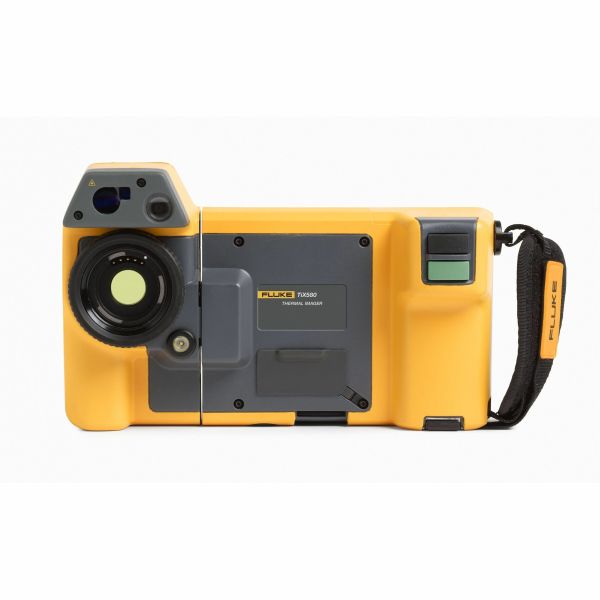

Sometimes the infrared images you need to capture are the ones that are almost impossible to take. With a full 180-degree articulating lens and 5.7 inch touchscreen, the Fluke TiX580 Infrared Camera allows thermographers to easily navigate over, under, and around objects to preview and capture images with ease. The cameras are ideal for predictive maintenance, R&D, oil and gas, and utility applications where flexibility and higher resolution are essential.

The Fluke TiX580 Infrared Camera features Fluke IR-Fusion® technology with Picture-in-Picture, full visible light, and AutoBlend™ modes for easier identification and reporting of problems. On-board advanced analytics allow users to adjust or enhance images right on the camera without additional software. Also included is Fluke SmartView® software, which provides a suite of advanced tools to view, optimize, annotate, and analyze infrared images, and generate fully customizable professional reports.

The TiX580 features a 5.7 inch responsive LCD touchscreen-the largest in its class with 150 percent more viewing area compared to a 3.5 inch screen. The large screen enables thermographers to quickly identify issues while still in the field as well as easily edit images directly on the camera, eliminating time in the office; time better spent solving the problem.

SuperResolution mode boosts resolution four times so the normal 320 x 240 (76,800 pixel) resolution of the images captured increases to 640 x 480 (307,200 pixels) revealing even greater detail to better identify problems that might have been missed with lower resolution cameras. Optional telephoto and wide-angle lenses add versatility to meet a wide variety of applications.

Out of focus images may produce inaccurate temperature measurements that can be off by as much as 20 degrees making it easy to miss potential problems. To ensure consistently in-focus images, the cameras feature LaserSharp® Auto Focus, exclusive to Fluke, which uses a built-in laser distance meter to pinpoint the target, and accurately calculate and display the distance.

• Rugged
• Dust Resistant

• Thermal Imager with Standard infrared Lens
• AC power supply and battery pack charger (including universal AC adapters)
• Two, rugged lithium ion smart battery packs
• USB cable
• HDMI video cable
• Bluetooth headset (where available)
• Rugged, hard carrying case
• Adjustable neck and hand strap
• Available by free download Fluke Connect® SmartView® desktop software and users manual

• Smartphone
• Tablet
