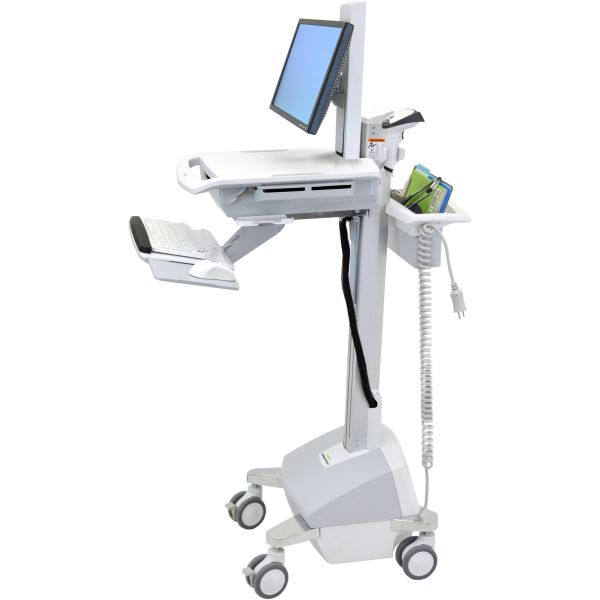

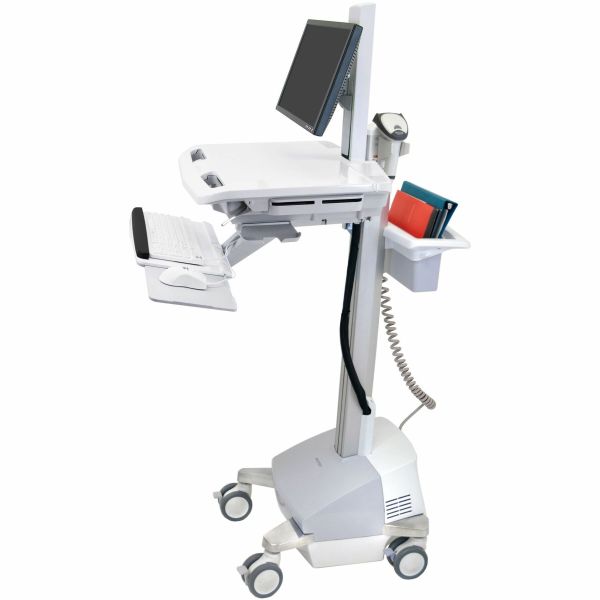

Ergotron StyleView EMR Cart with LCD Pivot, SLA Powered

Stay productive and on the go with our certified power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning and an adjustable back-tilt keyboard tray.

• Healthcare
• Notebook
• Tablet PC

• Antimicrobial
• Heavy Duty
• Lockable
• Cable Management
• Adjustable Height

• White
• Gray
• Polished Aluminum

• Aluminum
• Plastic
• Zinc Plated Steel

• StyleView EMR Cart with LCD Pivot, SLA Powered
• LCD Pivot
• Worksurface
• Secure CPU Compartment
• Four-Port USB Hub
• Scanner Holder Bracket
• Mouse Holder
• Wrist Rest

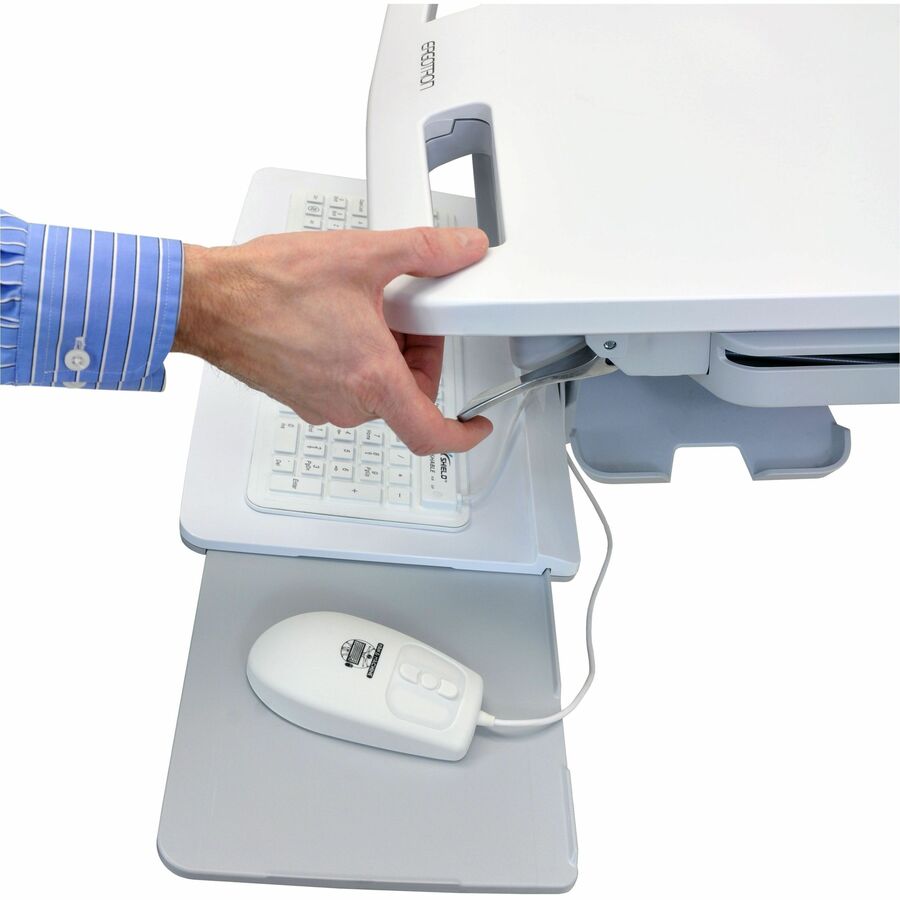

• Back-Tilt Keyboard Tray
• Left/Right Mouse Tray
• Rear Handle
• Storage Basket
• Cable Storage
• 4 x Caster
• 2 x Battery 66 Ah Power System
• 10 Foot Coiled Cord
• 3 x AC Outlet
• Power System User Interface
• StyleLink Software

• LCD: 22"
• Lift: 25"
• Tilt: 25°
• Pan: 24°
• Rotation: 90° P/L
• NEMA 5-15P Hospital Grade Grounded Plug
• Surfaces are treated with antimicrobial for product protection
• Keyboard pans fully side-to-side for closer access while interacting with clients

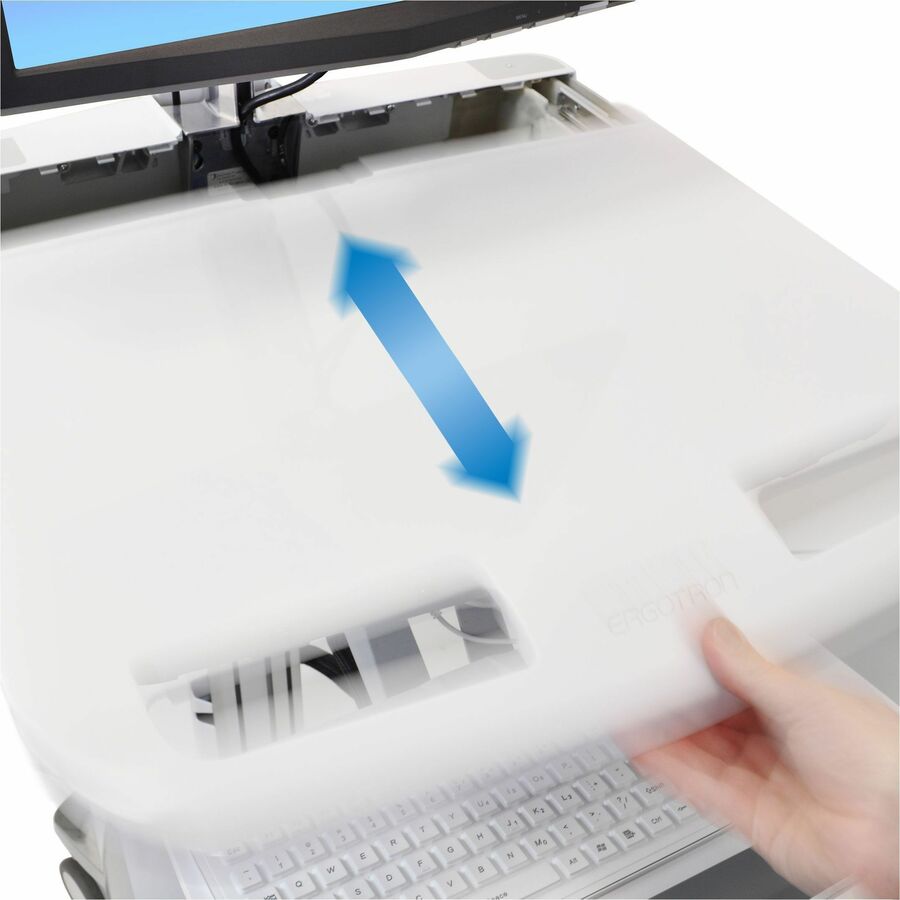

• Large smooth worksurface; easy-to-clean design promotes infection control
• Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
• Portrait screen orientation may be incompatible with widescreen displays > 19"
• Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)

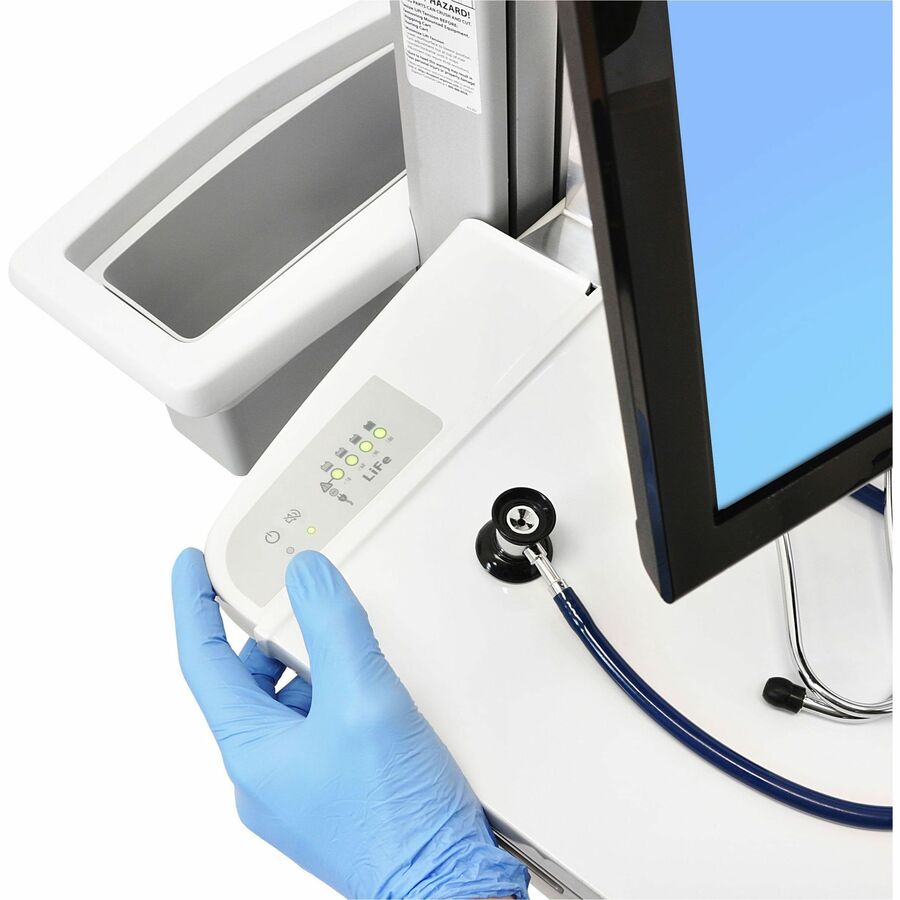

• Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
• LCD and worksurface adjust 20" (51 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)
• Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
• LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts
• Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits

VESA:

• 75 x 75mm
• 100 x 100mm

• RoHS
• REACH
• WEEE
