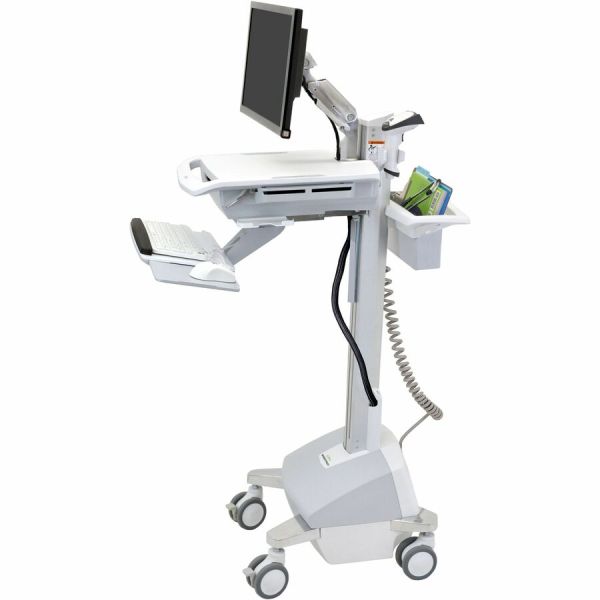

Ergotron StyleView EMR Cart with LCD Arm, LiFe Powered

Stay productive and on the go with our LiFe power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning and an adjustable back-tilt keyboard tray.

• Healthcare
• Tablet PC
• Notebook

• Locking Casters
• Antimicrobial
• Lockable
• Cable Management
• Adjustable Height
• Electrical Outlet
• Durable
• Keyboard Tray

• White
• Gray
• Polished Aluminum

• Aluminum
• Plastic
• Zinc Plated Steel

• StyleView EMR Cart with LCD Arm, LiFe Powered
• LCD Arm

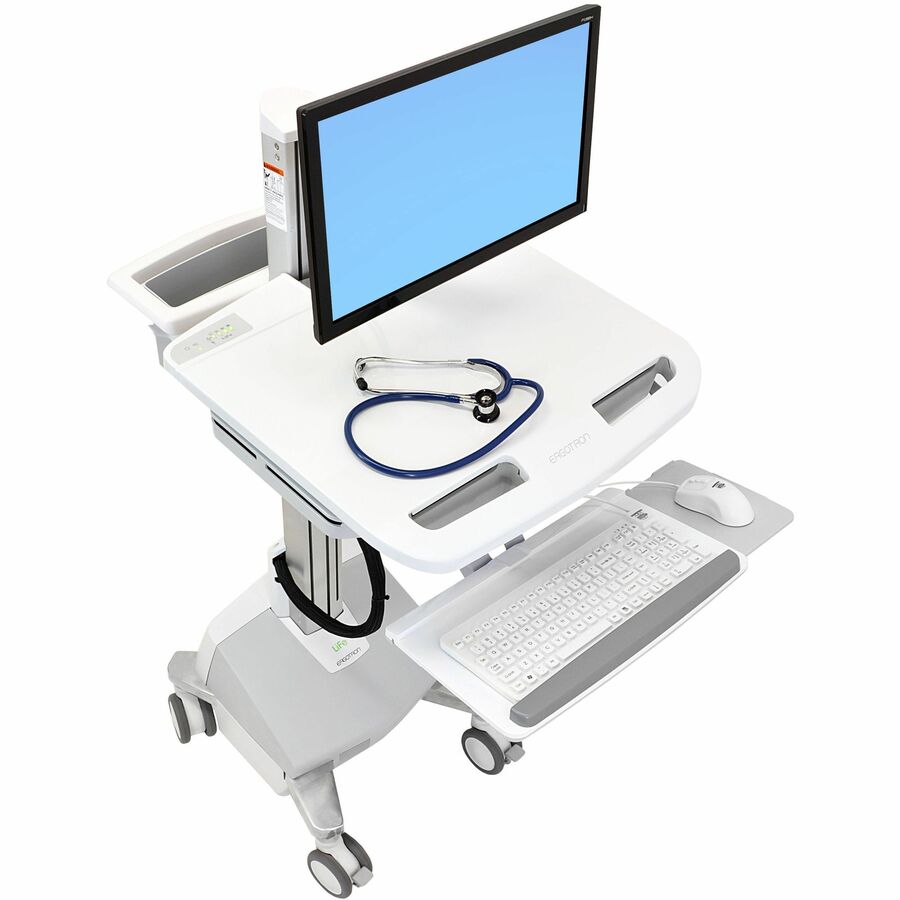

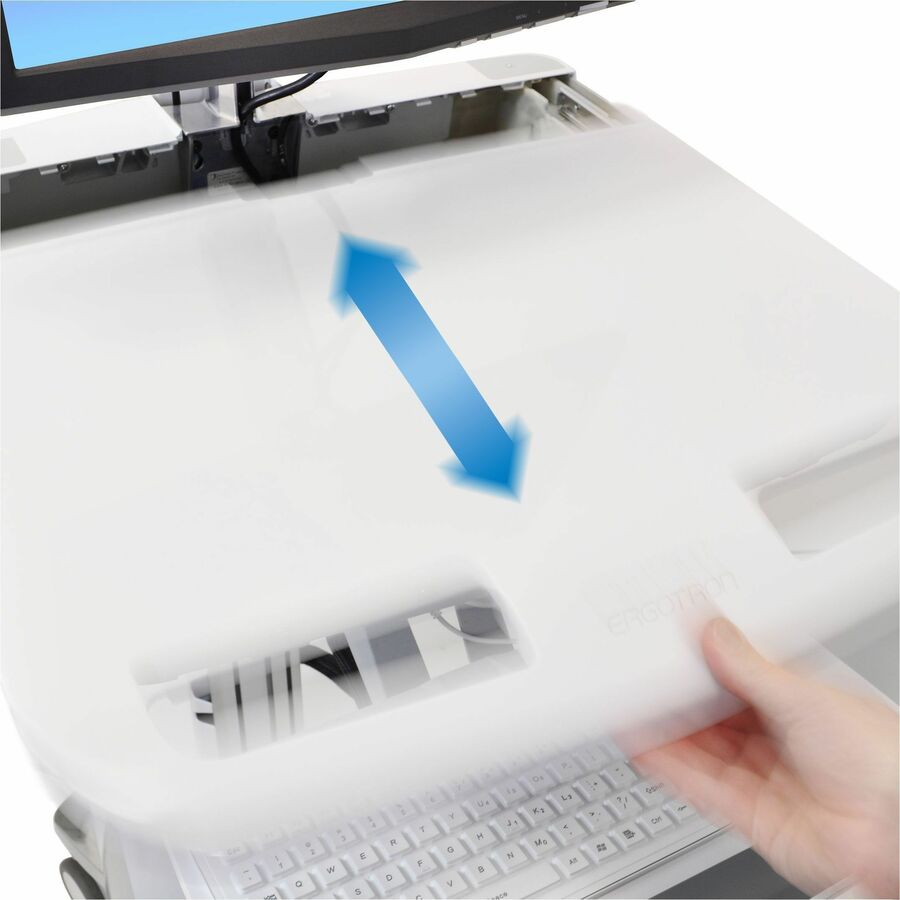

• Worksurface
• Secure CPU Compartment
• Four-Port USB Hub

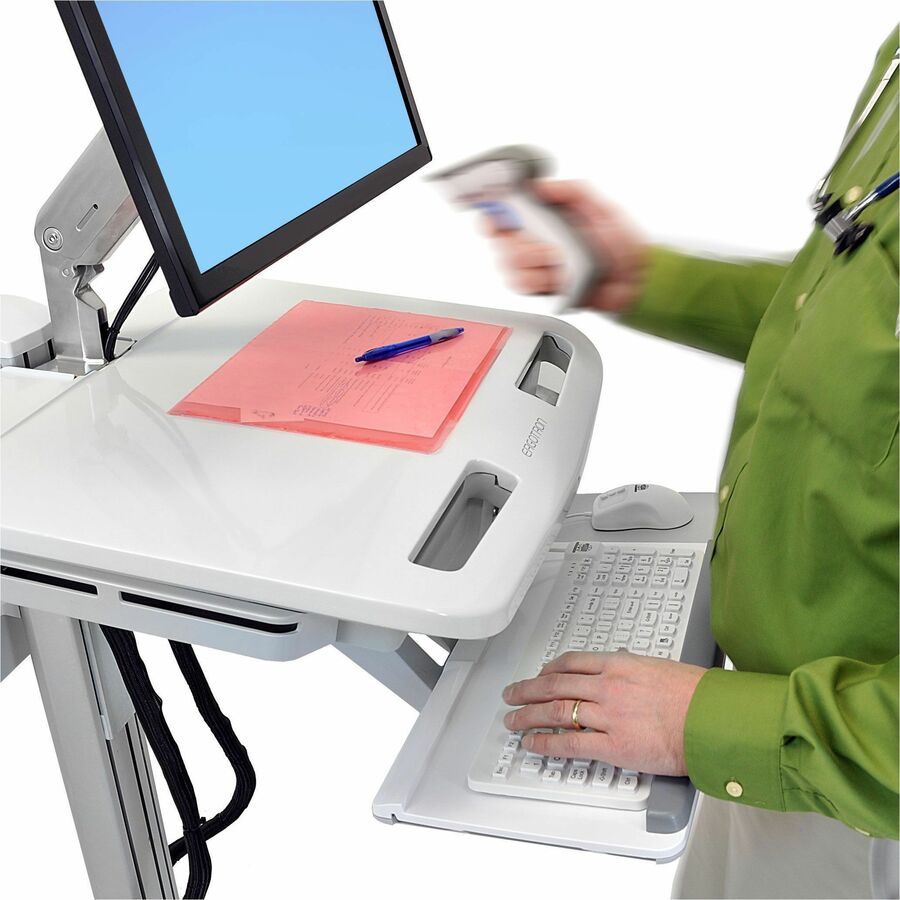

• Scanner Holder Bracket
• Mouse Holder
• Wrist Rest
• Back-Tilt Keyboard Tray
• Left/Right Mouse Tray
• Rear Handle
• Storage Basket
• Cable Storage
• 4 x Casters (Two Locking)
• Single-Battery 40 Ah LiFe Power System

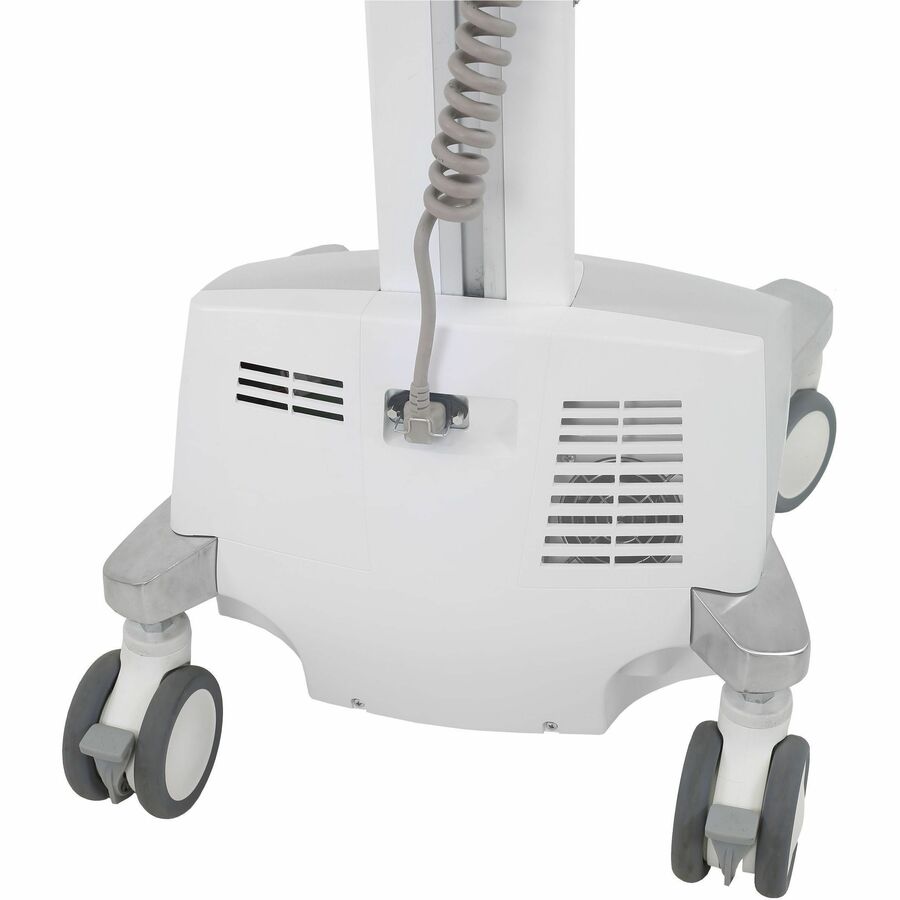

• 10-Foot Coiled Cord
• 3 x AC Outlets

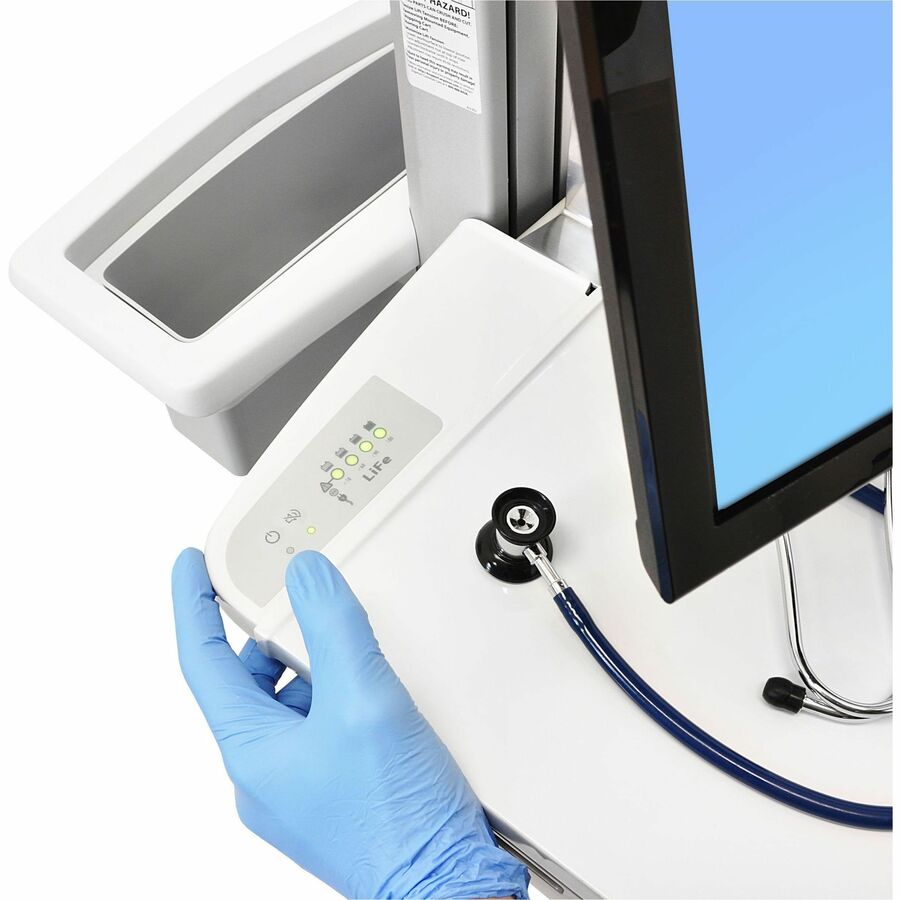

• Power System User Interface
• StyleLink Software

• LCD: 22"
• Lift: 27"
• Tilt: 65°
• Pan: 180°
• Rotation: 360°
• NEMA 5-15P Hospital Grade Grounded Plug
• Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
• Button for LED lights is located conveniently on worksurface
• Portrait screen orientation may be incompatible with widescreen displays > 19"
• Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17"
• LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts
• Surfaces are treated with antimicrobial for product protection
• Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

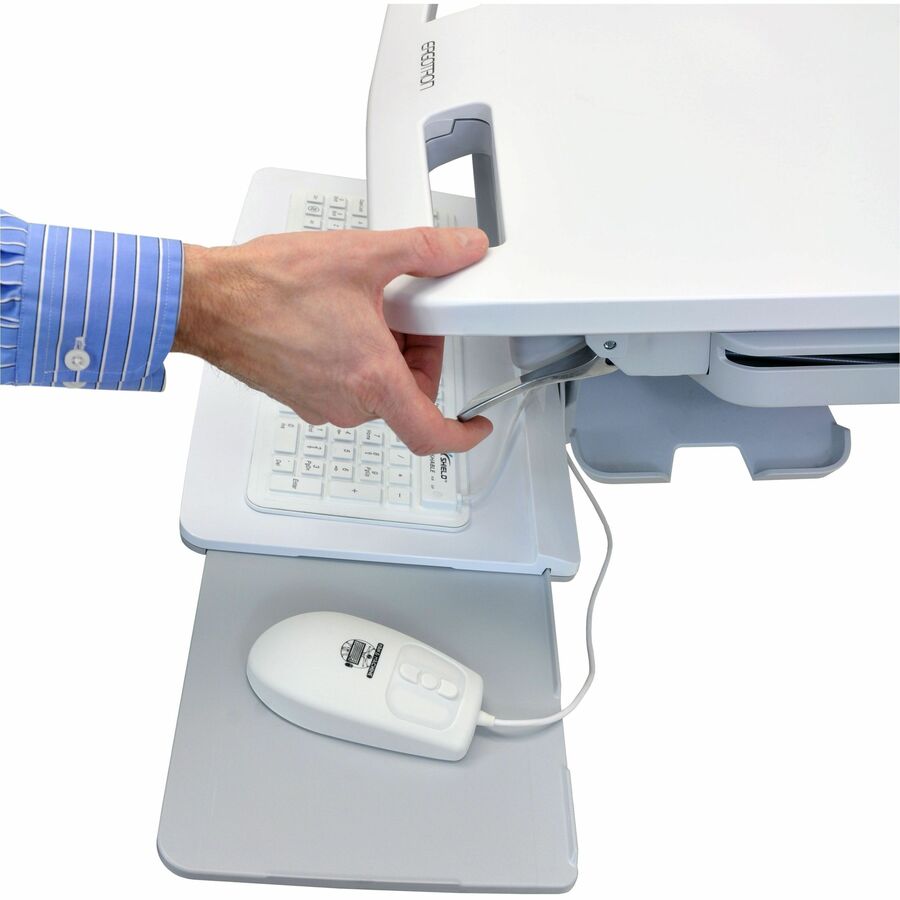

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry-avoid repetitive-stress injuries while increasing comfort and productivity

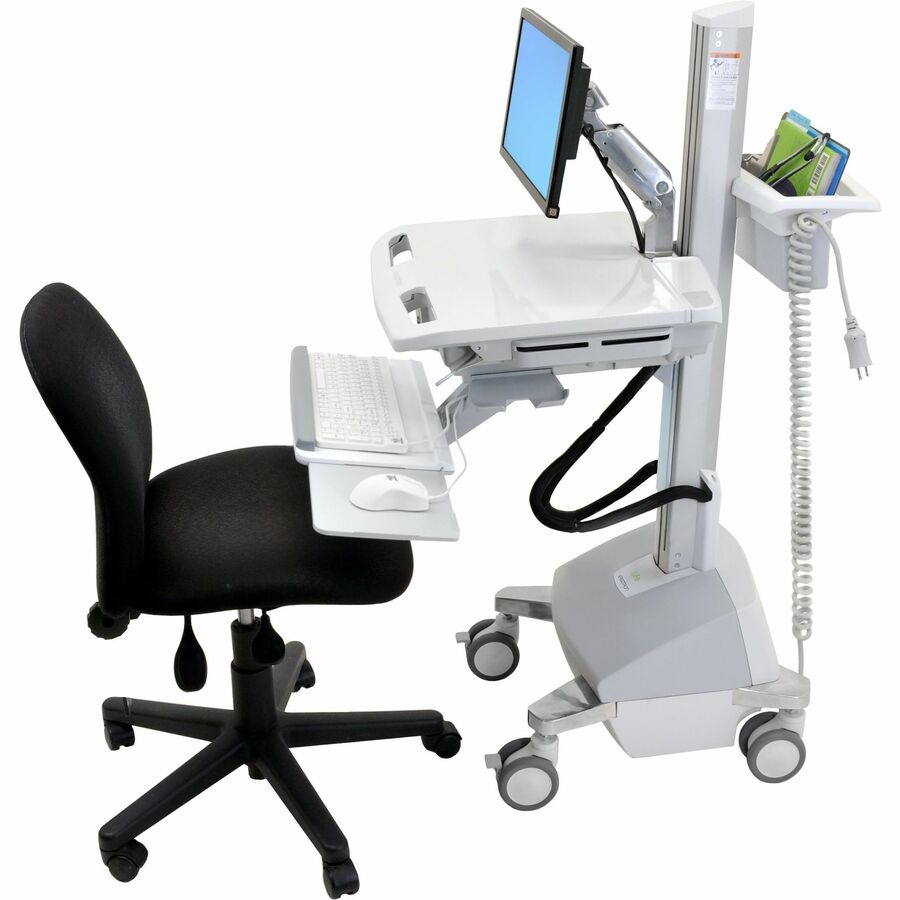

• Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
• LCD and keyboard pan side-to-side for closer access while interacting with clients; arm also reaches low for people wearing bifocals or using a tablet PC
• For patient and caregiver safety the LiFe power module is fully certified to UL 60601-1; FULL power system and cart-level certification is in progress. Complies with EMI limits of FCC Part 15 Class A
• LCD and worksurface adjust 20" in tandem; LCD Arm adjusts 7" independently; maximum LCD height adjustment= 27"

VESA:

• 75 x 75mm
• 100 x 100mm

• RoHS
• REACH
• WEEE
