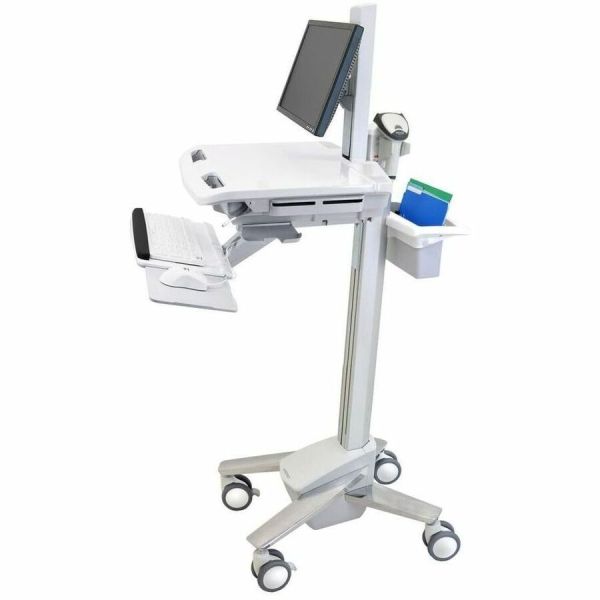

Ergotron StyleView Cart with LCD Pivot

This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning, side-to-side keyboard motion and an adjustable back-tilt keyboard tray.

Our years of experience and collaboration in point-of-care computing have enabled us to design a cart that nurses, IT, infection control and procurement will all love!

• Antimicrobial
• Lockable
• Locking Casters
• Cable Management
• Adjustable Height
• Electrical Outlet
• Non Powered

• White
• Gray
• Polished Aluminum

• Aluminum
• Plastic
• Zinc Plated Steel

• StyleView EMR Cart with LCD Pivot
• LCD Pivot
• Worksurface
• Secure CPU Compartment
• Four-Port USB Hub

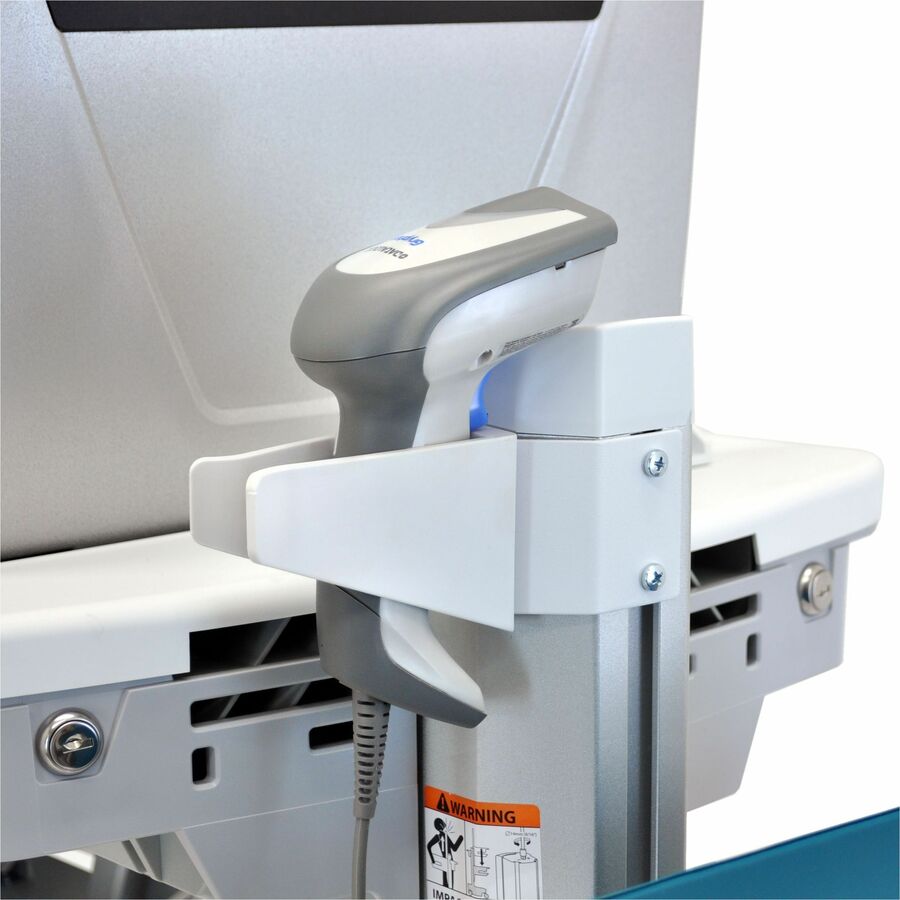

• Scanner Holder Bracket
• Mouse Holder
• Wrist Rest
• Back-Tilt Keyboard Tray
• Left/Right Mouse Tray
• Rear Handle

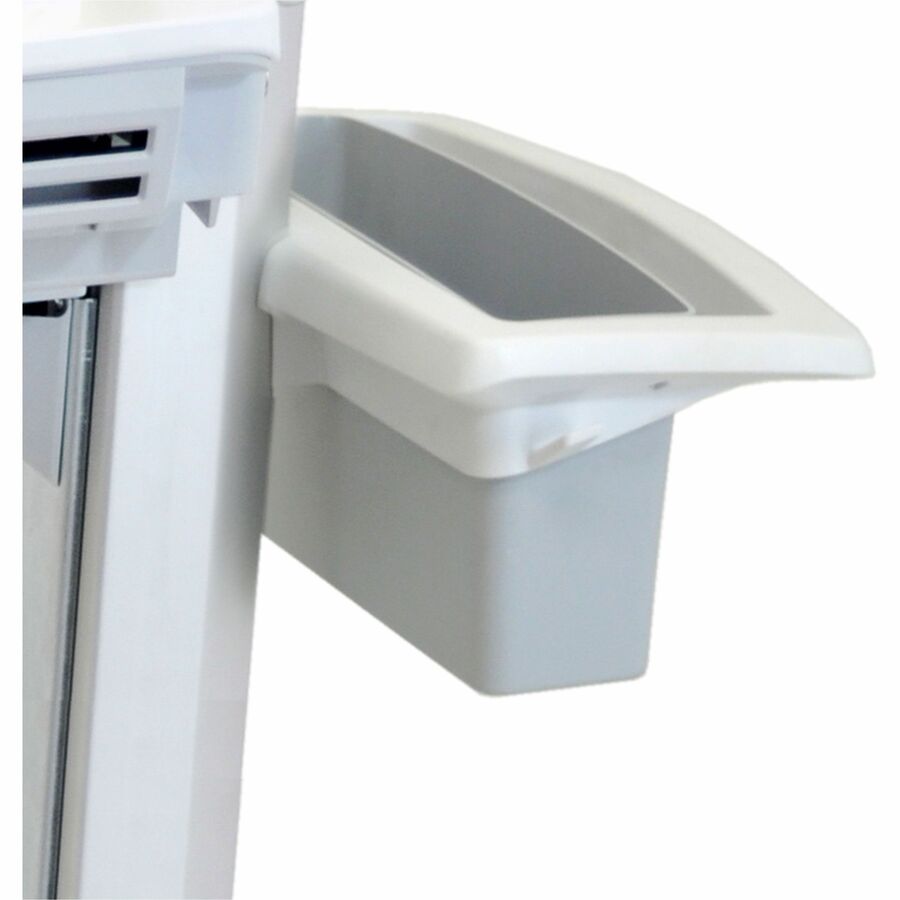

• Storage Basket
• Cable Storage
• 4 x Caster

• LCD: 22"
• Lift: 25"
• Tilt: 25°
• Pan: 24°
• Rotation: 90°
• Compact Wheel-to-Wheel Base Dimensions: 17" x 21"
• Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety
• Surfaces are treated with antimicrobial for product protection
• Keyboard pans fully side-to-side for closer access while interacting with clients
• Portrait screen orientation may be incompatible with widescreen displays > 19"
• LCD and worksurface adjust 20" (51 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)
• Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

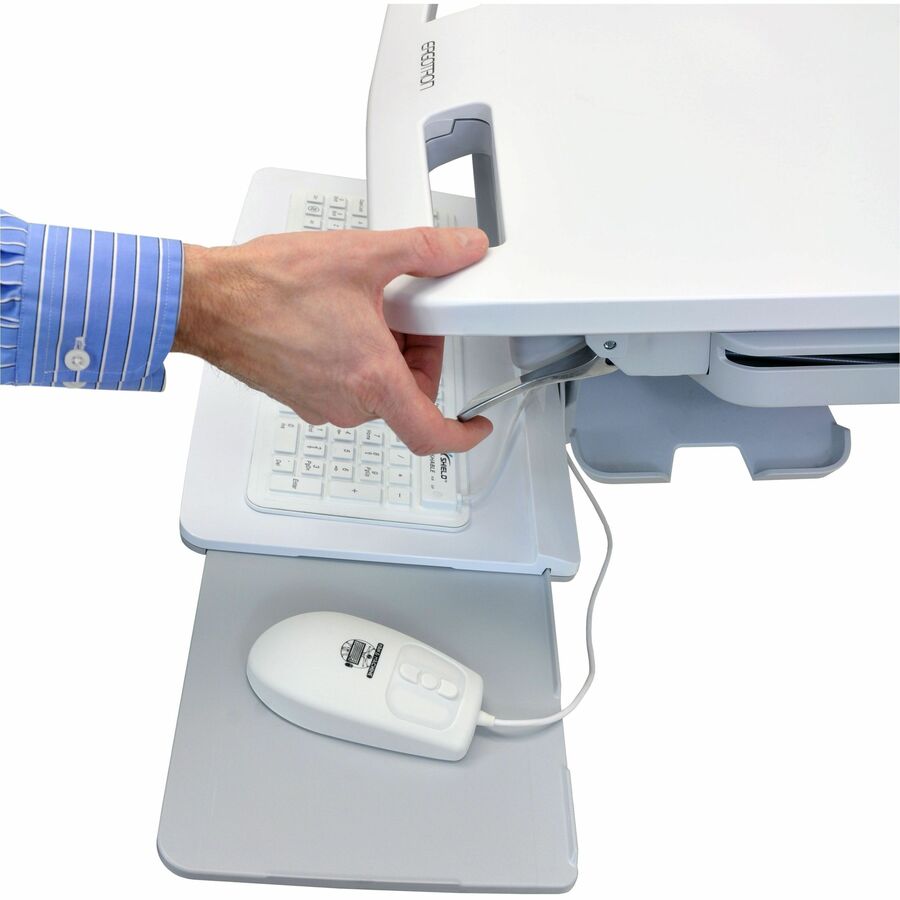

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry-avoid repetitive-stress injuries while increasing comfort and productivity
• Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
• LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts
• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

VESA:

• 75 x 75mm
• 100 x 100mm

• RoHS
• REACH
• WEEE
