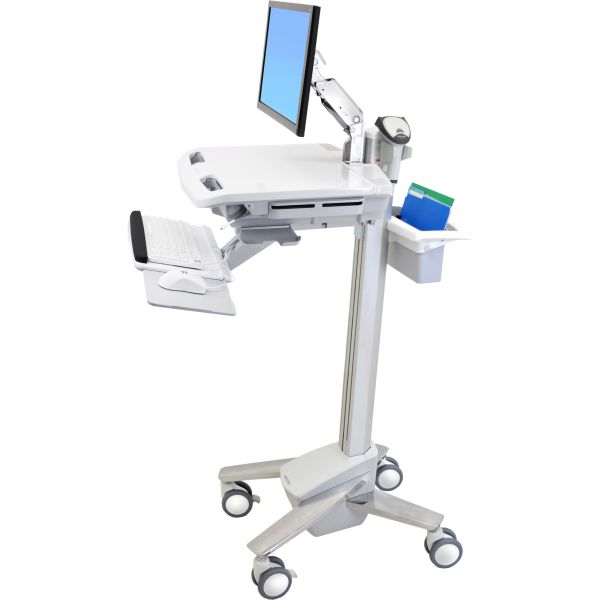

Ergotron StyleView EMR Cart with LCD Arm

This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, side-to-side LCD and keyboard motion, bi-focal viewing and an adjustable back-tilt keyboard tray.

Our years of experience and collaboration in point-of-care computing have enabled us to design a cart that nurses, IT, infection control and procurement will all love!

• Non Powered
• Antimicrobial
• Lockable
• Cable Management
• Adjustable Height

• White
• Gray
• Polished Aluminum

• Aluminum
• Plastic
• Zinc Plated Steel

• StyleView EMR Cart with LCD Arm
• LCD Arm
• Worksurface
• Secure CPU Compartment
• Four-Port USB Hub

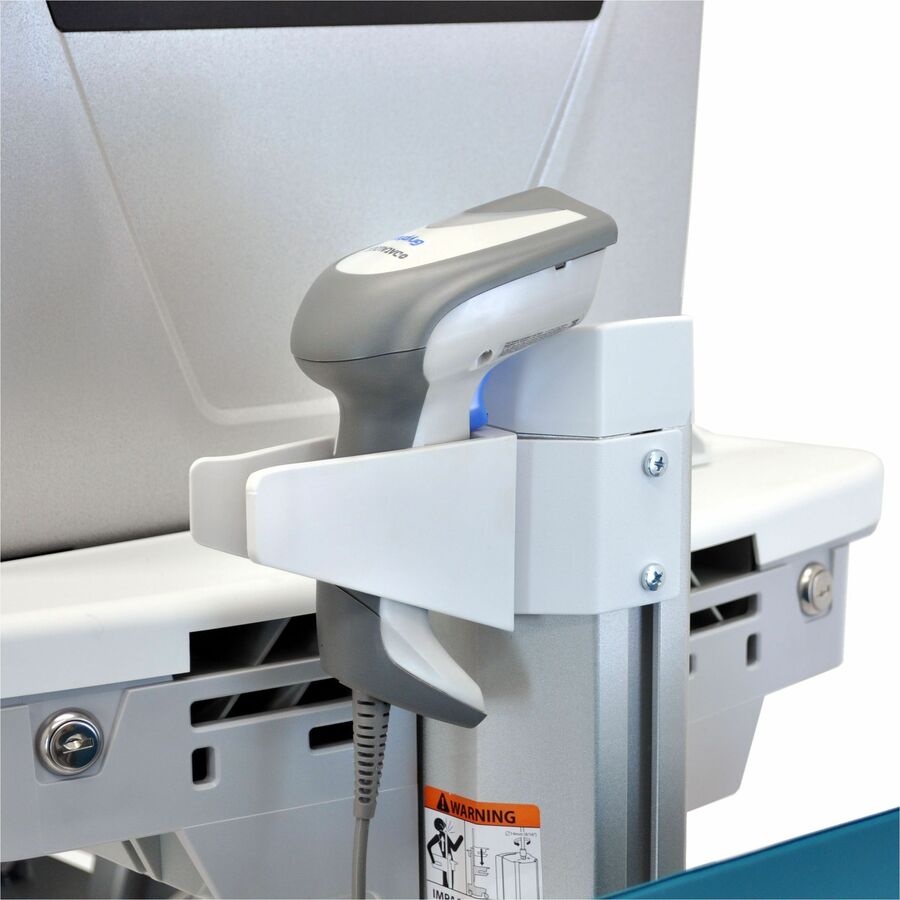

• Scanner Holder Bracket
• Mouse Holder
• Wrist Rest

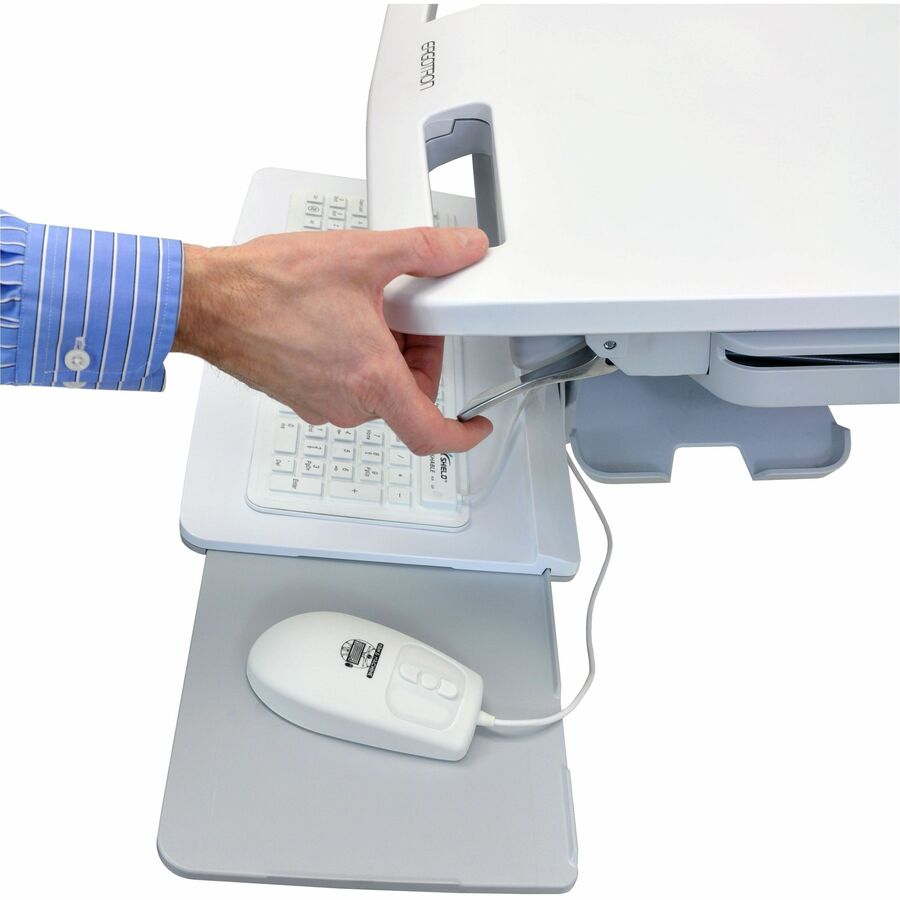

• Back-Tilt Keyboard Tray
• Left/Right Mouse Tray
• Rear Handle
• Storage Basket
• Cable Storage
• 4 x Caster

• LCD: 22"
• Lift: 27"
• Tilt: 65°
• Pan: 180°
• Rotation: 360° P/L
• Monitor up/down tilt = +60°/-5°
• ?Large, smooth worksurface; easy-to-clean design promotes infection control

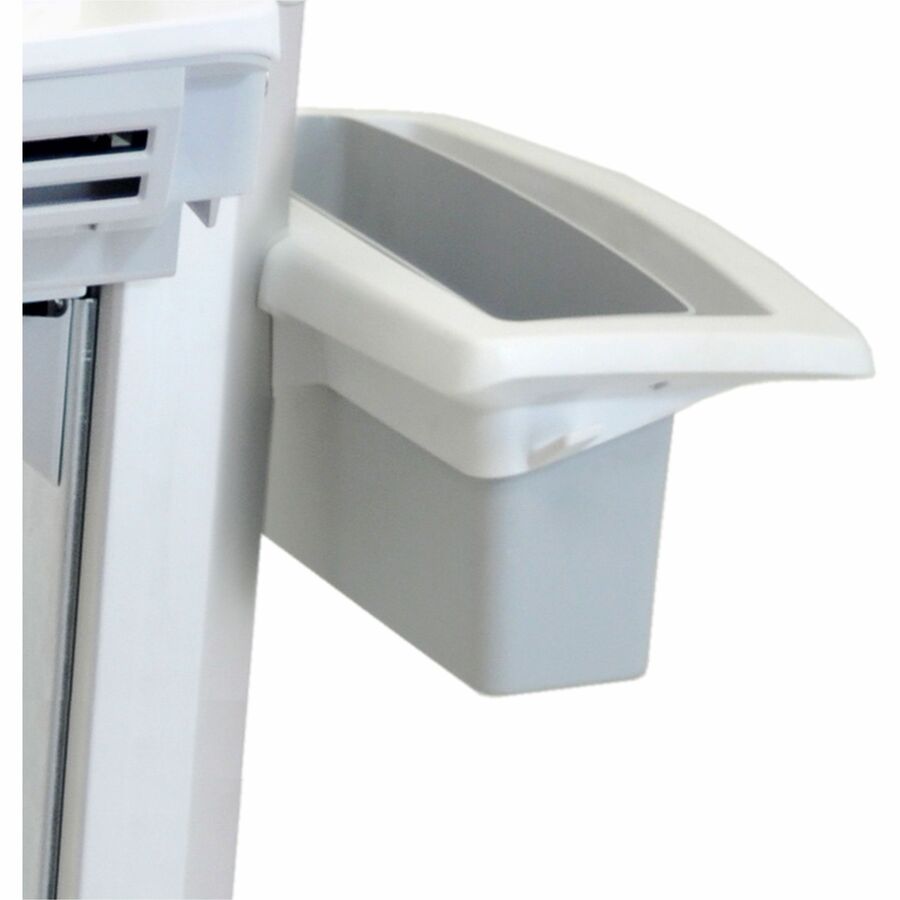

• Rear basket keeps task-related items where they can be quickly accessed
• Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)
• Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety
• Arm adjusts screen down low to the worksurface for people wearing bifocals or using a tablet PC
• Portrait screen orientation may be incompatible with widescreen displays > 19"
• Surfaces are treated with antimicrobial for product protection
• LCD and worksurface adjust 20" (51 cm) in tandem; LCD Arm adjusts 7" (17.8 cm) independently; maximum LCD height adjustment = 27" (68.6 cm)

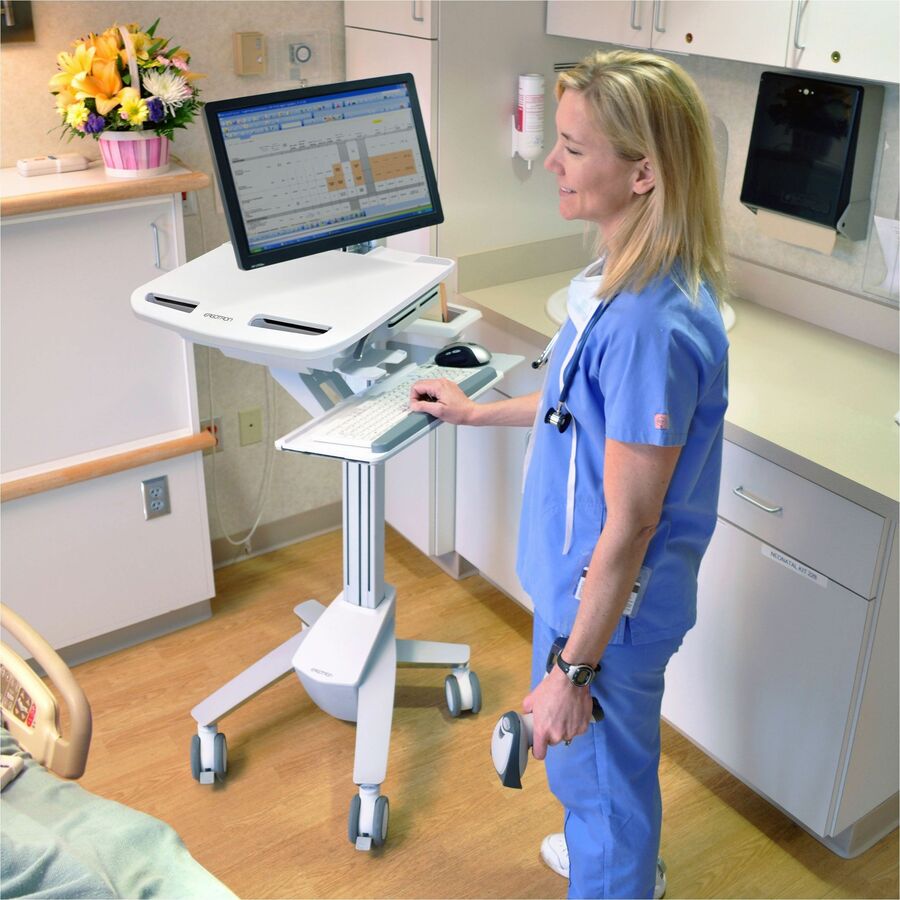

• Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment-helps promote caregiver wellness and productivity
• StyleView's small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
• Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
• Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft

VESA:

• 75 x 75mm
• 100 x 100mm

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)
