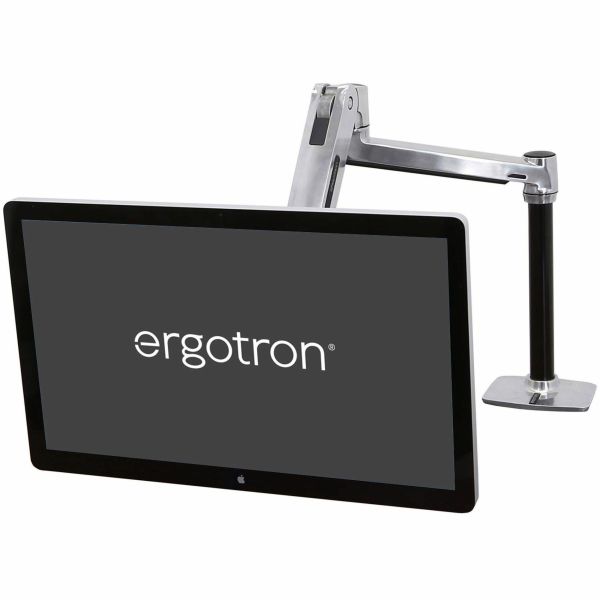

Ergotron Desk Mount for Flat Panel Display - Polished Aluminum

by
ERGOTRON
PCN#
TQ4408
MFG#
45-360-026
$408.00
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Height Adjustable
  • 43" Screen Support
  • 25 lb Load Capacity

Show more

Product Condition: New and Factory Fresh
Limited Warranty10 Year
Shipping Weight: 20 lbs.
Ergotron Mounting Arm for Display Screen, Digital Signage Display, LCD Display, Monitor, All-in-One Computer, TV - Polished Aluminum
Tech Specs
Specifications

Manufacturer

Ergotron, Inc

Manufacturer Part Number

45-360-026

Manufacturer Website Address

http://www.ergotron.com

Brand Name

Ergotron

Product Series

LX

Product Name

LX Sit-Stand Desk Arm

Marketing Information

Work at your best sitting or standing with the LX Sit-Stand Desk Arm. Easily place a screen where you need it for each project, and then reclaim more work area by folding the arm and pushing it aside during a screen break. Integrated cable management tucks cords under the arm and out of sight. Keep your technology on lock with anchor holes in the base.

Product Type

Mounting Arm
Product Information

Device Supported

  • Display Screen
  • Digital Signage Display
  • LCD Display
  • Monitor
  • All-in-One Computer
  • TV

Minimum Load Capacity

7 lb

Maximum Load Capacity

25 lb

Maximum Screen Size Supported

43"

Features

  • Foldable
  • Tilt
  • Pan
  • Rotate
  • Lift Mechanism
  • Adjustable
  • Theft Resistant
  • Cable Management
  • Foldable Arms
  • Compact
  • Retractable
  • Ergonomic
  • Extendable
  • Grommet

Height Adjustable

Yes

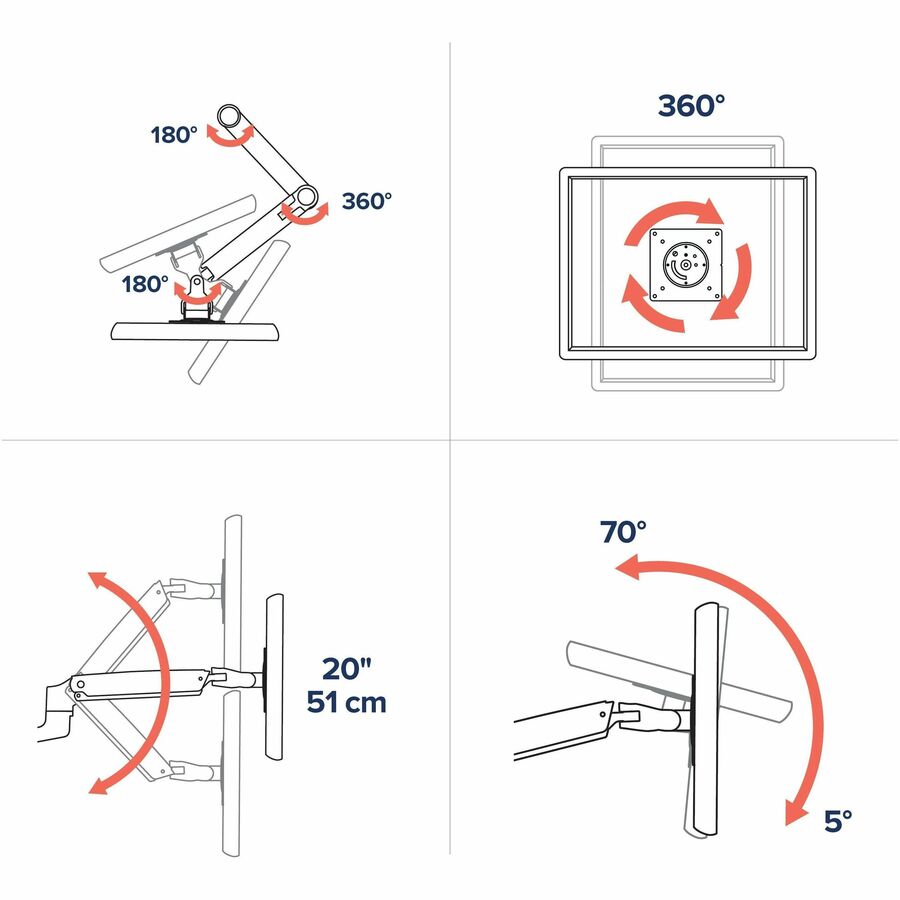

Minimum Tilt Angle

-5°

Maximum Tilt Angle

70°

Maximum Rotate Angle

360°

Maximum Pan Angle

360°

Mount Function

  • Tilt
  • Pan
  • Rotate
  • Adjustable
  • Cable Management
  • Extendable

Mount Surface

Desk

Durability

Theft Resistant
Physical Characteristics

Color Family

Gray

Product Color

Polished Aluminum

VESA Mount Compatible

Yes

Mounting Pattern

  • 100 x 100
  • 75 x 75
  • 200 x 100
  • 200 x 200
  • 400 x 200
  • 400 x 300
  • 400 x 400

Form Factor

Desk

Weight (Approximate)

17.70 lb
Miscellaneous

Package Contents

  • Sit-Stand Arm
  • Extension
  • Desk Clamp Base

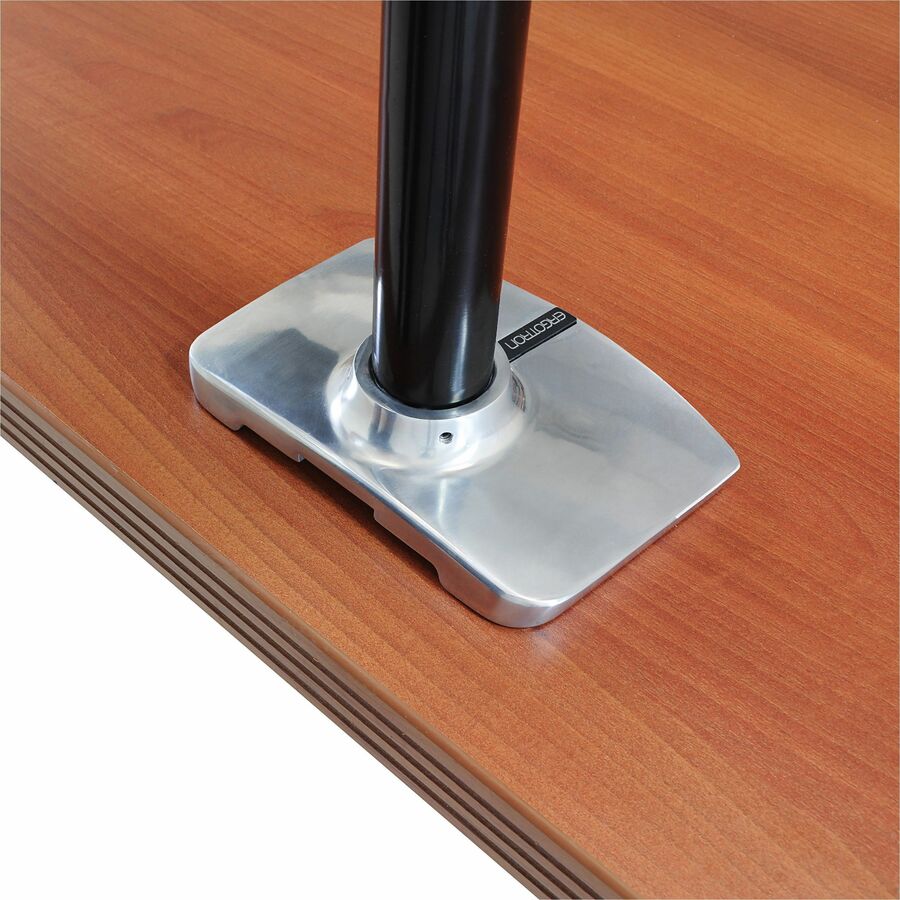

  • Grommet-Mount Base
  • 48 cm Pole
  • VESA Brackets
  • Attachment Hardware

Application/Usage

  • Work Area
  • Workspace
  • Desk

Additional Information

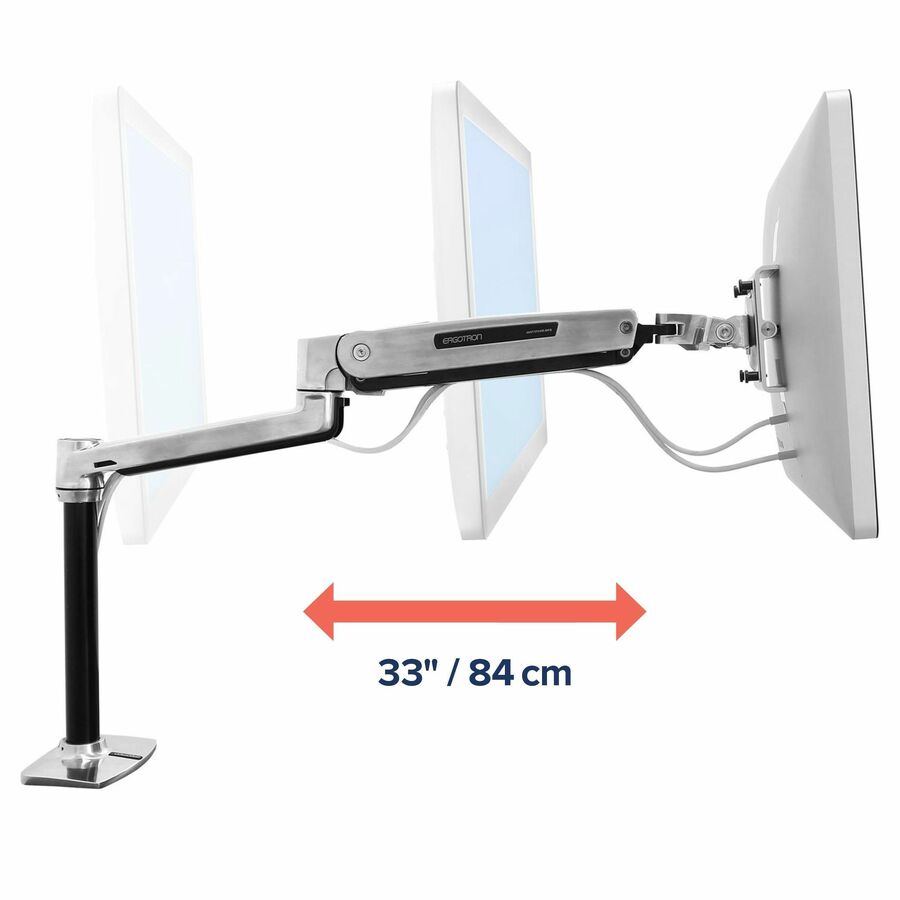

  • Extends LCD up to 33" (84 cm)
    Folds to within 4.5" (12 cm) of back of desk in storage position
  • 20-inch (51 cm) height range allows users to move between sitting and standing positions while they interact with the display

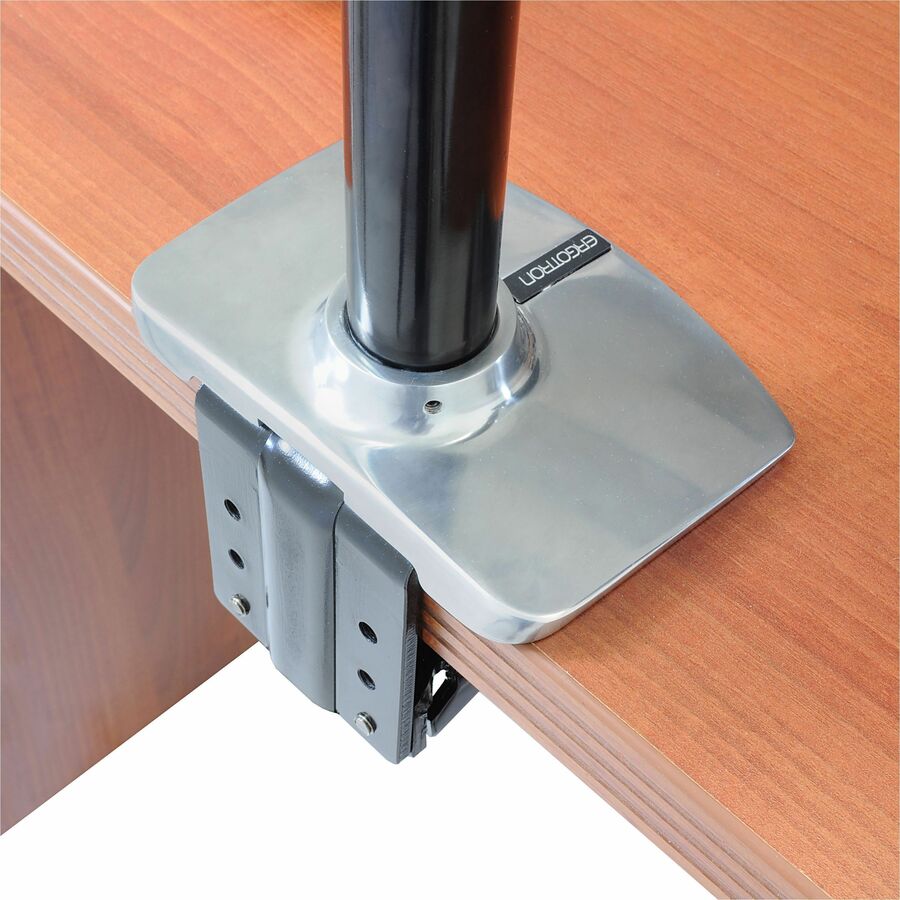

  • Secure installation, locking connections between arm, extension and baseDesk clamp attaches to edge up to 2.5" (65 mm) thick
  • Grommet mount attaches through hole 0.5" to 2.5" (7-65 mm) wide and up to 2.5" (65 mm) thick

Certifications & Standards

  • BIFMA LEVEL 2 Certified
  • Clean Air GOLD Certified
  • ANSI/BIFMA Certified

Environmental Compliance

  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

10 Year
