Ergotron StyleView Multi Component Mount for Keyboard, Flat Panel Display, Mouse

Durable polished aluminum construction! Also features a work surface with pull-out keyboard tray, which facilitates caregiver work flow.

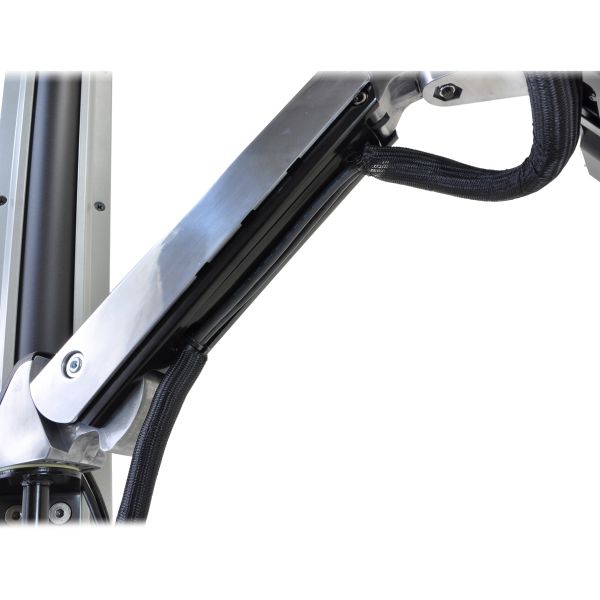

Holds a monitor, bar-code scanner, keyboard, wrist rest and mouse on the same arm, providing easy, single-motion height adjustment. Work sitting or standing with the arm's ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.

• Keyboard
• Flat Panel Display
• Mouse

• Tilt
• Swivel

• 75 x 75
• 100 x 100

• Aluminum
• Plastic

• Combo Arm
• Wall Mount Bracket
• Track Mount Bracket Kit
• Height Adjustable LCD Mount
• Wrist Rest
• Scanner and Mouse Holder
• Worksurface with Integrated Keyboard Tray
• VESA Monitor Mounting Kit
• Cable Tie
• Mounting Hardware

• Weight Capacity - Display = 6-18 lbs
• Weight Capacity - Worksurface = 10 lbs
• Weight Capacity - Keyboard, mouse and barcode scanner = 4 lbs
• Easy-to-clean features promote superior infection control
• Barcode scanner holder provides easy access to hand-held scanner
• Extend LCD and keyboard up to 43" from wall
• Clean, concealed and neat routing of cables through the expansive cable management system
• LCD and keyboard adjusts 20" in tandem with single-motion
• LCD adjusts 5" independently
• Maximum LCD height adjustment = 25"
• Monitor up/down tilt = +25°/-5°

VESA:

• FDMI
• MIS-D
• C (hole patterns = 100 x 100 mm and 75 x 75 mm)
