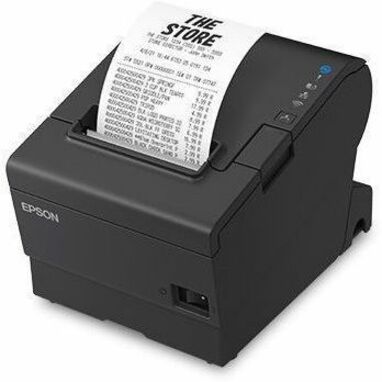

Epson OmniLink TM-T88VII Desktop Direct Thermal Printer - Monochrome - Receipt Print - Ethernet - USB - USB Host - Parallel - With Cutter - Black - 19.69 in/s Mono - 180 dpi - ePOS, ESC/POS, XML Emulation - For PC, SPARC, Android

by
EPSON
PCN#
07WL94
MFG#
C31CJ57022
$332.87
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 19.69 in/s Mono
  • 180 dpi
  • ePOS, ESC/POS, XML Emulation

Show more

Product Condition: New and Factory Fresh
Limited Warranty4 Year
Shipping Weight: 1 lbs.
Epson OmniLink TM-T88VII Desktop Direct Thermal Printer - Monochrome - Receipt Print - Ethernet - USB - USB Host - Parallel - With Cutter - Black - 19.69 in/s Mono - 180 dpi - ePOS, ESC/POS, XML Emulation - For PC, SPARC, Android, iOS
Tech Specs
Specifications

Manufacturer

Epson Corporation

Manufacturer Part Number

C31CJ57022

Manufacturer Website Address

http://www.epson.com

Brand Name

Epson

Product Line

OmniLink

Product Model

TM-T88VII

Product Name

OmniLink TM-T88VII Single-station Thermal Receipt Printer

Marketing Information

The fastest POS receipt printer with advanced connectivity and online ordering capability.

When it comes to completing customer transactions and keeping lines moving, merchants feel the need for speed. As the fastest receipt printer in the industry, Epson's new OmniLink® TM-T88VII delivers. With lightning fast print speeds up to 500 mm/sec, the TM-T88VII helps merchants deliver the best customer experience in virtually every environment, especially high-volume ones like hospitality, retail, grocery, banking and more. With a long printhead and auto cutter life plus a 4-year limited warranty, the TM-T88VII has reliability you can count on. The OmniLink TM-T88VII can be dynamically shared with PC-POS terminals, mobile devices and cloud servers at the same time, and, with built-in Ethernet and USB, along with options including serial, parallel, powered USB and Wi-Fi®, it has the flexibility to connect to almost any system. You can also print from web-based applications using Epson's ePOS™ Print Technology or utilize Server Direct Print technology for online ordering. All this can be done securely since the TM-T88VII supports the latest WPA3 Wi-Fi security standard. Another highlight is a simple setup tool, including support to easily swap from prior T88s using the Epson TM Utility. There's also a paper-saving option and-with vertical mounting choices-flexible configuration. All in an easy to clean enclosure. The full-featured OmniLink TM-T88VII. It's more than just good for merchants and customers. It's good for business.

Product Type

Direct Thermal Printer
Technical Information

Recommended Use

Receipt Print

Print Color Capability

Monochrome

Maximum Mono Print Speed

19.69 in/s

Maximum Print Resolution (dpi)

180

Barcode Symbology Supported

  • UPC-A
  • UPC-E
  • EAN/JAN-8
  • EAN/JAN-13
  • Code 39
  • Code 93
  • Code 128
  • ITF
  • Codabar (NW-7)
  • GS1-128
  • GS1 DataBar
  • Maxi Code
  • Data Matrix
  • Aztec Code
  • Composite Symbology

Application/Usage

Desktop

Features

  • Water Resistant
  • Auto-cutter

Mean Time Between Failures (MTBF)

41.1 Year

Mean Cycles Between Failures (MCBF)

70000000

Character Sets

  • 95 Alphanumeric
  • 18 International
  • 128 x 43 Graphic

Print Head Life

200km

Column Capacity

Font A/B (ANK): 80mm mode 42/48/56 columns, 58mm mode: 30/36/40 columns, Kanji Font A/B: 80mm mode: 21/24/32 columns, 58mm mode: 15/18/22 columns

Optional Connectivity

  • Wireless LAN
  • Near Field Communication (NFC)

Fonts Included

  • Font A (default): 12 x 24 (including 2-dot horizontal spacing); 10 x 24 (including 1-dot horizontal spacing)
  • Font B: 9 x 17 (including 2-dot horizontal spacing)
  • Kanji Font A: 24 x 24 (including 0-dot horizontal spacing); 20 x 24 (including 2-dot horizontal spacing)
  • Kanji Font B: 16 x 16 (including 0-dot horizontal spacing)

Print Technology

Direct Thermal
Interfaces/Ports

Parallel Port

Yes

USB Host

Yes

USB

Yes
Network & Communication

Ethernet

Yes

Ethernet Technology

Fast Ethernet
Cutter

Cutter

Yes

Cutting Method

Automatic

Cutter Life

3000000 Cuts
Media Types & Handling

Media Type

  • Receipt
  • Roll Paper

Media Sensor

  • Paper Near End Sensor
  • Paper End Sensor
  • Cover Open Sensor

Media Thickness

3.15 mil

Maximum Roll Diameter

3.27"
Fonts & Emulation

Language Emulation

  • ePOS
  • ESC/POS
  • XML
Software

Operating System Supported

Microsoft® Windows (APD, OPOS, OPOS for .NET, JavaPOS) Microsoft Windows 8.1/iOS/Android (ePOS-Print SDK) Mac® OS X® Linux (CUPS, JavaPOS)
Power Description

Power Source

Power Adapter
Physical Characteristics

Color Family

Black

Product Color

Black

Height

5.8"

Width

5.7"

Depth

7.7"

Weight (Approximate)

3.74 lb
Miscellaneous

Package Contents

  • OmniLink TM-T88VII Printer
  • Thermal Roll Paper (starter roll for testing)
  • Power Switch Cover
  • Connector Cover
  • Bottom Cover for Connector Cover
  • Roll Paper Guide
  • Screws
  • Setup Guide
  • AC Adapter w/ AC Cord
  • CD (drivers, utilities and documentation)

Cables Included

AC

Power Adapter Included

Yes

Platform Supported

  • PC
  • SPARC
  • Android
  • iOS

Energy Star

Yes

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

4 Year
