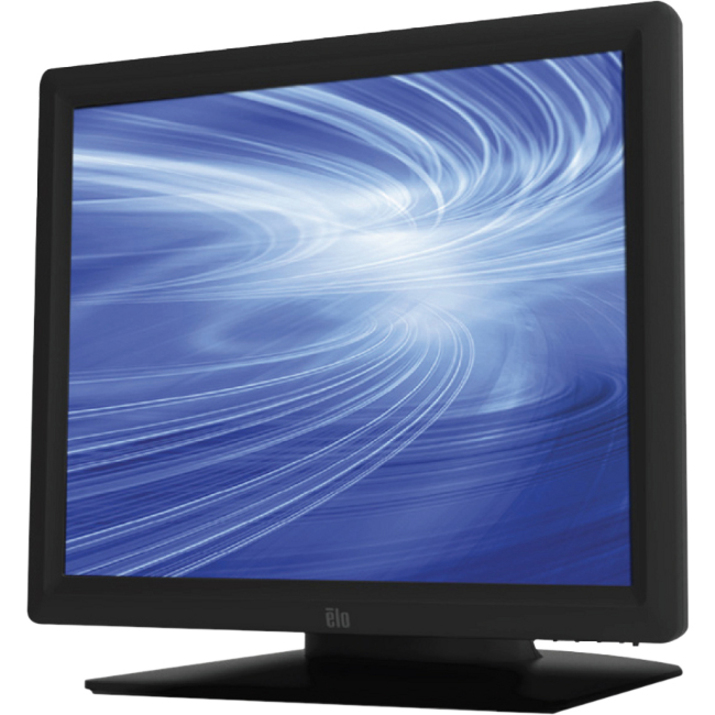

Elo 1717L 17" Class LCD Touchscreen Monitor - 5:4 - 7.80 ms

Name: Elo 1717L 17" Class LCD Touchscreen Monitor - 5:4 - 7.80 ms
Brand: ELO
SKU: TG7794
Price: 715.59 USD
Availability: InStock

ELO

PCN#

TG7794

MFG#

E649473

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$715.59

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

17" Viewable
5
wire Resistive
1280 x 1024
SXGA
16.7 Million Colors
800:1
250 Nit
LED Backlight
USB
VGA
Black
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 19 lbs.

Elo 1717L 17" Class LCD Touchscreen Monitor - 5:4 - 7.80 ms

Overview

Tech Specs

Specifications

Manufacturer	Elo Touch Solutions, Inc
Manufacturer Part Number	E649473
Manufacturer Website Address	http://www.elotouch.com
Brand Name	Elo
Product Model	1717L
Product Name	1717L Rev B 17-inch Multifunction Desktop
Marketing Information	The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail- focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, loyalty systems, and shelf-level and countertop interactive digital signage are found. The 1717L is offered with AccuTouch five-wire resistive, IntelliTouch surface acoustic wave, or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch-and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications. The optional 3-track magnetic stripe reader (MSR) is programmable to either HID or Keyboard Emulation. It is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the- art LED backlights in the display panels.
Product Type	LCD Touchscreen Monitor

Technical Information

Screen Size Class	17"
Viewable Screen Size	17"
Screen Mode	SXGA
Screen Surface	Anti-glare
Response Time	7.80 ms
Aspect Ratio	5:4
Horizontal Viewing Angle	170°
Vertical Viewing Angle	160°
Mount Type	Desk Mountable Pole Mount Wall Mountable
Backlight Technology	LED
Features	Security Lock

Video

Maximum Resolution	1280 x 1024
Standard Refresh Rate	75 Hz
Color Supported	16.7 Million Colors
Contrast Ratio	800:1
Brightness	250 Nit

Touchscreen Information

Touchscreen	Yes
Touchscreen Type	5-wire Resistive

Interfaces/Ports

USB	Yes
VGA	Yes
Serial Port	Yes

Power Description

Input Voltage	120 V AC 230 V AC
Operating Power Consumption	20 W
Standby Power Consumption	1.80 W
Off-Mode Power Consumption	1.40 W

Physical Characteristics

VESA Mount Compatible	Yes
VESA Mount Standard	75 x 75
Product Color	Black
Height	15.4"
Height with Stand	15.43"
Width with Stand	14.21"
Depth with Stand	8.46"
Weight (Approximate)	11.90 lb
Weight with Stand (Approximate)	11.90 lb

Miscellaneous

Package Contents	1717L Rev B 17-inch Multifunction Desktop Power Cable Detachable Touch and Video Cables
Platform Supported	PC
Environmentally Friendly	Yes

Warranty

Limited Warranty

3 Year
