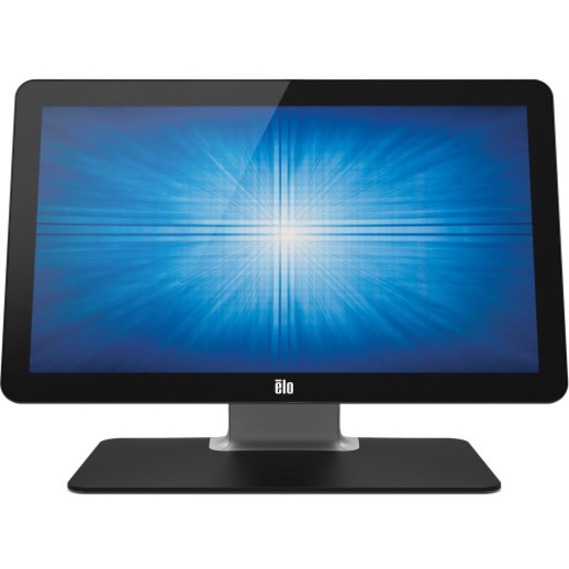

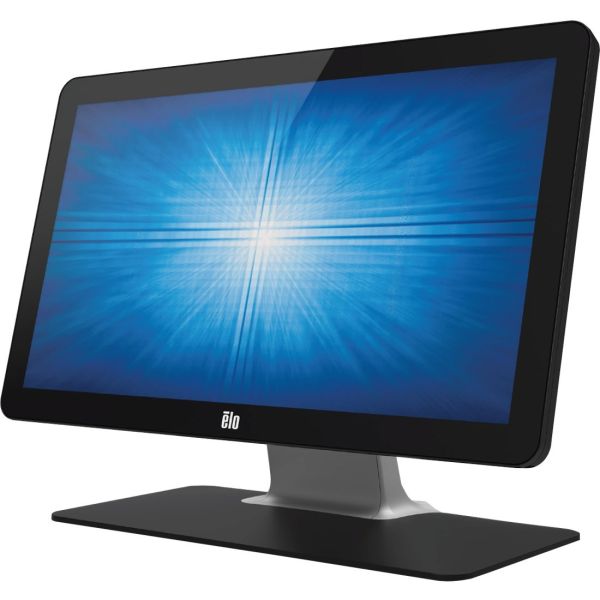

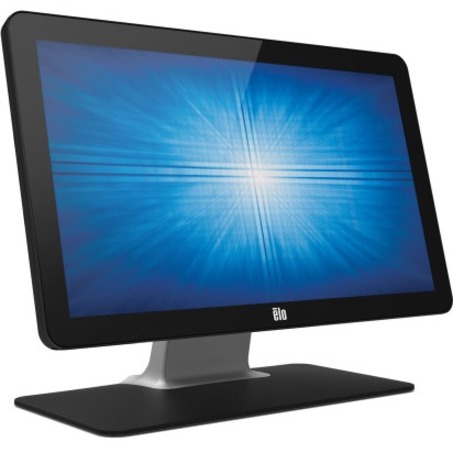

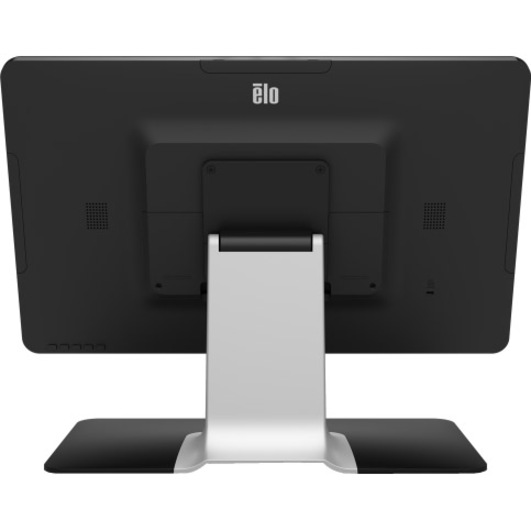

Elo 2002L 20" Class LCD Touchscreen Monitor - 16:9 - 20 ms

Name: Elo 2002L 20" Class LCD Touchscreen Monitor - 16:9 - 20 ms
Brand: ELO
SKU: 4D3247
Price: 589.41 USD
Availability: InStock

ELO

PCN#

4D3247

MFG#

E396119

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$589.41

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

19.5" Viewable
Projected Capacitive
10 Point(s) Multi
touch Screen
1920 x 1080
Full HD
Thin Film Transistor (TFT)
16.7 Million Colors
3,000:1
250 Nit
LED Backlight
Speakers
HDMI
USB
VGA
Black

Product Condition: New and Factory Fresh

Shipping Weight: 20 lbs.

Elo 2002L 20" Class LCD Touchscreen Monitor - 16:9 - 20 ms

Overview

Tech Specs

Specifications

Manufacturer	Elo Touch Solutions, Inc
Manufacturer Part Number	E396119
Manufacturer Website Address	http://www.elotouch.com
Brand Name	Elo
Product Series	M
Product Model	2002L
Product Name	M-Series 2002L 20-inch LED Touch Monitor
Marketing Information	The Elo M-Series 2002L widescreen LED desktop touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness. The sleek wide aspect ratio touchscreen features a full HD edge-to-edge glass display to showcase your content. For environments where space is limited, the 2002L offers a low profile, with versatile mounting ideal for point-of-sale (POS), point-of-information (POI) and point-of-service applications within retail and hospitality environments. The multiple mount and stand options ensure installation flexibility and accommodate desktop use as well as wall- and pole-mount with standard VESA mount patterns. The seamless zero-bezel 19.5" multi-touch display offers 11.5% larger screen area compared to the 1919L, with beautiful full HD resolution and HDMI input. Available with cutting-edge projected capacitive (PCAP) multi-touch capability supporting up to ten-touches simultaneously offers a tablet-like interactive experience. Built to withstand the rigors of continuous public use, the 2002L is retail-hardened and is well suited for high traffic venues. Optional color coordinated retail accessories include a magnetic stripe reader (MSR), barcode scanner and near field communication (NFC) adapter for mobile payments and increased compatibility with the latest point of sale applications. The accessories are easily installed, providing an elegant, integrated solution that eliminates the need for external brackets or attachments.
Packaged Quantity	1
Product Type	LCD Touchscreen Monitor

Technical Information

Screen Size Class	20"
Viewable Screen Size	19.5"
Screen Mode	Full HD
Panel Technology	Thin Film Transistor (TFT)
Response Time	20 ms
Aspect Ratio	16:9
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Mount Type	Wall Mountable Pole Mount Shelf Mount Floor-mountable Desk Mountable
Placement	Tabletop
Backlight Technology	LED
HDCP Supported	Yes
Features	On-screen Display (OSD) Anti-glare
Horizontal Frequency	31.50 kHz to 80 kHz
Vertical Frequency	50 Hz to 60 Hz
Curved Screen	No

Video

Maximum Resolution	1920 x 1080
Color Supported	16.7 Million Colors
Contrast Ratio	3,000:1
Native Contrast Ratio	3,000:1
Brightness	250 Nit

Audio

Speakers	Yes
Number of Speakers	2
Speaker Output Power	4 W

Touchscreen Information

Touchscreen Type	Projected Capacitive
Multi-touch Screen	Yes
Number of Simultaneous Touchpoints	10

Interfaces/Ports

HDMI	Yes
USB	Yes
VGA	Yes

Power Description

Operating Power Consumption	18.40 W
Standby Power Consumption	330 mW
Off-Mode Power Consumption	240 mW
Energy Consumption per Year	27 kWh

Physical Characteristics

VESA Mount Compatible	Yes
VESA Mount Standard	75 x 75
Product Color	Black
Height	11.6"
Width	19.2"
Depth	1.5"
Height with Stand	13.87"
Width with Stand	19.22"
Depth with Stand	7.61"
Weight (Approximate)	7.25 lb
Weight with Stand (Approximate)	11.68 lb

Miscellaneous

Additional Information

Accessible through switches along the bottom.
Controls: Menu, Power, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select
Lockouts: OSD, Power
Input Connector: Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
Ingress Protection: IPX1 for front side

Mean Time Between Failures (MTBF)

5.7 Year
