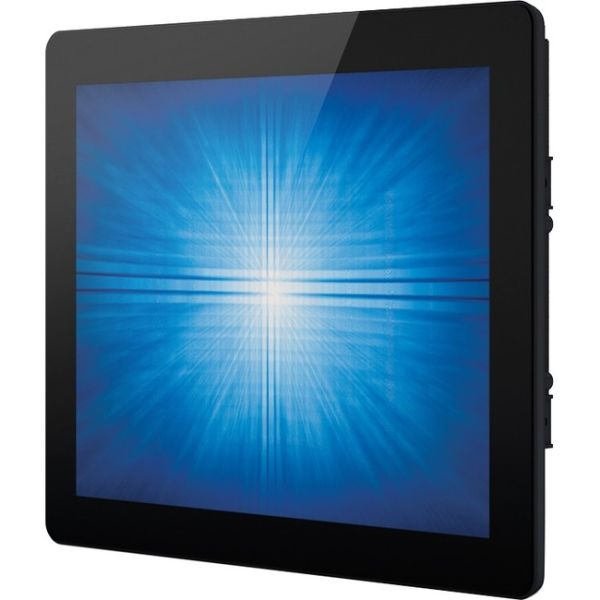

Elo 1590L 15" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms

Name: Elo 1590L 15" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms
Brand: ELO
SKU: 8K3252
Price: 504.4 USD
Availability: InStock

ELO

PCN#

8K3252

MFG#

E334335

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$504.40

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

15" Viewable
Projected Capacitive
Multi
touch Screen
1024 x 768
XGA
16.2 Million Colors
700:1
250 Nit
LED Backlight
HDMI
USB
VGA
DisplayPort
Black
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

Elo 1590L 15" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms

Overview

Tech Specs

Specifications

Manufacturer	Elo Touch Solutions, Inc
Manufacturer Part Number	E334335
Manufacturer Website Address	http://www.elotouch.com
Brand Name	Elo
Product Model	1590L
Product Name	1590L 15" Open Frame Touchscreen (Rev B)

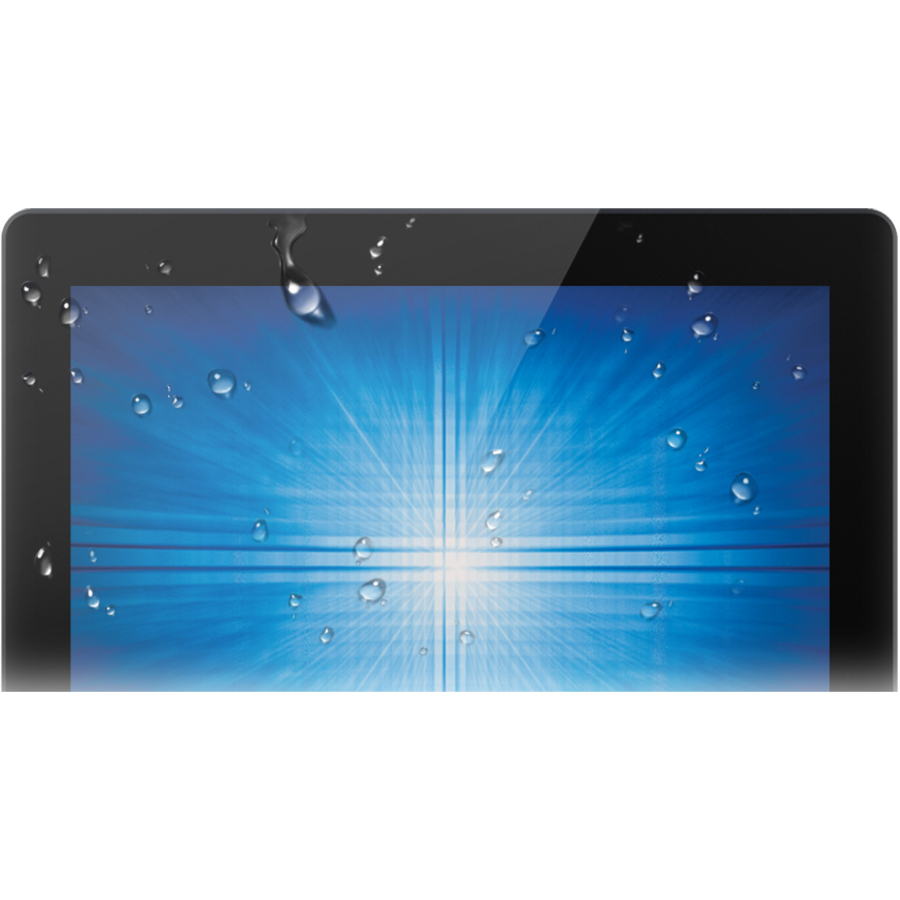

Marketing Information	The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected. Touch ready. The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW. Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. Other features. Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing Display Port and VGA video interfaces 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
Product Type	Open-frame LCD Touchscreen Monitor

Technical Information

Screen Size Class	15"
Viewable Screen Size	15"
Screen Mode	XGA
Response Time	16 ms
Aspect Ratio	4:3
Mount Type	Rear Mount Flush Mount
Backlight Technology	LED

Video

Maximum Resolution	1024 x 768
Color Supported	16.2 Million Colors
Contrast Ratio	700:1
Brightness	250 Nit

Touchscreen Information

Touchscreen Type	Projected Capacitive
Multi-touch Screen	Yes

Interfaces/Ports

HDMI	Yes
USB	Yes
VGA	Yes
DisplayPort	Yes

Power Description

Operating Power Consumption

12.50 W

Physical Characteristics

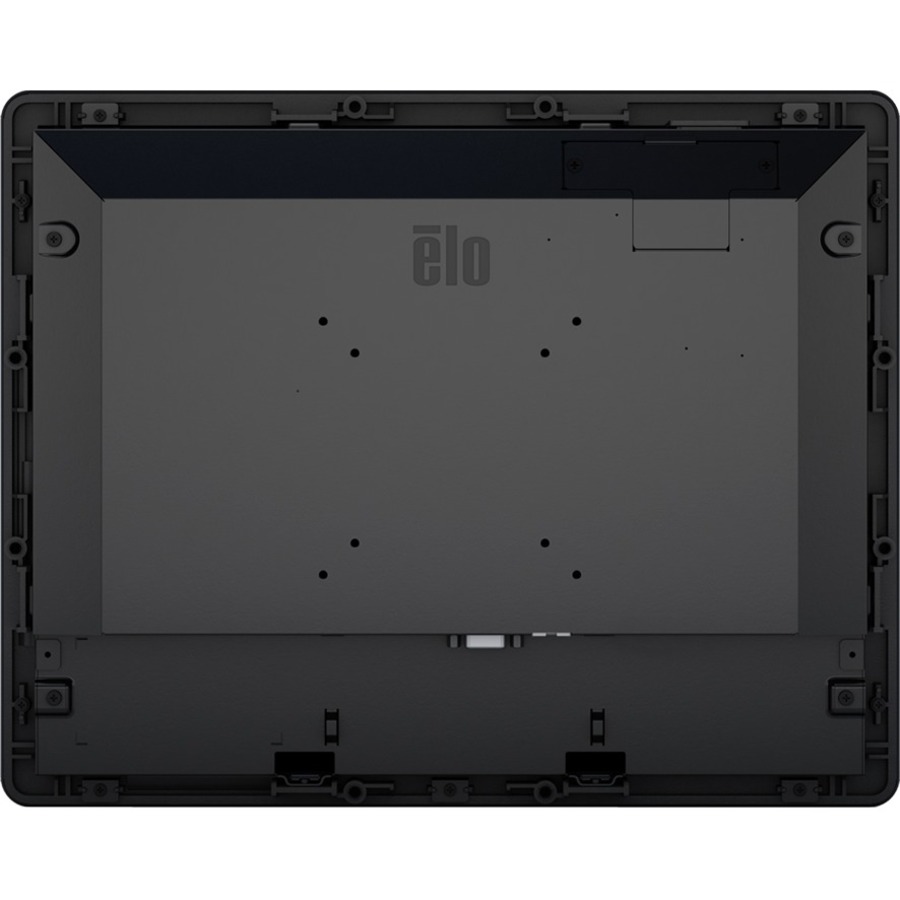

VESA Mount Compatible	Yes
Product Color	Black
Height	11.2"
Width	14.1"
Depth	1.4"
Weight (Approximate)	6.40 lb

Miscellaneous

Package Contents	1590L 15" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide Brackets and w/Screws EEI Label Japan Class-B TM info sheet
Certifications & Standards	TÜV
Environmentally Friendly	Yes

Warranty

Limited Warranty

3 Year
