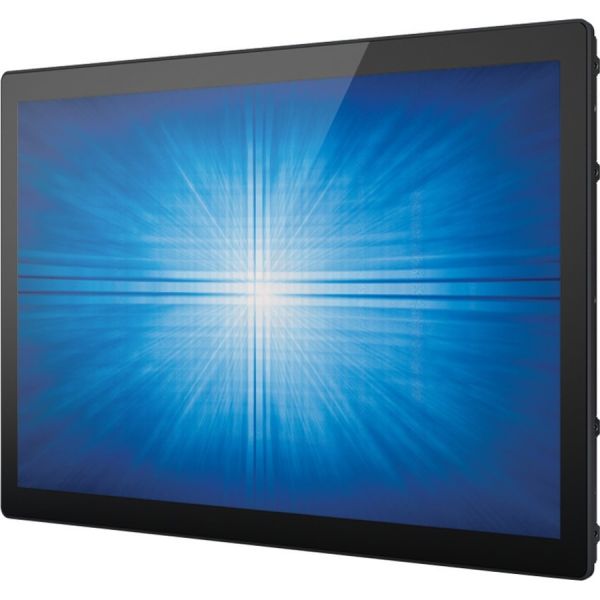

Elo 2794L 27" Class Open-frame LCD Touchscreen Monitor - 16:9 - 12 ms

Name: Elo 2794L 27" Class Open-frame LCD Touchscreen Monitor - 16:9 - 12 ms
Brand: ELO
SKU: 8K3239
Price: 850 USD
Availability: OutOfStock

ELO

PCN#

8K3239

MFG#

E329262

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

27" Viewable
IntelliTouch Surface Wave
1920 x 1080
Full HD
16.7 Million Colors
3,000:1
300 Nit
LED Backlight
HDMI
USB
VGA
DisplayPort
Black
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

Elo 2794L 27" Class Open-frame LCD Touchscreen Monitor - 16:9 - 12 ms

Overview

Tech Specs

Specifications

Manufacturer	Elo Touch Solutions, Inc
Manufacturer Part Number	E329262
Manufacturer Website Address	http://www.elotouch.com
Brand Name	Elo
Product Model	2794L
Product Name	2794L 27" Open Frame Touchscreen (Rev B)
Marketing Information	The Elo 2794L 27-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2794L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs. Touch ready. Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® Plus dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. Other features. Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing Display Port and VGA video interfaces High definition LCD display offers ultimate HD interactivity, clarity and resolution 10-touch TouchPro™ projected capacitive (PCAP) with two-touch Thru-glass capabilities
Product Type	Open-frame LCD Touchscreen Monitor

Technical Information

Screen Size Class	27"
Viewable Screen Size	27"
Screen Mode	Full HD
Response Time	12 ms
Aspect Ratio	16:9
Mount Type	Front Mount
Backlight Technology	LED

Video

Maximum Resolution	1920 x 1080
Color Supported	16.7 Million Colors
Contrast Ratio	3,000:1
Brightness	300 Nit

Touchscreen Information

Touchscreen Type

IntelliTouch Surface Wave

Interfaces/Ports

HDMI	Yes
USB	Yes
VGA	Yes
DisplayPort	Yes

Power Description

Operating Power Consumption

27 W

Physical Characteristics

VESA Mount Compatible	Yes
Product Color	Black
Height	14.7"
Width	24.9"
Depth	1.7"
Weight (Approximate)	16.10 lb

Miscellaneous

Package Contents	2794L 27" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide "L" (Side Mount) Brackets and w/Screws EEI Label Japan Class-B TM info sheet
Certifications & Standards	TÜV
Environmentally Friendly	Yes
Country of Origin	China

Warranty

Limited Warranty

3 Year
