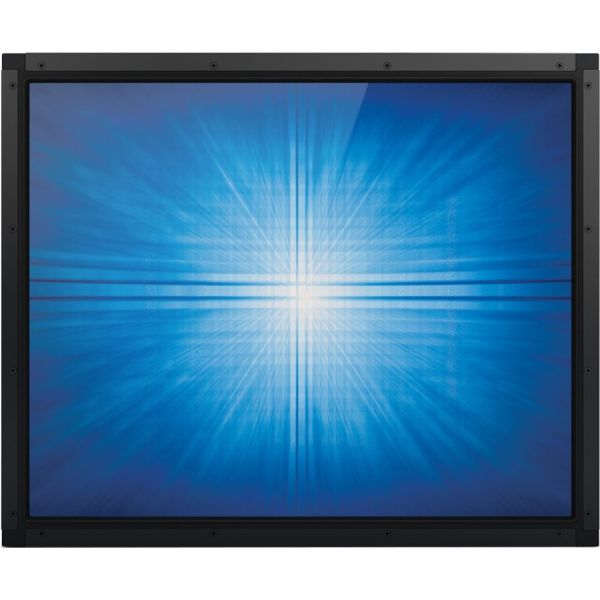

Elo 1990L 19" Class Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms

Name: Elo 1990L 19" Class Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms
Brand: ELO
SKU: 8K2678
Price: 521.38 USD
Availability: InStock

ELO

PCN#

8K2678

MFG#

E328497

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$521.38

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

19" Viewable
IntelliTouch Surface Wave
1280 x 1024
SXGA
Thin Film Transistor (TFT)
16.7 Million Colors
1,000:1
250 Nit
LED Backlight
HDMI
USB
VGA
DisplayPort
Black
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 10 lbs.

Elo 1990L 19" Class Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms

Overview

Tech Specs

Specifications

Manufacturer	Elo Touch Solutions, Inc
Manufacturer Part Number	E328497
Manufacturer Website Address	http://www.elotouch.com
Brand Name	Elo
Product Model	1990L
Product Name	1990L 19" Open Frame Touchscreen (Rev B)
Marketing Information	The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected. Touch ready. Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. Other features. Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing LED backlighting allows for state-of-the-art slim design while reducing power consumption 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities Display Port and VGA video interfaces
Packaged Quantity	1
Product Type	Open-frame LCD Touchscreen Monitor

Technical Information

Screen Size Class	19"
Viewable Screen Size	19"
Screen Mode	SXGA
Panel Technology	Thin Film Transistor (TFT)
Response Time	5 ms
Aspect Ratio	5:4
Horizontal Viewing Angle	170°
Vertical Viewing Angle	160°
Mount Type	Front Mount Rack-mountable
Backlight Technology	LED
Features	On-screen Display (OSD)
Curved Screen	Yes

Video

Maximum Resolution	1280 x 1024
Color Supported	16.7 Million Colors
Contrast Ratio	1,000:1
Brightness	250 Nit

Touchscreen Information

Touchscreen	Yes
Touchscreen Type	IntelliTouch Surface Wave

Interfaces/Ports

HDMI	Yes
HDMI Version	1.3
USB	Yes
USB Standard	USB 2.0
VGA	Yes
DisplayPort	Yes
DisplayPort Version	1.1a
Serial Port	Yes

Power Description

Operating Power Consumption	22 W
Standby Power Consumption	1.50 W
Off-Mode Power Consumption	500 mW
Energy Consumption per Year	34 kWh

Physical Characteristics

VESA Mount Compatible	Yes
VESA Mount Standard	100 x 100
Product Color	Black
Height	13.5"
Width	16.3"
Depth	2"
Weight (Approximate)	10.14 lb

Miscellaneous

Package Contents	1990L 19" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide "L" (Side Mount) Brackets and w/Screws EEI Label Japan Class-B TM info sheet
Certifications & Standards	TÜV
Mean Time Between Failures (MTBF)	5.7 Year
Environmentally Friendly	Yes

Warranty

Limited Warranty

3 Year
