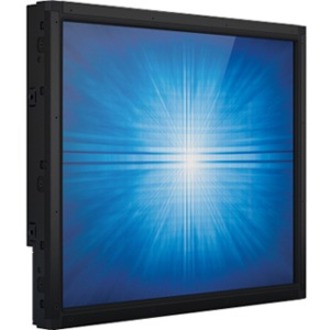

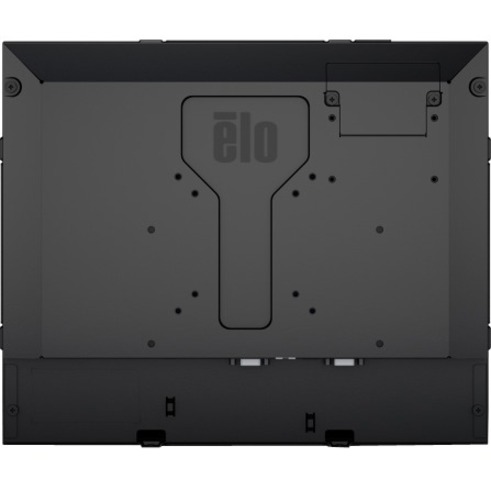

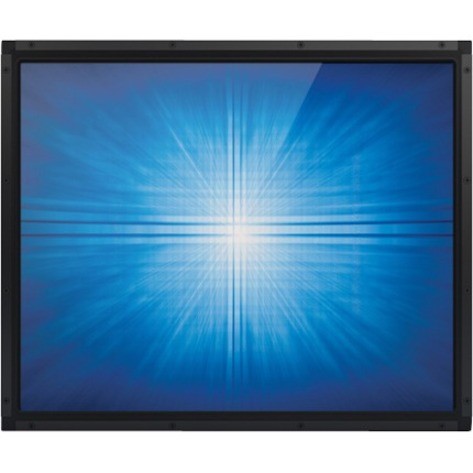

Elo 1790L 17" Class Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms

Name: Elo 1790L 17" Class Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms
Brand: ELO
SKU: 8K3227
Price: 566.1 USD
Availability: InStock

ELO

PCN#

8K3227

MFG#

E326942

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$566.10

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

17" Viewable
IntelliTouch Surface Wave
1280 x 1024
SXGA
Thin Film Transistor (TFT)
16.7 Million Colors
800:1
250 Nit
LED Backlight
HDMI
USB
VGA
DisplayPort
Black
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 12 lbs.

Elo 1790L 17" Class Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms

Overview

Tech Specs

Specifications

Manufacturer	Elo Touch Solutions, Inc
Manufacturer Part Number	E326942
Manufacturer Website Address	http://www.elotouch.com
Brand Name	Elo
Product Model	1790L
Product Name	1790L 17" Open Frame Touchscreen (Rev B)
Marketing Information	Elo 1790L Open Frame Touchscreen Display The Elo 1790L 17-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Packaged Quantity	1
Product Type	Open-frame LCD Touchscreen Monitor

Technical Information

Screen Size Class	17"
Viewable Screen Size	17"
Screen Mode	SXGA
Screen Surface	Anti-glare
Panel Technology	Thin Film Transistor (TFT)
Response Time	5 ms
Aspect Ratio	5:4
Horizontal Viewing Angle	170°
Vertical Viewing Angle	160°
Mount Type	Front Mount Rack-mountable
Backlight Technology	LED
Features	On-screen Display (OSD) Anti-glare
Horizontal Frequency	30 kHz to 82 kHz
Vertical Frequency	50 Hz to 75 Hz
Curved Screen	No

Video

Maximum Resolution	1280 x 1024
Color Supported	16.7 Million Colors
Contrast Ratio	800:1
Native Contrast Ratio	1,000:1
Brightness	250 Nit

Touchscreen Information

Touchscreen	Yes
Touchscreen Type	IntelliTouch Surface Wave

Interfaces/Ports

HDMI	Yes
HDMI Version	1.3
USB	Yes
USB Standard	USB 2.0
VGA	Yes
DisplayPort	Yes
DisplayPort Version	1.1a
Serial Port	Yes

Power Description

Operating Power Consumption	17.80 W
Standby Power Consumption	1.50 W
Off-Mode Power Consumption	500 mW
Energy Consumption per Year	30 kWh

Physical Characteristics

VESA Mount Compatible	Yes
VESA Mount Standard	100 x 100
Product Color	Black
Height	12.1"
Width	14.5"
Depth	1.9"
Weight (Approximate)	7.94 lb

Miscellaneous

Package Contents	1790L 17" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable Quick Install Guide EEI Label Japan Class-B TM info sheet Side Mount Brackets and w/Screws
Certifications & Standards	TÜV
Mean Time Between Failures (MTBF)	5.7 Year
Country of Origin	China
TAA Compliant	No
Environmentally Friendly	Yes

Warranty

Limited Warranty

3 Year
