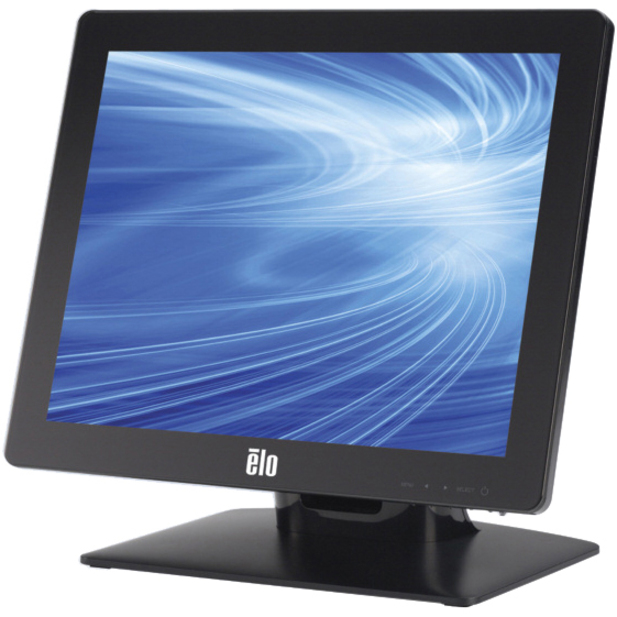

Elo 1717L 17" Class LCD Touchscreen Monitor - 5:4 - 30 ms

by
ELO
PCN#
TG7797
MFG#
E179069
$697.64
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 17" Viewable
  • Surface Acoustic Wave
  • 1280 x 1024

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 18 lbs.
Elo 1717L 17" Class LCD Touchscreen Monitor - 5:4 - 30 ms
Tech Specs
Specifications

Manufacturer

Elo Touch Solutions, Inc

Manufacturer Part Number

E179069

Manufacturer Website Address

http://www.elotouch.com

Brand Name

Elo

Product Model

1717L

Product Name

1717L Rev A Multifunction 17-inch Desktop Touchmonitor

Marketing Information

The 1717L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, "built for touch" industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.

The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1717L features two leading zero-bezel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; iTouch pure-glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.

Product Type

LCD Touchscreen Monitor
Technical Information

Screen Size Class

17"

Viewable Screen Size

17"

Screen Mode

SXGA

Response Time

30 ms

Aspect Ratio

5:4

Horizontal Viewing Angle

170°

Vertical Viewing Angle

160°

Adjustable Display Angle

Yes

Mount Type

Desk Mountable

Backlight Technology

LED

Features

Security Lock

Horizontal Frequency

80 kHz
Video

Maximum Resolution

1280 x 1024

Standard Refresh Rate

75 Hz

Color Supported

16.7 Million Colors

Contrast Ratio

800:1

Brightness

250 Nit
Touchscreen Information

Touchscreen

Yes

Touchscreen Type

Surface Acoustic Wave
Interfaces/Ports

USB

Yes

VGA

Yes
Power Description

Operating Power Consumption

36 W
Physical Characteristics

VESA Mount Compatible

Yes

VESA Mount Standard

75 x 75

Product Color

Black

Height with Stand

14.17"

Width with Stand

15.43"

Depth with Stand

7.52"

Weight (Approximate)

12.10 lb
Miscellaneous

Package Contents

  • 1717L Rev A Multifunction 17-inch Desktop Touchmonitor
  • Power Cable
  • Touch/Video Cables

Certifications & Standards

  • C-Tick
  • cUL
  • IC
  • CCC
  • CE
  • VCCI
  • KCC
  • e-Standby
  • CoC
  • BSMI
  • UL
  • FCC
  • CB
  • IMERC

Platform Supported

PC

Environmentally Friendly

Yes
Warranty

Limited Warranty

3 Year
