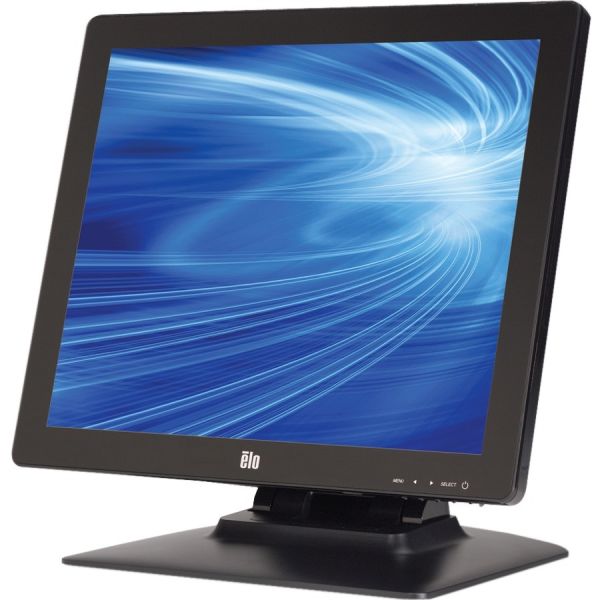

Elo 1723L 17" Class LCD Touchscreen Monitor - 5:4 - 30 ms

by
ELO
PCN#
1C2523
MFG#
E016808
$800.16
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 17" Viewable
  • IntelliTouch Pro Projected Capacitive
  • Multi

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 18 lbs.
Elo 1723L 17" Class LCD Touchscreen Monitor - 5:4 - 30 ms
Tech Specs
Specifications

Manufacturer

Elo Touch Solutions, Inc

Manufacturer Part Number

E016808

Manufacturer Website Address

http://www.elotouch.com

Brand Name

Elo

Product Model

1723L

Product Name

1723L Multifunction 17-inch Desktop Touchmonitor

Marketing Information

The Elo Touch Solutions 1723L 17-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket.

The edge to edge flat glass style of the 1723L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.

Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.

The 1723L has been "designed for touch" from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.

Product Type

LCD Touchscreen Monitor
Technical Information

Screen Size Class

17"

Viewable Screen Size

17"

Screen Mode

SXGA

Response Time

30 ms

Aspect Ratio

5:4

Mount Type

Wall Mountable

Backlight Technology

LED
Video

Maximum Resolution

1280 x 1024

Color Supported

16.7 Million Colors

Contrast Ratio

800:1

Brightness

250 Nit
Audio

Speakers

Yes
Touchscreen Information

Touchscreen Type

IntelliTouch Pro Projected Capacitive

Multi-touch Screen

Yes
Interfaces/Ports

DVI

Yes

USB

Yes

VGA

Yes
Power Description

Operating Power Consumption

22 W
Physical Characteristics

VESA Mount Compatible

Yes

Product Color

White

Height with Stand

8.24"

Width with Stand

15.42"

Depth with Stand

14.20"

Weight (Approximate)

7.86 lb

Weight with Stand (Approximate)

25.35 lb
Miscellaneous

Package Contents

  • 1723L Multifunction 17-inch Desktop Touchmonitor
  • Touch/Video/Accessory Cables

Environmentally Friendly

Yes
Warranty

Limited Warranty

3 Year
