EIZO RadiForce MX315W 31" Class 4K LCD Monitor - 17:9 - Black

Evolve Your Image Reading

As more image modalities become digitalized, radiologists are viewing an increasing amount of information on their screens. EIZO's unique Work-and-Flow technology alleviates the complexity of the imaging workflow with new functions developed with the radiologist in mind. Users can take advantage of Work-and-Flow features with the RadiForce MX315W and bundled RadiCS LE software.

Quick Information Referencing

The Hide-and-Seek function enables users to easily hide the PinP (Picture in Picture) window not currently in use and reopen it as needed by moving the mouse cursor to the edge of the screen. This eliminates the need for an extra monitor while still allowing quick and efficient viewing of reports, patient charts, and other information.

Barrier-Free Workstyle

With the Switch-and-Go function, USB switching is done within the monitor. This allows you to use a single keyboard and mouse across two PCs. Users can easily work on either PC by simply moving the mouse cursor across the screens. This enhances work efficiency and creates a cleaner workspace.

Improved Workflow with High Resolution

The MX315W offers the highest resolution from the MX-Series, displaying 8 megapixels of information (4096 x 2160 pixels) on the large 31.1-inch screen. By utilizing the MX315W's increased viewing space and freedom of layout, it is possible to display various inspection images side by side, such as CT and MRI images in tiled format. This will allow for the comparison of old and current scans, ultimately improving efficiency.

Seamlessly View Images

The MX315W is equipped with PbyP (Picture by Picture) - a function that allows two different signals to display windows side by side on the one screen. You can use this function to view different systems side by side, such as an image inspection system and radiology information system (RIS), or an electronic medical record system and a picture archiving and communication system (PACS). This allows you to view images together without any bezels to distract your line of sight.

Space-Saving and Lightweight

The MX315W boasts a slim design with a built-in power supply to reduce clutter in the installation area and allow for a comfortable working environment. It also features a lightweight design, weighing only 11.7 kg including the built-in power supply. This makes it easy to carry, and installation is a breeze.

Hassle-Free Multi-Monitor Configuration

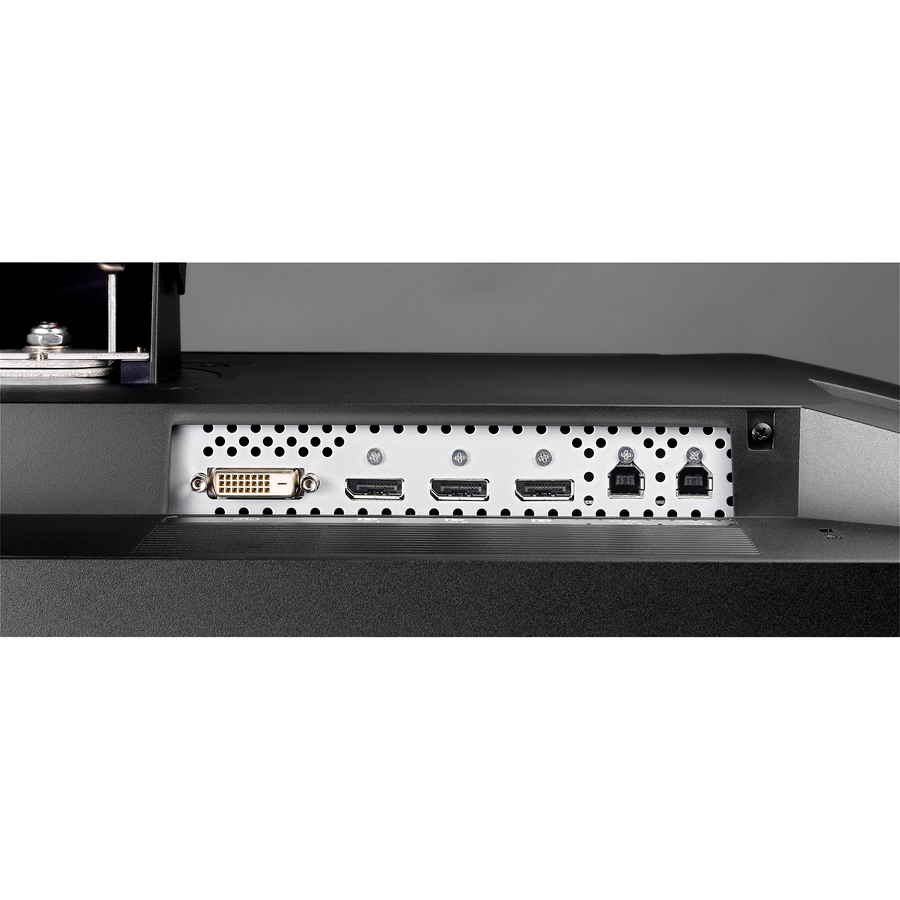

The monitor is equipped with DisplayPort 1.2 input and output terminals. Using a single cable connected to the input terminal, the monitor displays 8 megapixel resolution. In addition, using the output terminal allows you to easily configure several monitors in a daisy chain sequence without the hassle of excessive cabling.

Achieve Clarity True to the Source Data

A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored . This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 1.467 cycles/mm) the MTF increases by approximately 51%.

• RadiForce MX315W Widescreen LCD Monitor
• AC Power Cord
• DVI-D - DVI-D [dual link supported] Cable
• 2 x DisplayPort - DisplayPort Cable
• Short DisplayPort - DisplayPort Cable
• 2 x USB Cable
• Utility Disk (RadiCS LE, PDF installation manual)
• Instructions for Use
