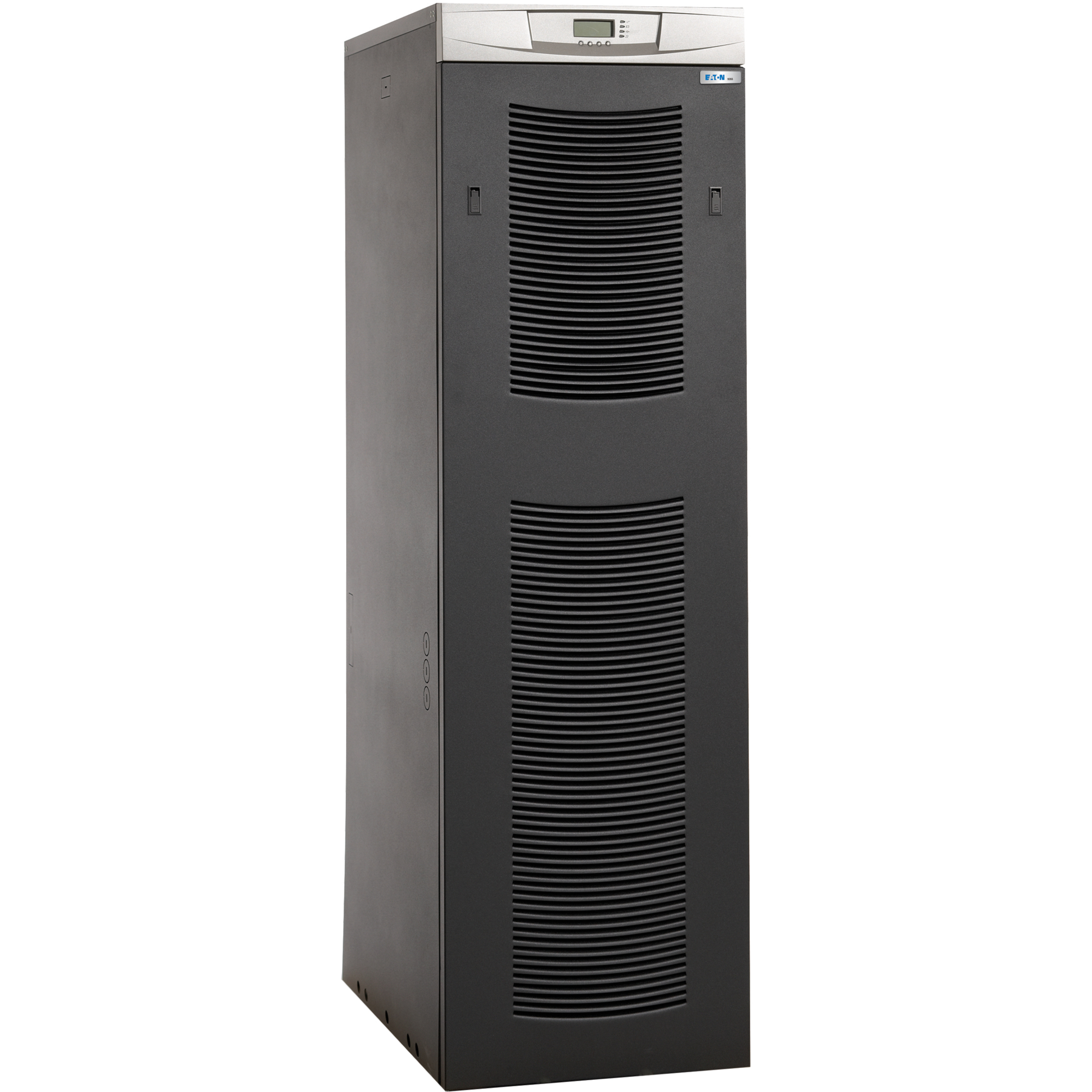

PW9355 20KVA 208V-208V

Agility, scalability and space efficiency with greater standard runtime

The Eaton 9355 is a mid-size, three-phase uninterruptible power system (UPS) that delivers superior power protection for the ever-expanding loads in today's space-constrained data centers.

The double-conversion topology of the 9355 means that it protects IT infrastructure from all of the most common power problems to give data center managers greater peace of mind. The 9355 also offers an industry-leading combination of flexibility, scalability and power density-all in an innovative, high-efficiency package.

The 9355's sleek, end-of-row tower design is available in 10 kVA and 20 kVA configurations, upgradeable to 15 kVA and 30 kVA, respectively, and offers the smallest footprint of any comparable UPS. Standard internal batteries often eliminate the need for costly and space-consuming external battery cabinets.

An on-board power distribution module gives data center managers additional flexibility by helping to preserve valuable rack space and making the rack based environment truly plug and play. This module can be configured for hardwired output or with a variety of output receptacles, reducing site preparation and installation expenses.

Up to four 9355 UPSs can be paralleled for either redundancy or extra capacity using Eaton's patented Powerware Hot Sync paralleling technology. Powerware Hot Sync also enables wireless paralleling in the event of a communications failure, providing the industry's only truly redundant paralleling solution.

The 9355's space-efficient design and outstanding performance and reliability make it perfect for corporate, telecom, healthcare, banking, industrial and retail applications. Combined with Eaton's world-class warranty and service plans, expert technical support, and broad selection of options-and backed by 40 years of R&D excellence-the 9355 is the ideal power protection solution for small data centers.

• Surge
• Spike
• Sag

• Data Center
• IT Infrastructure
• IT Rack
• Corporate
• Telecommunication
• Healthcare
• Banking
• Industrial
• Retail
• IT Equipment
• Server

• 120 V AC
• 230 V AC
• 480 V AC
• 277 V AC
• 400 V AC

• 208 V AC
• 120 V AC
• 220 V AC

• 45 Hz
• 50 Hz
• 60 Hz
• 65 Hz

• RS-232
• Relay Contact
• Web/SNMP
• Modbus Card

4 x LEDs For Notice and Alarm

• 9355 20kVA Tower UPS
• Software Suite CD

• Bundled Software Suite CD

• IEC 62040-1-1
• IEC 60950
• EN 62040-1-1
• UL 1778
• NOM-0190SCP8-1993
• EN 50091-2 Class A
• ISO 9001: 2000
• ISO 14001:1996
• UL
• cUL
• NOM-NYCE

• System warranty: One year parts / 90 days labor
• Battery warranty: Two years parts / 90 days labor
