93PM 480V 120KW 3 BREAKER 35KAIC ALL COMMUNICATION

Name: 93PM 480V 120KW 3 BREAKER 35KAIC ALL COMMUNICATION
Brand: EATON
SKU: 9ZF258
Price: 68081.5 USD
Availability: InStock

EATON

PCN#

9ZF258

MFG#

9PL12D0029H20R2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$68,081.50

Estimated Shipment:

Product Highlights:

Tower
480 V AC Input
480 V AC Output
USB
LCD Display

Product Condition: New and Factory Fresh

Shipping Weight: 503 lbs.

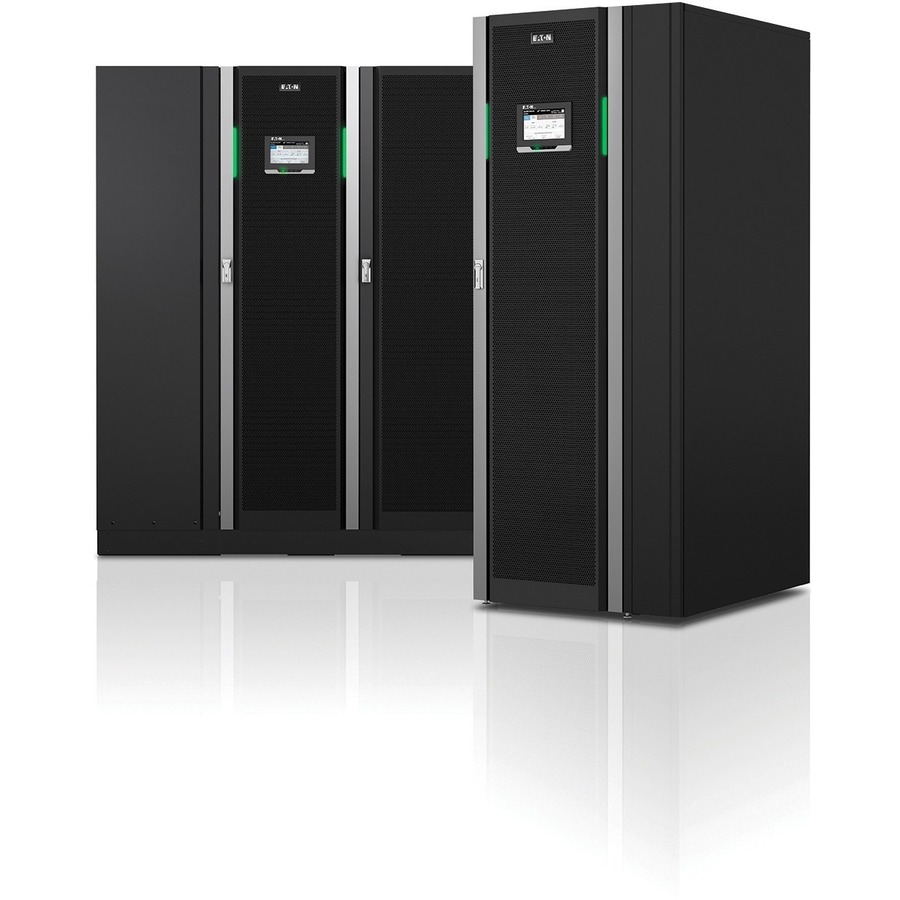

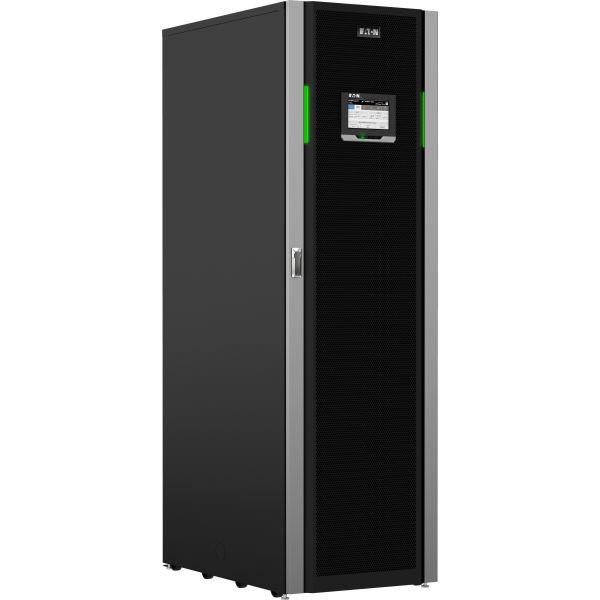

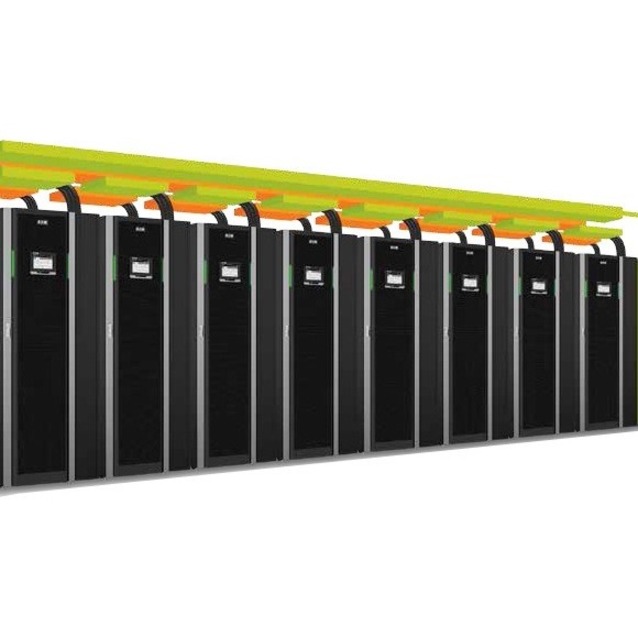

Eaton 93PM 120kW Tower UPS

Overview

Tech Specs

Lowest TCO (total cost of ownership)

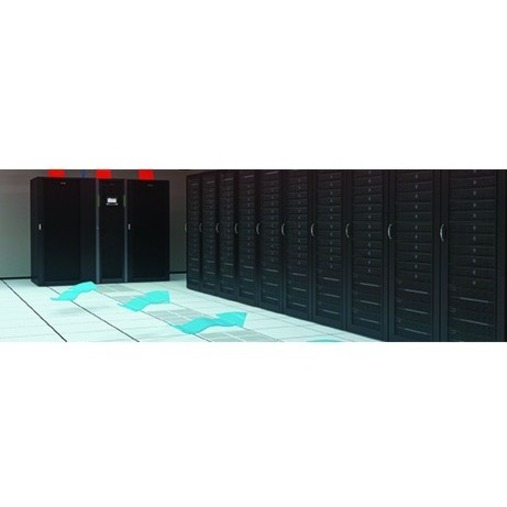

Conserve valuable data center floor space with the compact footprint, internal battery back-up and optional internal maintenance bypass
Grow effortlessly with the vertical scalability, reducing cost and unexpected future growth risks
Reduce power and cooling OPEX through industry-leading energy efficiency; 99 percent efficiency with Energy Saver System (ESS) - Up to 97 percent efficiency in double-conversion mode

Easy deployment

Provides flexible configurability, maximizing deployment flexibility

Easy management

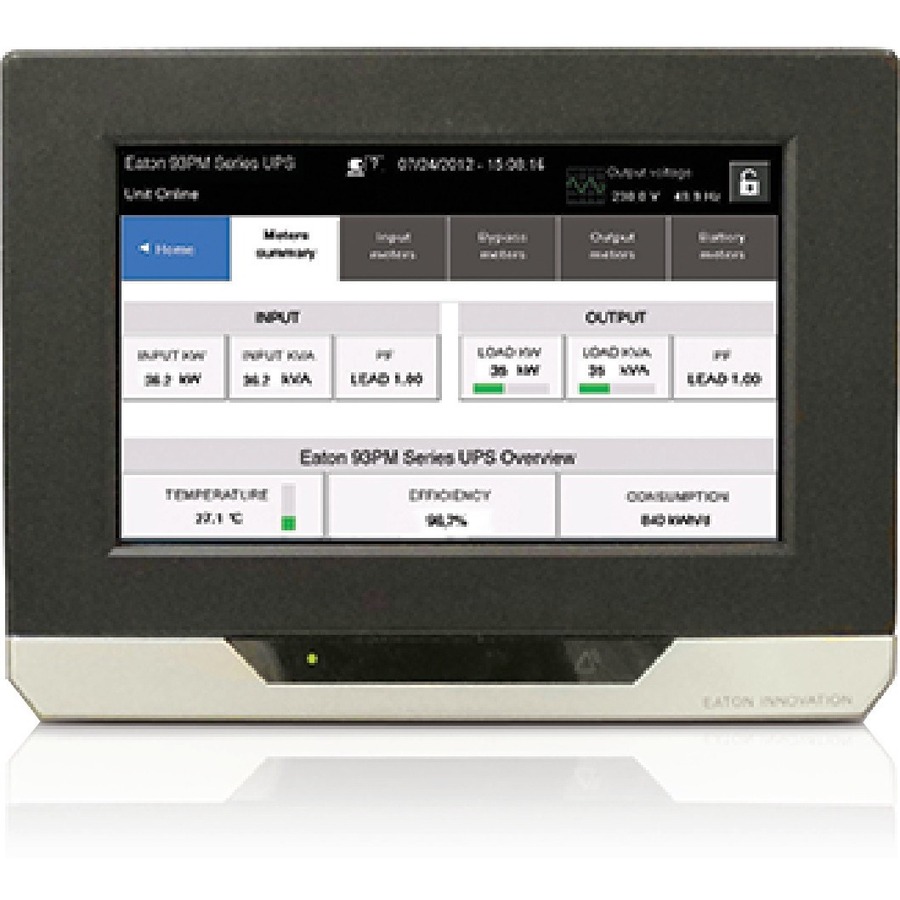

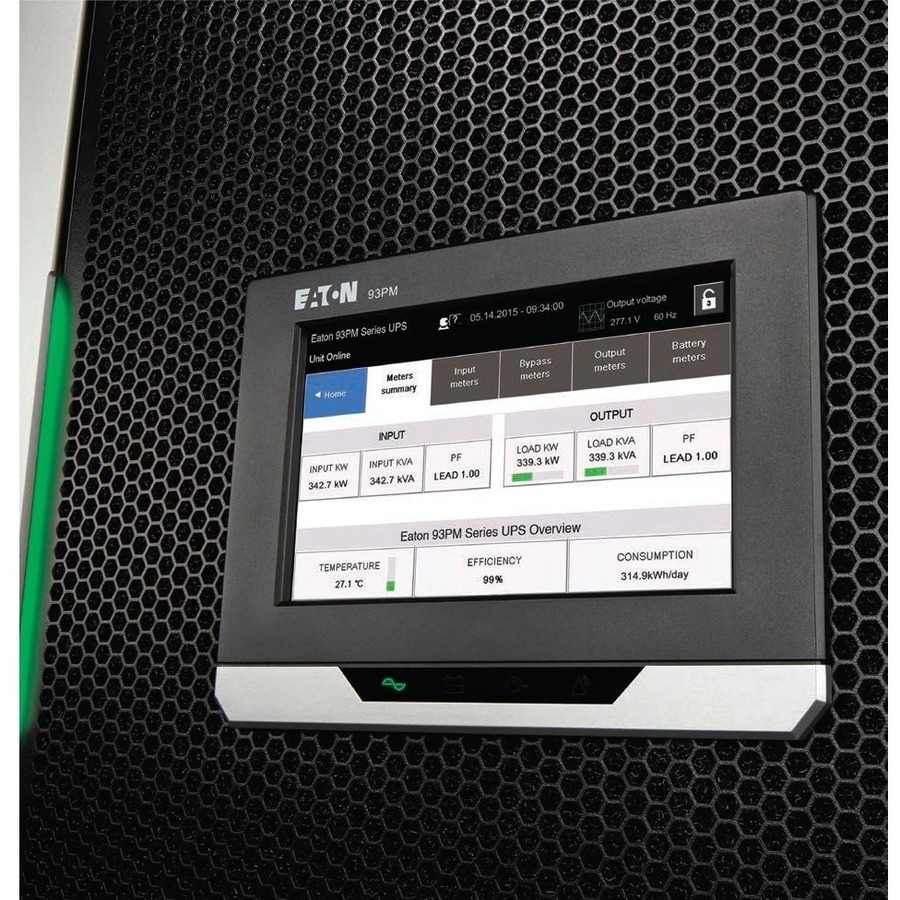

Track statistics on energy savings, battery time and outages profile your load and much more with the friendly graphical LCD touchscreen interface

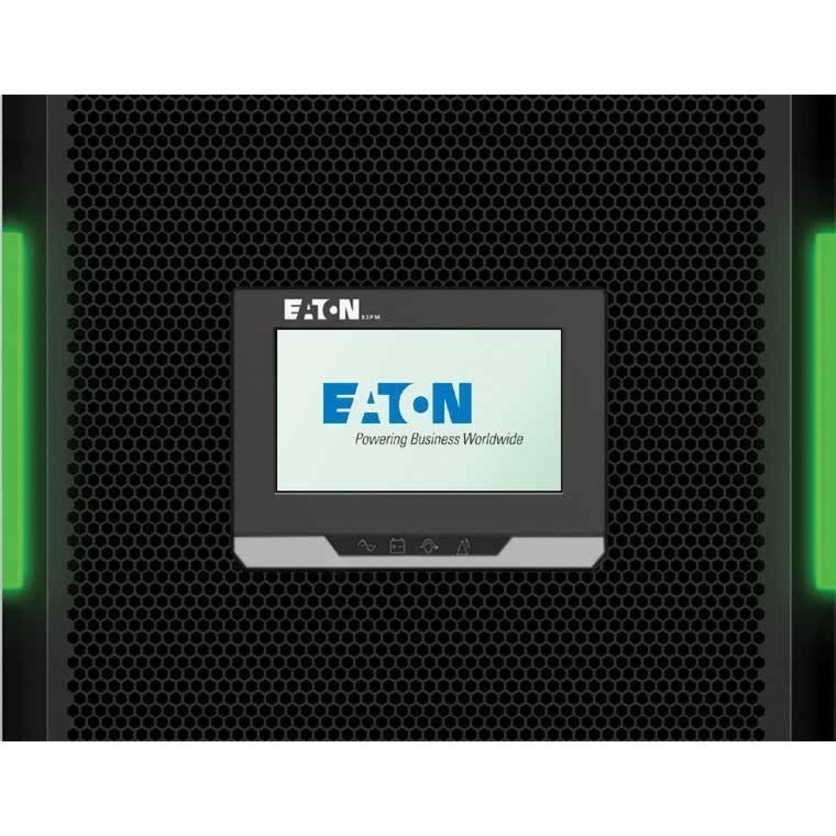

View system status from a distance with the green/ yellow/red LED light bars

Advanced IT integration

Supports optional communication cards that allow remote access via the HTTP(S), SNMP, MODBUS TCP/IP, Modbus RTU and BACnet IP protcols

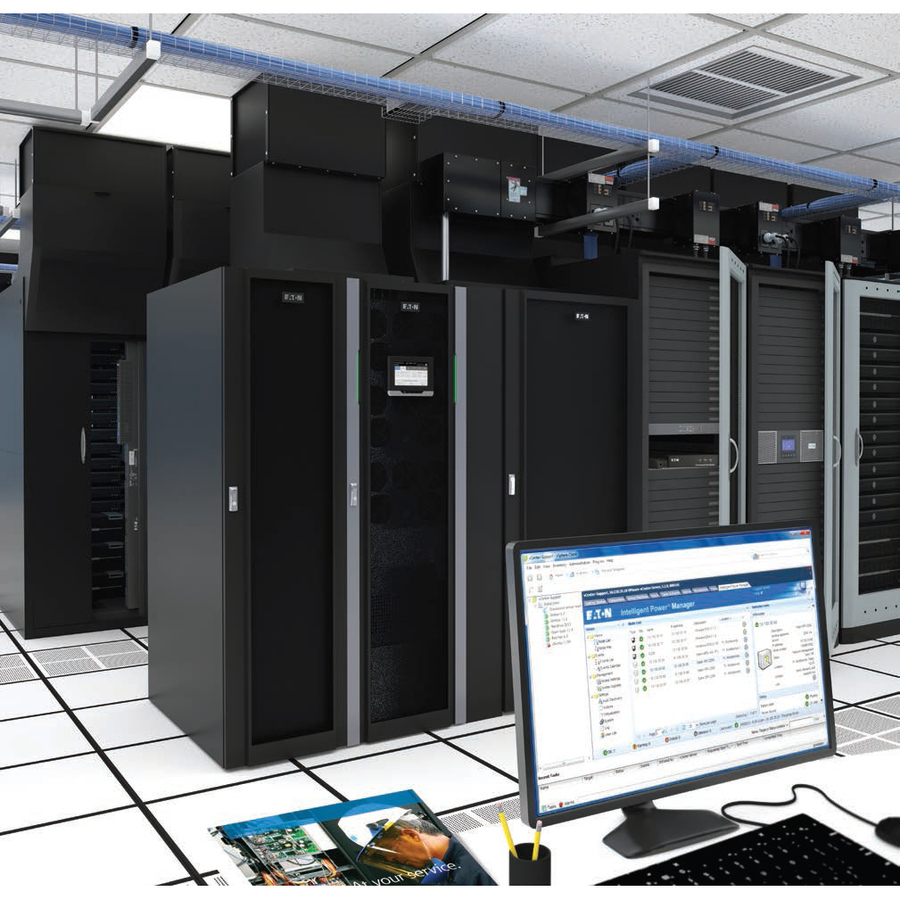

Manage your power devices in your physical or virtual environment with Eaton's Power Xpert® software and Intelligent Power™ Software Suite
Increase uptime through 24x7 remote monitoring and reporting capabilities using Eaton's PredictPulse™ service that alerts technicians during critical events and results in faster resolutions when a problem is detected; learn more at Eaton.com/PredictPulse

Product TypeDouble Conversion Online UPSTechnical InformationPlug/Connector TypeHardwiredReceptacle TypeHardwiredPhaseThree PhaseApplication/UsageData CenterEfficiency97%Power DescriptionLoad Capacity (Watt)120 kWInput Voltage480 V ACOutput Voltage480 V ACInput Frequency

60 Hz
50 Hz

Output Power Factor0.8Display & GraphicsDisplayLCDManagementNetwork ManagementHTTPS/SNMP/Modbus TCP-IP/Modbus RTU/BACnet IPInterfaces/PortsUSBYesEPO PortYesBattery InformationDC System Voltage432 V DCPhysical CharacteristicsForm FactorTowerHeight74"Width32"Depth42"MiscellaneousCertifications & Standards

UL 1778
UL 924 Auxiliary
cULus
FCC Part 15 subpart B class A
IEC 61000-4-5
