CONNECT EZ4 KIT: INDUSTRIAL DIN ETHCBL WICELL ANT EXT TMP PS

Name: CONNECT EZ4 KIT: INDUSTRIAL DIN ETHCBL WICELL ANT EXT TMP PS
Brand: DIGI
SKU: 00FX53
Price: 777.45 USD
Availability: InStock

DIGI

PCN#

00FX53

MFG#

EZ04-IA00-EXT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$777.45

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

512 MB
Twisted Pair
2 x Network (RJ
45)
4 x Serial Port
10/100/1000Base
T
Gigabit Ethernet
IEEE 802.11a/b/g/n/ac
Wireless LAN
ISM Band ISM Band
UNII Band UNII Band
DIN Rail Mountable

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty InformationTechnical support: 1-year LifeCycle Assurance with 24x7 Expert Support included

Shipping Weight: 3 lbs.

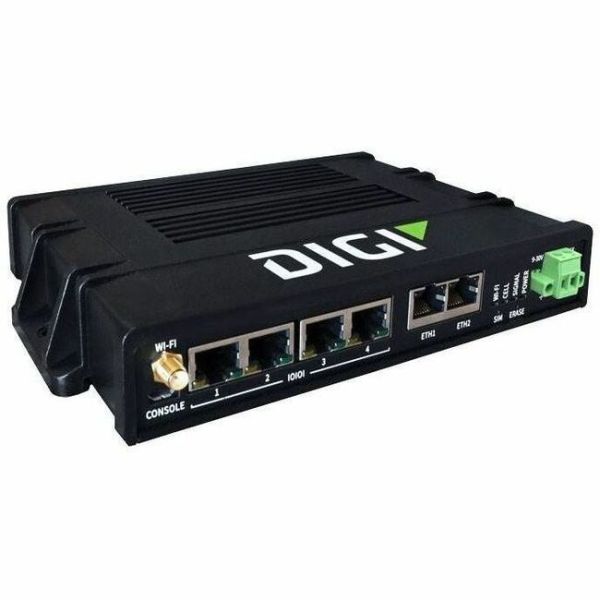

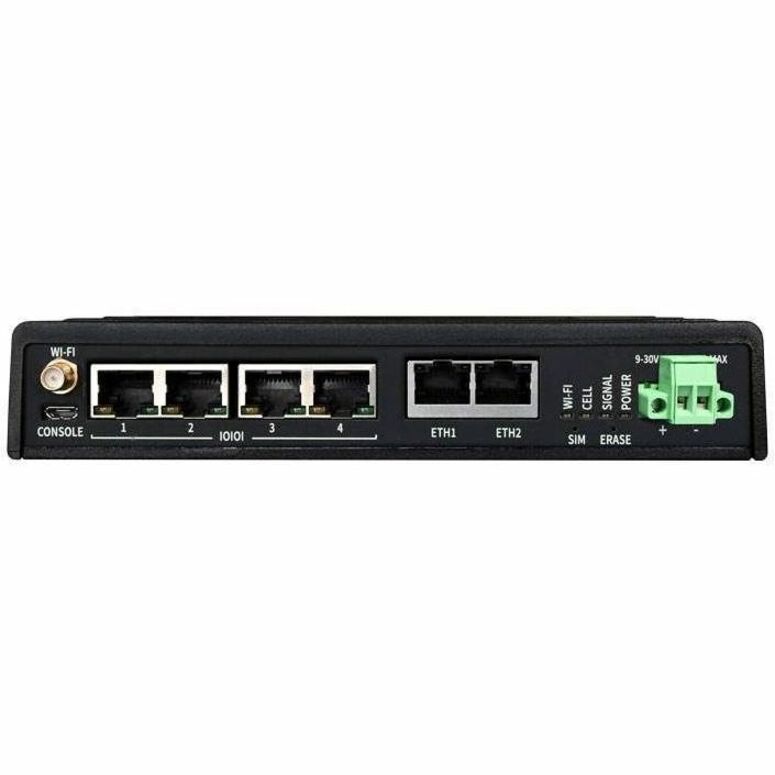

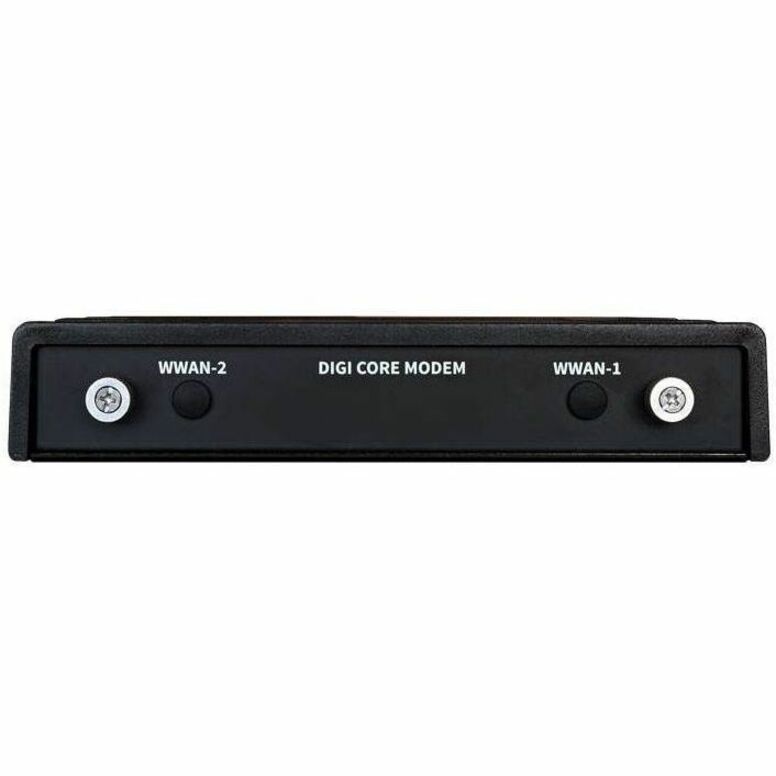

Digi Connect EZ 4i - Serial Server, 4-port, Industrial-rated, with Wi-Fi and Accessories

Overview

Tech Specs

Specifications

Manufacturer	Digi International
Manufacturer Part Number	EZ04-IA00-EXT
Manufacturer Website Address	http://www.digi.com
Brand Name	Digi
Product Line	Connect EZ 4i
Product Name	Connect EZ 4i - Serial Server, 4-port, Industrial-rated, with Wi-Fi and Accessories
Packaged Quantity	1 Pack
Product Type	Device Server

Technical Information

Connectivity Technology	Wired
Data Link Protocols	HTTP HTTPS

Memory

Standard Memory

512 MB

Media & Performance

Media Type Supported

Twisted Pair

Wireless Specifications

Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11a/b/g/n/ac
ISM Band	Yes
UNII Band	Yes
Network Band	Dual Band

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Standard	10/100/1000Base-T

Interfaces/Ports

Network (RJ-45)	Yes
Serial Port	Yes
Total Number of Network Ports	2
Number of Network (RJ-45) Ports	2
Number of Serial Ports	4

Environmental Conditions

Minimum Operating Temperature	-31°F (-35°C)
Maximum Operating Temperature	165.2°F (74°C)

Power Description

Input Voltage	9 V DC 30 V DC
Input Voltage Range	9 V DC to 30 V DC
Power Consumption	4.50 W
Input Current	1.50 A

Physical Characteristics

Form Factor	DIN Rail Mountable
Height	1.4"
Width	5.3"
Depth	7.6"

Miscellaneous

Package Contents	Connect EZ 4i - Serial Server, 4-port, Industrial-rated, with Wi-Fi and Accessories 2-position Rewireable Plug with Securing Screws Antenna - 2.4 and 5 GHz Power Supply - 12 V, 2.5 A DIN Rail Clip
Certifications & Standards	IEC62368-1 CB, EN62311 Industrial certification: Class 1, Division 2 IEC 60068-2-64 60068-2-27 CE RED FCC Part 15 Subpart B; ICES-003; AU/NZS CISPR32
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 3 Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	Technical support: 1-year LifeCycle Assurance with 24x7 Expert Support included
