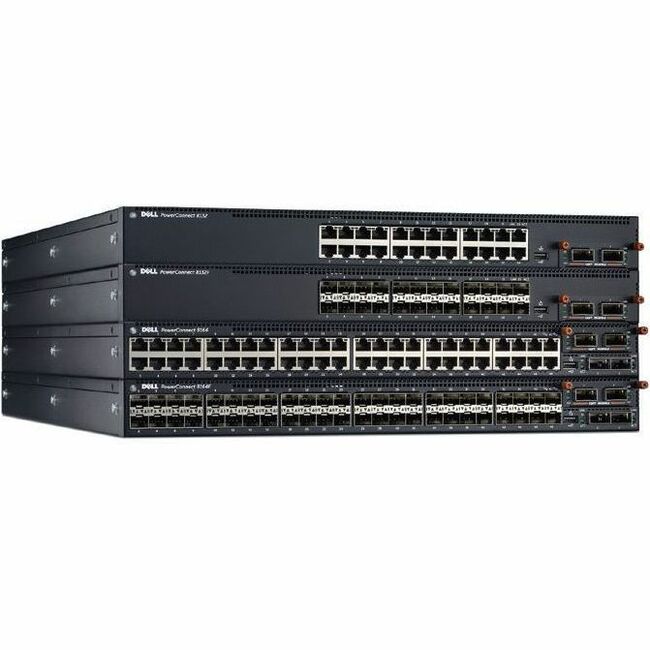

DELL POWERCONNECT 8132F LAYER 3 24X10G PORT SWITCH REFURB

Enabling network convergence The PowerConnect 8100 Series support converged fabric requirements for SAN and LAN networks with loss-less operation for iSCSI environments with DCB (Data Center Bridging). iSCSI traffic can also be monitored at the fabric level, allowing the administrator to track active iSCSI sessions. In addition, these switches deliver simplified connectivity with Dell EqualLogic™ arrays. The iSCSI Auto-Configuration feature automatically detects the arrays and configures the switch for optimal throughput. This feature is enabled by default, streamlining the process to just connecting a cable. 10 Gb performance and high availability The PowerConnect 8100 Series brings the benefits of 10 and 40Gb Ethernet to a compact and reliable switching platform, with the quality and great service of Dell. Operating at wire speed, the 8100 switches can deliver up to 960 Mpps throughput and a data rate of up to 1.2Tbps (full duplex) for both Layer 2 and Layer 3 environments for wire-speed 10Gb and 40Gb Switching.The PowerConnect 8100 Series is designed for non-stop networking with high availability stacking, 10- and 40GbE capabilities, dual hot-swap, redundant power supplies, and removable fan modules. Up to 384 10GbE ports can be managed from a single screen using the highly-available stacking architecture, and the entire stack can be redundantly linked back to the rest of the network at 40Gb via the QSFP+ stacking ports. Fast stack failover enables sub-50ms failover scenarios within the same stack. These switches also incorporate dual firmware images to allow for image promotions or image redundancy in a network.Product ConditionRefurbishedProduct TypeEthernet SwitchTechnical InformationFeatures

• Energy Efficient
• Hot-swappable

High Availability SupportedYesInterfaces/PortsUplink PortYesStack PortYesNetwork (RJ-45)YesPort/Expansion Slot Details

• 24 x 10 Gigabit Ethernet SFP+ Expansion Slot
• 4 x 10 Gigabit Ethernet Stack Port
• 1 x Module Port
• 1 x RJ-45 Management Port
• 1 x RJ-45 Out of Band OOB Port
• 1 x USB Type A Port

Media & PerformanceMedia Type SupportedOptical FiberFiber Mode Supported

• Single-mode
• Multi-mode

Fiber Optic Cable Wavelength

• 1310 nm
• 850 nm

Ethernet Technology10 Gigabit EthernetNetwork Technology10GBase-XMaximum Data Transfer Rate1.25 GB/sI/O ExpansionsTotal Number of Expansion Slots24Expansion Slot TypeSFP+Number of SFP+ Slots24Network & CommunicationLayer Supported4Networking Standards

• IEEE 802.1Qbb
• IEEE 802.1Qaz
• IEEE 802.3az
• IEEE 802.1p
• IEEE 802.1x
• IEEE 802.1Q
• IEEE 802.3ad
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.1ab
• IEEE 802.1v
• IEEE 802.3ab
• IEEE 802.3ac
• IEEE 802.3ae
• IEEE 802.3ba
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3z

Management & ProtocolsManageableYesPower DescriptionInput Voltage

• 120 V AC
• 230 V AC

Frequency

• 50 Hz
• 60 Hz

Power Source

• Power Supply
• AC

Redundant Power Supply SupportedYesNumber of Power Supplies Installed2Power Consumption395 WPhysical CharacteristicsCompatible Rack Unit1UForm FactorRack-mountableHeight1.7"Width17.1"Depth18.1"Weight (Approximate)24.07 lbMiscellaneousApplication/Usage

• Campus
• Business
• Enterprise
• Network
• Data Center
• Office

Certifications & StandardsSafety and Emissions

• Australia/New Zealand
  ACMA or C-Tick Class A
• Canada
  ICES Class A; SCC
• China
  CNCA or CCC Class A; NAL
• Europe
  CE Class A
• Japan
  VCCI Class A
• USA
  FCC Class A; NRTL

Environmental ComplianceRestriction of Hazardous Substances (RoHS)
