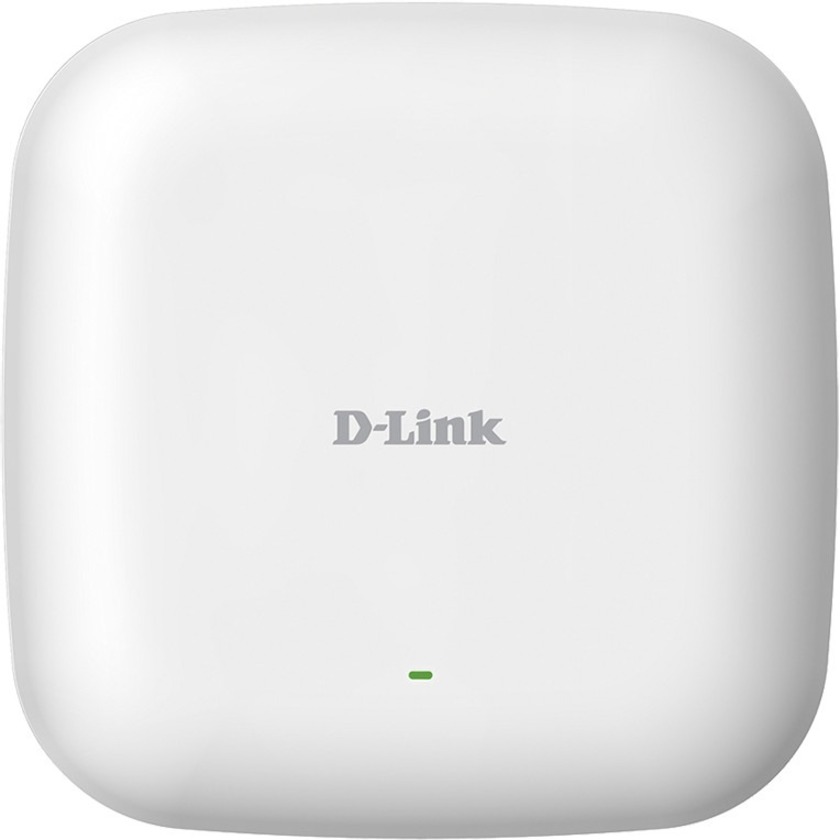

D-Link DAP-2660 IEEE 802.11ac 1.17 Gbit/s Wireless Access Point

Name: D-Link DAP-2660 IEEE 802.11ac 1.17 Gbit/s Wireless Access Point
Brand: D-LINK
SKU: VR8293
Price: 124.22 USD
Availability: InStock

D-LINK

PCN#

VR8293

MFG#

DAP-2660

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$124.22

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

2.48 GHz, 5.85 GHz
1 x Network (RJ
45)
Ethernet, Fast Ethernet, Gigabit Ethernet
Wall Mountable, Ceiling Mountable

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

D-Link DAP-2660 IEEE 802.11ac 1.17 Gbit/s Wireless Access Point

Overview

Tech Specs

Specifications

Manufacturer	D-Link Systems, Inc
Manufacturer Part Number	DAP-2660
Manufacturer Website Address	http://www.dlink.com
Brand Name	D-Link
Product Model	DAP-2660
Product Name	DAP-2660 Wireless Access Point
Marketing Information	The DAP-2660 Wireless AC1200 Concurrent Dual Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilizing the cutting-edge speed of Wireless AC. Super-fast Wireless AC Performance The DAP-2660 delivers reliable, high-speed wireless performance using the latest 802.11ac standards with maximum wireless signal rates of up to 300 Mbps over the 2.4 GHz band, and 900 Mbps over the 5 GHz band1. This, coupled with support for the Wi-Fi Multimedia™ (WMM) Quality of Service (QoS) feature, makes it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2660 to automatically prioritize network type feature can be adjusted through the DAP-2660's web GUI using a drop-down menu option to select customized priority rules. Additionally, the DAP-2660 supports load balancing to ensure maximum performance by limiting the maximum number of users per access point.
Product Type	Wireless Access Point

Technical Information

Wireless LAN Standard	IEEE 802.11ac
Frequency Band	2.48 GHz 5.85 GHz
ISM Band	Yes
UNII Band	Yes
ISM Minimum Frequency	2.40 GHz
ISM Maximum Frequency	2.48 GHz
UNII Minimum Frequency	5.15 GHz
UNII Maximum Frequency	5.85 GHz
Total Number of Antennas	4
Number of Internal Antennas	4
Antenna Gain (Isotropic)	3 dBi 4 dBi
Wireless Transmission Speed	1.17 Gbit/s
Wireless Security	WPA Enterprise WPA2 Enterprise WPA Personal WPA2 Personal WPA2-PSK WEP 64/128-bit AES
Features	Quality of Service (QoS)

Interfaces/Ports

Ethernet Technology	Ethernet Fast Ethernet Gigabit Ethernet
Number of Network (RJ-45) Ports	1
Network (RJ-11)	No
PoE (RJ-45) Port	No
VGA	No
HDMI	No
Audio Line Out	No
Serial Port	No
USB	No
Powerline	No

Management & Protocols

Management

Telnet
SSH
Web Based Management
SNMP
Central WiFiManager

Power Description

Input Voltage

12 V DC

Physical Characteristics

Form Factor	Wall Mountable Ceiling Mountable
Height	1.1"
Width	6.7"
Depth	6.7"
Weight (Approximate)	11.15 oz

Miscellaneous

Package Contents	Wireless AC1200 Concurrent Dual Band PoE Access Point Wall and Ceiling Mounting Brackets
Certifications & Standards	FCC IC CE UL IEEE Standards: 802.11a 802.11b 802.11g 802.11n 802.11ac 802.11i 802.3u 802.3ab 802.3af

Warranty

Limited Warranty

Lifetime
