CyberPower SM10KAPMA 3-Phase Modular UPS Power Modules

Name: CyberPower SM10KAPMA 3-Phase Modular UPS Power Modules
Brand: CYBERPOWER
SKU: 9VW379
Price: 3980.71 USD
Availability: InStock

CYBERPOWER

PCN#

9VW379

MFG#

SM10KAPMA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,980.71

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

10000VA / 10000W Power Module, Hot
Swappable, 2U, 1YR Warranty

Product Condition: New and Factory Fresh

Limited Warranty. For CyberPower 3-Phase Modular UPS Smart App Online Series models SM020KAMFA, SM040KAMFA.Product TypeDouble Conversion Online UPSTechnical Information

Shipping Weight: 19 lbs.

CyberPower SM10KAPMA 3-Phase Modular UPS Power Modules

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	SM10KAPMA
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Line	Smart App Online
Product Series	3-Phase Power Modules
Product Model	SM10KAPMA
Product Name	SM10KAPMA 3-Phase Modular UPS Power Modules
Marketing Information	CyberPower 3-Phase Modular UPS SM010KAPMA Power Modules are ultra-robust units capable of handling brief overcurrents of up to 150%. Indicator lights show status of each Power Module and the high-density design puts 10KVA of power in just 2U of space. Includes a One-Year Limited Warranty. For CyberPower 3-Phase Modular UPS Smart App Online Series models SM020KAMFA, SM040KAMFA.
Product Type	Double Conversion Online UPS

Technical Information

Overload Protection	Yes
Phase	Three Phase
Energy Saving	Online ECO Mode Efficiency >97.5%

Power Description

Load Capacity (VA)	10000 VA
Load Capacity (Watt)	10 kW
Input Frequency	40 Hz 70 Hz
Output Frequency	50 Hz 69 Hz
Waveform Type	Sine Wave
Input Power Factor	0.99
Output Power Factor	1

Controls/Indicators

Status Indicators

LED Indicators: Rectifier

Battery Information

Battery Characteristics

Hot-swappable

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-4°F (-20°C) - 158°F (70°C)
Maximum Operating Elevation	10000 ft
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	56 dB(A)
Thermal Dissipation	819.96 W

Physical Characteristics

Color Family	Dual Color
Product Color	Silver Black
Form Factor	Modular
Rack Height	2U

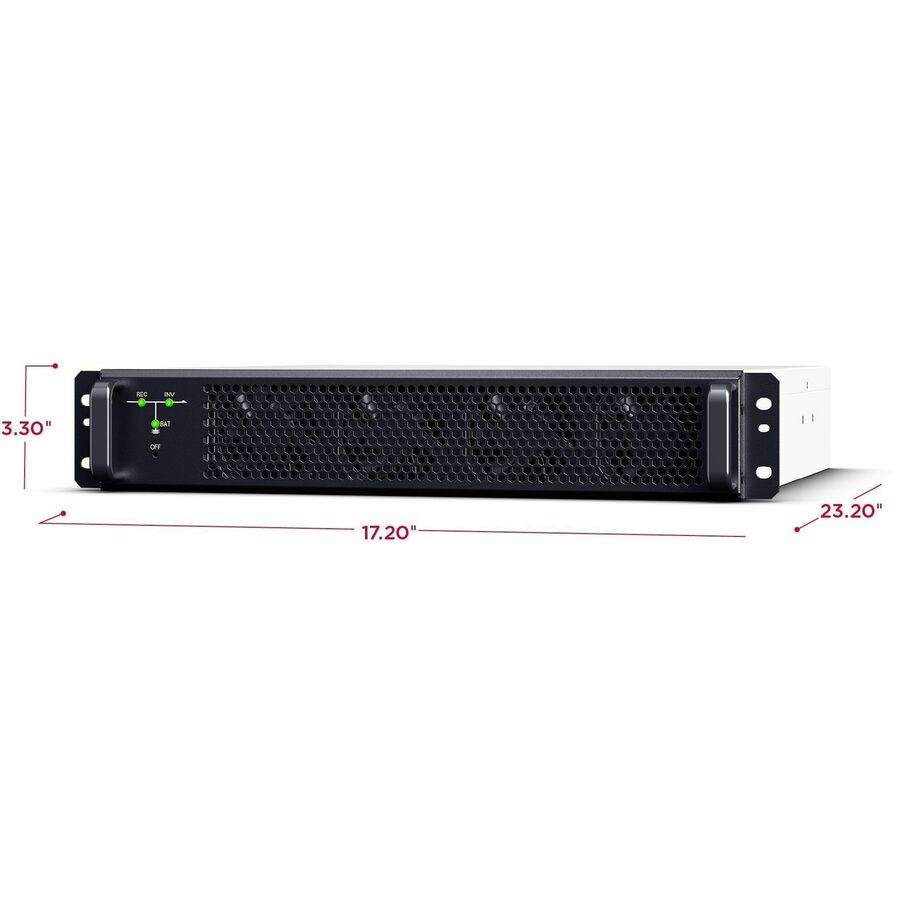

Height	3.3"
Width	17.2"
Depth	23.2"
Weight (Approximate)	36.20 lb

Miscellaneous

Additional Information	Energy Saving : Online ECO Mode Efficiency >97.5% UPS Topology : Online Double Conversion Boost Charge Voltage : 2.4 VDC/Cell, Constant Current and Constant Voltage Charge Mode Float Charge Voltage : 2.25 VDC/Cell Hot Swappable : Yes Physical Dimensions - (WxHxD) (cm) : 43.69 x 8.38 x 58.93 (cm) Physical Dimensions - (WxHxD) (in) : 17.2 x 3.30 x 23.20 (in) Physical Dimensions - (WxHxD) (mm) : 437 x 84 x 589 (mm) Weight (kg) : 16.42 Weight (lb) : 36.20 Shipping Dimensions - (WxHxD) (cm) : 57.15 x 22.56 x 72.09 (cm) Shipping - Dimensions (WxHxD, in) : 22.5 x 8.88 x 28.38 (in) Shipping - Dimensions (WxHxD, mm) : 571.5 x 225.55 x 720.85 (mm) Shipping - Weight (kg) : 19.5 Shipping - Weight (lb) : 43 Power Module - Rack Units : 2U Input Frequency Range : 40 Hz - 70 Hz Input Power Factor : 0.99 Phase : 3 Phase Output Frequency : 50/60 Hz (auto-sensing/configurable) Output Power Factor : 1 Overload Protection : 110% Load for 10 min VA : 10000 VA Watts : 10000 W LED Indicators : Rectifier Color : Silver/Black Form Factor : Modular Material of Construction : Metal Mounting Hardware : No Rack Height : 2U Audible noise at 1m from surface of unit : 56 dBA Maximum Air Exchange : 4.5 m3 /min Online Thermal Dissipation : 2797.83 BTU/hr Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Elevation Note : At ?1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Operating Temperature Note : Battery life is halved for every 10°C increase above 20°C Storage Battery Temperature Note : Optimum battery storage between -15°C and 20°C Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : -4 - 158 °F (-20 - 70 °C) Models : SM020KAMFA, SM040KAMFA UPS Models : SM020KAMFA, SM040KAMFA Environmental : RoHS Compliant Safety : cTUVus Product Warranty : 1 Year Limited Warranty
Certifications & Standards	Safety: cTUVus
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

1 Year
