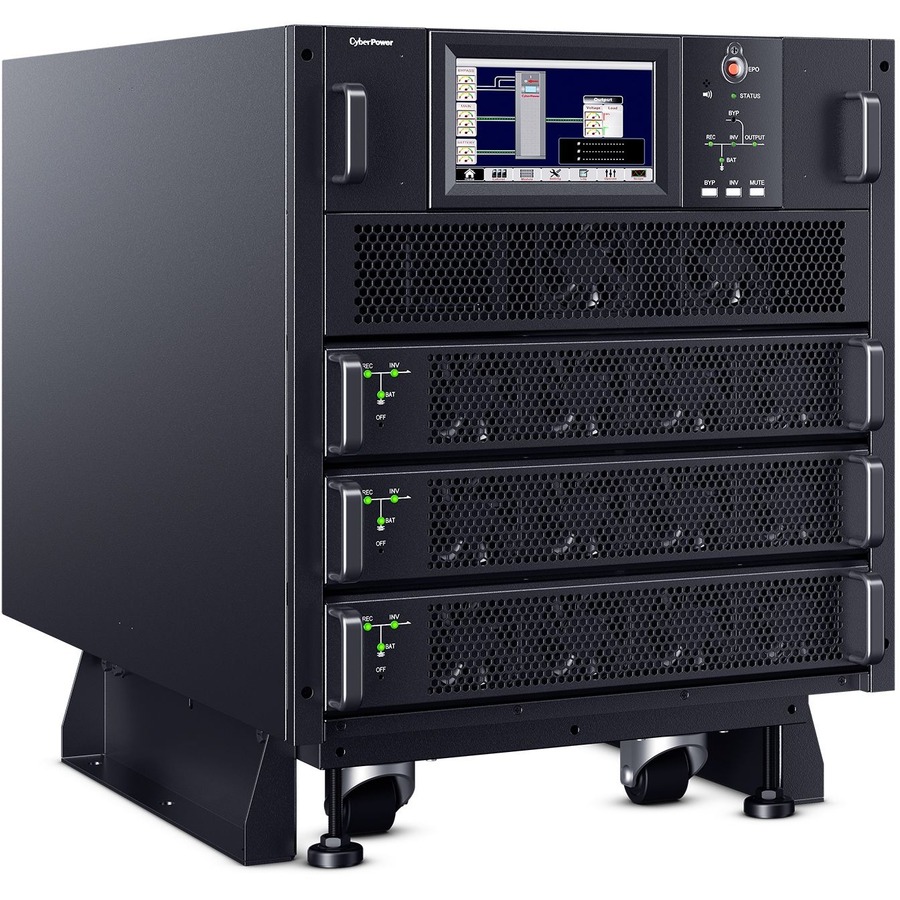

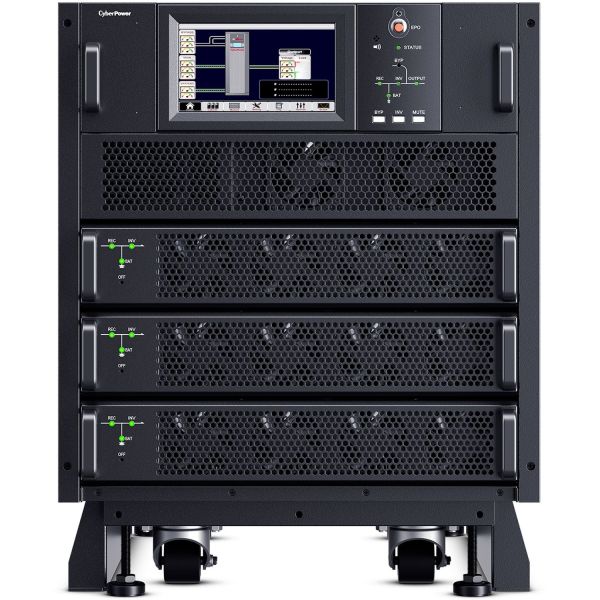

CyberPower SM020KAMFA 3-Phase Modular Smart App Online UPS System

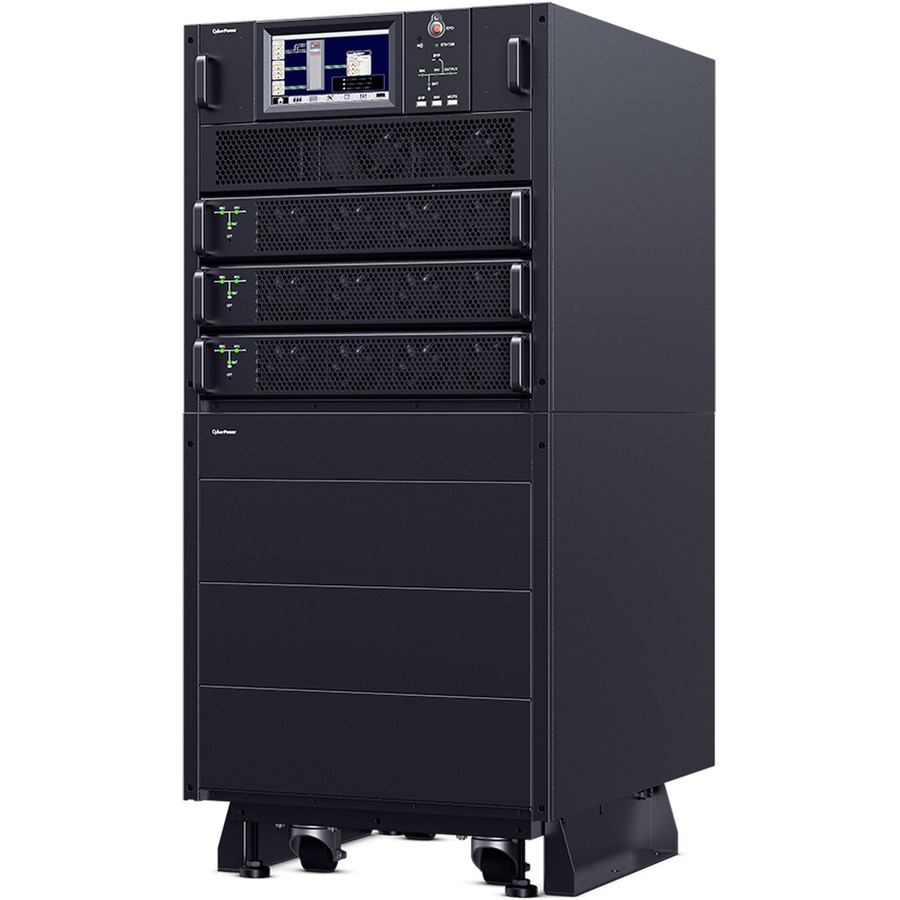

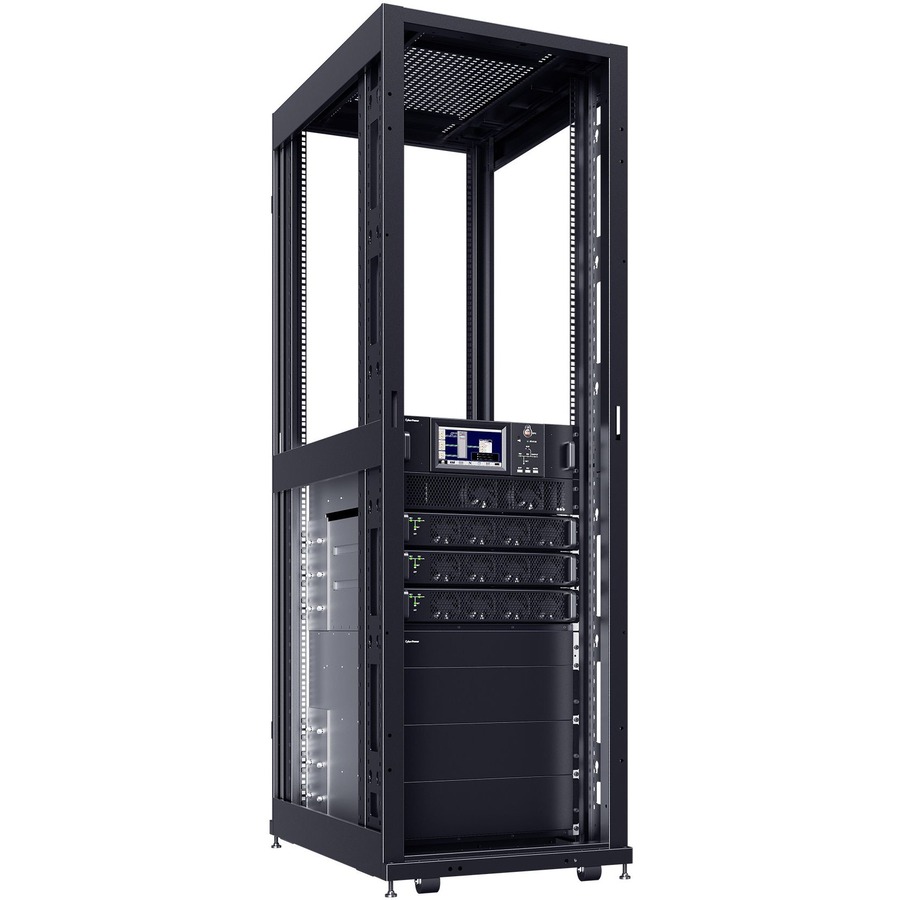

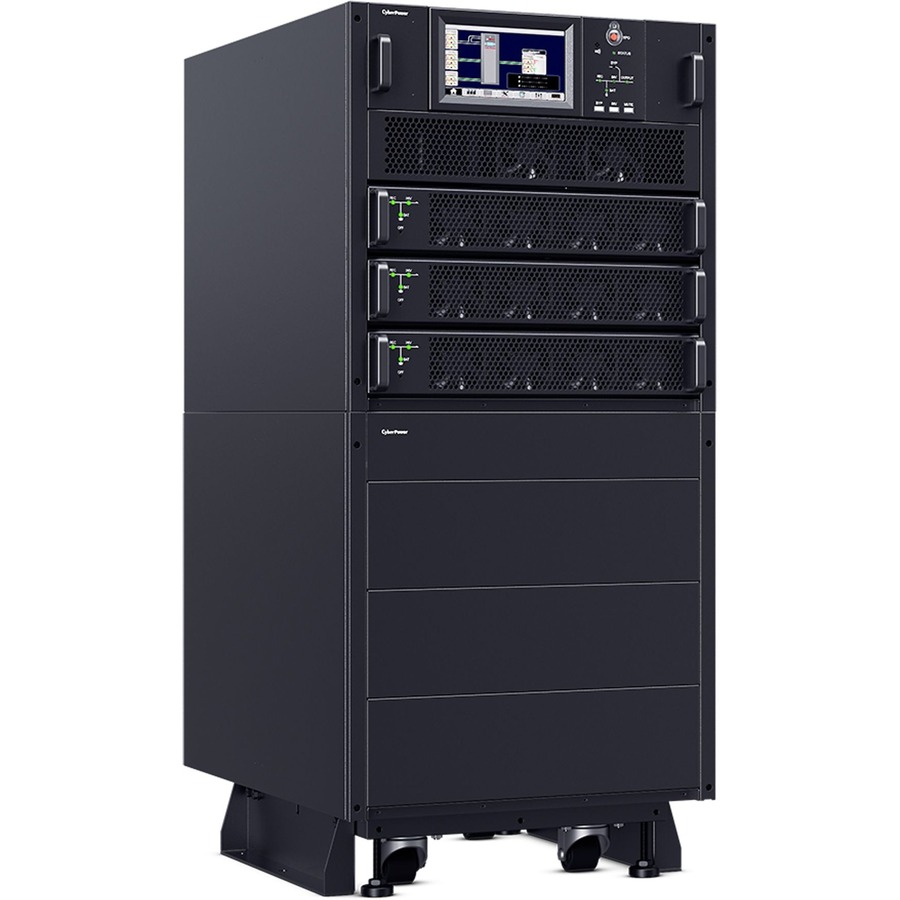

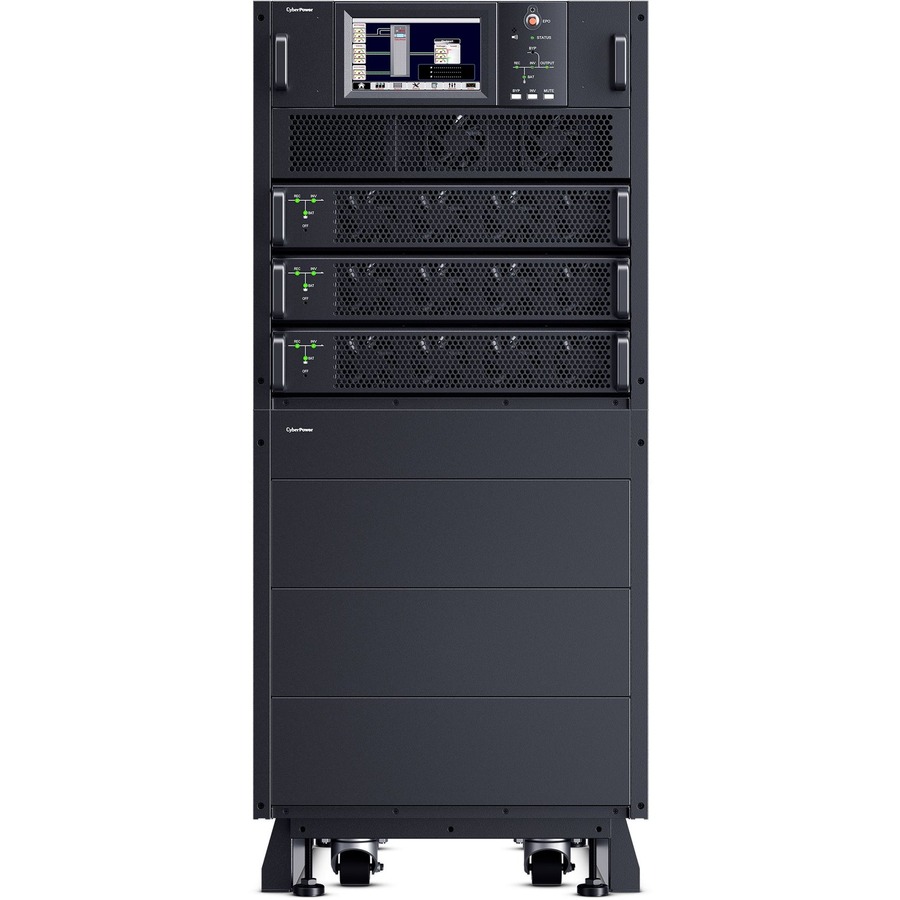

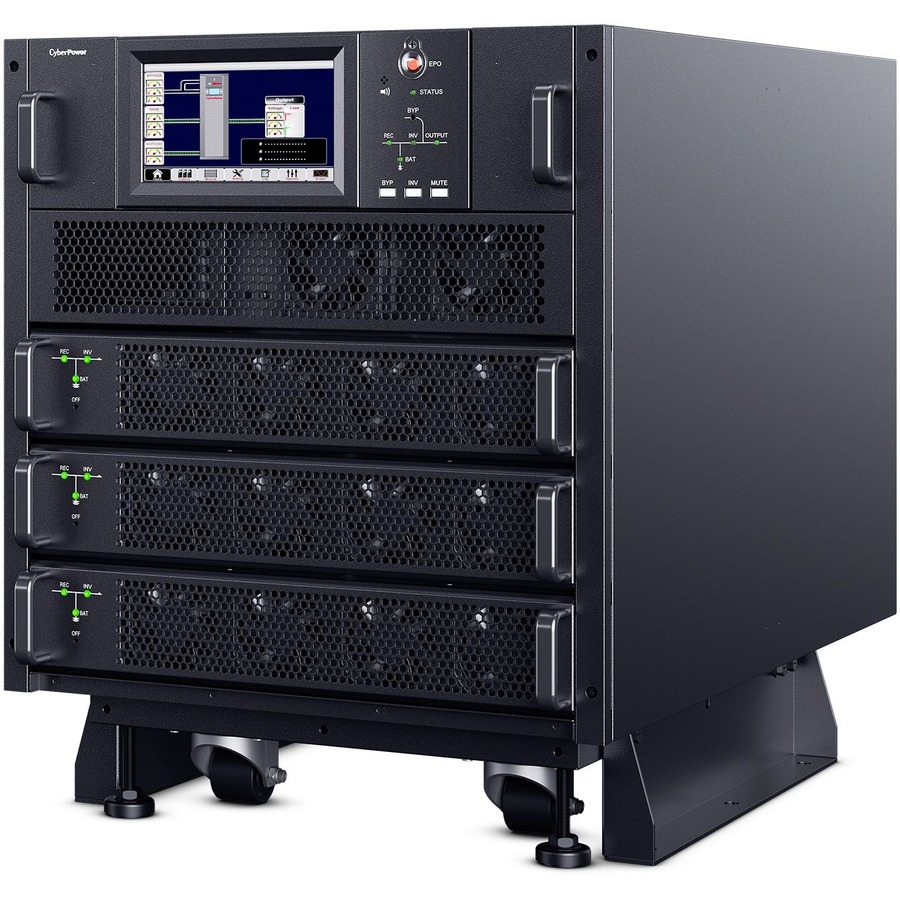

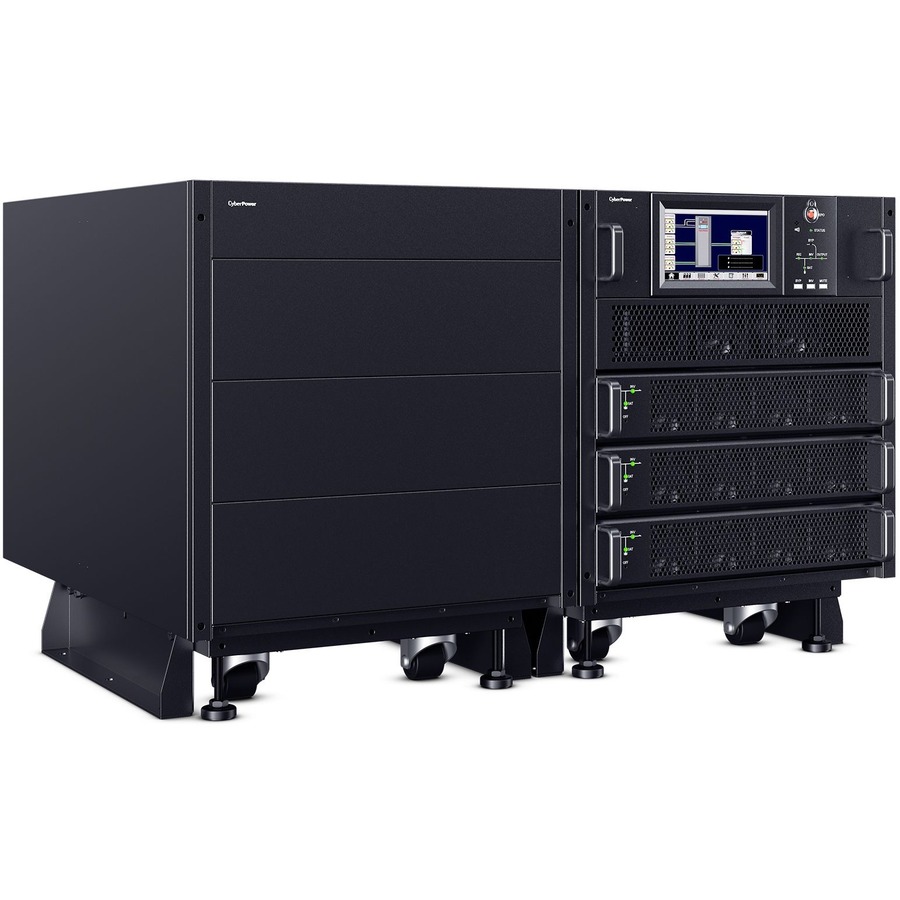

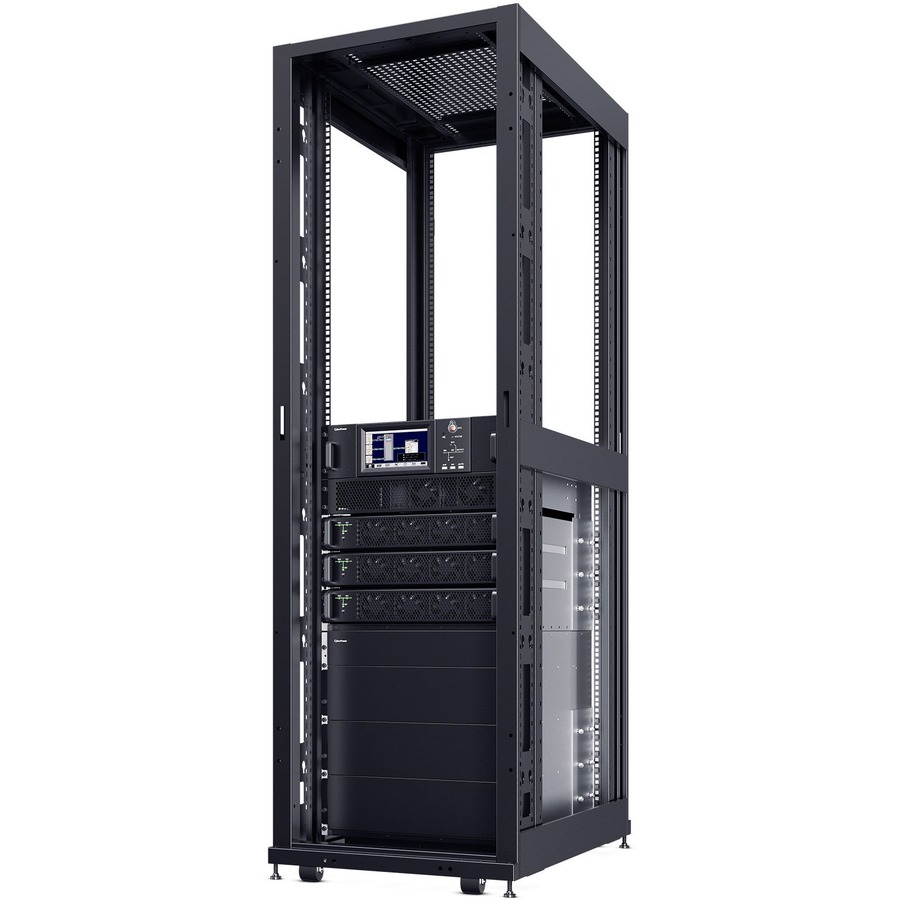

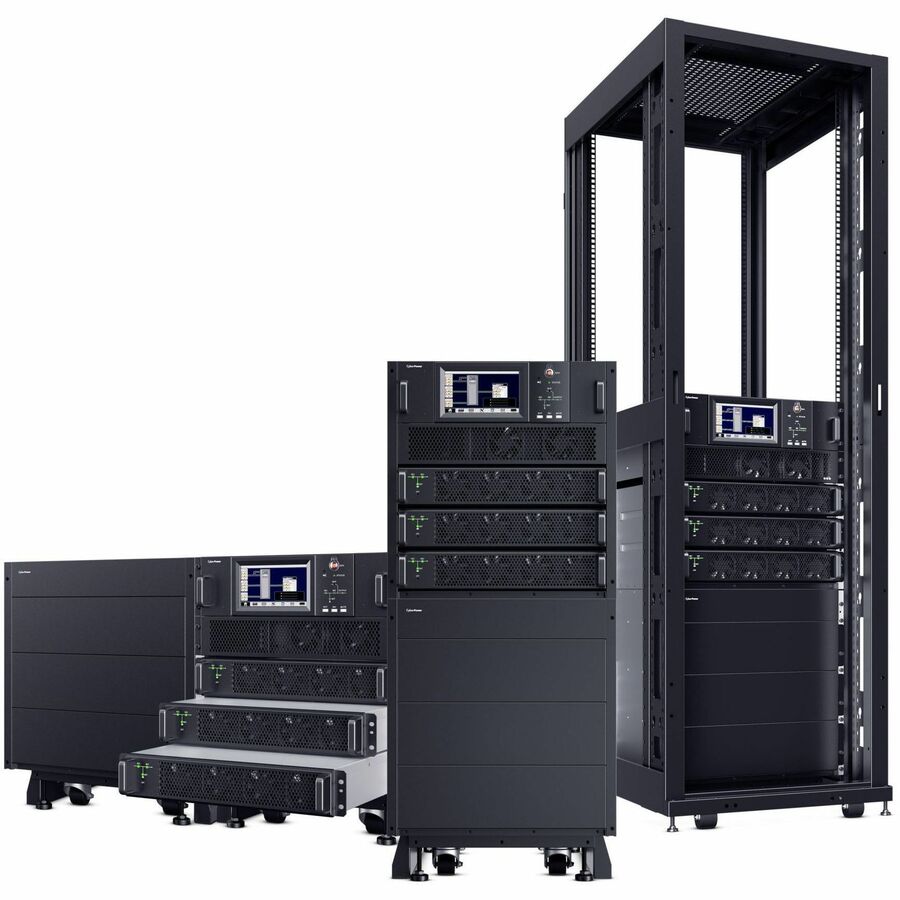

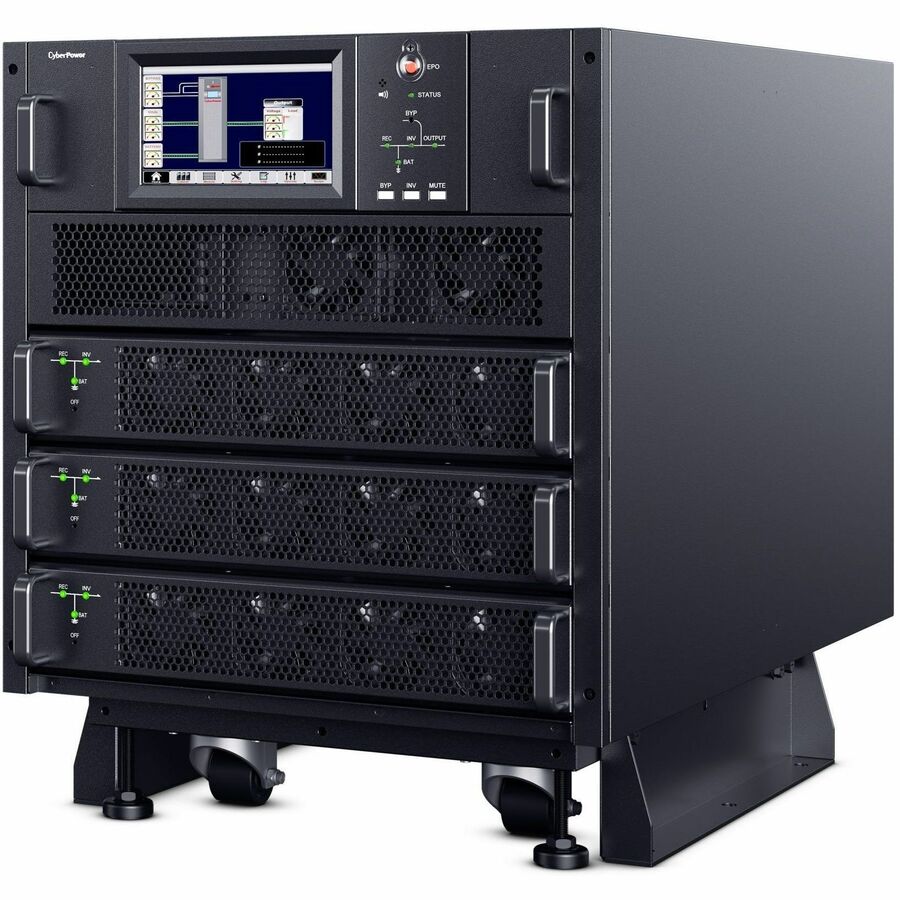

The CyberPower SM020KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility, space savings, and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy, the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack. The high-density, scalable 10kVA/10kW power modules are 2U in height, saving space while providing more options for capacity expansion.

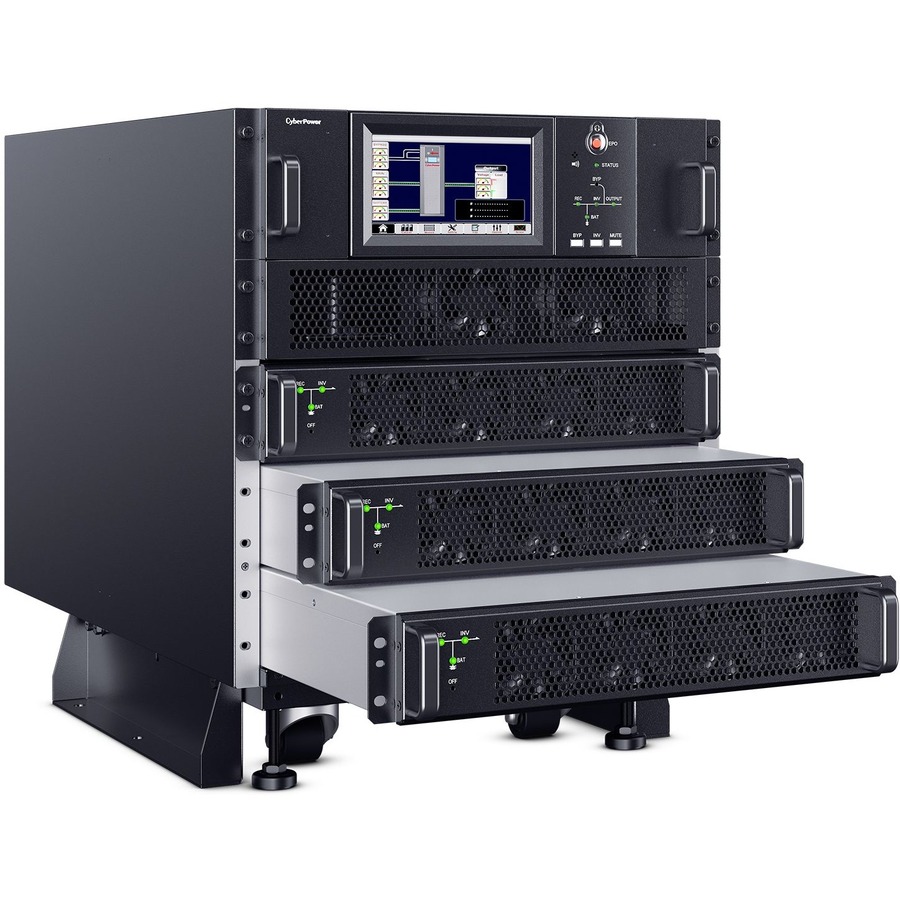

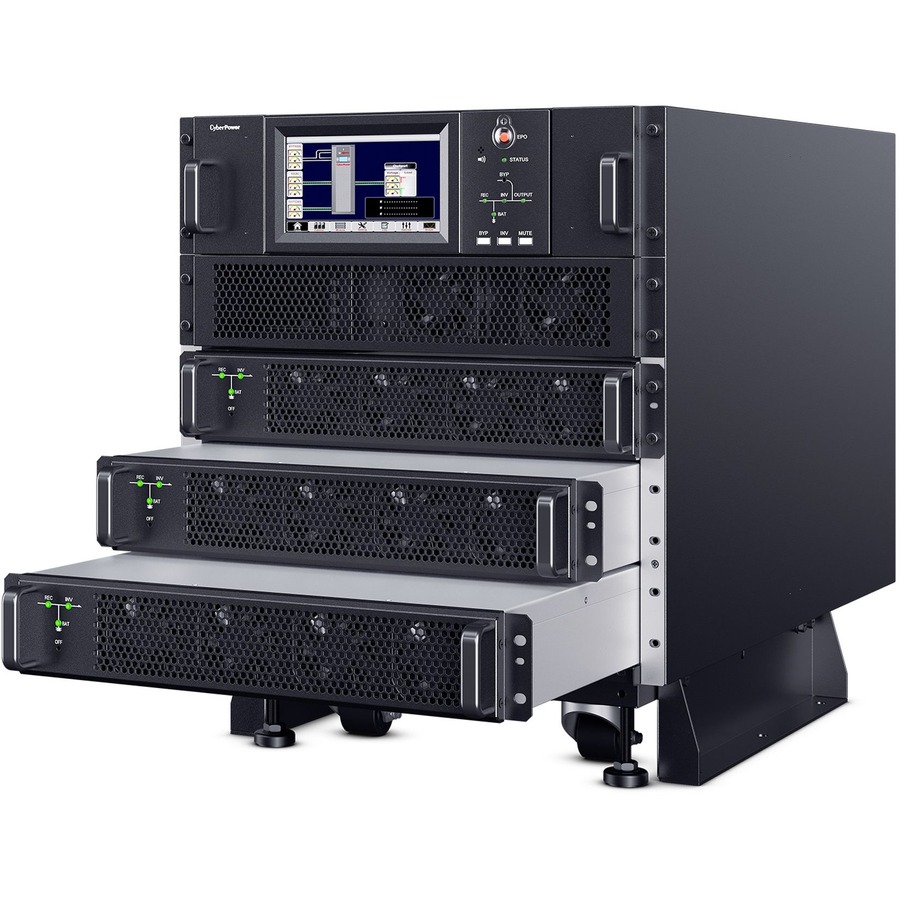

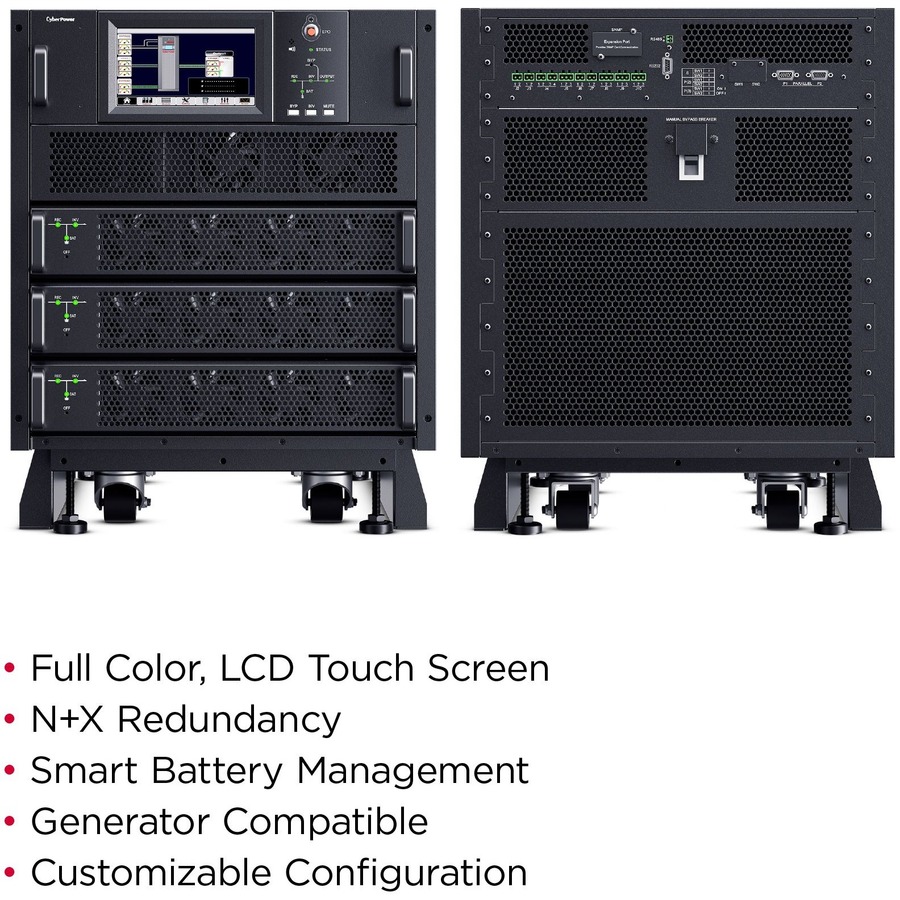

The SM020KAMFA features double-conversion topology for seamless power protection and a pre-installed RMCARD205 for remote management. The user-friendly 7" color touchscreen displays key status indicators at-a-glance. Three-stage Smart Battery Management (SBM) equalizes battery voltages and reduces excessive heat to extend battery life. Plus, hot-swappable power modules, battery and, bypass allow for rapid replacement and minimal impact to system operation. Ideal for high-end data centers, the SM020KAMFA Smart App Online 3-Phase Modular UPS System assures reliable, high-quality AC power and includes a One-Year Limited Warranty.

• Backfeed
• Short Circuit

• 120 V AC
• 230 V AC

• 120 V AC
• 127 V AC
• 208 V AC
• 220 V AC

• Internal
• Automatic
• Manual
• Maintenance

• LCD: Multifunction LCD
• LED Indicators: Rectifier

• SM020KAMFA 3-Phase Modular Smart App Online UPS System
• Mounting Hardware

• Dual Power Inputs: Yes
• Energy Saving: Online ECO Mode Efficiency >97.5%
• Hot Swappable Bypass Module: Yes - Qualified Personnel Only
• Hot Swappable Power Module: Yes - Qualified Personnel Only
• Module Maximum Capacity: 3
• Parallel Expansion (Max. Units): 2
• Power Module Redundancy Capability: Yes
• Battery Bus Voltage: Nominal: ±120VDC, one-side range: 120VDC - 132VDC
• Battery Cabinet: Modular External
• Charger Voltage Tolerance: ?1% Float
• Hot Swappable: Yes
• Hot Swappable Battery Module: Yes - Qualified Personnel Only
• Recharge Power: Default 10% x UPS Power
• Recharge Power (Selectable): 1 % - 20 %
• Replacement Battery Cartridge Quantity: 6
• Ripple Current: ?5% C10
• Ripple Voltage: ?1% VDC Float
• Temperature Compensation (Per Cell): -3 mV/°C
• Backfeed Protection: Yes
• Bypass frequency tolerance (Default): ±10%
• Bypass frequency tolerance (Selectable): ±2.5%, ±5%, ±10%, ±20%
• Bypass Input Voltage Range: -20 % - 15 %
• Bypass Input Voltage Range (Selectable): Lower limit: -10%, -20%, -30%, -40%
• Bypass Overload Protection: 110% - 130% Load for 5 Min
• Bypass Rated Current: 55.6A@ 208V
• Bypass to Inverter Switch Time: Synchronized switch: ?1ms
• Current rating of bypass neutral cable (A): 1.7 x Input Rated Current
• Input Power Factor: 0.99
• Synchronization-Window: Rated frequency: ±2Hz
• Synchronization-Window (Selectable): ±0.5Hz - ±5Hz
• THDI (%): < 4% (Full Linear Load)
• Automatic Voltage Regulation: ±1 (Balanced Load)
• Bypass: Internal Bypass (Automatic and Manual)
• Crest Factor: 3:1
• Efficiency: 92.5% (Battery Mode)
• Harmonic Distortion: < 1.5% at Linear Load
• Maintenance Bypass: Yes
• Max Change Rate of Synch Frequency: 1 Hz/s
• Max Change Rate of Synch Frequency (Selectable): 0.1 - 5 Hz/s
• Neutral Current Capability: 170 %
• Non-Linear Load Capability: 100 %
• Output Power Factor: 1
• Output Voltage Range: 187 VAC - 260 VAC
• Overload Protection: 105 - 110% Load for 60 min
• Short Circuit Protection: 300% - 200ms
• Synchronization Window (Rated ): ±2Hz
• Synchronization Window (Selectable): ±1Hz - ±5Hz
• Transient Voltage Response: ±5%
• Typical Transfer Time: 0 ms
• Dry Contacts: Yes
• Emergency Power Off (EPO) Port: Yes
• Serial Port: 1 RS232
• Material of Construction: Metal
• Mounting Hardware: Yes
• Ingress Protection: IP20
• Maximum Air Exchange: 3.02 m3 /min
• Online Thermal Dissipation: 5732.16 BTU/hr
• Operating Elevation Note: At ?1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m
• Operating Relative Humidity: 0 - 95 % (non-condensing)
• Operating Temperature Note: Battery life is halved for every 10°C increase above 20°C
• Storage Battery Temperature Note: Optimum battery storage between -15°C and 20°C
