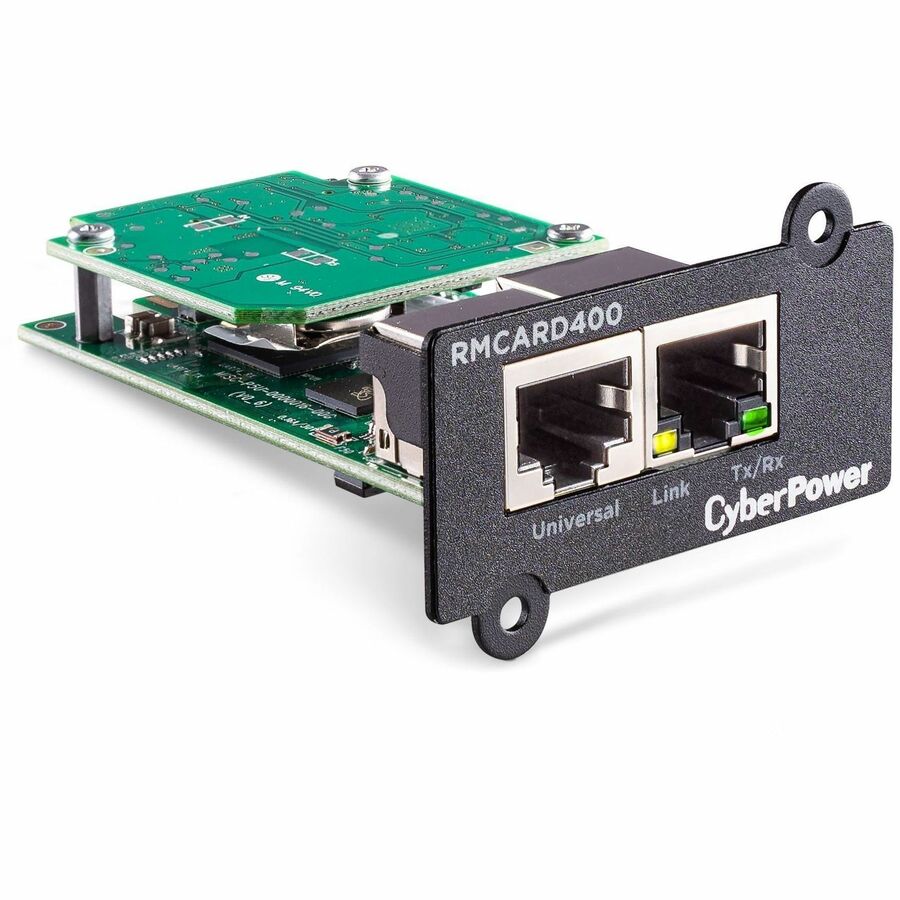

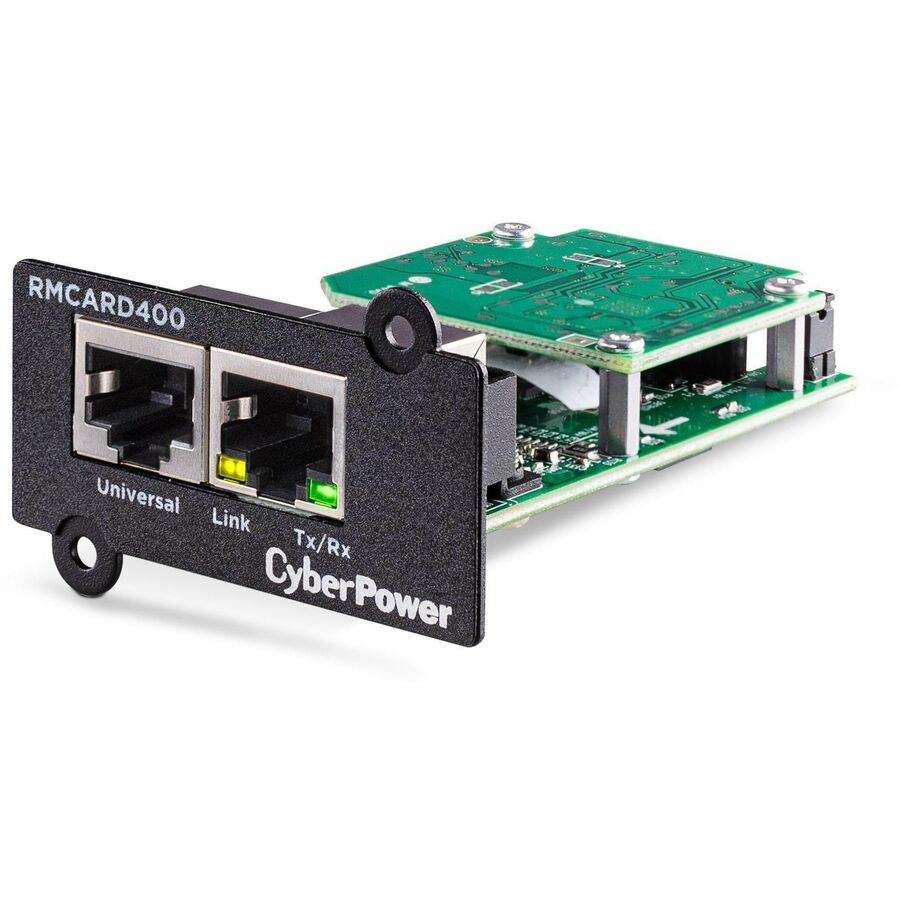

CyberPower RMCARD400 UPS Management Adapter

A full-featured network management card, the CyberPower RMCARD400 Gigabit SNMP card remotely manages, monitors and controls select CyberPower UPS systems via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD400 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel® Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.

An optional environmental sensor (ENVIROSENSOR) can be connected to the RMCARD400 to monitor the ambient temperature and humidity of a server room, IT closet, or other critical environments. Administrators define temperature parameters in Fahrenheit or Celsius; thresholds can be configured to prompt the RMCARD400 to send a predefined notifications. The RMCARD400 comes with a three-year warranty.

Product Features | Environmental Sensor Compatibility

The optional ENVIROSENSOR connects to the Universal port on the RMCARD400 to monitor ambient temperature and humidity. Notifications are enabled by default and alert thresholds can be easily customized to fit environmental control requirements.

Remote Management

Allows administrators to control and configure the UPS without being onsite via a standard web browser, command line interface (CLI), or network management system (NMS).

Built-In Automatic Shutdown

In conjunction with PowerPanel Business Edition Client, you can protect servers and workstations from data loss due to power failure.

Offsite Scheduling of UPS Operation

Lets administrators conduct scheduled times for UPS shutdown, startup, and reboot. Functionality includes event action management, event logging, and automatic event notification.

Automatic Event Notification

Provides immediate updates about power events via Email, SMS, SNMP Traps, or Syslog server.

Event Logging and Status Records

Traces the UPS operational history, tracking events and input/output power status records.

Event Action Settings

Allows administrators to customize UPS actions in response to power and system events.

Upgradable Firmware

Keep the RMCARD400 up to date with the latest firmware version. New firmware releases include new functionality, feature enhancements, and bug fixes. Firmware can be updated via FTP or SCP.

Upgradable UPS Firmware

Maintain UPS firmware that manages features and functions up to date to. The UPS firmware upgrade is easy to do via the web management interface.

• UPS Network Management
• Automatic Shutdown
• Schedule Shutdown/Startup/Reboot

• TCP/IP
• UDP
• FTP
• SCP
• DHCP
• DNS
• SSH
• Telnet
• HTTP
• HTTPS
• SNMP v1
• SNMPv3
• IPv4
• IPv6
• NTP
• SMTP
• Syslog
• CLI
• SNMP
• NMS
• SMS (Short Message Service)
• LDAPS
• LDAP
• MIB
• RADIUS
• SMTPS
• SSL
• TLS

CyberPower UPS Systems
