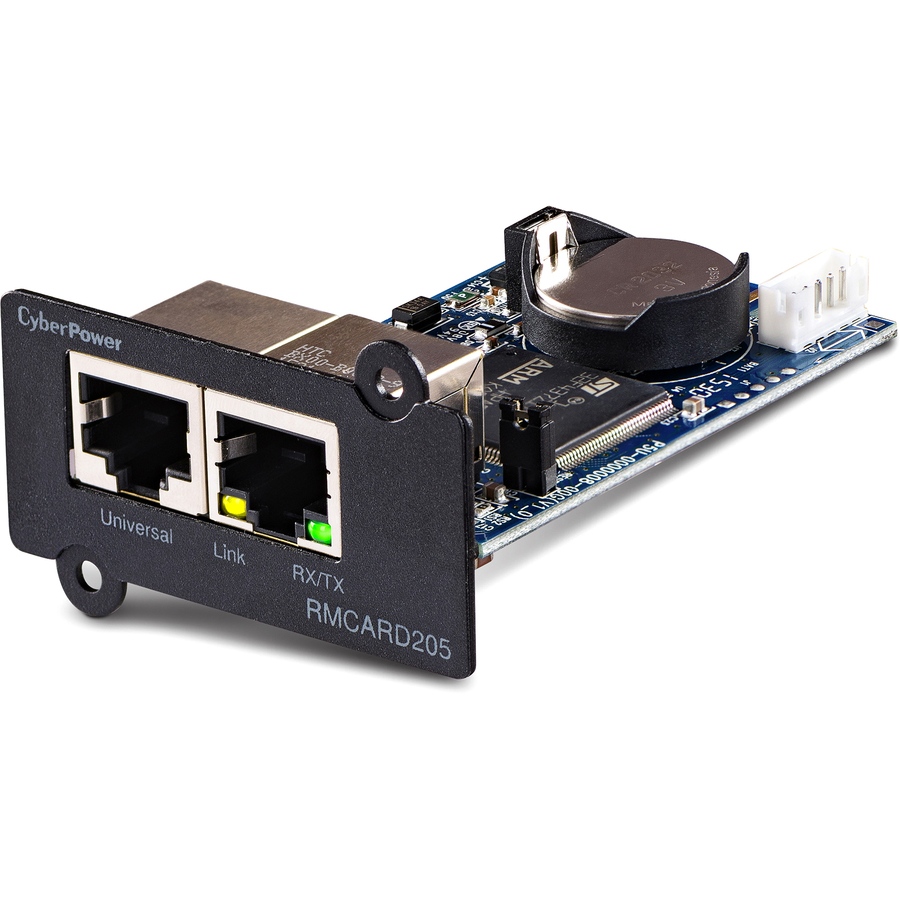

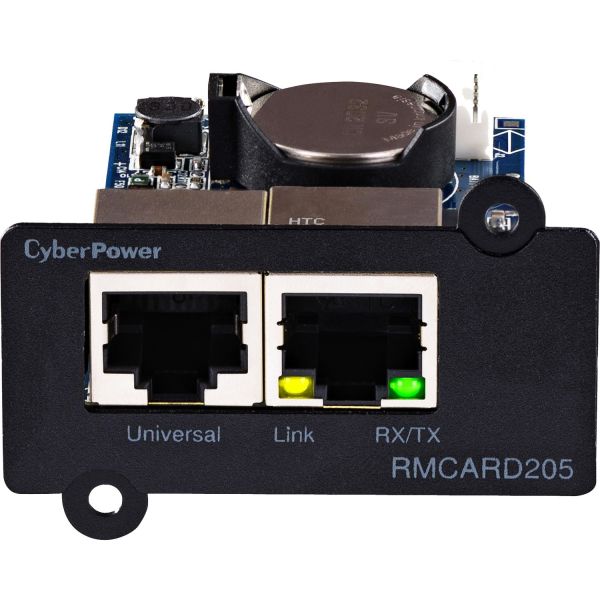

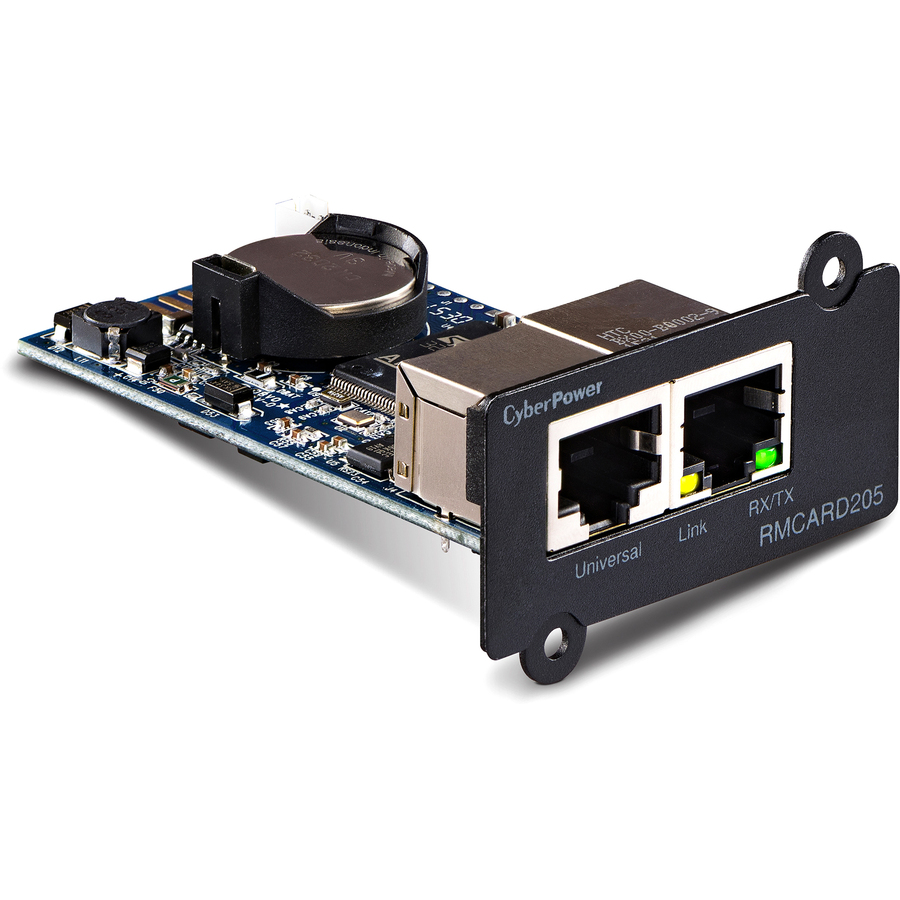

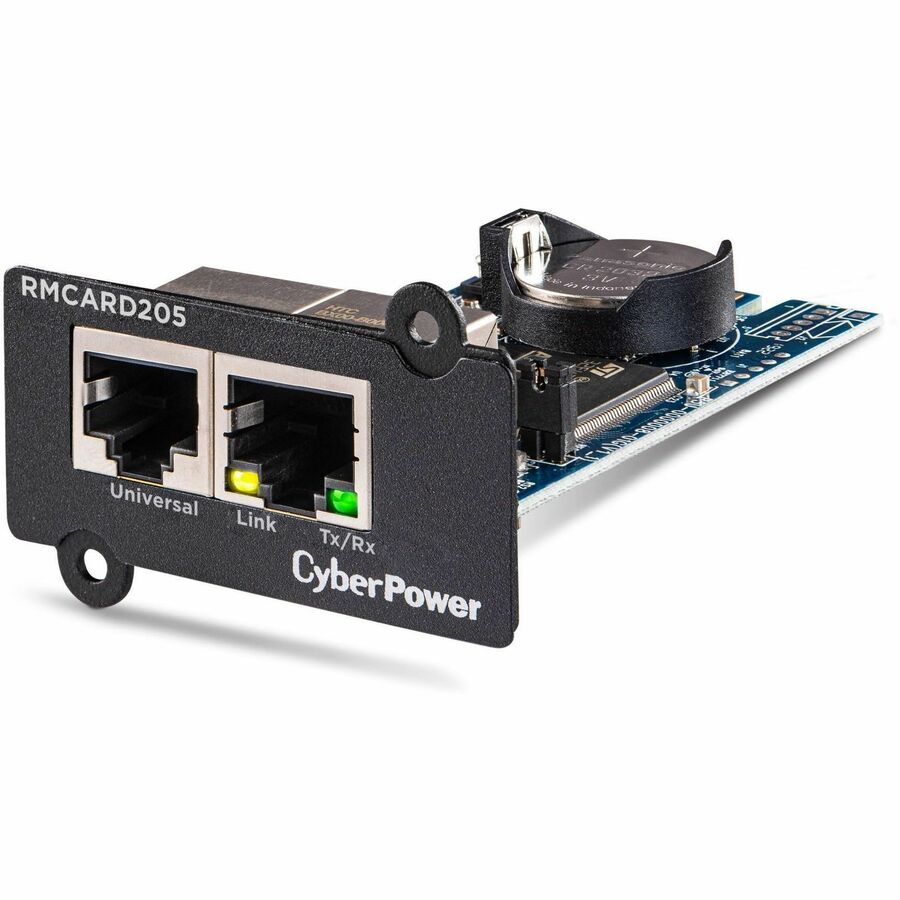

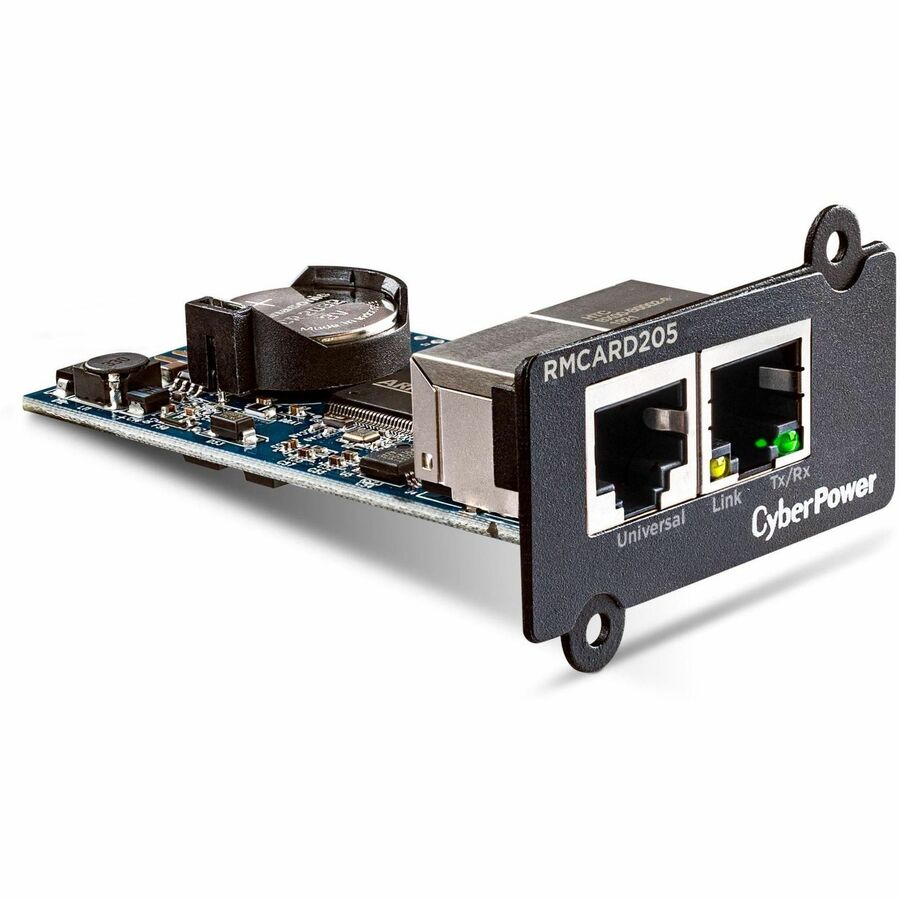

CyberPower RMCARD205 Remote Management Card

Name: CyberPower RMCARD205 Remote Management Card
Brand: CYBERPOWER
SKU: 9GM162
Price: 340.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM162

MFG#

RMCARD205

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$340.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Black 3YR Warranty
Hardware & Accessories

Product Condition: New and Factory Fresh

Limited WarrantyCompatibility OL1000RTXL2U OL1500RTXL2U OL1500RTXL2UN OL2200RTXL2U OL3000RTXL2U OL3000RTXL2UHV PR500LCDRT1U PR750LCD PR1500LCDN PR750LCDRM1U PR750LCDRT1U PR750LCDRTXL2U PR1000LCD PR1000LCDRM1U PR1000LCDRT1U PR1000LCDRT2U PR1000LCDRTXL2U PR1000LCDRTXL2Ua PR1500LCD PR1500LCDRT2U PR1500LCDRT2UN PR1500LCDRTXL2U PR1500LCDRTXL2UN PR1500LCDRTXL2Ua PR2200LCD PR2200LCDSL PR2200LCDRT2U PR2200LCDRT2UN PR2200LCDRTXL2U PR3000LCD PR3000LCDSL PR3000LCDRT2U PR3000LCDRTXL2U PR3000LCDRTXL2UN PR5000LCDRTXL5U PR6000LCDRTXL5U OR500LCDRM1U OR700LCDRM1U OR1000LCDRM1U OR1500LCDRM1U OR1500LCDRM2U OR1500LCDRT2U OR1500LCDRTXL2U OR2200LCDRM2U OR2200LCDRT2U OR2200LCDRTXL2U CPS1500AVR PDU15M10AT PDU20M10AT PDU20MT10AT PDU30MT17AT PDU15MHVIEC12AT PDU20MHVT10AT PDU20MHVIEC10AT PDU30MHVT19AT PDU15SW10ATNET PDU20SW10ATNET PDU20SWT10ATNET PDU30SWT17ATNET PDU15SWHVIEC12ATNET PDU20SWHVT10ATNET PDU20SWHVIEC10ATNET PDU30SWHVT19ATNET Certifications & StandardsFCC DoC Class ACECountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 1 lbs.

CyberPower RMCARD205 Remote Management Card

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	RMCARD205
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	UPS Hardware
Product Model	RMCARD205
Product Name	RMCARD205 Remote Management Card

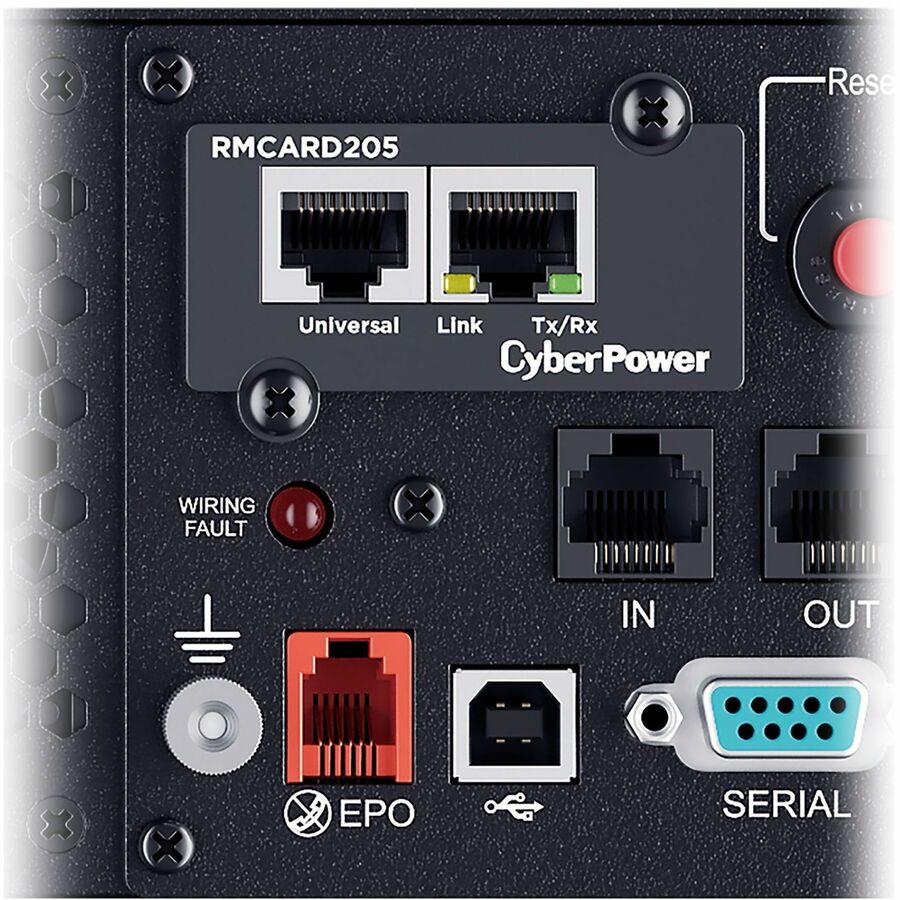

Marketing Information	A full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors and controls select CyberPower UPS systems and ATS PDUs via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD205 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel® Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.
Product Type	Remote Power Management Adapter

Technical Information

Management	Remote Monitoring
Protocols	TCP/IP UDP FTP DHCP DNS SSH Telnet HTTP HTTPS SNMPv3 SNMP v1 IPv4 IPv6 NTP SMTP SSL RADIUS LDAP LDAPS TLS Syslog

Interfaces/Ports

Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2

Network & Communication

Ethernet Technology

Fast Ethernet

Physical Characteristics

Color Family	Black
Product Color	Black
Height	1.4"
Width	2.1"
Depth	3"
Weight (Approximate)	1.28 oz

Miscellaneous

Package Contents	RMCARD205 UPS & ATS PDU Remote Management Card - SNMP/HTTP/NMS/Enviro Port Quick Start Guide Spare Jumper
Additional Information	Data Link Protocol : Ethernet 100Base-TX, Ethernet 10Base-T Unversal Port : Optional ENVIROSENSOR Physical Dimensions - (WxHxD) (cm) : 5.41 x 3.61 x 7.62 (cm) Physical Dimensions - (WxHxD) (in) : 2.13 x 1.42 x 3 (in) Physical Dimensions - (WxHxD) (mm) : 54 x 36 x 76 (mm) Weight (kg) : 0.04 Weight (lb) : 0.08 Shipping Dimensions - (WxHxD) (cm) : 5.84 x 16.51 x 16.76 (cm) Shipping - Dimensions (WxHxD, in) : 2.3 x 6.5 x 6.6 (in) Shipping - Dimensions (WxHxD, mm) : 58.42 x 165.1 x 167.64 (mm) Shipping - Weight (kg) : 0.26 Shipping - Weight (lb) : 0.57 USB Charge Port : No Network Protection RJ45 : Ethernet RJ45 Network Protection RJ45 : Ethernet RJ45 LED Indicators : Tx/Rx Cisco EnergyWise : v1.2.0 and newer DHCP : RFC 2131 DNS : RFC 1035 FTP : RFC 959 HTTP : v1.1: RFC 2616 HTTPS : RFC 2818 LDAP : v3: RFC 2251 LDAPS : v3: RFC 4513 MIB : RFC 1213, RFC 1628 NTP : RFC 958 RADIUS : RFC 2865 SCP : v2: RFC 4253, RFC 4254 SMTP : RFC 2821 SMTPS : RFC 3207 SNMP : v1: RFC 1155, RFC 1156, RFC 1157 SSH : v2: RFC 4253, RFC 4254 SSL : v3: RFC 6101 SysLog : RFC 5424 TCP/IP : v4: RFC 791 Telnet : RFC 854 TLS : v1.1: RFC 4346 Color : Black Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 14 - 122 °F (-10 - 50 °C) Environmental : RoHS Compliant Safety : FCC DoC Class A\|CE Extended Warranty Option : WEXT5YR-ACC1A Product Warranty : 3 Year Limited Warranty
Compatibility	OL1000RTXL2U OL1500RTXL2U OL1500RTXL2UN OL2200RTXL2U OL3000RTXL2U OL3000RTXL2UHV PR500LCDRT1U PR750LCD PR1500LCDN PR750LCDRM1U PR750LCDRT1U PR750LCDRTXL2U PR1000LCD PR1000LCDRM1U PR1000LCDRT1U PR1000LCDRT2U PR1000LCDRTXL2U PR1000LCDRTXL2Ua PR1500LCD PR1500LCDRT2U PR1500LCDRT2UN PR1500LCDRTXL2U PR1500LCDRTXL2UN PR1500LCDRTXL2Ua PR2200LCD PR2200LCDSL PR2200LCDRT2U PR2200LCDRT2UN PR2200LCDRTXL2U PR3000LCD PR3000LCDSL PR3000LCDRT2U PR3000LCDRTXL2U PR3000LCDRTXL2UN PR5000LCDRTXL5U PR6000LCDRTXL5U OR500LCDRM1U OR700LCDRM1U OR1000LCDRM1U OR1500LCDRM1U OR1500LCDRM2U OR1500LCDRT2U OR1500LCDRTXL2U OR2200LCDRM2U OR2200LCDRT2U OR2200LCDRTXL2U CPS1500AVR PDU15M10AT PDU20M10AT PDU20MT10AT PDU30MT17AT PDU15MHVIEC12AT PDU20MHVT10AT PDU20MHVIEC10AT PDU30MHVT19AT PDU15SW10ATNET PDU20SW10ATNET PDU20SWT10ATNET PDU30SWT17ATNET PDU15SWHVIEC12ATNET PDU20SWHVT10ATNET PDU20SWHVIEC10ATNET PDU30SWHVT19ATNET
Certifications & Standards	FCC DoC Class A CE
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
