CyberPower RKBS20ST6F12R Rackbar 18 - Outlet Surge with 1800 J

Engineered for the most demanding applications, the professional-grade Rackbar™ Surge RKBS20ST6F12R from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the RKBS20ST6F12R also performs superbly for home office use, providing 1800 joules of protection, 20-amp electrical capacity with circuit breaker, and 18 surge-protected outlets (6 front, 12 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. Two sets of mounting brackets provide flexible installation options: 1U rackmount (19 in.); 0U vertical rackmount and under-counter configurations.

Features of the RKBS20ST6F12R include an EMI/RFI noise filter, LED status indicators, industrial-grade metal housing, AC power cord (15 ft.), twist lock plug, and a cord retention tray. The RKBS20ST6F12R also comes with a Limited Lifetime Warranty and a Connected Equipment Guarantee.

• Rackbar Surge Suppressor RM 1U RKBS20S6F8R 20A 14-Outlet
• Mounting Brackets (2 Sets)
• Cord Retention Tray
• Cord Organizers
• User Manual

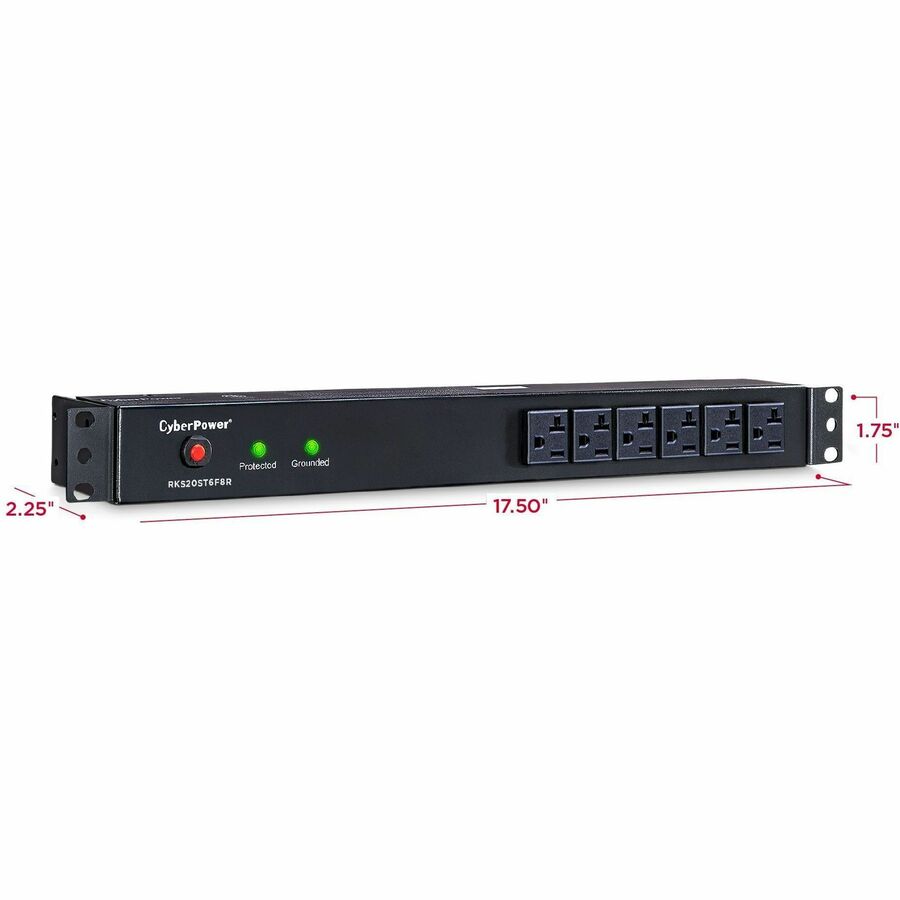

• Physical Dimensions - (WxHxD) (cm) : 44.45 x 4.45 x 5.72 (cm)
• Physical Dimensions - (WxHxD) (in) : 17.5 x 1.75 x 2.25 (in)
• Physical Dimensions - (WxHxD) (mm) : 445 x 44 x 57 (mm)
• Weight (kg) : 2.23
• Weight (lb) : 4.92
• Shipping Dimensions - (WxHxD) (cm) : 17.93 x 6.68 x 50.8 (cm)
• Shipping - Dimensions (WxHxD, in) : 7.06 x 2.63 x 20 (in)
• Shipping - Dimensions (WxHxD, mm) : 179.32 x 66.8 x 508.0 (mm)
• Shipping - Weight (kg) : 3.18
• Shipping - Weight (lb) : 7
• Circuit Breaker : 20 A
• Cord Length : 15 ft (4.6 m)
• Input Frequency Range : 50 Hz - 60 Hz
• Input Plug Type : NEMA L5-20P
• Maximum Input Current : 20A
• Plug Style : Straight
• Nominal Output Voltage : 120 VAC
• Outlets - Front : 6
• Outlets - Rear : 12
• Outlets - Total : 18
• Outlet Type COMPUTED : 18 - NEMA 5-20R
• Overload Protection : 20A
• USB Charge Port : No
• Attenuation : 50 dB
• Clamping Voltage : 400V (H-N)
• EMI/RFI Filtration COMPUTED : Yes
• Maximum Surge Current : 90000 A
• Maximum Surge Current H-G : 30000 A
• Maximum Surge Current H-N : 30000 A
• Maximum Surge Current N-G : 30000 A
• Maximum Surge Voltage : 6000 V
• Response Time : 1 Nanosecond
• Surge Suppression (Joules) : 1800 J
• Attenuation : 50 dB
• Clamping Voltage : 400V (H-N)
• EMI/RFI Filtration COMPUTED : Yes
• Maximum Surge Current : 90000 A
• Maximum Surge Current H-G : 30000 A
• Maximum Surge Current H-N : 30000 A
• Maximum Surge Current N-G : 30000 A
• Maximum Surge Voltage : 6000 V
• Response Time : 1 Nanosecond
• Surge Suppression (Joules) : 1800 J
• LED Indicators : Power On (green)
• Adjustable Mounting Brackets : 2 sets (L-Short, L-Long)
• Color : Black
• Cord Retention Tray/Cord Organizers : Yes
• External Site Ground Pin : Yes
• Form Factors Supported : 1U Rackmount
• Material of Construction : Metal
• Rack Height : 1U
• Style : Rackmount
• Operating Elevation : 0 - 10000 ft (0 - 3048 m)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Temperature : 32 - 95 °F (0 - 35 °C)
• Storage Elevation : 0 - 50000 ft (0 - 15239 m)
• Storage Temperature : 5 - 113 °F (-15 - 45 °C)
• Environmental : RoHS Compliant
• Safety : UL1363 : UL1449
• CEG Amount :
• 150000
• Connected Equipment Guarantee : Lifetime
• Product Warranty : Limited Lifetime Warranty

• Data Centers
• PCs
• Workstation
• Server
• Internetworking Equipment
• Telecommunication Equipment
• Security System
• Audio/Video Equipment
