CyberPower RELAYIO500 Network Management Card

Name: CyberPower RELAYIO500 Network Management Card
Brand: CYBERPOWER
SKU: 9GM298
Price: 130.38 USD
Availability: InStock

CYBERPOWER

PCN#

9GM298

MFG#

RELAYIO500

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$130.38

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

Black 3YR Warranty
Hardware & Accessories

Product Condition: New and Factory Fresh

Limited WarrantyCompatibility All OR Series UPS Systems All PR Series UPS Systems OL1000RTXL2U OL1500RTXL2U OL1500RTXL2UN OL3000RTXL2UHV OL2200RTXL2U Country of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 1 lbs.

CyberPower RELAYIO500 Network Management Card

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	RELAYIO500
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	UPS Hardware
Product Model	RELAYIO500
Product Name	RELAYIO500 Network Management Card

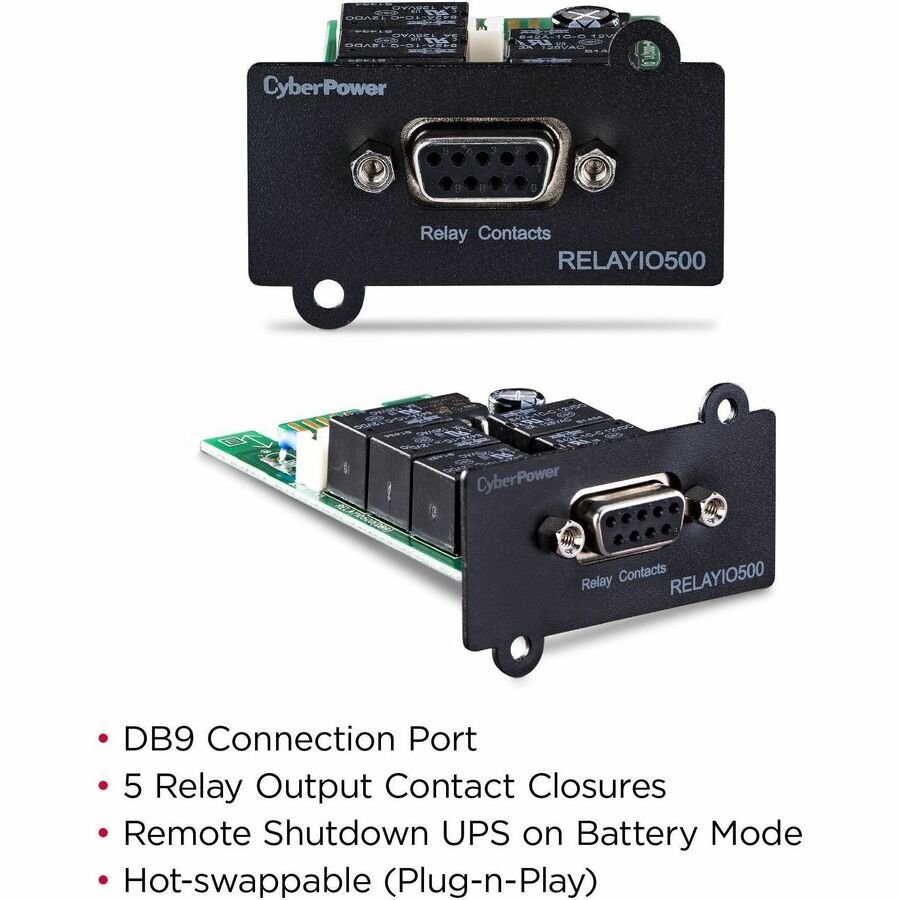

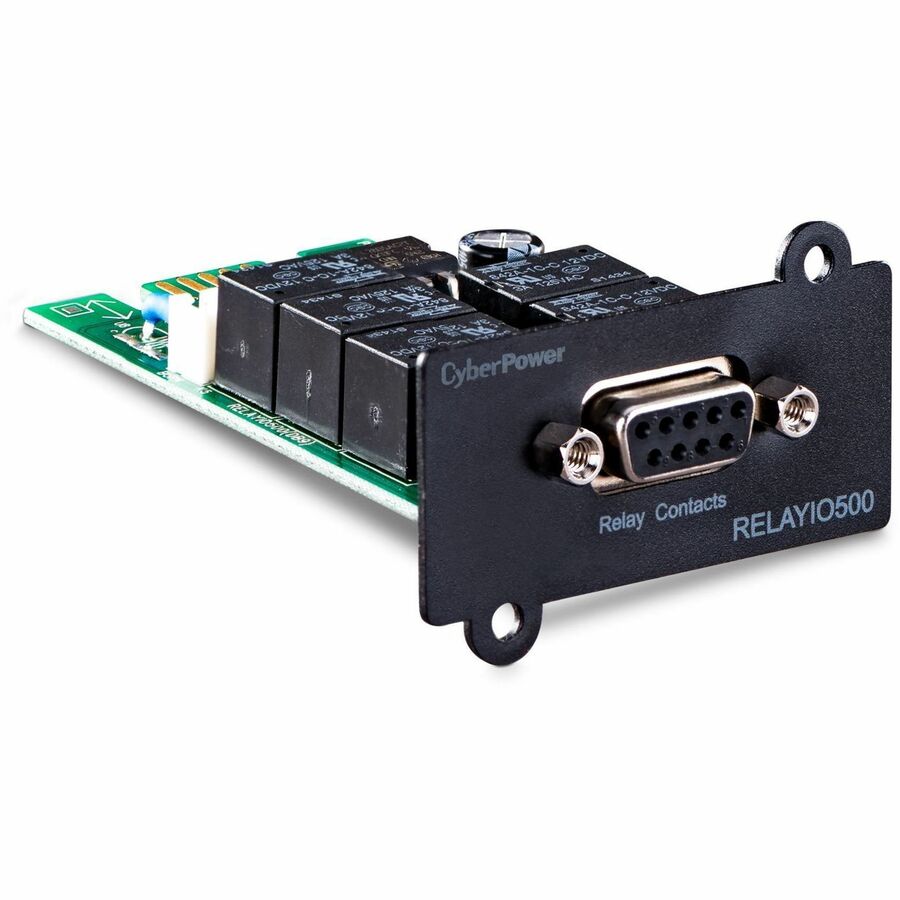

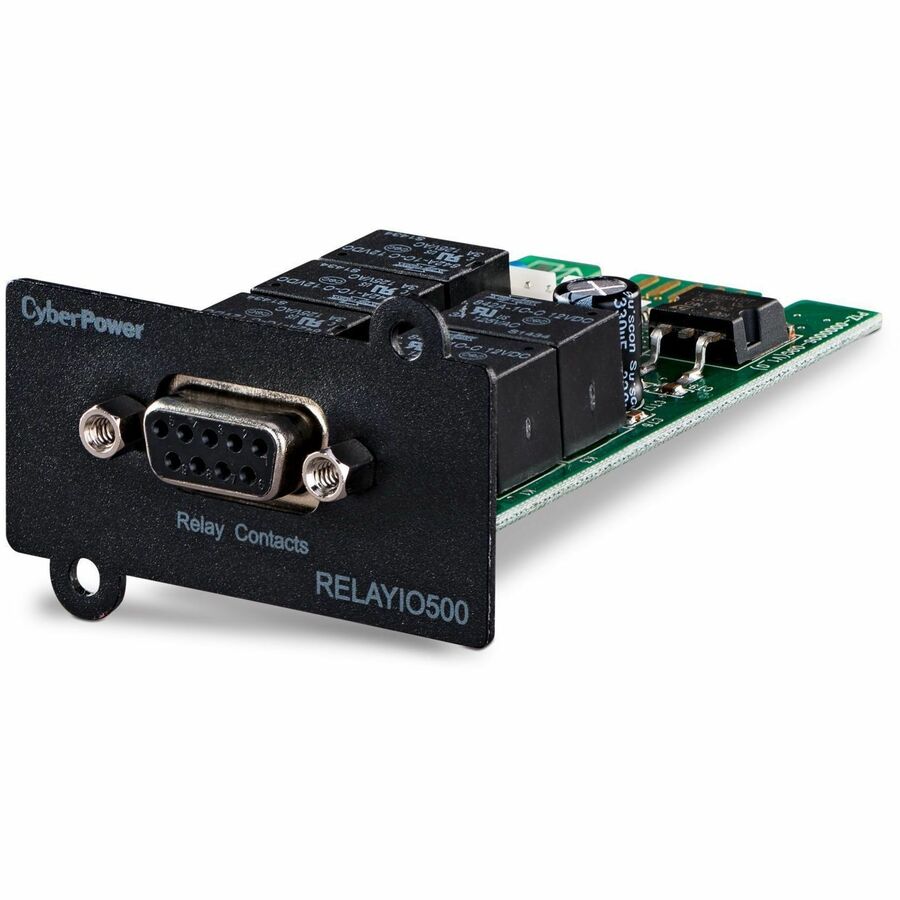

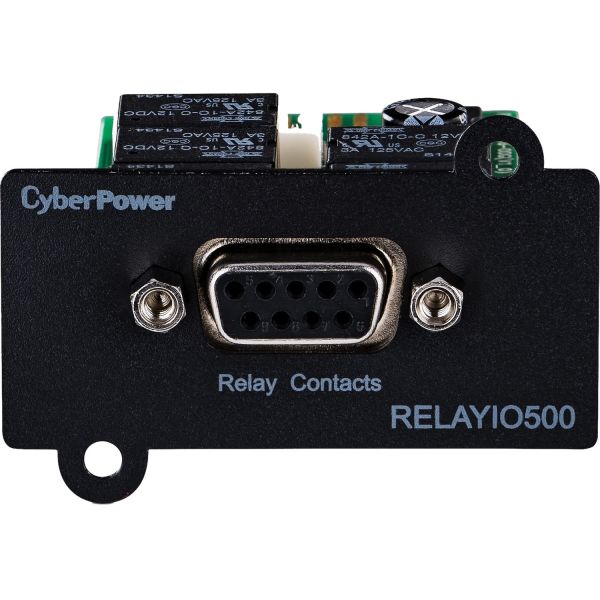

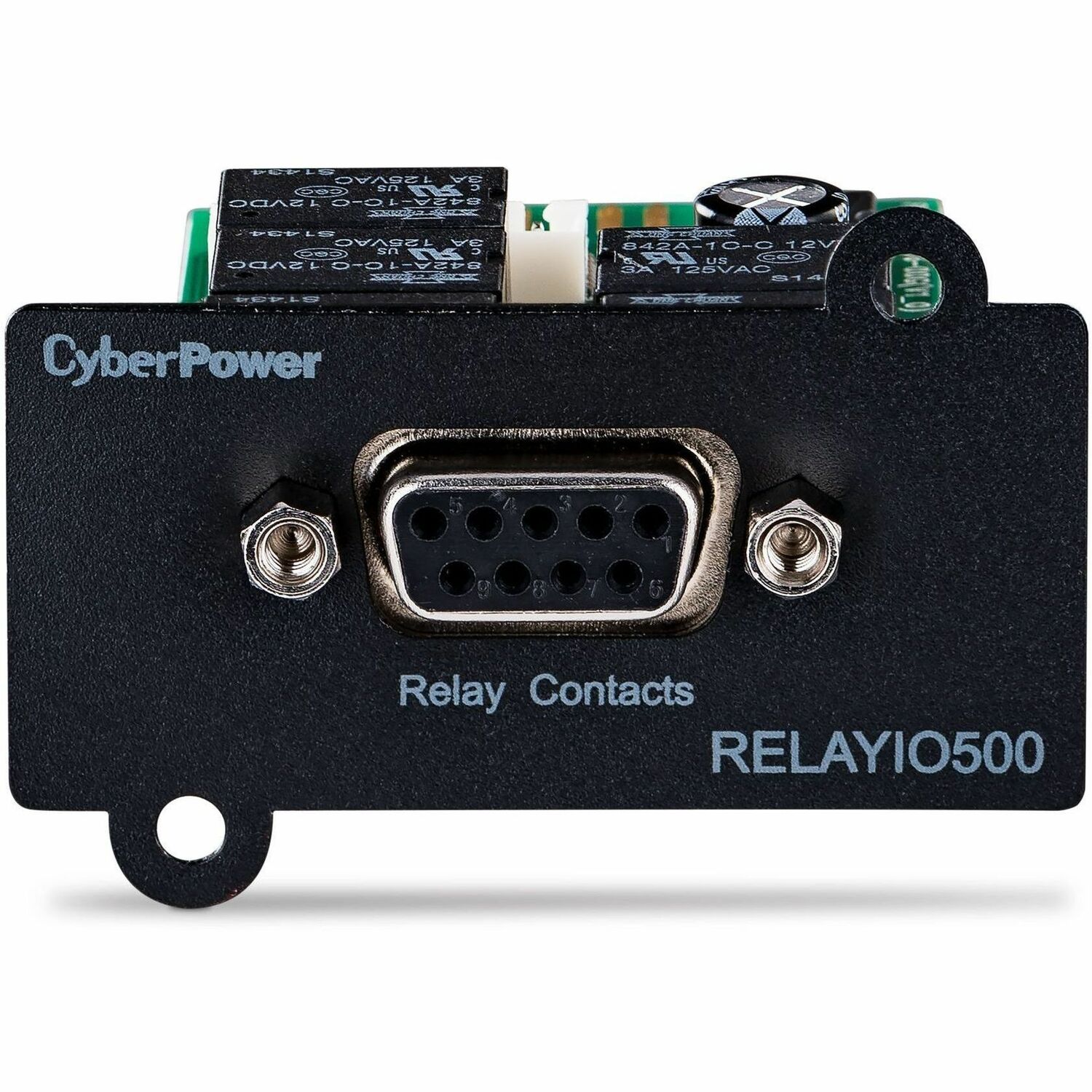

Marketing Information	The CyberPower RELAYIO500 is a local management solution that provides users the ability to monitor UPS status and events via 5 contact closure outputs. Easy to install in any compatible* Smart App UPS with expansion slot. Input contact closure allows the UPS to be shutdown remotely while on Battery Mode to preserver battery power in the event of a prolonged power outage. The RELAYIO500 comes with a three-year warranty.
Product Type	Remote Power Management Adapter

Technical Information

Proprietary Slot Type

Mini Slot

Interfaces/Ports

Serial

Yes

Physical Characteristics

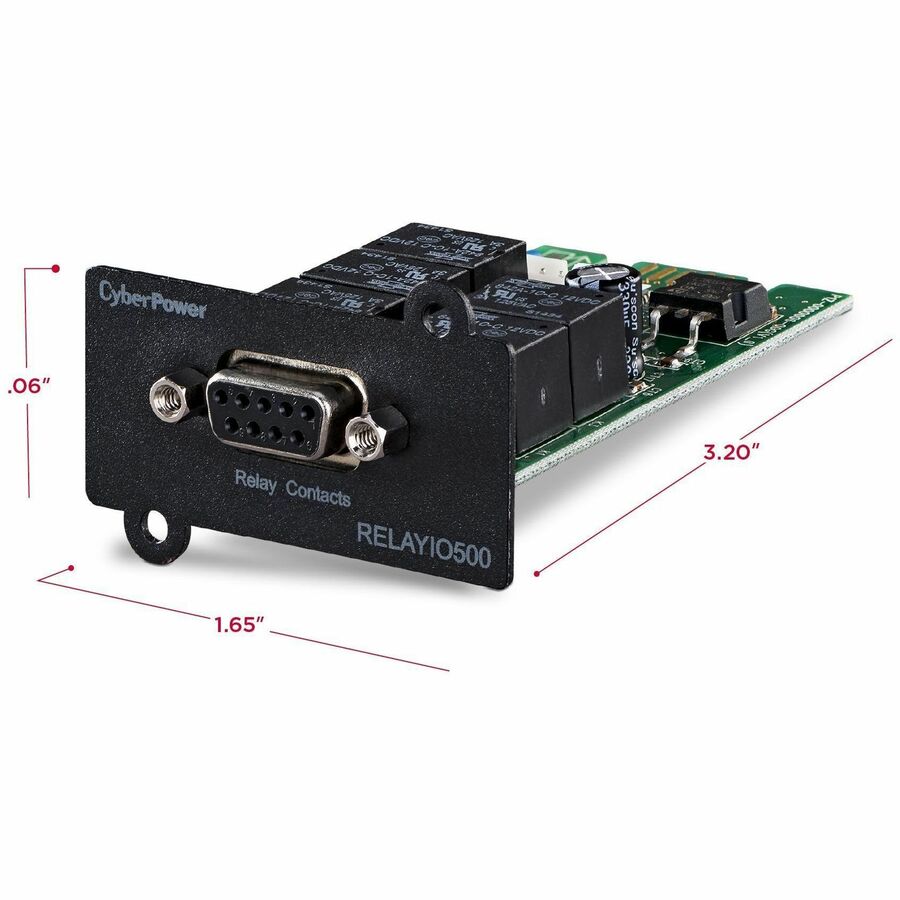

Height	0.6"
Width	1.7"
Depth	3.2"
Weight (Approximate)	1.76 oz

Miscellaneous

Package Contents	RELAYIO500 Remote Power Management Adapter Quick Reference Manual
Additional Information	Contact Closure Outputs : 5 External S/D Voltage : 7.5 - 12 VDC Input Signal Contact : 1 - UPS shutdown in Battery Mode Output Relay Rating (Max.) : 30 VDC / 125 VAC, 3A (per relay) Physical Dimensions - (WxHxD) (cm) : 4.19 x 1.52 x 8.13 (cm) Physical Dimensions - (WxHxD) (in) : 1.65 x 0.6 x 3.2 (in) Physical Dimensions - (WxHxD) (mm) : 42 x 15 x 81 (mm) Weight (kg) : 0.05 Weight (lb) : 0.11 Shipping Dimensions - (WxHxD) (cm) : 5.87 x 16.61 x 16.89 (cm) Shipping - Dimensions (WxHxD, in) : 2.31 x 6.54 x 6.65 (in) Shipping - Dimensions (WxHxD, mm) : 58.67 x 166.12 x 168.91 (mm) Shipping - Weight (kg) : 9.3 Shipping - Weight (lb) : 20.5 USB Charge Port : No Hardware Connection Port : Serial Color : Black Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 14 - 122 °F (-10 - 50 °C) Models : OL1000RTXL2U, OL1500RTXL2U, OL1500RTXL2UN, OL2200RTXL2U, OL3000RTXL2U, OL3000RTXL2UHV UPS Models : OR Series UPS systems\|PR Series UPS systems\|OL1000RTXL2U\|OL1500RTXL2U\|OL1500RTXL2UN\|OL2200RTXL2U\|OL3000RTXL2U\|OL3000RTXL2UHV Environmental : RoHS Compliant Extended Warranty Option : WEXT5YR-ACC1A Product Warranty : 3 Year Limited Warranty
Compatibility	All OR Series UPS Systems All PR Series UPS Systems OL1000RTXL2U OL1500RTXL2U OL1500RTXL2UN OL3000RTXL2UHV OL2200RTXL2U
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
