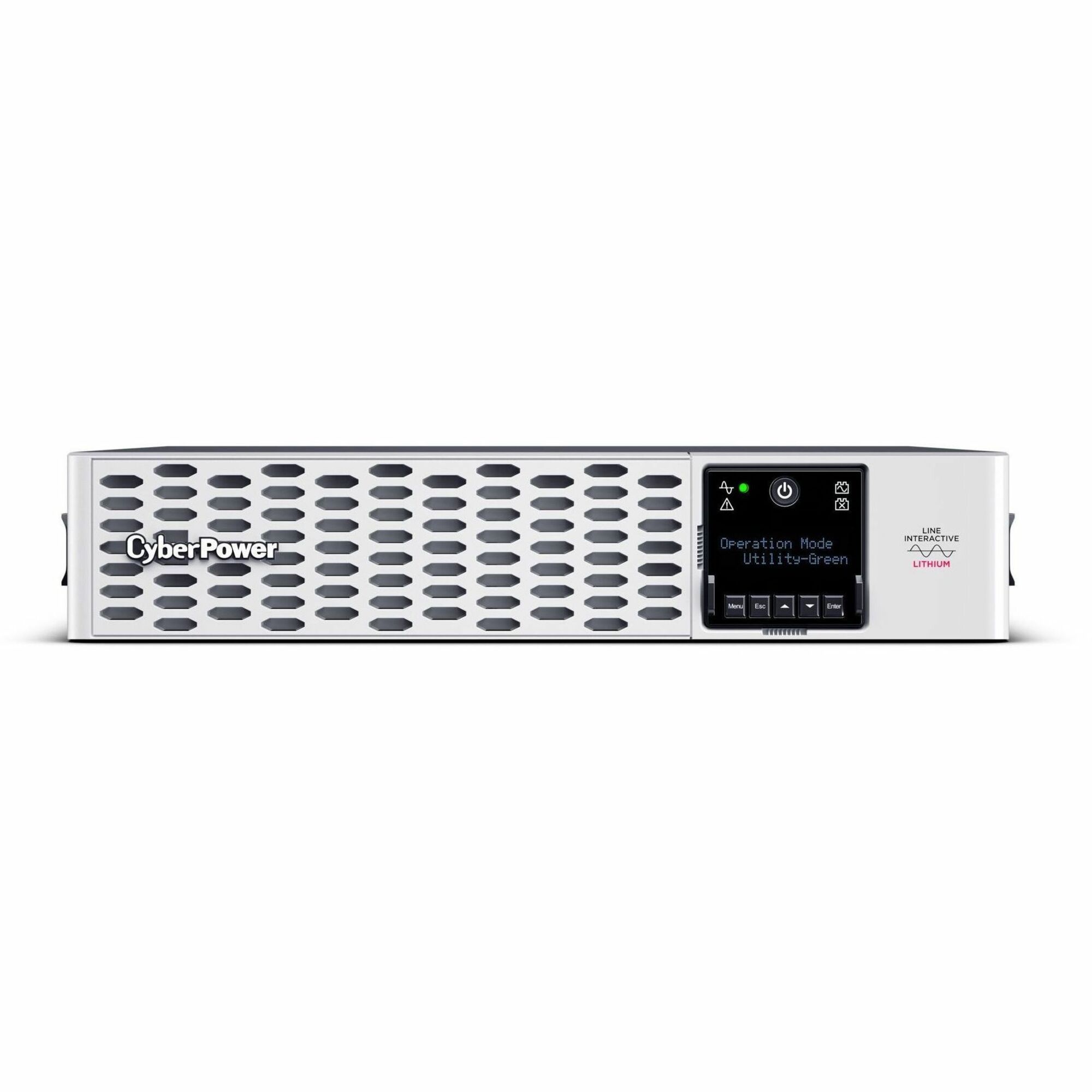

CyberPower Smart App Sinewave PRL3000RT2UC 3000VA Tower/rack convertible UPS

• The lithium PRL3000RT2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

  The Smart App Sinewave PRL3000RT2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PRL3000RT2UC also has an innovative LCD panel that rotates 90°,and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

  Lithium battery chemistry is a maintenance free premium battery technology with a longer lifespan and higher efficiency.

  This model has built-in Cloud monitoring, and accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system.

  With a

• 400,000 connected equipment guarantee and a five-year warranty, you can trust CyberPower's commitment to the quality of the PRL3000RT2UC.

• NEMA 5-20R
• NEMA L5-30R

• 8 x NEMA 5-20R
• 1 x NEMA L5-30R

• Corporate
• Server
• Network Device
• Storage Device
• Telecommunication
• VoIP

• 100 V AC - 120 V AC
• 70 V AC - 155 V AC

• 100 V AC
• 110 V AC
• 120 V AC

• 47 Hz
• 63 Hz

• 50 Hz
• 60 Hz

• SNMP/HTTP Remote Monitoring
• RS-232
• Dry Contact

• Battery Mode
• Low Battery
• Overload
• Over-charge

LED Indicators:

• Power On
• Line Mode
• Battery Mode
• UPS Fault

LCD Display:

• UPS Status
• UPS Setup
• Control Management
• Testing Options.

• Black
• Silver

• Active PFC Compatible : Yes
• Energy Saving : GreenPower UPS™ Bypass Technology
• Energy Star Certified : Yes
• UPS Topology : Line Interactive
• Battery Quantity : 4
• Battery Size : 12.8 V / 9 Ah
• Battery Type : Lithium Ion Battery
• Hot Swappable : Yes
• Replacement Battery Cartridge : RB1290X4N
• Replacement Battery Cartridge Quantity : 1
• Runtime at Full Load : 4 min
• Runtime at Half Load : 13.6 min
• Typical Recharge Time : 2hrs (Recover to 90% after full load discharge)
• User Replaceable Battery : Yes
• Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm)
• Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in)
• Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 500 (mm)
• Weight (kg) : 29.62
• Weight (lb) : 65.3
• Shipping Dimensions - (WxHxD) (cm) : 56.13 x 27.43 x 61.98 (cm)
• Shipping - Dimensions (WxHxD, in) : 22.1 x 10.8 x 24.4 (in)
• Shipping - Dimensions (WxHxD, mm) : 561.34 x 274.32 x 619.76 (mm)
• Shipping - Weight (kg) : 36.02
• Shipping - Weight (lb) : 79.4
• Adjustable Voltage Range : 70 - 155 VAC
• Circuit Breaker : 30 A
• Cord Length : 10 ft (3.0 m)
• Input Frequency Range : 47 Hz - 63 Hz
• Input Plug Type : NEMA L5-30P
• Input Voltage : 100 - 120 VAC
• Input Voltage Range : 70 VAC - 155 VAC
• Nominal Input Voltage : 100 - 120 VAC
• Plug Style : Straight
• Automatic Voltage Regulation : Double Boost
• On AC WaveForm : Sine Wave
• On Battery Frequency : 50/60 Hz ± 1%
• On Battery Voltage : 100/110/120 VAC ± 5%
• On Battery Waveform : Sine Wave
• Outlets - Battery & Surge Protected : 9
• Outlets - Critical Load : 4
• Outlets - Total : 9
• Outlet Type COMPUTED : 8 - NEMA 5-20R
• Output Power Factor : 1
• Overload Protection : Internal Circuitry Limiting
• Typical Transfer Time : 6ms; Max 13ms at normal sensitivity
• USB Charge Port : No
• VA : 3000 VA
• Watts : 3000 W
• EMI/RFI Filtration COMPUTED : Yes
• Surge Suppression (Joules) : 2430 J
• EMI/RFI Filtration COMPUTED : Yes
• Surge Suppression (Joules) : 2430 J
• Audible Alarms : Battery Mode
• Emergency Power Off (EPO) Port : Yes
• HID Compliant USB Port : Yes
• LCD : Multifunction LCD
• LED Indicators : Power On
• Management Cable : USB Cable
• Serial Port : 1 RS232
• SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205
• Software (Free Download) : PowerPanel® Business
• Color : Silver/Black
• Form Factor : Rack / Tower
• Material of Construction : Metal
• Rack Height : 2U
• AC Mode Thermal Dissipation : 192.5 BTU/hr
• Operating Elevation : 0 - 9843 ft (0 - 3000 m)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Temperature : 32 - 104 °F (0 - 40 °C)
• Storage Elevation : 0 - 49213 ft (0 - 14999 m)
• Storage Temperature : 5 - 113 °F (-15 - 45 °C)
• Environmental : RoHS Compliant
• Safety : UL1778
• CEG Amount :
• 400000.00
• Connected Equipment Guarantee : Lifetime
• Product Warranty : 5 Year Limited Warranty

• UL1778
• CSA C22.2 No 107.3
• FCC Class A
• VCCI

• 5 years (Including Battery) and

• 400,000 connected equipment guarantee.
