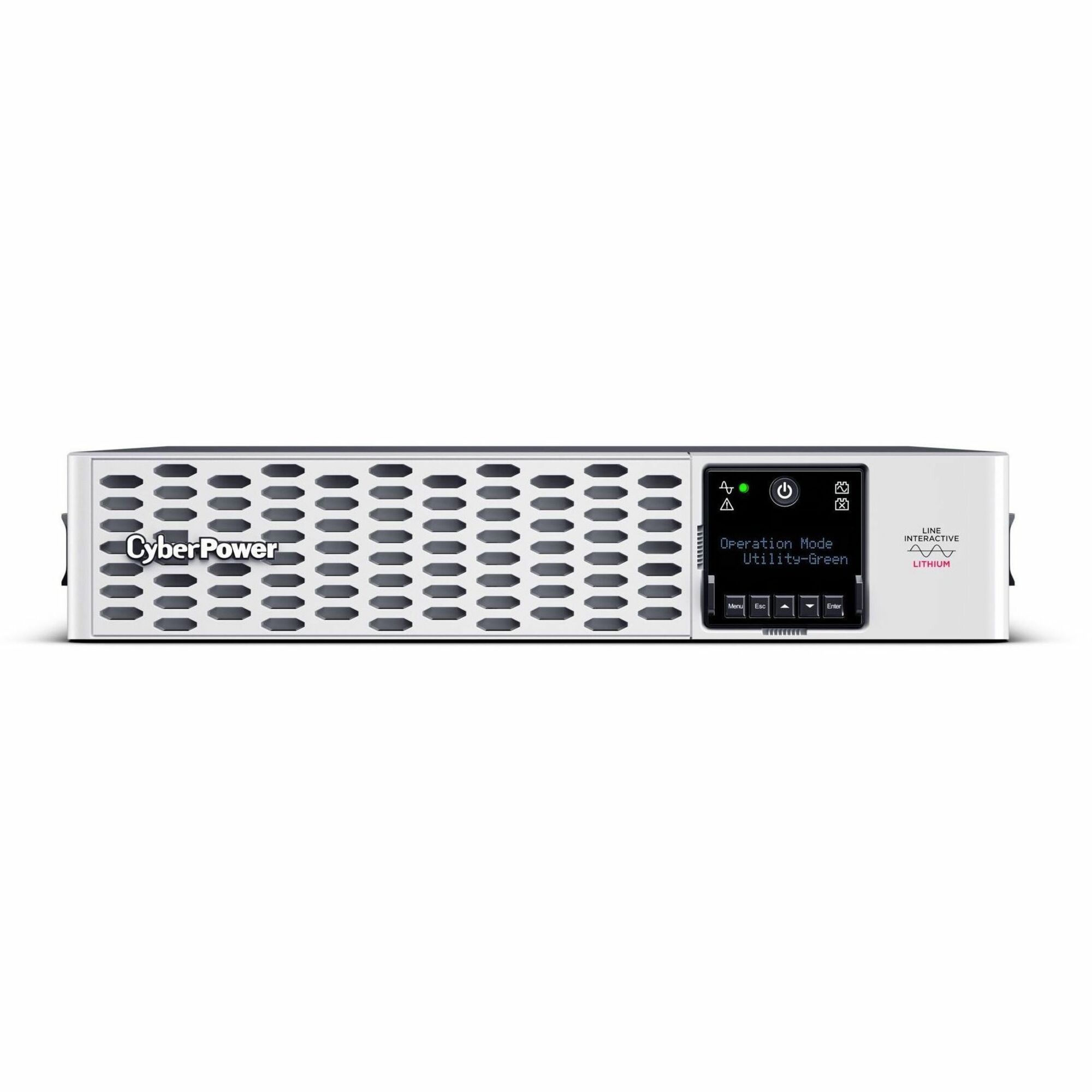

CyberPower Smart App Sinewave PRL1500RT2UC 1500VA Tower/rack convertible UPS

• The PRL1500RT2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

  The Smart App Sinewave PRL1500RT2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PRL1500RT2UC also has an innovative LCD panel that rotates 90°,and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

  Lithium battery chemistry is a maintenance free premium battery technology with a longer lifespan and higher efficiency.

  This model has built-in Cloud monitoring, and accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system.

  With a

• 400,000 connected equipment guarantee and a five-year warranty, you can trust CyberPower's commitment to the quality of the PRL1500RT2UC.

  Product Features | Battery Backup

  Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

  Line-Interactive Topology

  Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

  Automatic Voltage Regulation (AVR)

  Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.

  Sine Wave Output

  Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.

  Lithium Battery

  Lithium is a maintenance free premium battery technology with a longer lifespan and higher efficiency

  Battery Equalization Technology

  Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.

  Fast Charge Technology

  Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.

  Rotatable Multifunction LCD Panel

  Tilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.

  Toolless Battery Panel Access

  Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.

  Surge Protection

  Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

  GreenPower UPS™ Bypass Design

  Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

• Corporate
• Server
• Network Device
• Storage Device
• Telecommunication
• VoIP

• 70 V AC - 155 V AC
• 100 V AC - 125 V AC

• 100 V AC
• 125 V AC
• 110 V AC
• 120 V AC

• 47 Hz
• 63 Hz

• 50 Hz
• 60 Hz

• SNMP/HTTP Remote Monitoring
• RS-232
• Dry Contact

• Battery Mode
• Low Battery
• Overload
• Over-charge

LED Indicators:

• Power On
• Line Mode
• Battery Mode
• UPS Fault

LCD Display:

• UPS Status
• UPS Setup
• Control Management
• Testing Options.

• Black
• Silver

• UL1778
• CSA C22.2 No 107.3
• FCC Class B
• DOE Compliant
• VCCI

• 5 years (Including Battery) and

• 400,000 connected equipment guarantee.
