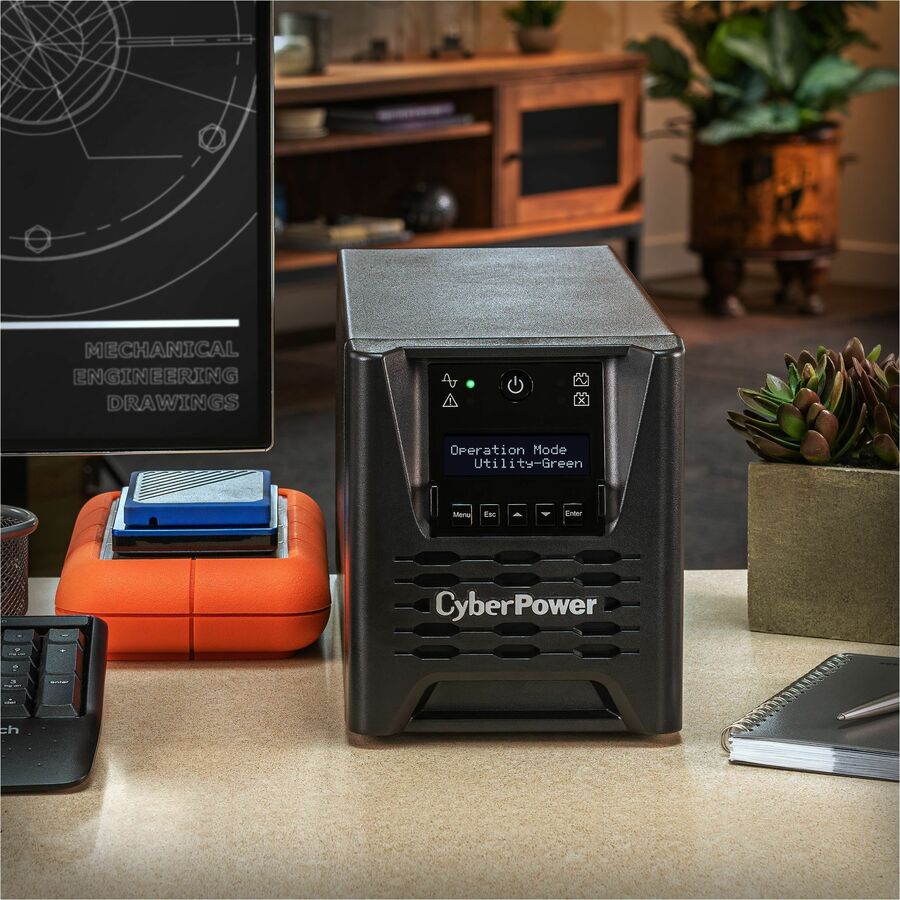

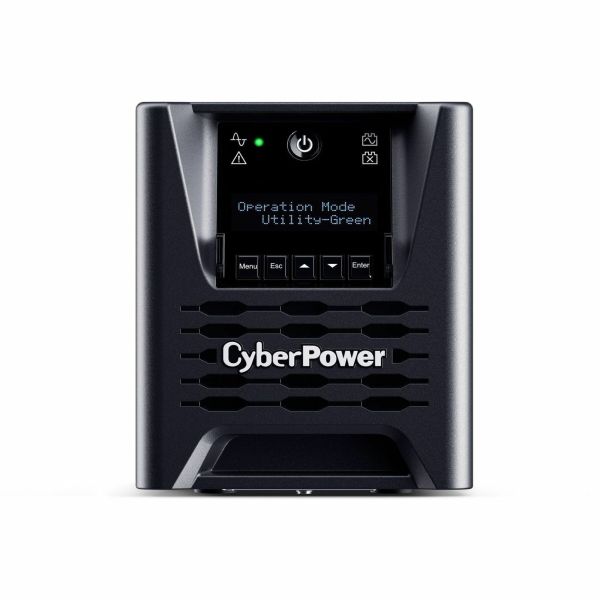

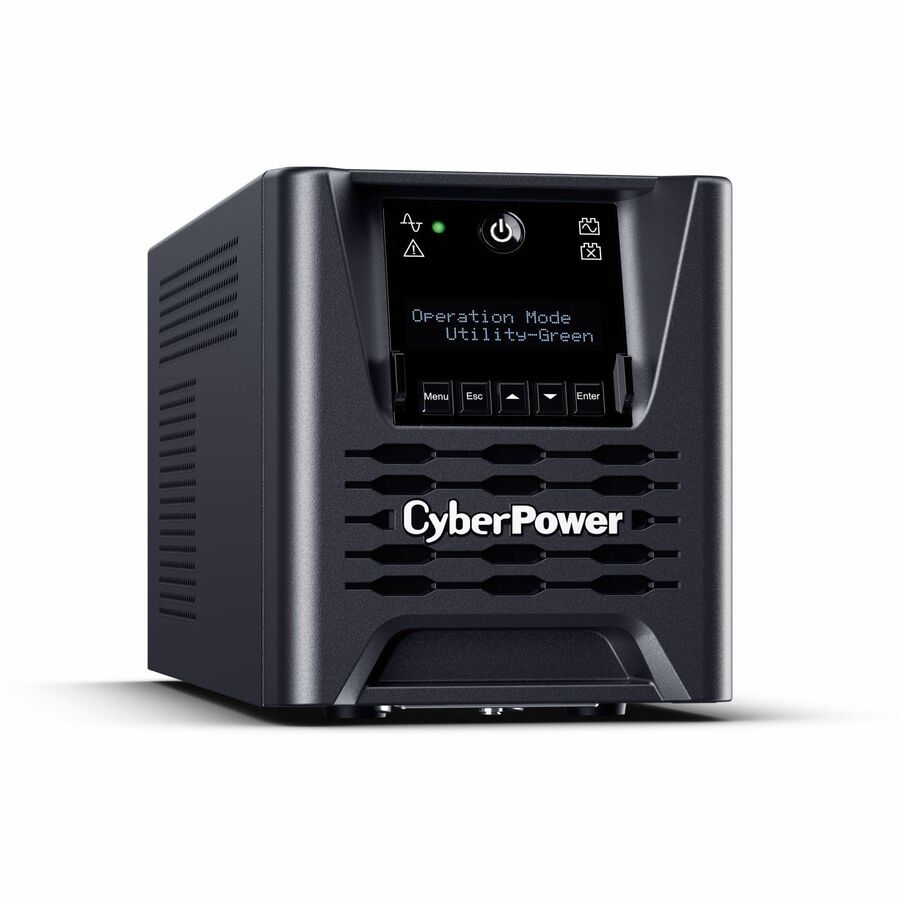

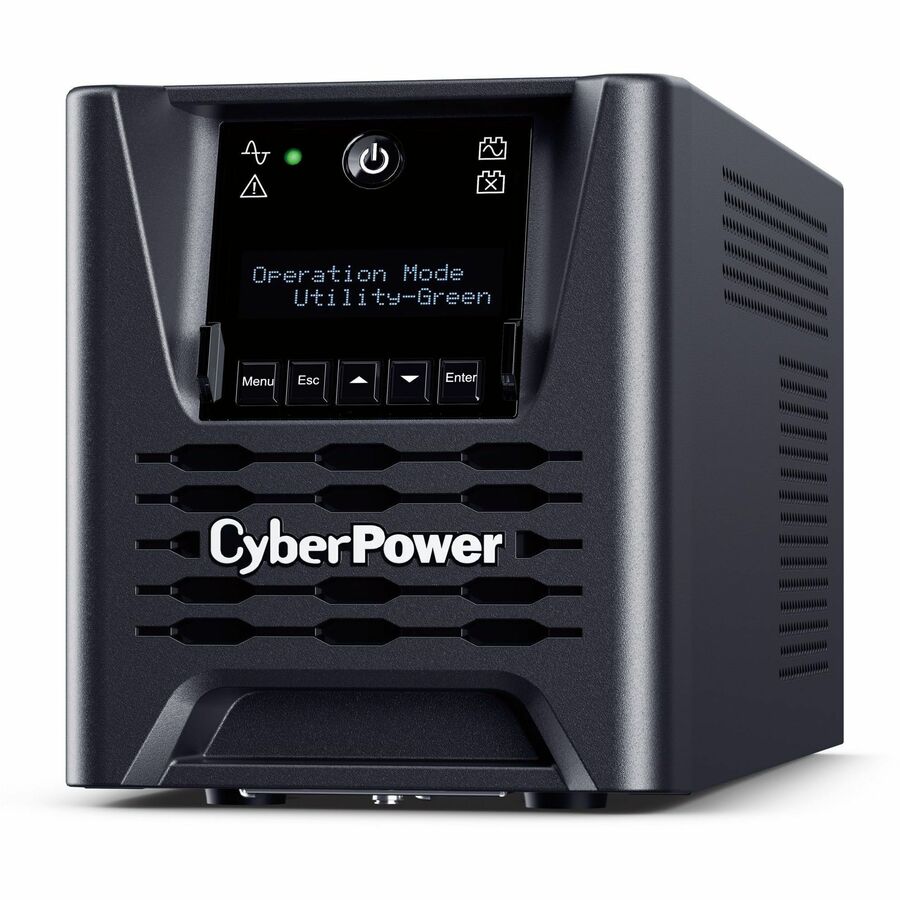

CyberPower Smart App Sinewave 750VA Mini-tower UPS

• A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR750LCD3C provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR750LCD3C uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR750LCD3C comes with a three-year warranty (including coverage of batteries) and a

• 375,000 Connected Equipment Guarantee.

• Server
• Storage Device
• Network Device
• Corporate
• Telecommunication
• VoIP

• 74 V AC - 154 V AC
• 100 V AC - 125 V AC

• 63 Hz
• 47 Hz

• 60 Hz
• 50 Hz

• SNMP/HTTP Remote Monitoring
• Relay-MS Card

• Battery Mode
• Low Battery
• Overload
• Fault
• Replace Battery

LED Indicators:

• Power On
• On-Line
• Battery Mode
• Fault

• Active PFC Compatible : Yes
• Energy Saving : GreenPower UPS™ Bypass Technology
• Energy Star Certified : Yes
• UPS Topology : Line Interactive
• Battery Quantity : 2
• Battery Size : 12 V / 7 Ah
• Battery Type : Sealed Lead-Acid Battery
• Hot Swappable : Yes
• Replacement Battery Cartridge : RB1270X2F
• Replacement Battery Cartridge Quantity : 1
• Runtime at Full Load : 3.3 min
• Runtime at Half Load : 10.7 min
• Typical Recharge Time : 8 Hours
• User Replaceable Battery : Yes
• Physical Dimensions - (WxHxD) (cm) : 13.79 x 16.18 x 35.99 (cm)
• Physical Dimensions - (WxHxD) (in) : 5.43 x 6.37 x 14.17 (in)
• Physical Dimensions - (WxHxD) (mm) : 138 x 162 x 360 (mm)
• Weight (kg) : 11.8
• Weight (lb) : 26.01
• Shipping Dimensions - (WxHxD) (cm) : 26.42 x 28.45 x 48.26 (cm)
• Shipping - Dimensions (WxHxD, in) : 10.4 x 11.2 x 19 (in)
• Shipping - Dimensions (WxHxD, mm) : 264.16 x 284.48 x 482.6 (mm)
• Shipping - Weight (kg) : 12.97
• Shipping - Weight (lb) : 28.6
• Circuit Breaker : 15 A
• Cord Length : 5 ft (1.5 m)
• Input Frequency Range : 57 Hz - 63 Hz
• Input Plug Type : NEMA 5-15P
• Input Voltage Range : 74 VDC - 154 VAC
• Nominal Input Voltage : 100 - 125 VAC
• Plug Style : Straight
• Automatic Voltage Regulation : Double Boost
• On AC WaveForm : Sine Wave
• On Battery Frequency : 50/60 Hz ± 1%
• On Battery Voltage : 120 VAC ± 5%
• On Battery Waveform : Sine Wave
• Outlets - Battery & Surge Protected : 6
• Outlets - Total : 6
• Outlet Type COMPUTED : 6 - NEMA 5-15R
• Output Power Factor : 1
• Overload Protection : Internal Circuitry Limiting
• Typical Transfer Time : 4 ms
• USB Charge Port : No
• VA : 750 VA
• Watts : 750 W
• EMI/RFI Filtration COMPUTED : Yes
• Surge Suppression (Joules) : 1350 J
• EMI/RFI Filtration COMPUTED : Yes
• Surge Suppression (Joules) : 1350 J
• Audible Alarms : Battery Mode
• Emergency Power Off (EPO) Port : Yes
• HID Compliant USB Port : Yes
• LCD : Multifunction LCD
• LED Indicators : Power On
• Management Cable : USB Cable
• Removable LCD Control Panel Option : No
• Serial Port : 1 Serial
• SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205
• Software (Free Download) : PowerPanel® Business
• Color : Black
• Form Factor : Tower
• Material of Construction : Metal
• Operating Elevation : 0 - 10000 ft (0 - 3048 m)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Temperature : 32 - 104 °F (0 - 40 °C)
• Storage Temperature : 5 - 113 °F (-15 - 45 °C)
• Environmental : RoHS Compliant
• Safety : UL1778
• CEG Amount :
• 375000
• Connected Equipment Guarantee : Lifetime
• Extended Warranty Option : WEXT5YR-U2A
• Product Warranty : 3 Year Limited Warranty

• UL1778
• cUL 107.3
• FCC DOC Class B

Three-year warranty (including coverage of batteries)

• 375000 Lifetime
