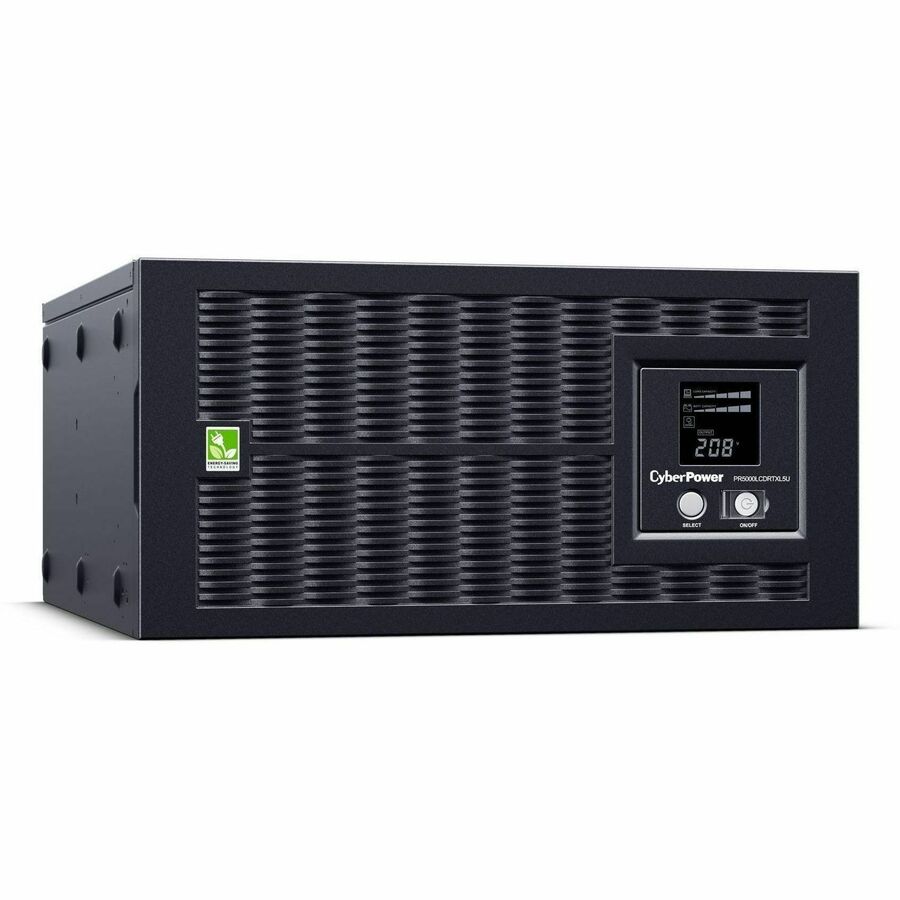

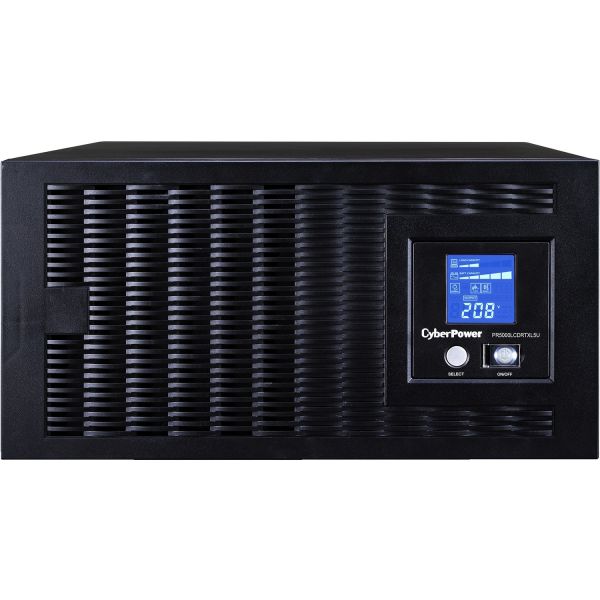

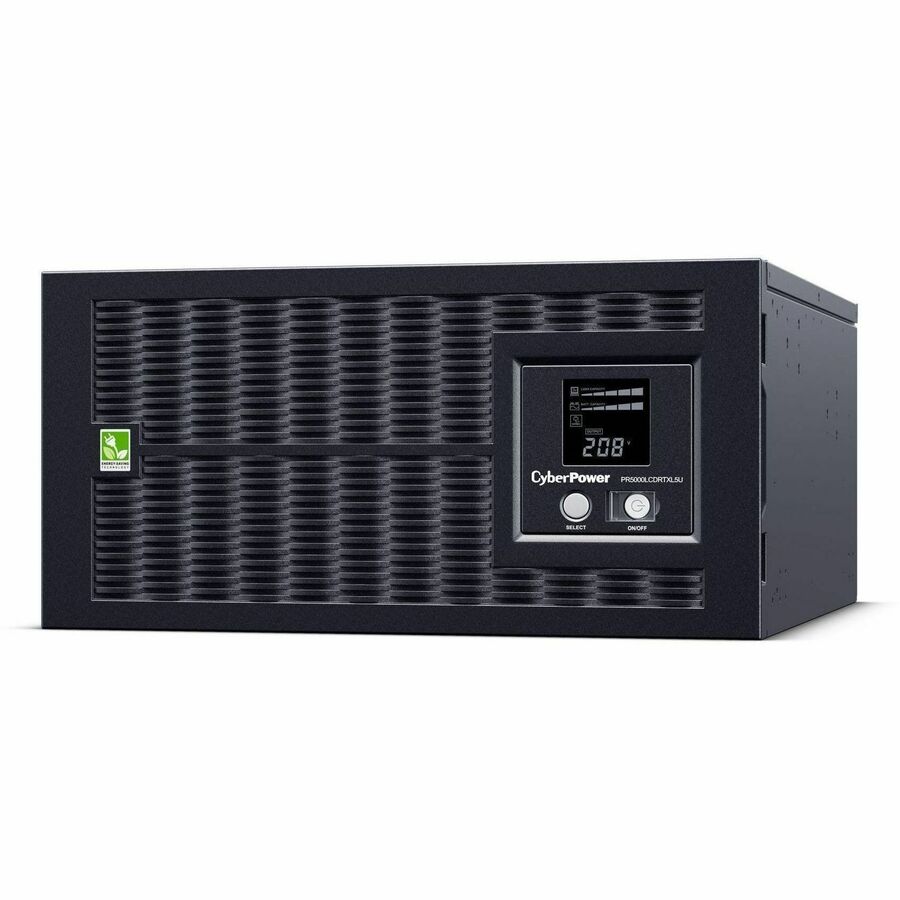

CyberPower PR5000LCDRTXL5U Smart App Sinewave UPS Systems

• A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App Sinewave PR5000LCDRTXL5U provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR5000LCDRTXL5U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR5000LCDRTXL5U comes with a three-year warranty (including coverage of batteries) and a

• 300,000 Connected Equipment Guarantee.

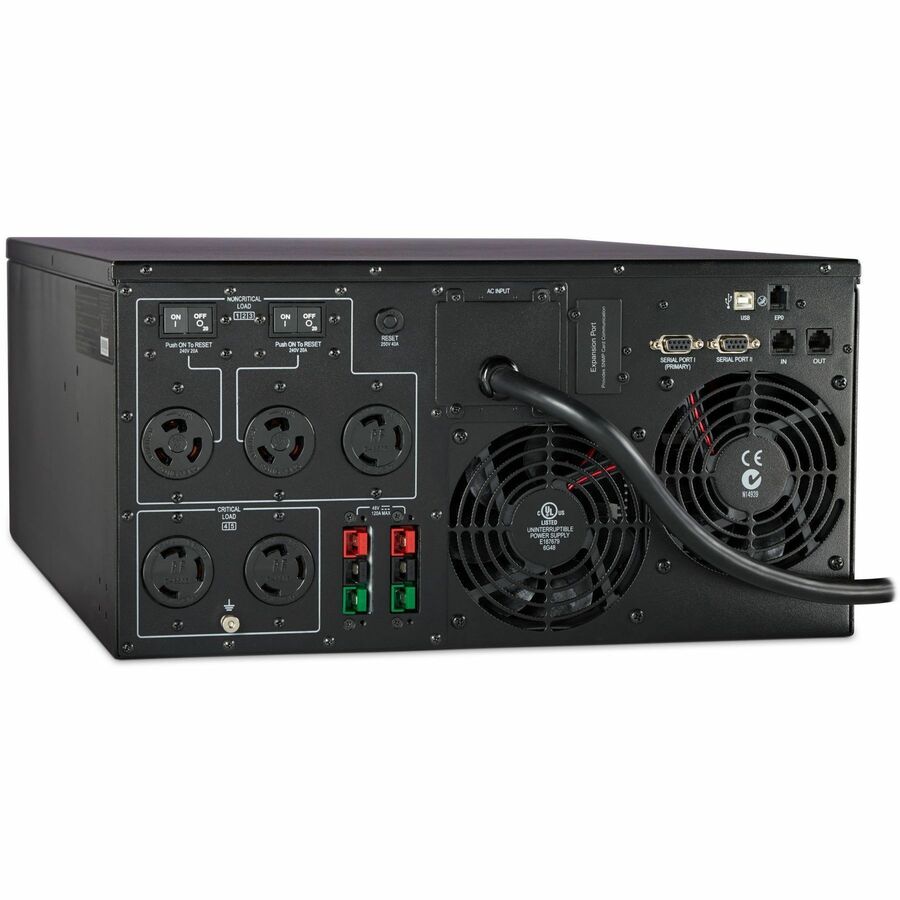

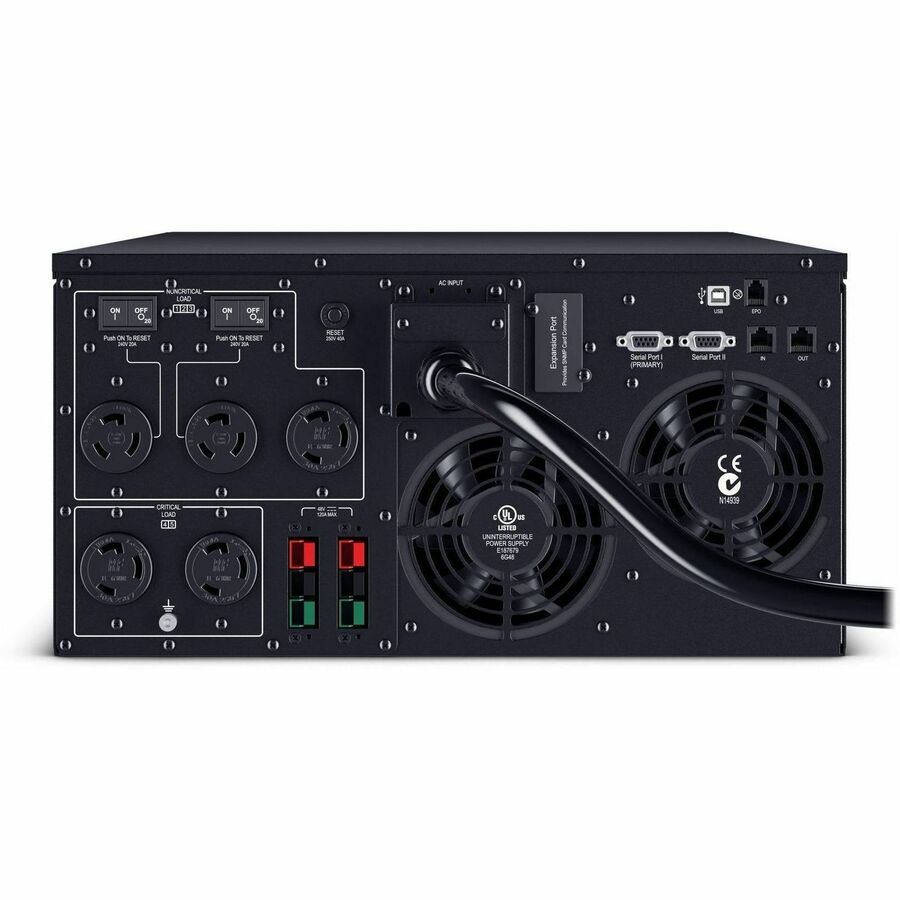

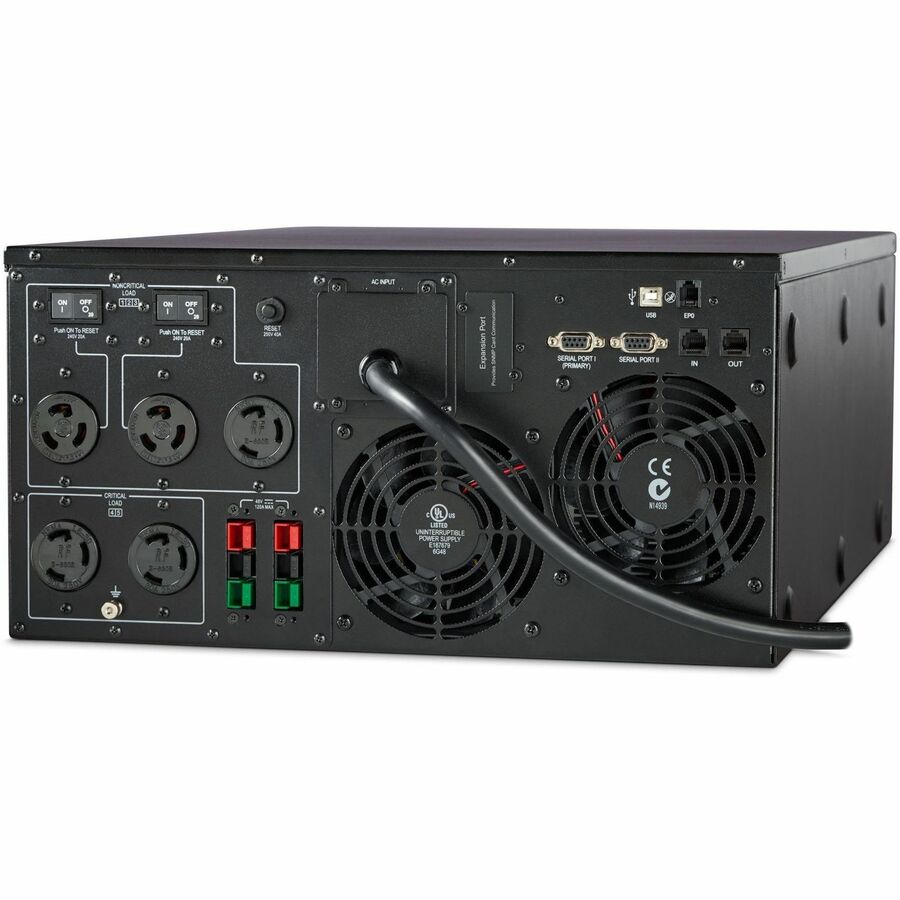

• NEMA L6-20R
• NEMA L6-30R

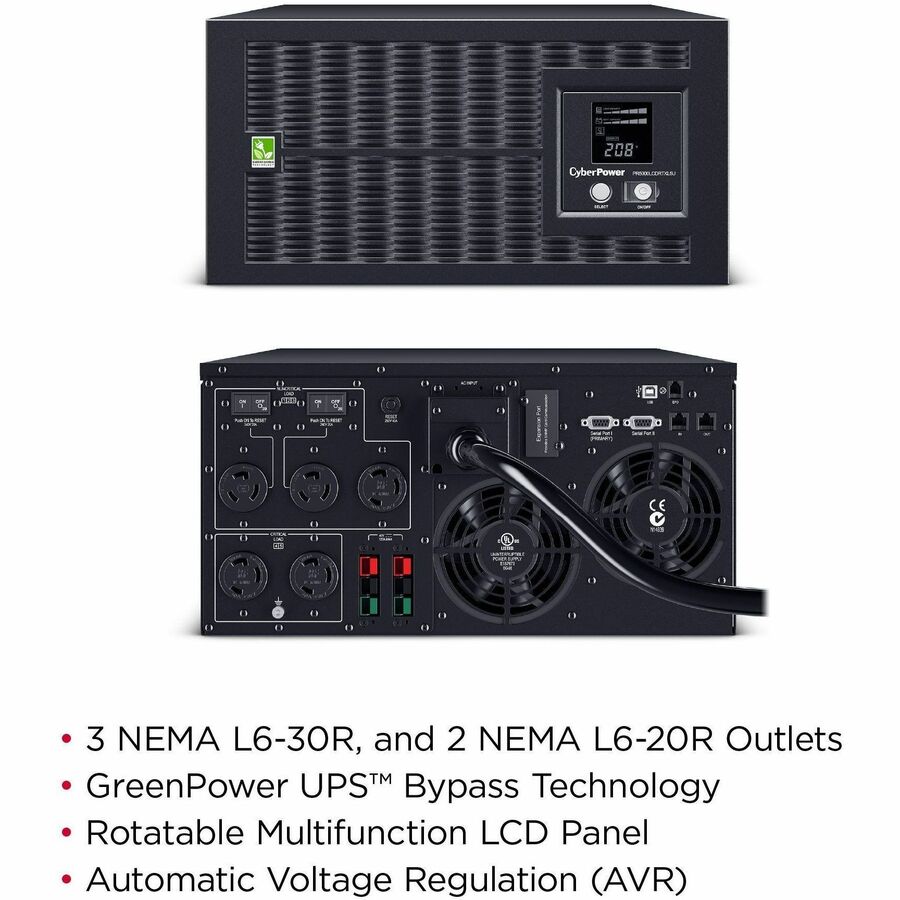

• 3 x NEMA L6-30R
• 2 x NEMA L6-20R

• Coax
• RJ-11/RJ-45

• Corporate
• Server
• Storage
• Network Device
• Telecommunication
• Mission Critical Equipment
• VoIP
• Workstation

• Cold Start Function
• Audible Alarm
• Auto Restart
• Self Test
• Auto Charge

• 208 V AC - 240 V AC
• 131 V AC - 268 V AC
• 148 V AC - 254 V AC

• 63 Hz
• 47 Hz

• 60 Hz
• 50 Hz

• SNMP/HTTP Remote Monitoring
• Relay-MS Card

• Battery Mode
• Low Battery
• Overload

LCD Panel:

• Load/Current Level
• Runtime
• Battery Level Temperature (F & C)
• Battery In Use
• Input Voltage
• Output Voltage
• Output Frequency
• Overload
• Wiring Fault
• Battery Shutdown Voltage
• Static Frequency Tolerance
• Slew Rate
• Silent Mode
• Normal Mode

LED Indicators:

• Power On

• Energy Saving : GreenPower UPS™ Bypass Technology
• UPS Topology : Line Interactive
• Battery Quantity : 16
• Battery Size : 12 V / 9 Ah
• Battery Type : Sealed Lead-Acid Battery
• Extended Battery Module : BPL48V75ART2U
• Hot Swappable : Yes
• Replacement Battery Cartridge : RB1290X16
• Replacement Battery Cartridge Quantity : 1
• Runtime at Full Load : 10 min
• Runtime at Half Load : 26 min
• Typical Recharge Time : 8 Hours
• User Replaceable Battery : Yes
• Physical Dimensions - (WxHxD) (cm) : 43.18 x 22.23 x 61.6 (cm)

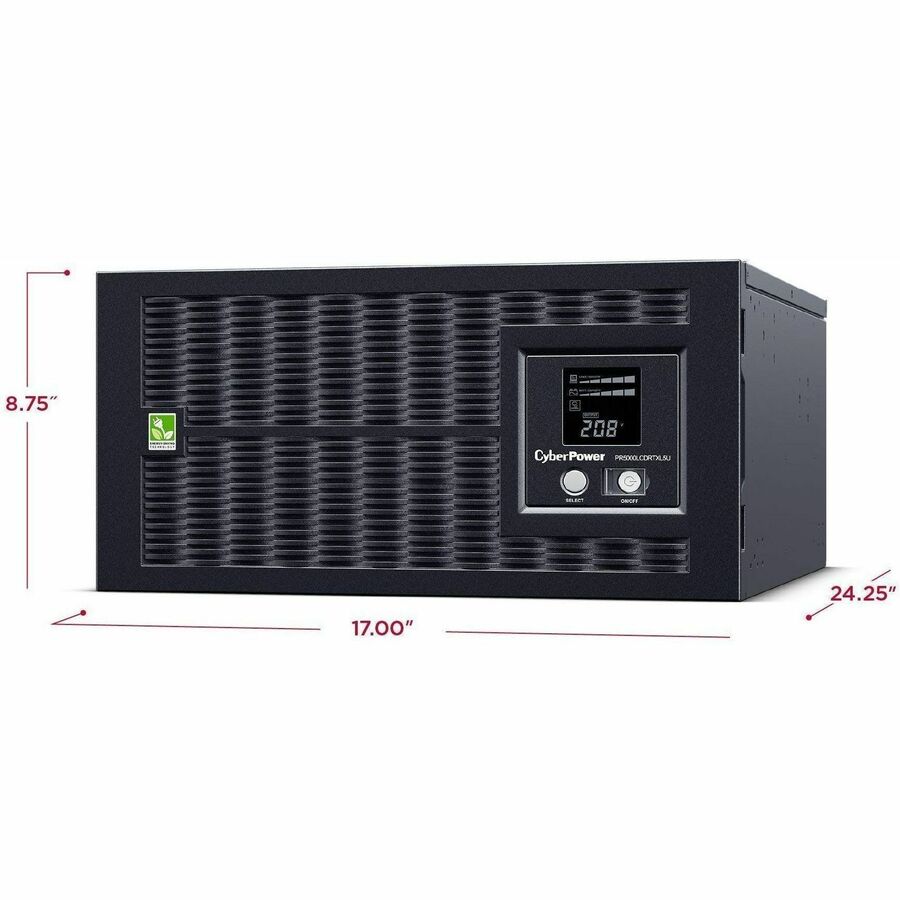

• Physical Dimensions - (WxHxD) (in) : 17 x 8.75 x 24.25 (in)
• Physical Dimensions - (WxHxD) (mm) : 432 x 222 x 616 (mm)
• Weight (kg) : 100.7
• Weight (lb) : 222
• Shipping Dimensions - (WxHxD) (cm) : 59.06 x 48.26 x 89.54 (cm)
• Shipping - Dimensions (WxHxD, in) : 23.25 x 19.0 x 35.25 (in)
• Shipping - Dimensions (WxHxD, mm) : 590.55 x 482.6 x 895.35 (mm)
• Shipping - Weight (kg) : 126.55
• Shipping - Weight (lb) : 279
• Adjustable Voltage Range : 131 - 268 VAC
• Circuit Breaker : 40 A
• Cold Start : Yes
• Cord Length : 10 ft (3.0 m)
• Input Frequency Range : 47 Hz - 63 Hz

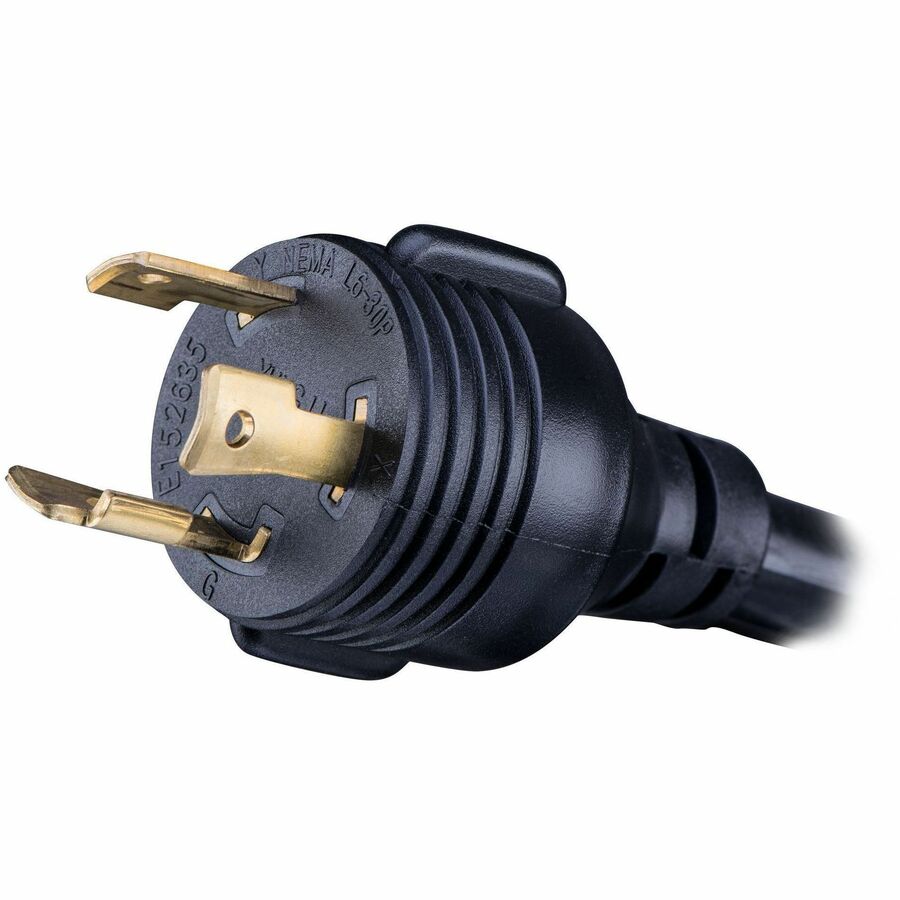

• Input Plug Type : NEMA L6-30P
• Nominal Input Voltage : 208 VAC
• Plug Style : Straight
• Voltage Range : 148Vac - 254Vac
• Automatic Voltage Regulation : Double Boost
• On AC WaveForm : Sine Wave
• On Battery Frequency : 50/60 Hz ± 0.1%
• On Battery Voltage : 208 VAC ± 5%
• On Battery Waveform : Sine Wave
• Outlets - Battery & Surge Protected : 5
• Outlets - Critical Load : 2
• Outlets - Total : 5
• Outlet Type COMPUTED : 3 - NEMA L6-30R
• Output Power Factor : 0.9
• Overload Protection : On Utility: Circuit Breaker Protected
• Typical Transfer Time : 4 ms
• USB Charge Port : No
• VA : 5000 VA
• Watts : 4500 W
• Coax Protection RG6 COMPUTED : None
• EMI/RFI Filtration COMPUTED : Yes
• Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo)
• Surge Suppression (Joules) : 2430 J
• Coax Protection RG6 COMPUTED : None
• EMI/RFI Filtration COMPUTED : Yes
• Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo)
• Surge Suppression (Joules) : 2430 J
• AS400 Management : None
• Audible Alarms : Battery Mode
• Emergency Power Off (EPO) Port : Yes
• HID Compliant USB Port : Yes
• LCD : Multifunction LCD
• LED Indicators : Power On
• Management Cable : USB Cable
• Serial Port : 1 Serial
• SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205
• Software (Free Download) : PowerPanel® Business
• Color : Black
• Form Factor : Rack / Tower
• Material of Construction : Metal
• Rack Height : 5U
• On Battery Thermal Dissipation : 4332 BTU/hr
• Online Thermal Dissipation : 490 BTU/hr
• Operating Elevation : 0 - 10000 ft (0 - 3048 m)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Temperature : 32 - 104 °F (0 - 40 °C)
• Storage Elevation : 0 - 50000 ft (0 - 15239 m)
• Storage Temperature : 5 - 113 °F (-15 - 45 °C)
• Environmental : RoHS Compliant
• Safety : UL1778
• CEG Amount :
• 300000
• Connected Equipment Guarantee : Lifetime
• Extended Warranty Option : WEXT5YR-U20A
• Product Warranty : 3 Year Limited Warranty

• FCC Class A certified
• UL 1778
• CSA C22.2 No. 107.3-05

Three-year warranty (including coverage of batteries)

• 300000 Lifetime
