CYBERPOWER PR3000RTXL2UHVACN 2U 4X6-20R + 2XL6-20R CLOUD

• The PR3000RTXL2UHVACN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

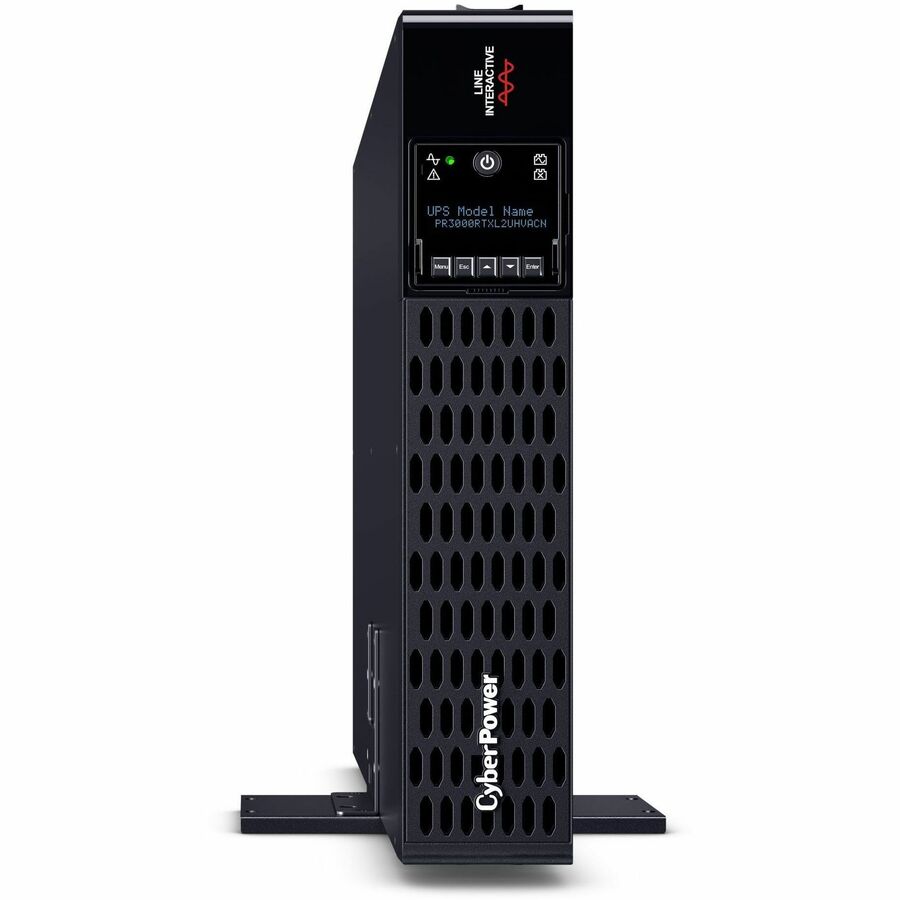

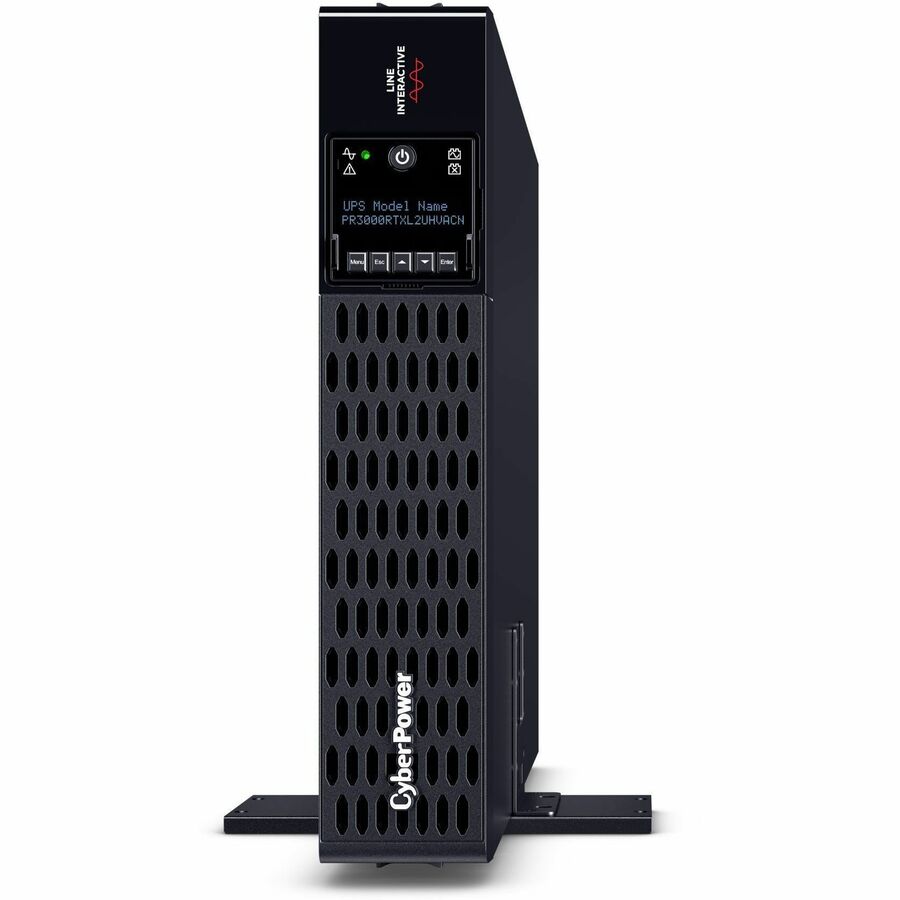

  The Smart App Sinewave PR3000RTXL2UHVACN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UHVACN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

  This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes built-in cloud monitoring and pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.

  With a

• 400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UHVACN.

• NEMA 6-20R
• NEMA L6-20R

• 4 x NEMA 6-20R
• 2 x NEMA L6-20R

• Server
• Storage Device
• VoIP
• Network Device
• Corporate
• Telecommunication
• Equipment

• 151 V AC - 302 V AC
• 200 V AC - 240 V AC
• 131 V AC - 302 V AC

• 230 V AC
• 240 V AC
• 200 V AC
• 208 V AC
• 220 V AC

• 47 Hz
• 63 Hz

• 50 Hz
• 60 Hz

• SNMP/HTTP Remote Monitoring
• Dry Contact
• Relay-MS Card
• Network Card

• Battery Mode
• Low Battery
• Overload
• Over-charge
• Fault

LCD Indicators:

• UPS Stats
• UPS Setup
• Control Management
• Testing Options

LED Indicators:

• Power On
• Line Mode
• Battery Mode
• Fault
• UPS Fault

• Active PFC Compatible : Yes
• Energy Saving : GreenPower UPS™ Bypass Technology
• Energy Star Certified : Yes
• UPS Topology : Line Interactive
• Battery Quantity : 8
• Battery Size : 12 V / 5.7 Ah
• Battery Type : Sealed Lead-Acid Battery
• Extended Battery Module : BP48VP2U03
• Hot Swappable : Yes
• Replacement Battery Cartridge : RB1260X8
• Replacement Battery Cartridge Quantity : 1
• Runtime at Full Load : 3.6 min
• Runtime at Half Load : 10.7 min
• Typical Recharge Time : 3 Hours (0% to 90% charged)
• User Replaceable Battery : Yes
• Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 62.99 (cm)
• Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 24.8 (in)
• Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 630 (mm)
• Weight (kg) : 39.69
• Weight (lb) : 87.5
• Shipping Dimensions - (WxHxD) (cm) : 57.4 x 27.43 x 76.45 (cm)
• Shipping - Dimensions (WxHxD, in) : 22.6 x 10.8 x 30.1 (in)
• Shipping - Dimensions (WxHxD, mm) : 574.04 x 274.32 x 764.54 (mm)
• Shipping - Weight (kg) : 48.53
• Shipping - Weight (lb) : 107
• Adjustable Voltage Range : 151 - 302 VAC
• Circuit Breaker : 20 A
• Cord Length : 10 ft (3.0 m)
• Input Frequency Range : 47 Hz - 63 Hz
• Input Plug Type : NEMA L6-20P
• Input Voltage : 200 - 240 VAC
• Input Voltage Range : 131 VAC - 302 VAC
• Nominal Input Voltage : 200 - 240 VAC
• Plug Style : Straight (Twist Lock)
• Automatic Voltage Regulation : Double Boost
• On AC WaveForm : Sine Wave
• On Battery Frequency : 50/60 Hz ± 1%
• On Battery Voltage : 200/208/220/230/240 VAC ± 5%
• On Battery Waveform : Sine Wave
• Outlets - Battery & Surge Protected : 6
• Outlets - Critical Load : 2
• Outlets - Total : 6
• Outlet Type COMPUTED : 4 - NEMA 6-20R
• Output Power Factor : 1
• Overload Protection : Internal Circuitry Limiting
• Typical Transfer Time : 6ms; Max 13ms at normal sensitivity
• USB Charge Port : No
• VA : 3000 VA
• Watts : 3000 W
• EMI/RFI Filtration COMPUTED : Yes
• Surge Suppression (Joules) : 2430 J
• EMI/RFI Filtration COMPUTED : Yes
• Surge Suppression (Joules) : 2430 J
• Audible Alarms : Battery Mode
• Emergency Power Off (EPO) Port : Yes
• HID Compliant USB Port : Yes
• LCD : Multifunction LCD
• LED Indicators : Power On
• Management Cable : USB Cable
• Serial Port : 1 Serial
• SNMP / HTTP Remote Monitoring : Yes - RMCARD205 pre-installed
• Software (Free Download) : PowerPanel® Business
• Color : Black
• Form Factor : Rack / Tower
• Material of Construction : Metal
• Rack Height : 2U
• Audible noise at 1m from surface of unit : 57.5 dBA
• Online Thermal Dissipation : 192.5 BTU/hr
• Operating Elevation : 0 - 9843 ft (0 - 3000 m)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Temperature : 32 - 104 °F (0 - 40 °C)
• Storage Elevation : 0 - 49213 ft (0 - 14999 m)
• Storage Relative Humidity : 0 - 95% (non-condensing)
• Storage Temperature : 5 - 113 °F (-15 - 45 °C)
• Environmental : RoHS Compliant
• Safety : UL 1778
• CEG Amount :
• 400000
• Connected Equipment Guarantee : Lifetime
• Extended Warranty Option : WEXT5YR-U4B
• Product Warranty : 3 Year Limited Warranty

• UL 1778
• FCC Class A
• CSA C22.2 No 107.3
• CE
• VCCI

• 400000 Lifetime
