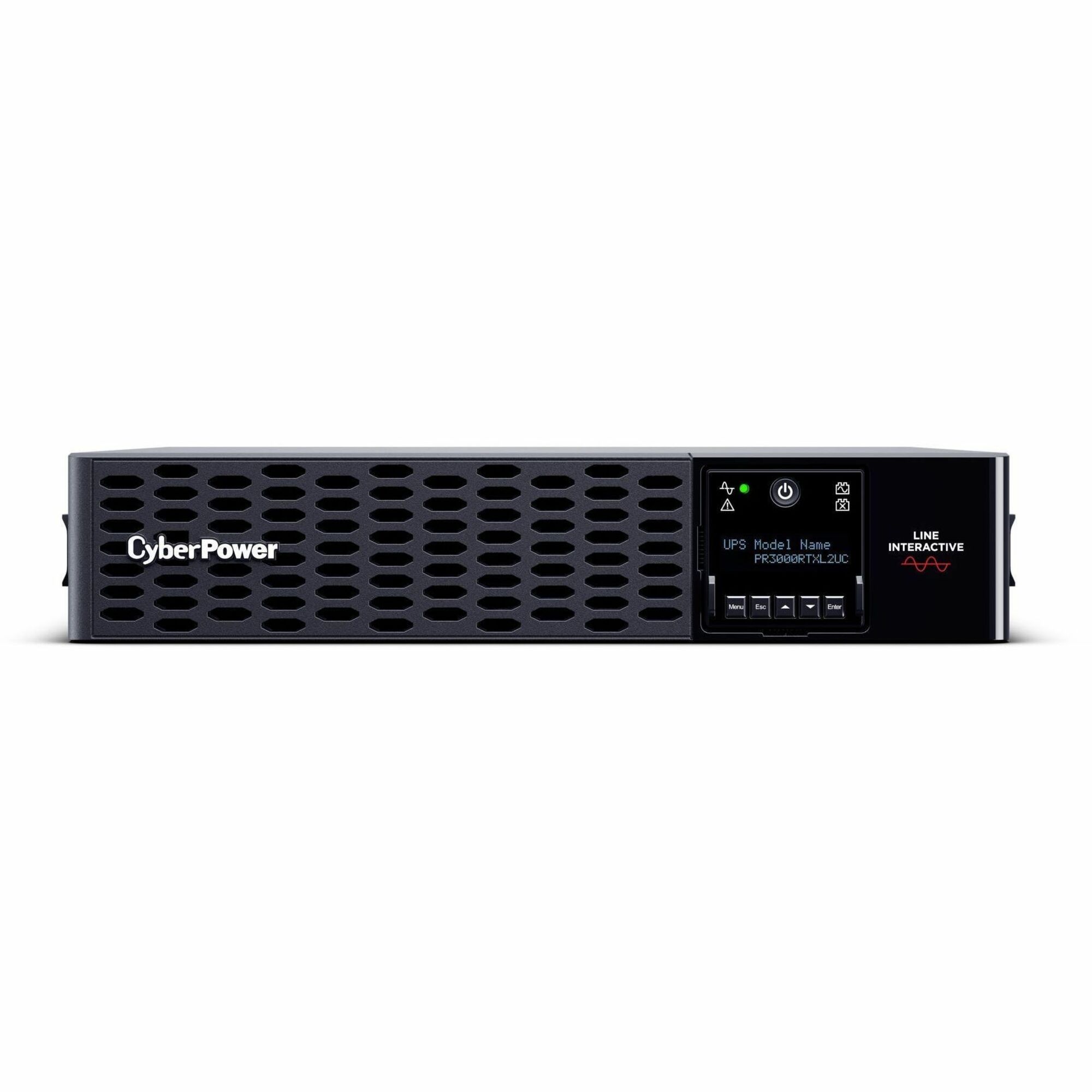

CyberPower PR3000RTXL2UC New Smart App Sinewave UPS Systems

Name: CyberPower PR3000RTXL2UC New Smart App Sinewave UPS Systems
Brand: CYBERPOWER
SKU: HH1741
Price: 2035.95 USD
Availability: InStock

CYBERPOWER

PCN#

HH1741

MFG#

PR3000RTXL2UC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,035.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

3000VA/3000W, 120 VAC, NEMA L5
30P, 2U, Rack / Tower, Sine Wave, 9 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 YearDirectly Connected Equipment Guarantee400000 Lifetime

Shipping Weight: 90 lbs.

CyberPower PR3000RTXL2UC New Smart App Sinewave UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PR3000RTXL2UC
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	New Smart App Sinewave UPS
Product Model	PR3000RTXL2UC
Product Name	New Smart App Sinewave UPS PR3000RTXL2UC 3000VA Tower/rack convertible UPS

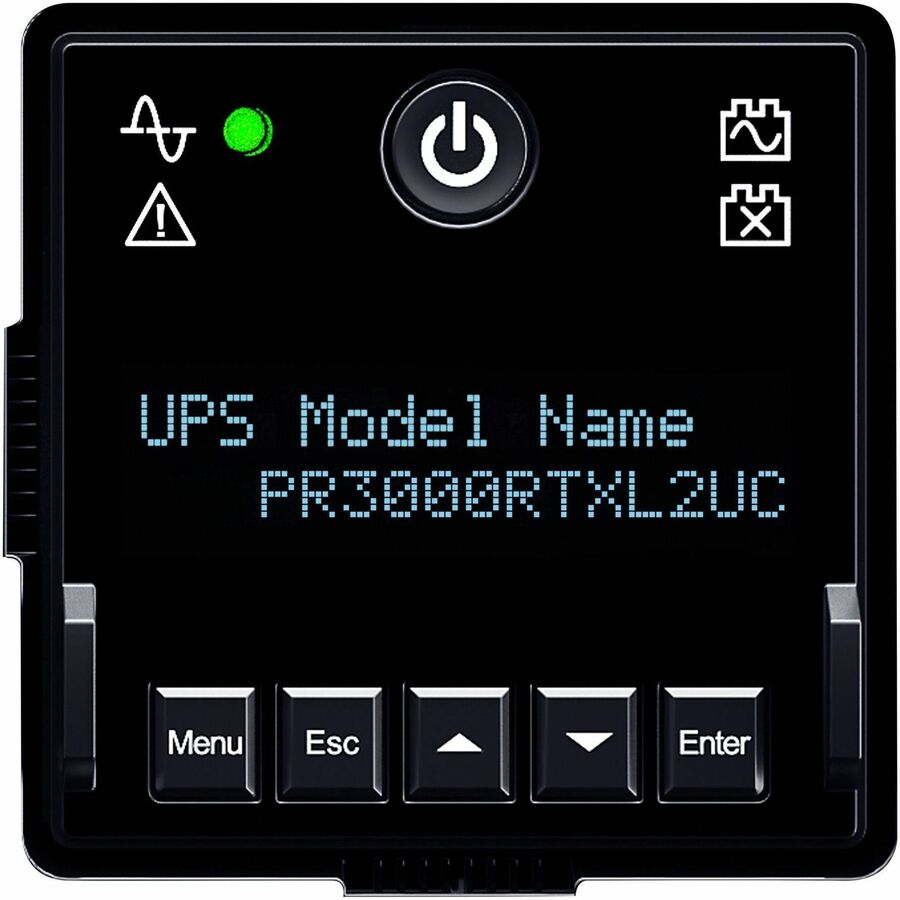

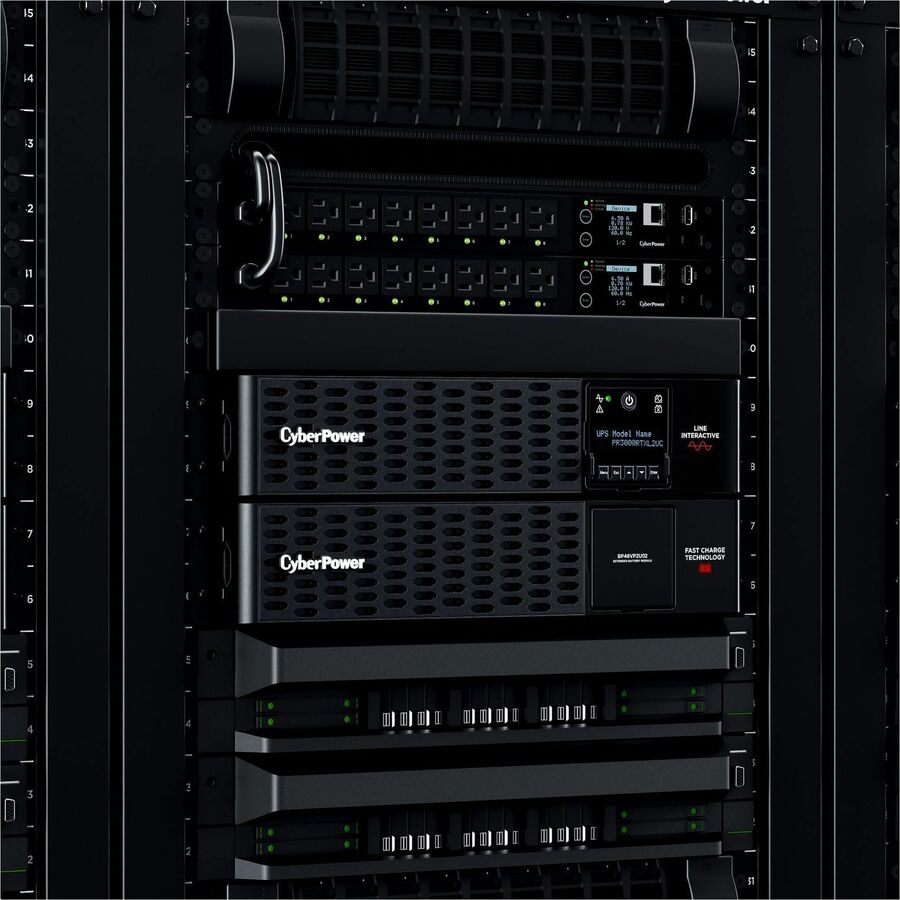

Marketing Information	The PR3000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment. The Smart App Sinewave PR3000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring. With a 400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UC.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-20R NEMA L5-30R
Receptacle Detail	8 x NEMA 5-20R 1 x NEMA L5-30R
Number of Battery & Surge Outlets	9
Number of Critical Load Outlets	4
Overload Protection	Yes
Cord Length	10 ft
Transfer Time	13 ms
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS™ Bypass Technology
Application/Usage	Server Storage Device VoIP Network Device Telecommunication Equipment Corporate
Surge Suppression	Yes
Features	Audible Alarm

Power Description

Load Capacity (VA)	3000 VA
Load Capacity (Watt)	3000 W
Input Voltage	120 V AC
Input Voltage Range	70 V AC - 155 V AC 100 V AC - 120 V AC 75 V AC - 149 V AC
Output Voltage	100 V AC 110 V AC 120 V AC 125 V AC
Input Frequency	47 Hz 63 Hz
Output Frequency	60 Hz 50 Hz
Waveform Type	Sine Wave
Surge Energy Rating	2430 J
Circuit Breaker	Yes
Output Power Factor	1

Display & Graphics

Display

LCD

Management

Network Management	SNMP/HTTP Remote Monitoring Relay-MS Card Dry Contact Network Card
Alarm	Battery Mode Low Battery Overload Over-charge Fault

Controls/Indicators

Status Indicators

LCD Indicators:

UPS Stats
UPS Setup
Control Management
Testing Options

LED Indicators:

Power On
Line Mode
Battery Mode
Fault

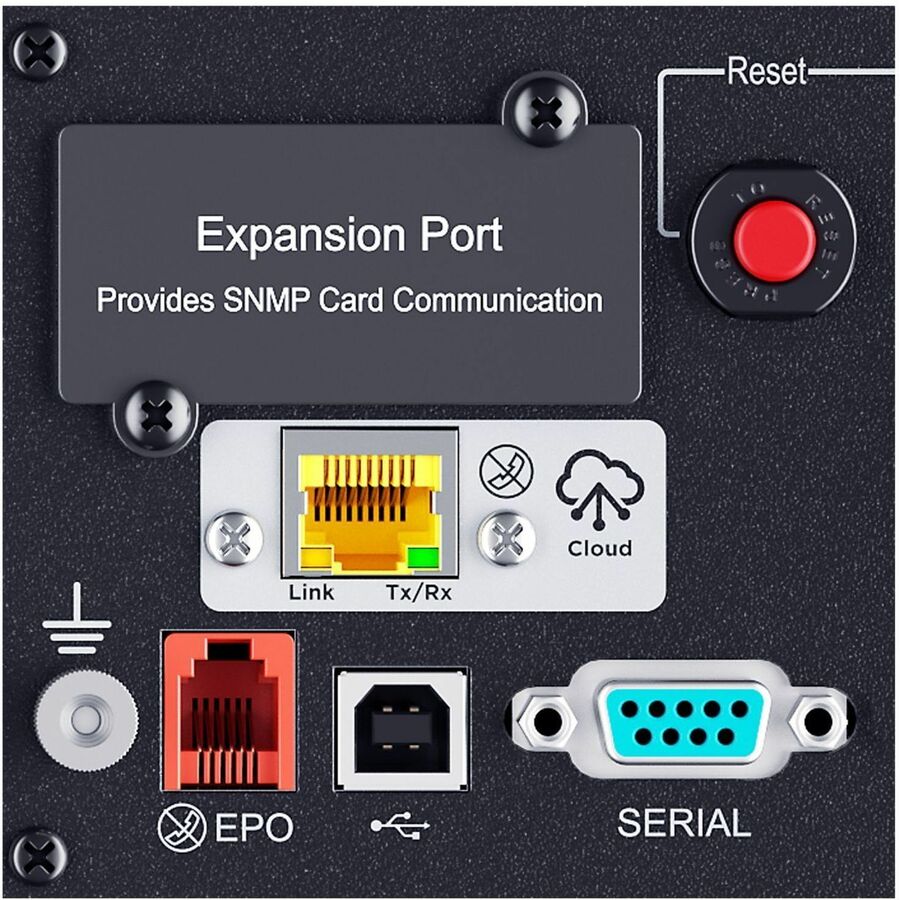

Interfaces/Ports

Serial Port	Yes
USB	Yes
EPO Port	Yes
USB (HID Compliant) Port	Yes

Battery Information

Number of Batteries	4
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	1.70 Minute
Backup/Run Time (Half Load)	7 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	9842.52 ft
Maximum Storage Elevation	49209.32 ft
Operating Humidity	0% - 95%
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	57.5 dB(A)
Thermal Dissipation	56.42 W

Physical Characteristics

Color Family	Black
Product Color	Black
Height	3.4"
Width	17.1"
Depth	19.7"
Rack Height	2U
Form Factor	Tower/Rack Convertible
Weight (Approximate)	75.40 lb

Miscellaneous

Certifications & Standards	UL1778 CSA C22.2 No 107.3 FCC Class A VCCI
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	400000 Lifetime
