CYBERPOWER PR3000RTXL2UACN UPS 2U 8XNEMA 5-20R + 1 L5-30R CLOUD

Name: CYBERPOWER PR3000RTXL2UACN UPS 2U 8XNEMA 5-20R + 1 L5-30R CLOUD
Brand: CYBERPOWER
SKU: JU1412
Price: 2795.95 USD
Availability: InStock

CYBERPOWER

PCN#

JU1412

MFG#

PR3000RTXL2UACN

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,795.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

2U Rack/Tower
AVR
3 Hour Recharge
3.70 Minute Stand
by
120 V AC Input
100 V AC, 110 V AC, 120 V AC Output
Sine Wave
Serial Port
LCD Display
8 x NEMA 5
20R, 1 x NEMA L5
30R
9 x Battery/Surge Outlet
SNMP/HTTP Remote Monitoring, Relay
MS Card

Product Condition: New and Factory Fresh

Limited Warranty3 YearDirectly Connected Equipment Guarantee400000 Lifetime

Shipping Weight: 65 lbs.

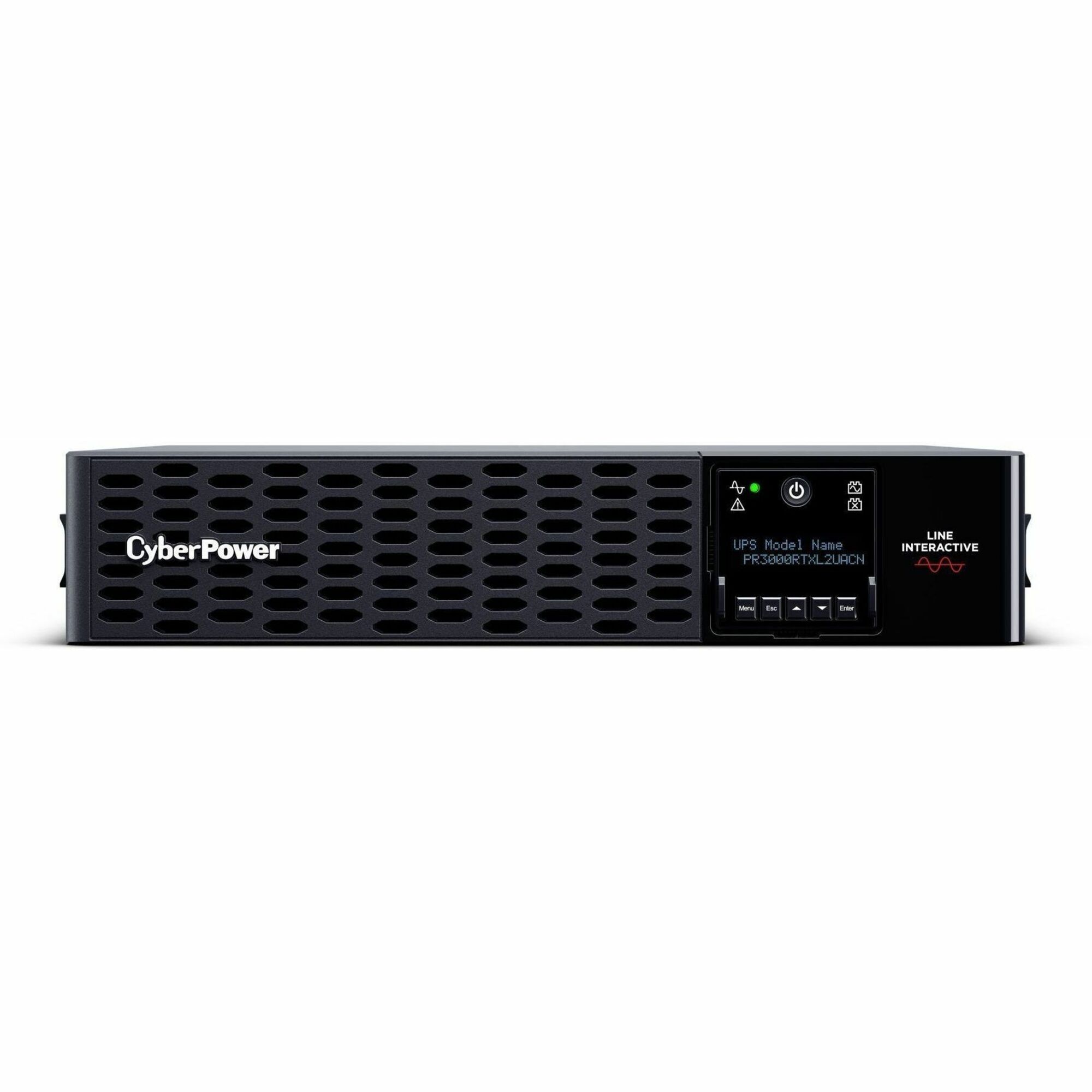

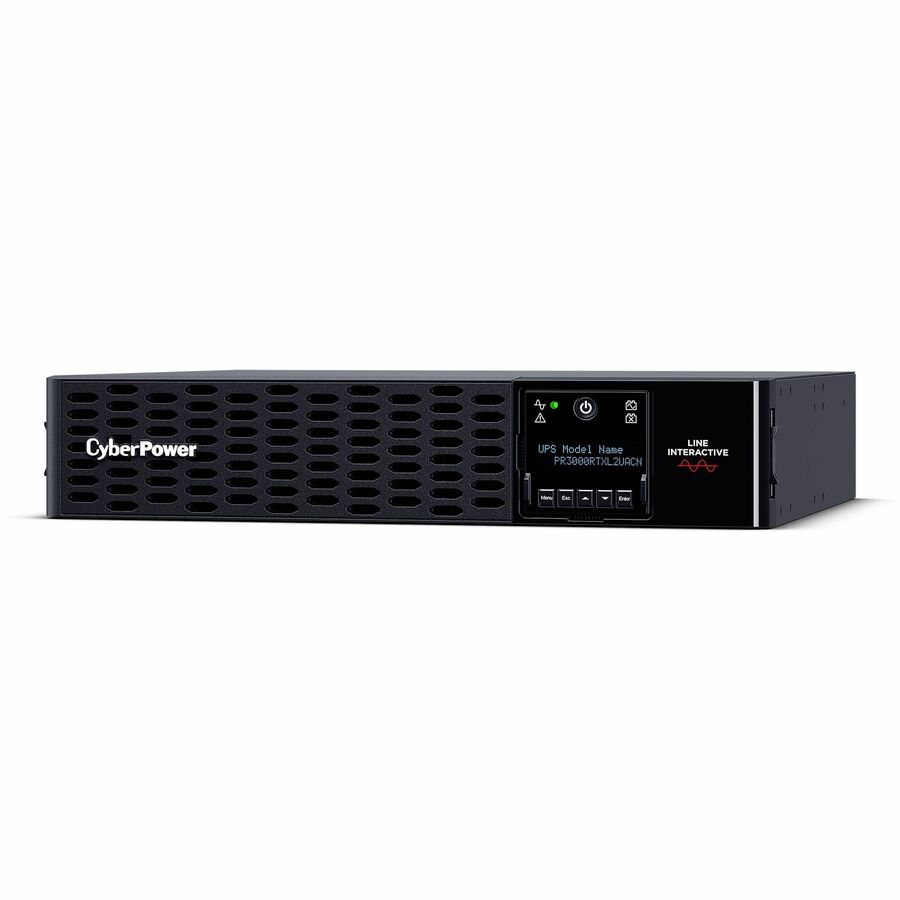

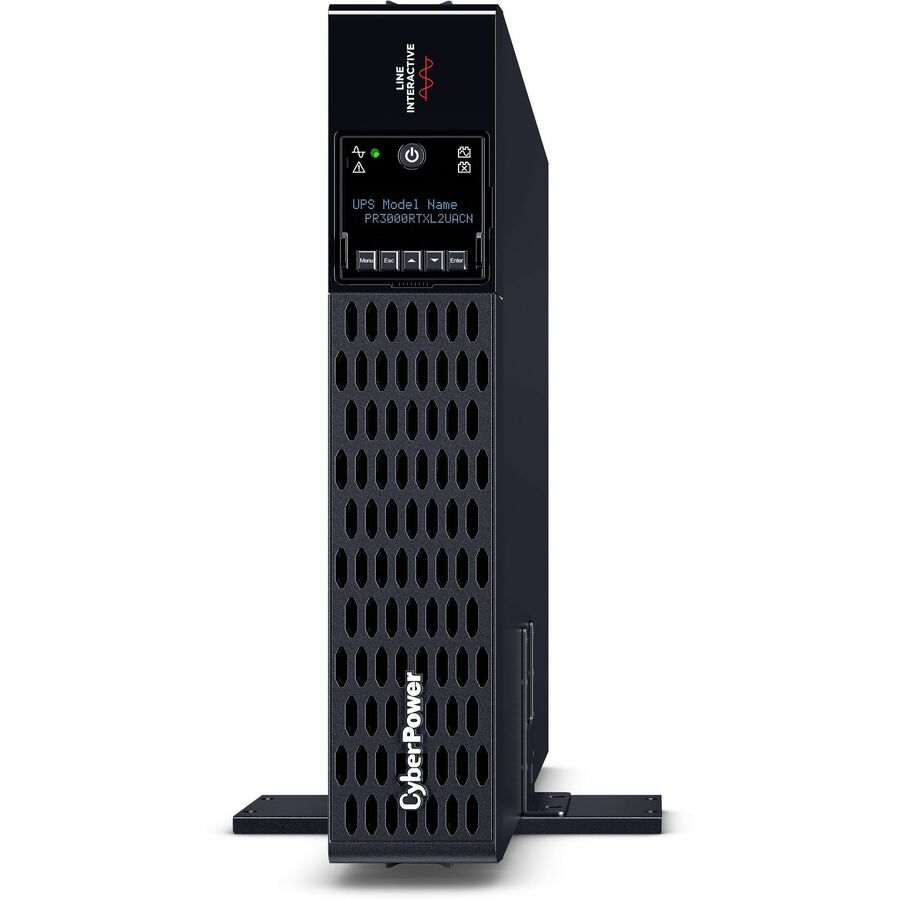

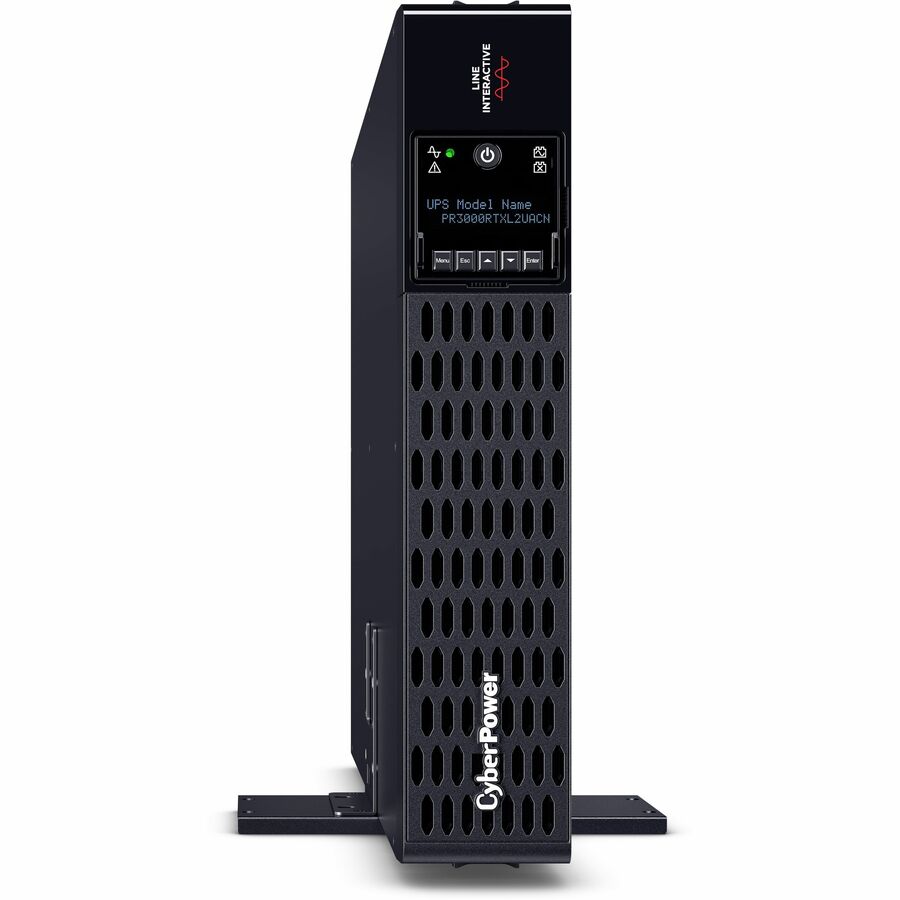

CyberPower Smart App Sinewave PR3000RTXL2UACN 3000VA Rack/Tower UPS

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PR3000RTXL2UACN
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Line	Smart App Sinewave
Product Model	PR3000RTXL2UACN
Product Name	Smart App Sinewave PR3000RTXL2UACN 3000VA Rack/Tower UPS

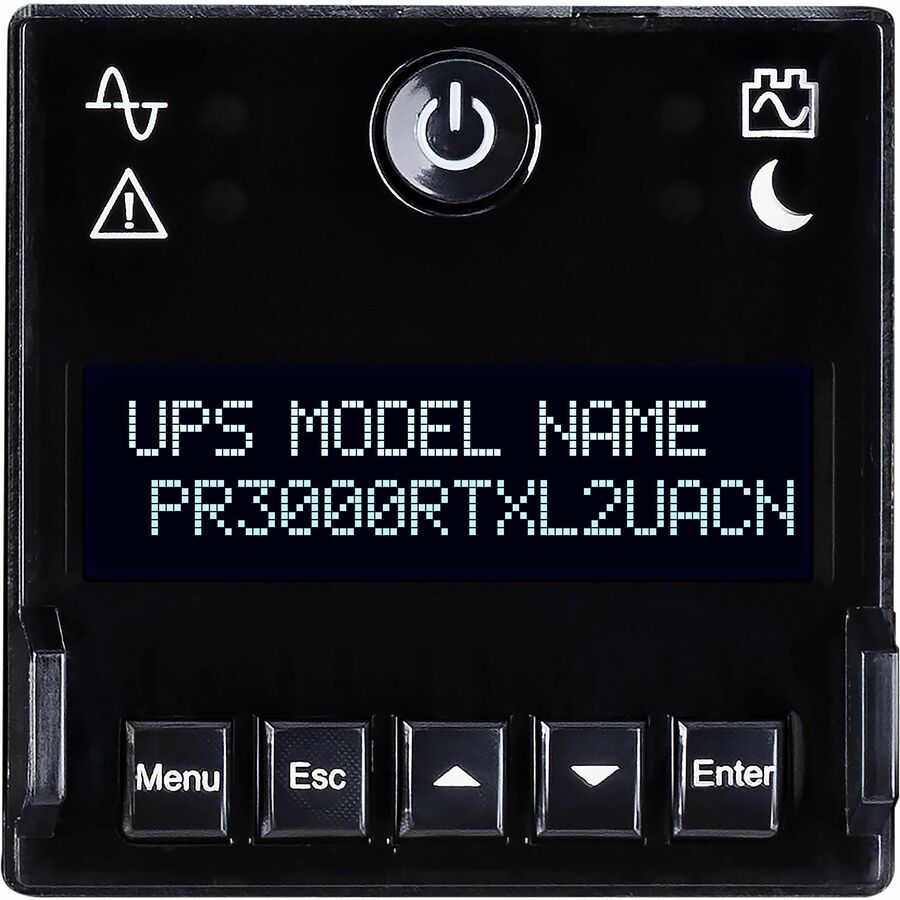

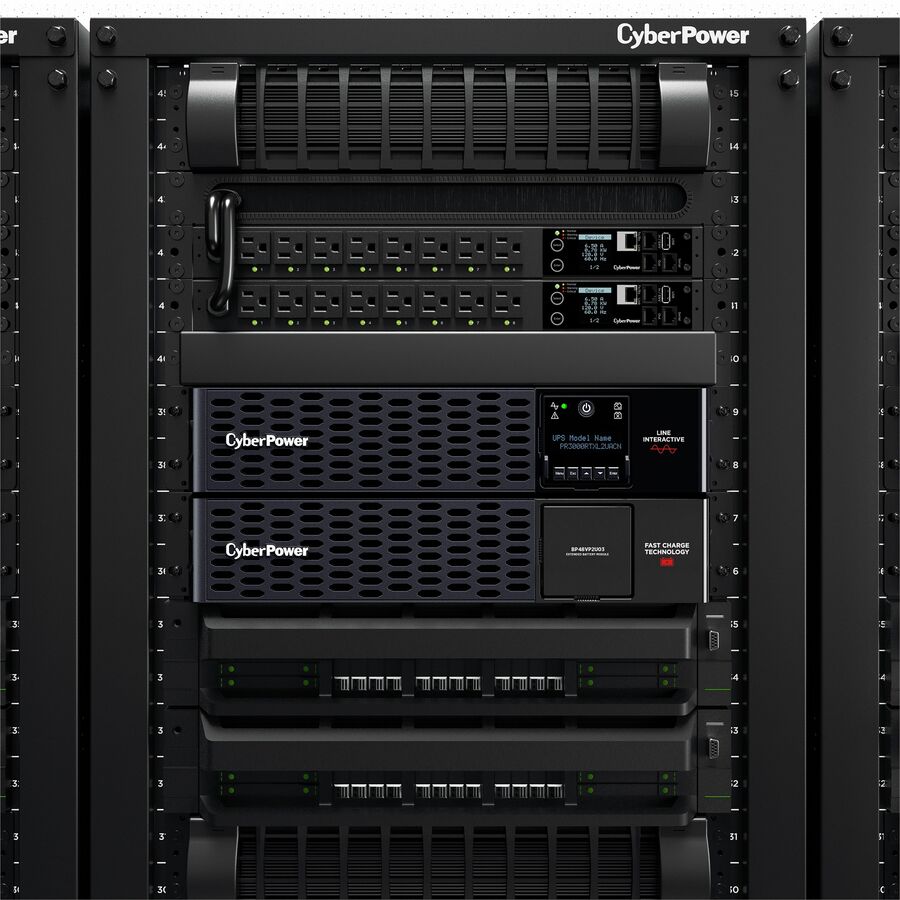

Marketing Information	The PR3000RTXL2UACN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment. The Smart App Sinewave PR3000RTXL2UACN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UACN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes built-in cloud monitoring and pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. With a 400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UACN.
Product Condition	New
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-20R NEMA L5-30R

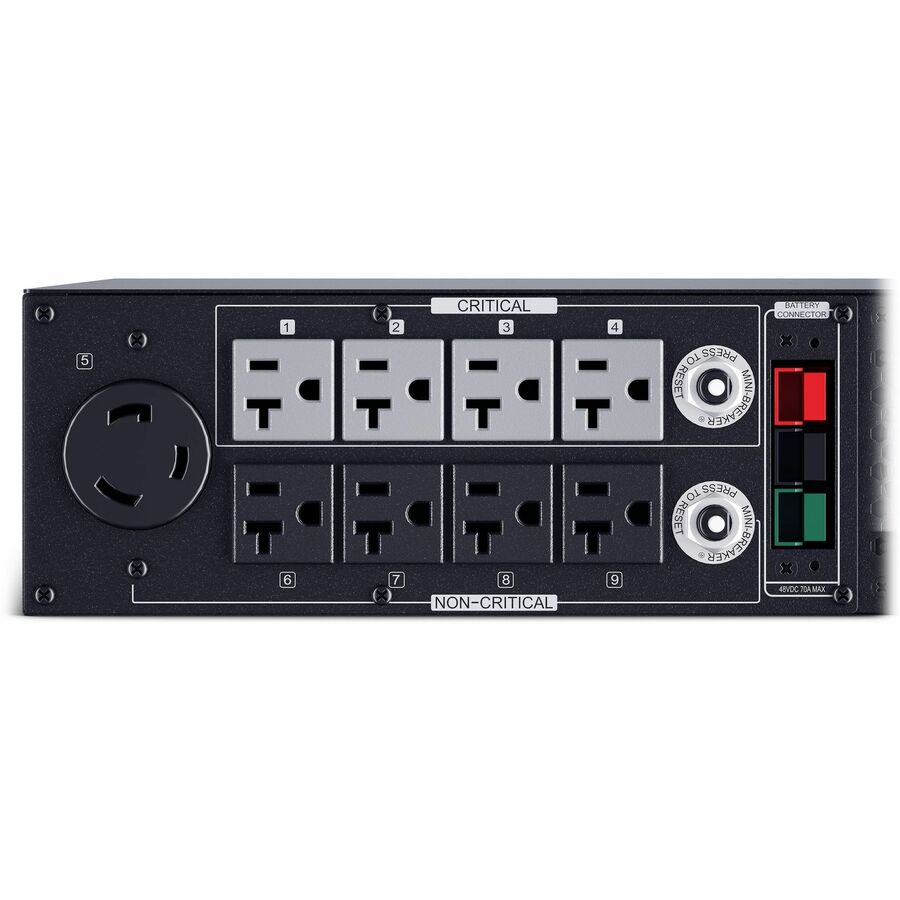

Receptacle Detail	8 x NEMA 5-20R 1 x NEMA L5-30R
Number of Battery & Surge Outlets	9
Number of Critical Load Outlets	4
Overload Protection	Yes
Cord Length	10 ft
Transfer Time	13 ms
EMI/RFI Noise Filter	Yes

Power Description

Load Capacity (VA)	3000 VA
Load Capacity (Watt)	3000 W
Input Voltage	120 V AC
Input Voltage Range	75 V AC - 149 V AC
Output Voltage	100 V AC 110 V AC 120 V AC
Input Frequency	50 Hz 60 Hz
Output Frequency	50 Hz 60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	2430 J
Circuit Breaker	Yes

Display & Graphics

Display

LCD

Management

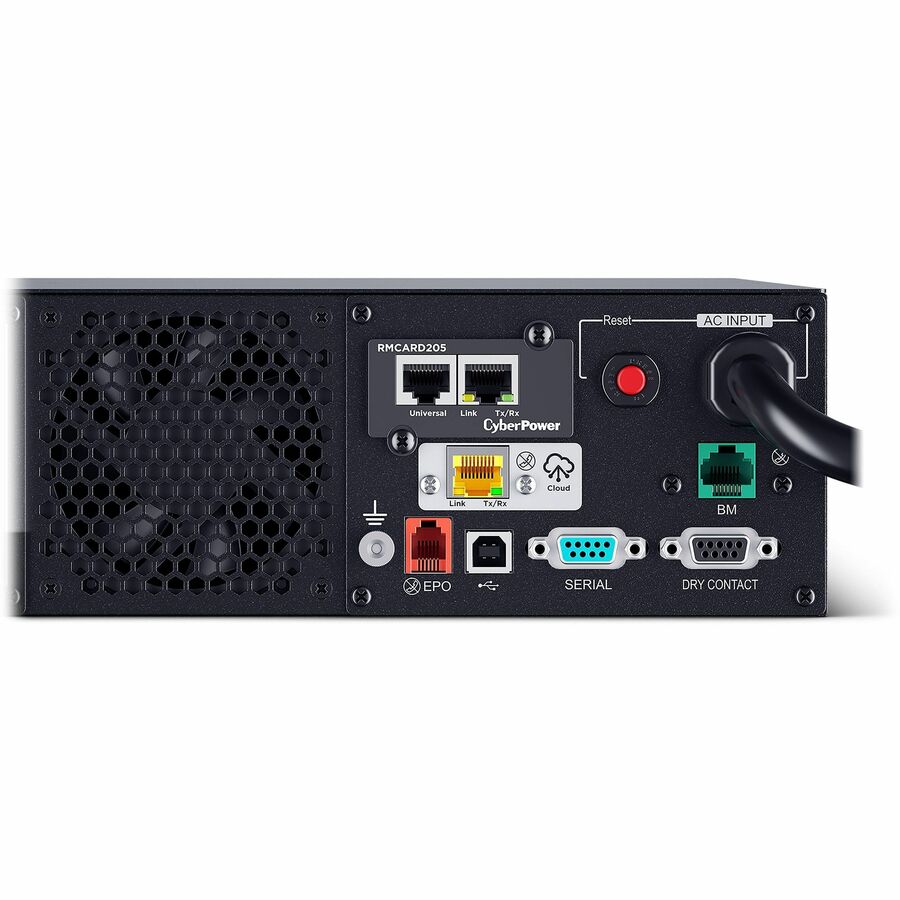

Network Management	SNMP/HTTP Remote Monitoring Relay-MS Card
Alarm	Battery Mode

Controls/Indicators

Status Indicators

LED Indicators:

Power On

Interfaces/Ports

Serial Port	Yes
USB	No
EPO Port	Yes
USB (HID Compliant) Port	Yes

Battery Information

Battery Capacity	6000 mAh

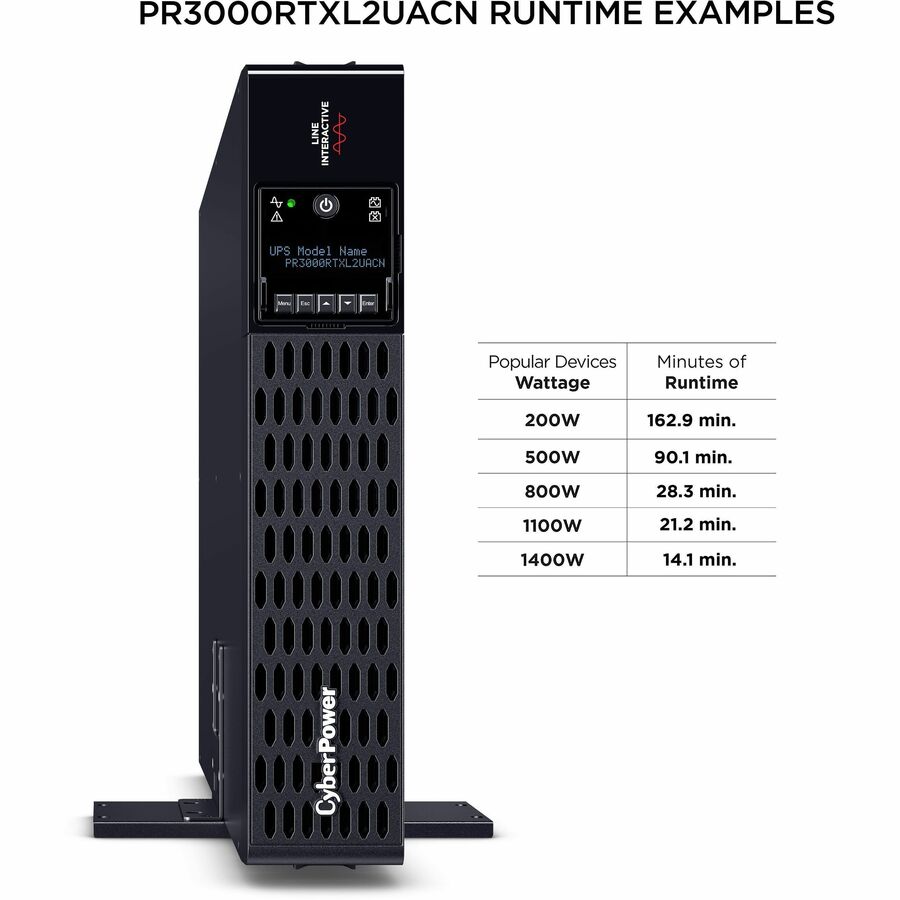

Backup/Run Time (Full Load)	3.70 Minute
Backup/Run Time (Half Load)	11.70 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	9842.52 ft
Maximum Storage Elevation	49209.32 ft
Operating Humidity	0% - 95%
Storage Relative Humidity	95%
Sound Emission (A-Weighted)	57.5 dB(A)
Thermal Dissipation	56.42 W

Physical Characteristics

Color Family	Black
Product Color	Black
Height	3.4"
Width	17.1"
Depth	24.8"
Rack Height	2U
Form Factor	Rack/Tower
Weight (Approximate)	88.41 lb

Miscellaneous

Certifications & Standards	UL1778
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	400000 Lifetime
