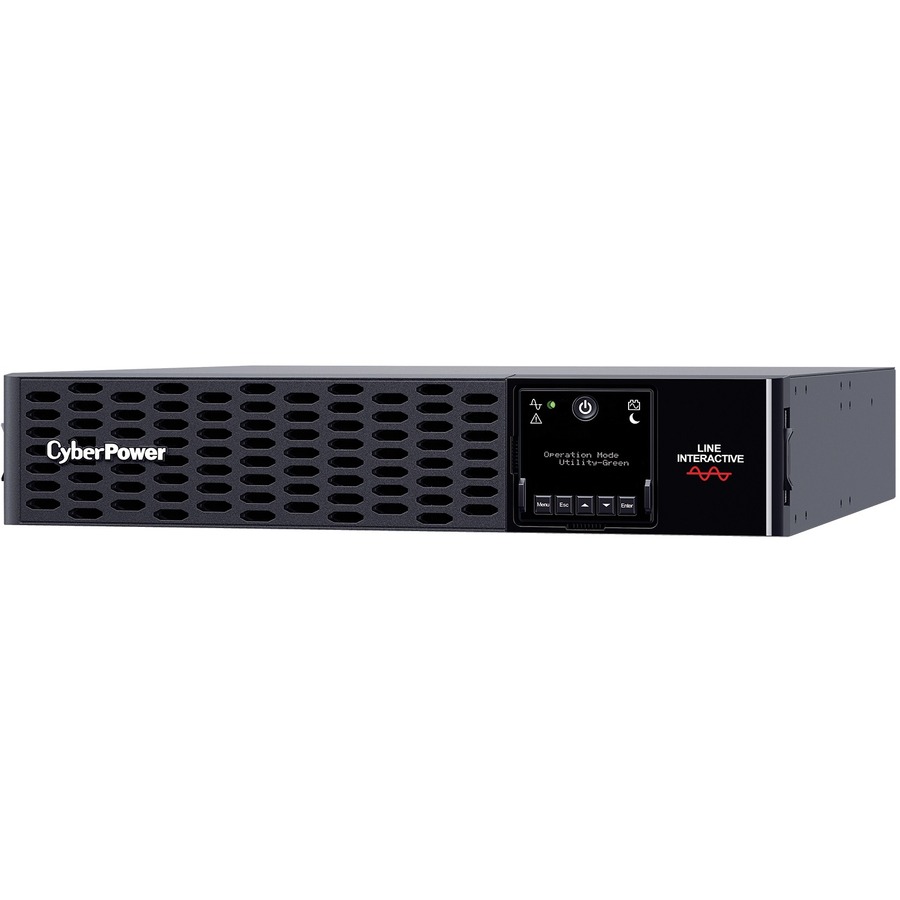

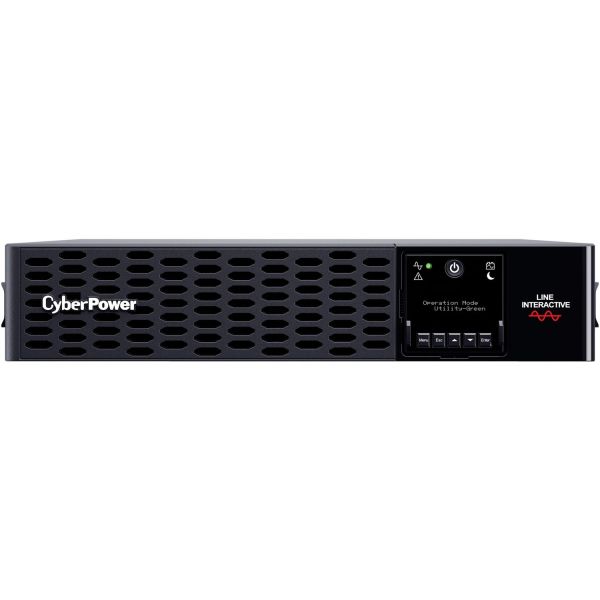

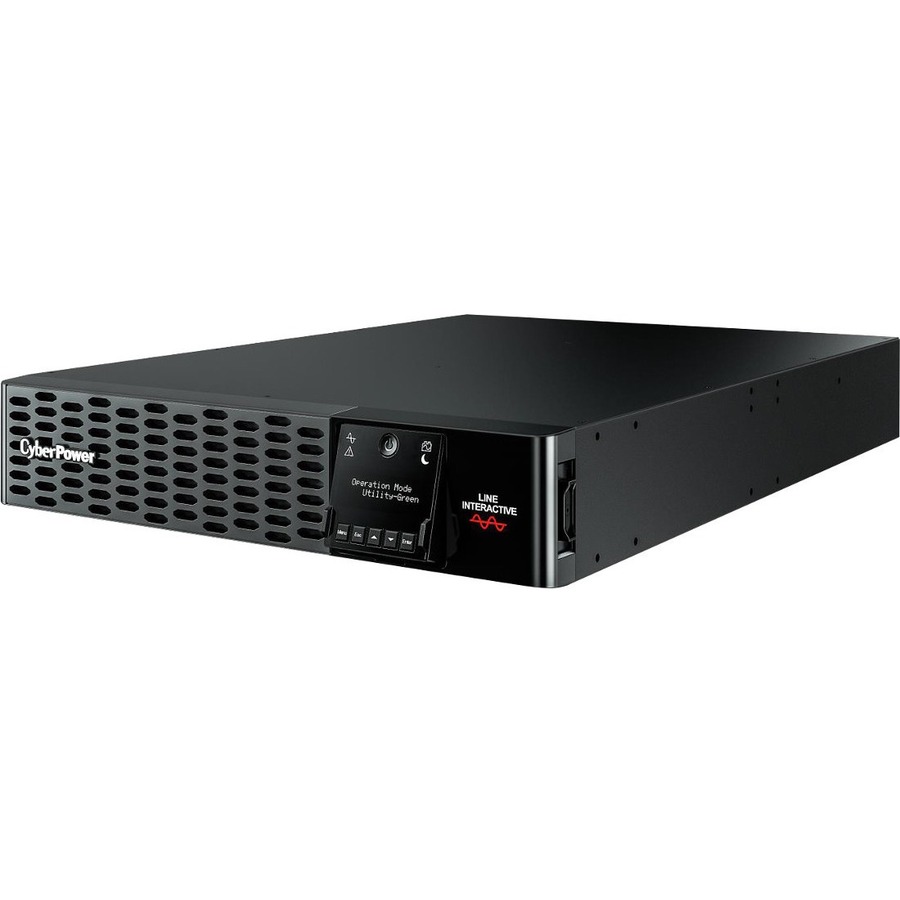

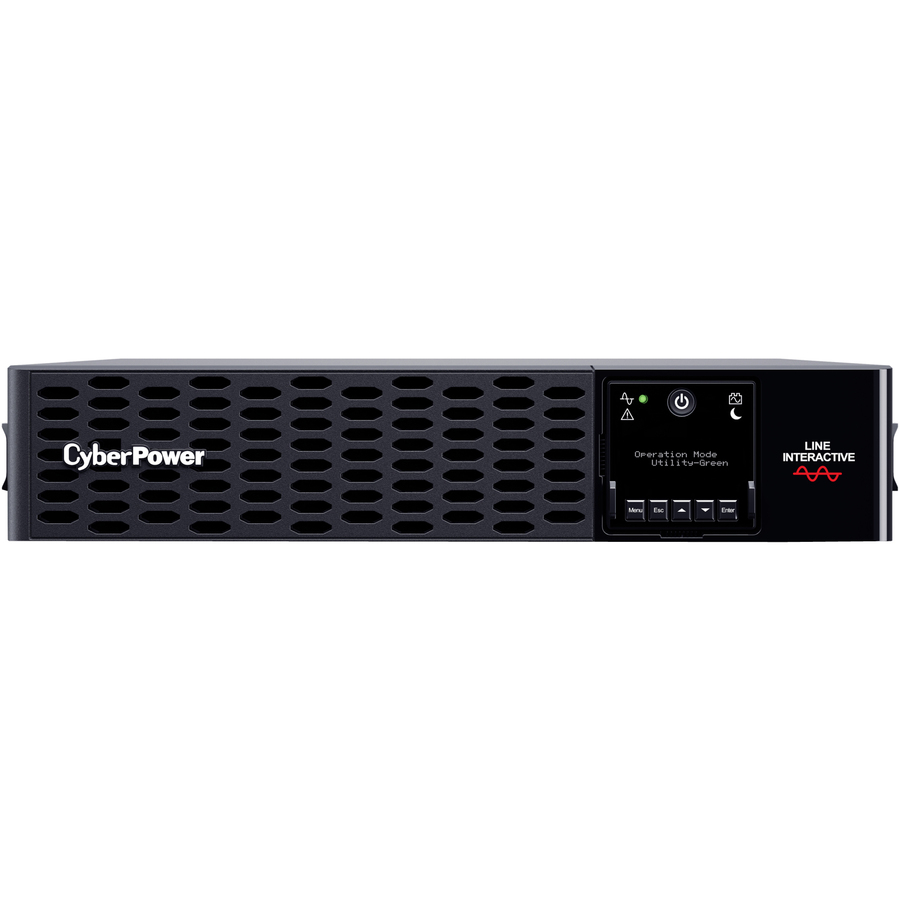

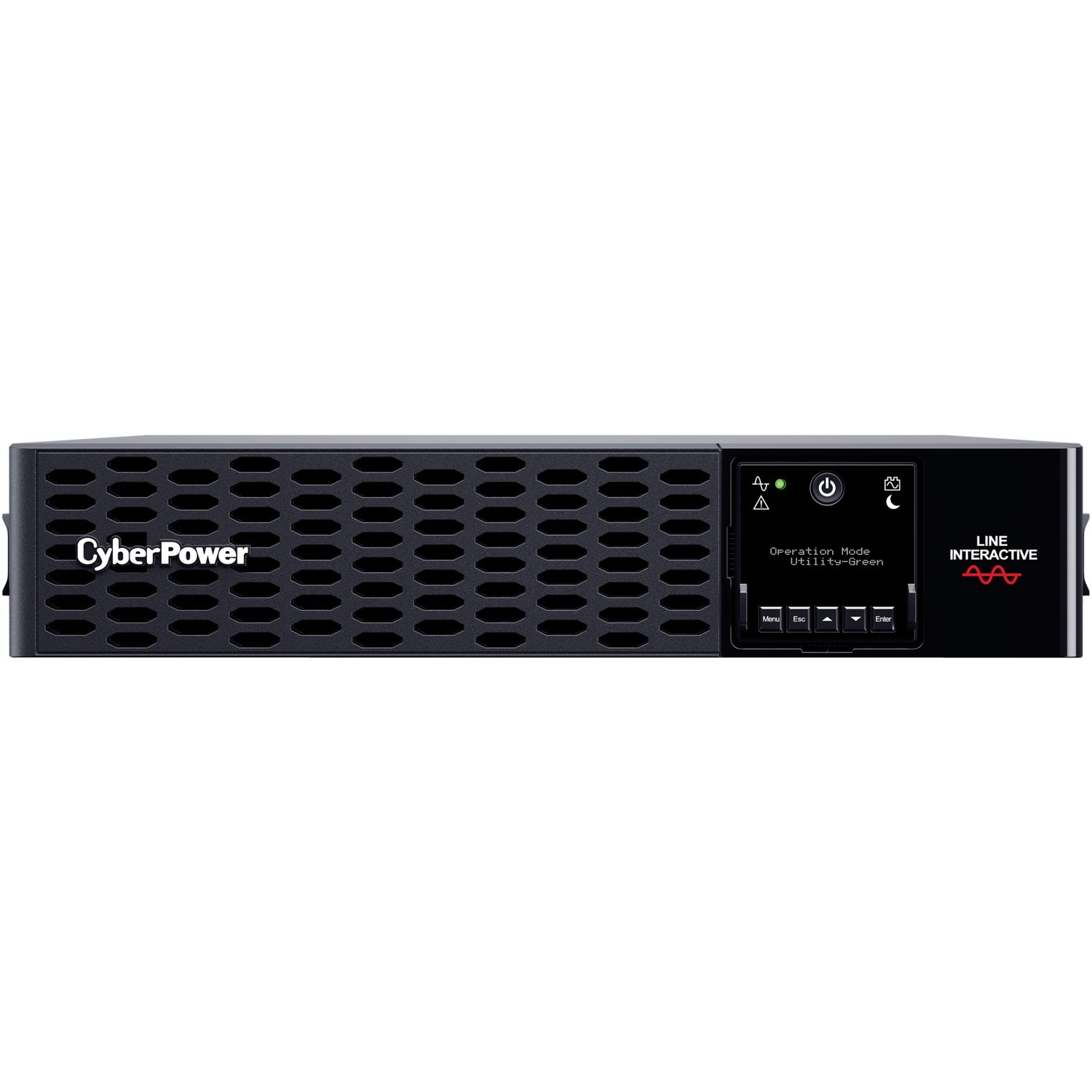

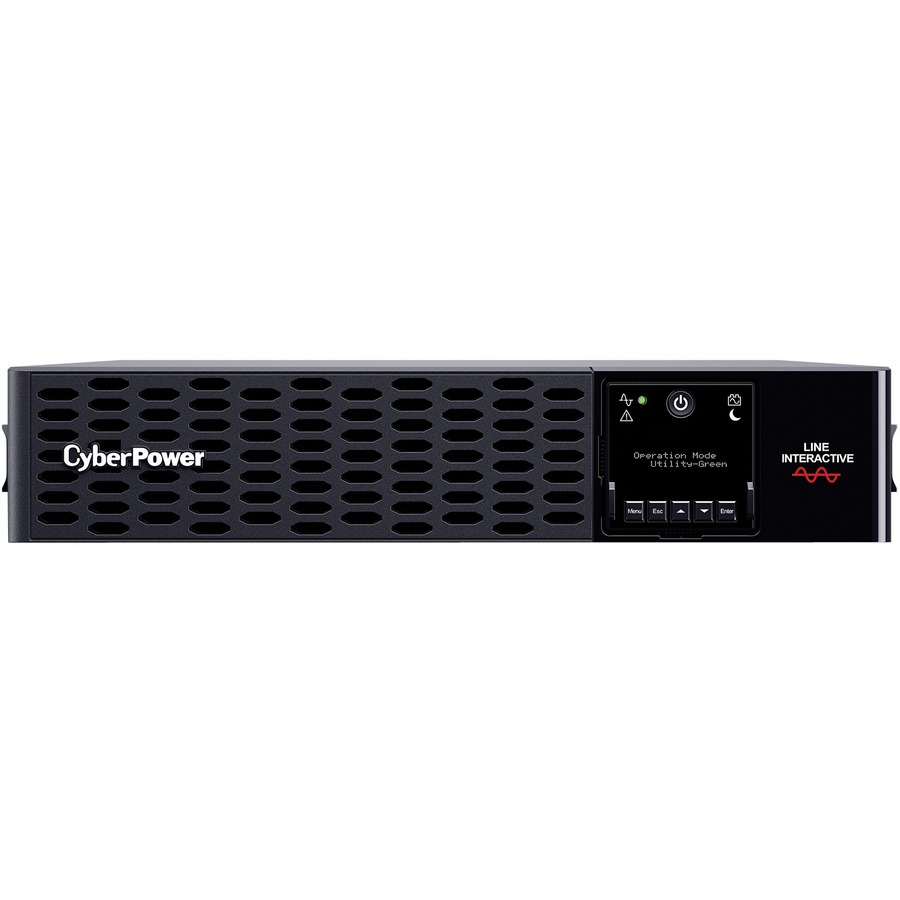

CyberPower PR2200RTXL2UAN New Smart App Sinewave UPS Systems

Name: CyberPower PR2200RTXL2UAN New Smart App Sinewave UPS Systems
Brand: CYBERPOWER
SKU: 9GM297
Price: 1463.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM297

MFG#

PR2200RTXL2UAN

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,463.95

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

2200VA/2200W, 120 VAC, NEMA L5
30P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 YearDirectly Connected Equipment Guarantee400000 Lifetime

Shipping Weight: 111 lbs.

CyberPower PR2200RTXL2UAN New Smart App Sinewave UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PR2200RTXL2UAN
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	New Smart App Sinewave UPS
Product Model	PR2200RTXL2UAN
Product Name	Smart App Sinewave PR2200RTXL2UAN 2.2KVA Tower/Rack Convertible UPS
Marketing Information	The PR2200RTXL2UAN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment. The Smart App Sinewave PR2200RTXL2UAN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UAN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. With a 400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RTXL2UAN.
Product Condition	New
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-20R

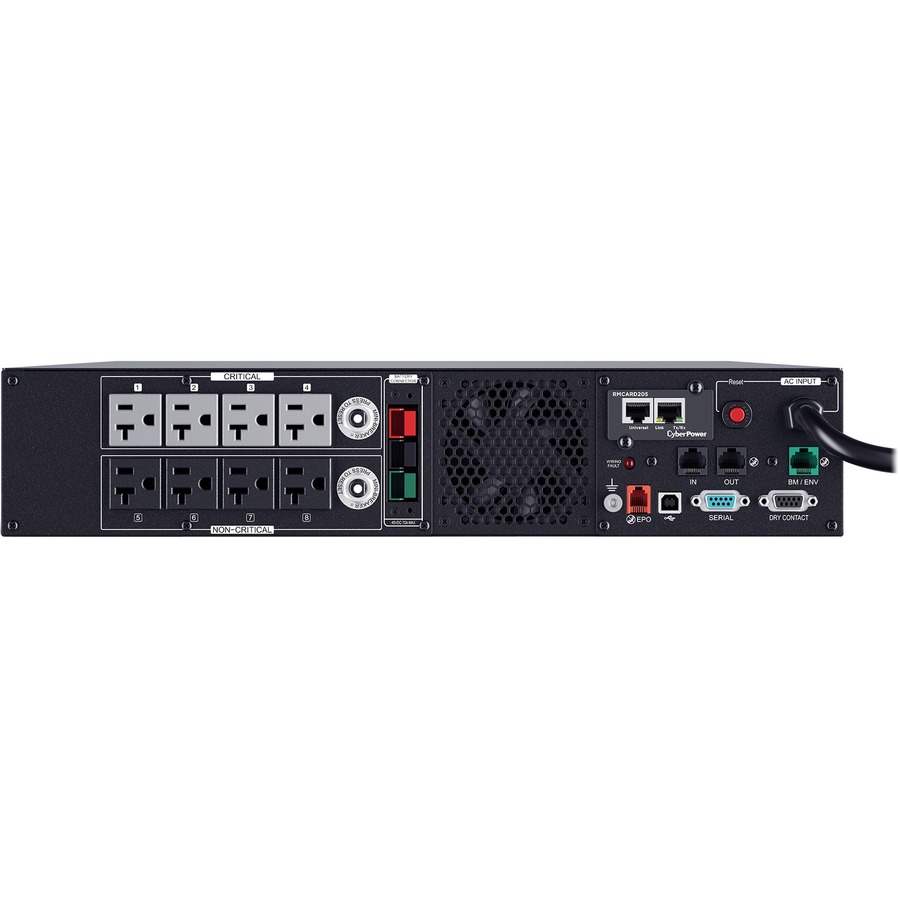

Receptacle Detail	8 x NEMA 5-20R
Number of Battery & Surge Outlets	8
Number of Critical Load Outlets	4
Transfer Time	4 ms
Dataline Protection	RJ-45
Overload Protection	Yes
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS™ Bypass Technology

Power Description

Load Capacity (VA)	2200 VA
Input Voltage	120 V AC
Input Voltage Range	75 V AC - 155 V AC
Output Voltage	100 V AC 110 V AC 120 V AC
Input Frequency	63 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	2430 J

Management

Network Management	SNMP/HTTP Remote Monitoring
Alarm	Battery Mode Low Battery Overload Overheat Over Charge

Controls/Indicators

Status Indicators

Multifunction LCD Panel

LED Indicators

Power on
Line mode
Battery mode
Fault
Night mode
Wiring Fault

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB (HID Compliant) Port	Yes
EPO Port	Yes

Battery Information

DC System Voltage	12 V DC
Number of Batteries	8
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	6000 mAh
Backup/Run Time (Full Load)	6.30 Minute
Backup/Run Time (Half Load)	16.10 Minute
Typical Battery Recharge Time	3 Hour
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	57.5 dB(A)
Thermal Dissipation	25.17 W

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack/Tower
Rack Height	2U
Height	3.4"
Width	17.1"
Depth	24.8"
Weight (Approximate)	93 lb

Miscellaneous

Additional Information	Management software: PowerPanel® Business Edition Active PFC Compatible: Yes Extended Battery Option: Yes Circuit Breaker: 30A Automatic Voltage Regulation: Double boost, single buck Rated Power Factor: 1 Dry Contacts: Yes Enclosure Construction: Metal Replacement Battery Cartridge Quantity: 1 Adjustable Voltage Range: 70 - 155 Vac Plug Style: Straight, Twist Lock Overload Protection: Internal Circuitry Limiting, Circuit Breaker Management Cable: USB Cable, EPO Cable Multifunction LCD Panel: 47 Settings (27 setup and control items + 20 status updates and log menus) Operating Relative Humidity: 0 - 95% (non-condensing) Operating Temperature: 32 °F to 104°F (0°C to 40°C)
Certifications & Standards	UL1778 cUL107.1 FCC Class A
Energy Star	Yes
Country of Origin	Philippines
Environmentally Friendly	Yes

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	400000 Lifetime
