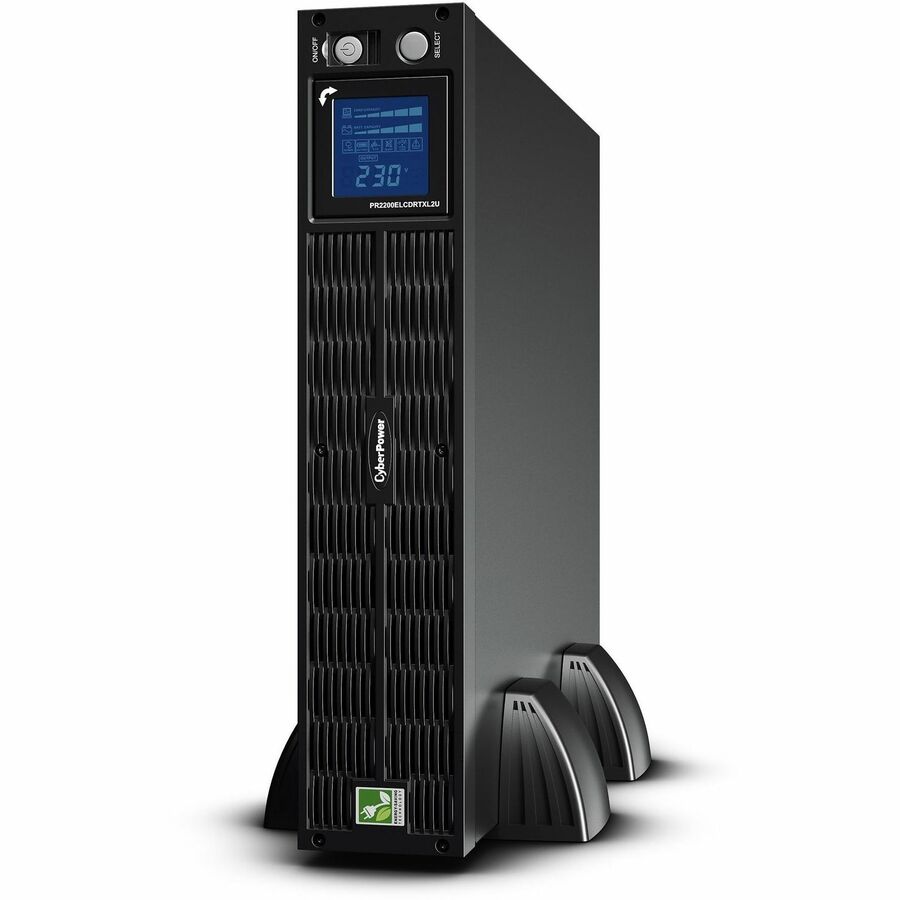

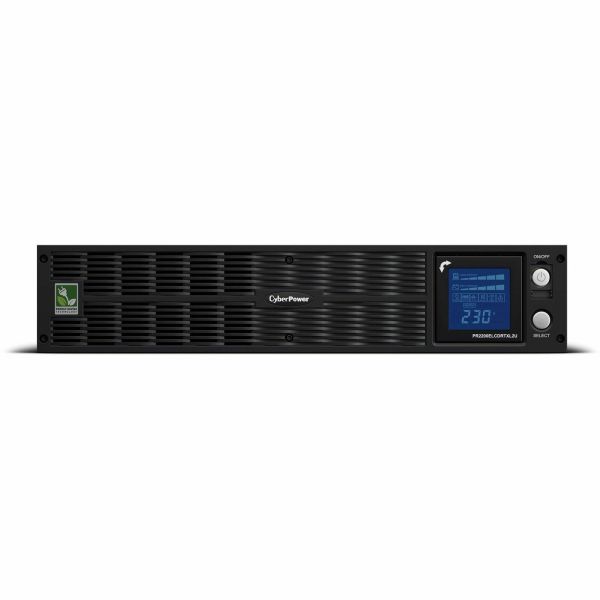

CyberPower PR2200ELCDRTXL2U Smart App Sinewave UPS Systems

Name: CyberPower PR2200ELCDRTXL2U Smart App Sinewave UPS Systems
Brand: CYBERPOWER
SKU: 9GM076
Price: 1230.66 USD
Availability: InStock

CYBERPOWER

PCN#

9GM076

MFG#

PR2200ELCDRTXL2U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,230.66

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Estimated Shipment:

Product Highlights:

2200VA/1650W, 230 VAC, IEC
320 C20, 2U, Rack / Tower, Sine Wave, 10 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsCEEnergy StarNoCountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 90 lbs.

CyberPower PR2200ELCDRTXL2U Smart App Sinewave UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PR2200ELCDRTXL2U
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Smart App Sinewave UPS
Product Model	PR2200ELCDRTXL2U
Product Name	PR2200ELCDRTXL2U Smart App Sinewave UPS Systems
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	IEC 60320 C20
Receptacle Type	IEC 60320 C19 IEC 60320 C13
Receptacle Detail	1 x IEC 60320 C19
Number of Battery & Surge Outlets	10
Number of Critical Load Outlets	4
Transfer Time	4 ms
Dataline Protection	RJ-11 RJ-45
Overload Protection	Yes
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS™ Bypass Technology
Application/Usage	Server Storage Device Network Device Telecommunication
Cord Length	10 ft
Circuit Breaker Current Rating	20 A

Power Description

Load Capacity (VA)	2200 VA
Load Capacity (Watt)	1650 W
Input Voltage	230 V AC
Input Voltage Range	160 V AC - 280 V AC
Output Voltage	220 V AC 230 V AC 240 V AC
Input Frequency	47 Hz 63 Hz
Output Frequency	50 Hz 60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	810 J
Output Power Factor	0.8

Display & Graphics

Display

LCD

Management

Network Management	SNMP/HTTP Remote Monitoring
Alarm	Battery Mode

Controls/Indicators

Status Indicators

LED Indicators: Power On

Interfaces/Ports

Serial Port	Yes
USB	Yes
USB (HID Compliant) Port	Yes
EPO Port	Yes

Battery Information

Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	5 Minute
Backup/Run Time (Half Load)	14 Minute
Typical Battery Recharge Time	6 Hour
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Sound Emission (A-Weighted)	34.5 dB(A)
Thermal Dissipation	84.40 W

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack/Tower
Rack Height	2U
Height	3.5"
Width	17.1"
Depth	18.9"
Weight (Approximate)	77 lb

Miscellaneous

Package Contents	2200 VA Line Interactive UPS 4x IEC C13-C14 Power Cords 1x C19-Schuko Power Cord 1x C16-UK Power Cord Manual USB Cable
Additional Information	Energy Saving : GreenPower UPS™ Bypass Technology UPS Topology : Line Interactive Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Extended Battery Module : BP48VP2U02 Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4D Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 5 min Runtime at Half Load : 14 min Typical Recharge Time : 6 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.31 x 8.79 x 48.01 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 3.46 x 18.9 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 88 x 480 (mm) Weight (kg) : 34.93 Weight (lb) : 77 Shipping Dimensions - (WxHxD) (cm) : 56.52 x 27.31 x 60.96 (cm) Shipping - Dimensions (WxHxD, in) : 22.25 x 10.75 x 24.0 (in) Shipping - Dimensions (WxHxD, mm) : 565.15 x 273.05 x 609.6 (mm) Shipping - Weight (kg) : 44.0 Shipping - Weight (lb) : 97 Adjustable Voltage Range : 150 - 300 VAC Circuit Breaker : 20 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : IEC-320 C20 Input Voltage Range : 160 VAC - 288 VAC Nominal Input Voltage : 230 VAC Automatic Voltage Regulation : Double Boost On AC WaveForm : Sine Wave On Battery Frequency : 50/60 Hz ± 0.1Hz On Battery Voltage : 220/230/240 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 10 Outlets - Critical Load : 4 Outlets - Total : 10 Outlet Type COMPUTED : 1 - IEC-320 C19 Output Power Factor : 0.8 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms USB Charge Port : No VA : 2200 VA Watts : 1650 W EMI/RFI Filtration COMPUTED : Yes Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo) Surge Suppression (Joules) : 810 J EMI/RFI Filtration COMPUTED : Yes Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo) Surge Suppression (Joules) : 810 J Audible Alarms : Battery Mode Emergency Power Off (EPO) Port : Yes HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD202, RMCARD203, or RMCARD205 Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Audible noise at 1.5M from surface of unit : 34.5 dBA Online Thermal Dissipation : 228 BTU/hr Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : CE CEG Amount : 400000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4B Product Warranty : 3 Year Limited Warranty
Certifications & Standards	CE
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	400000 Lifetime
