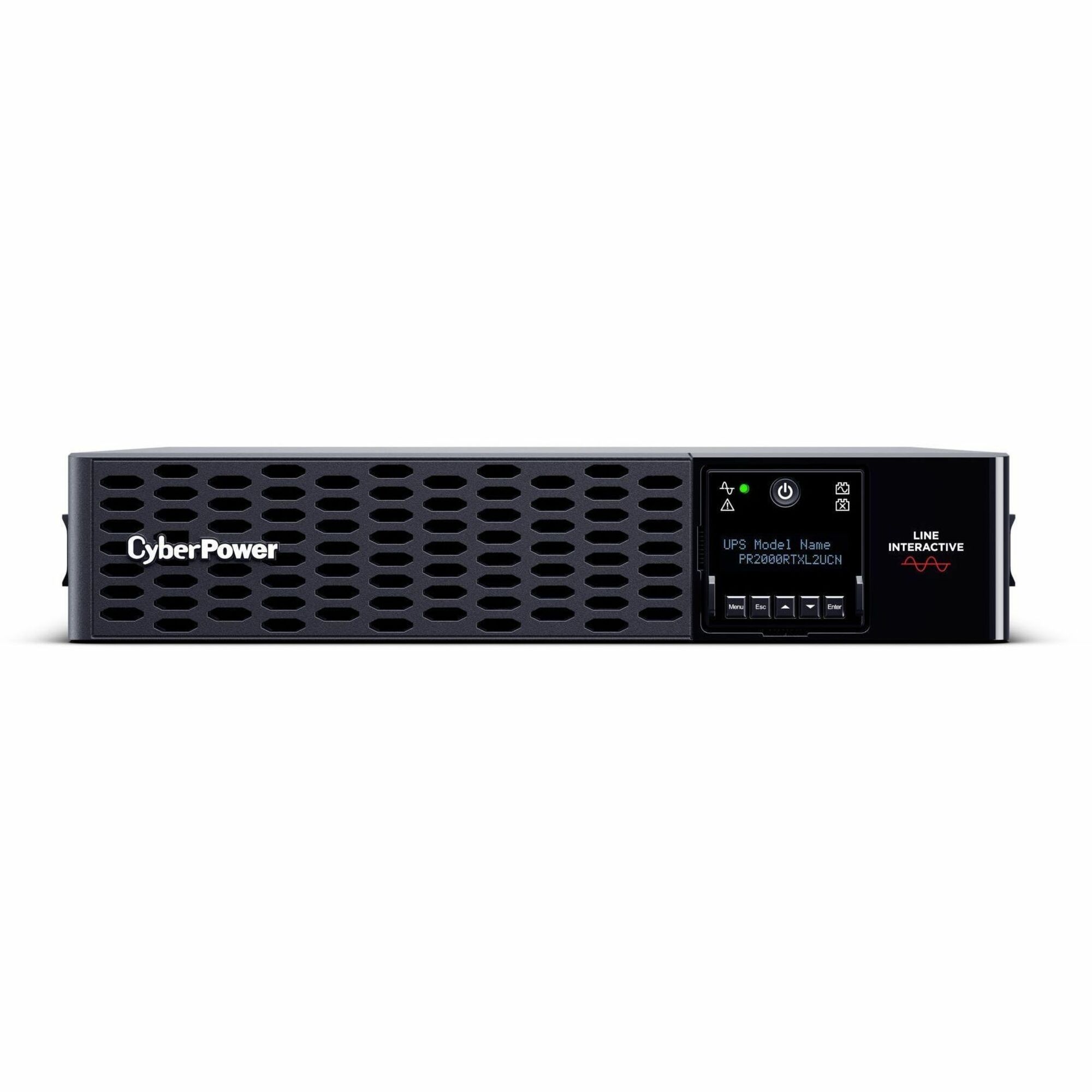

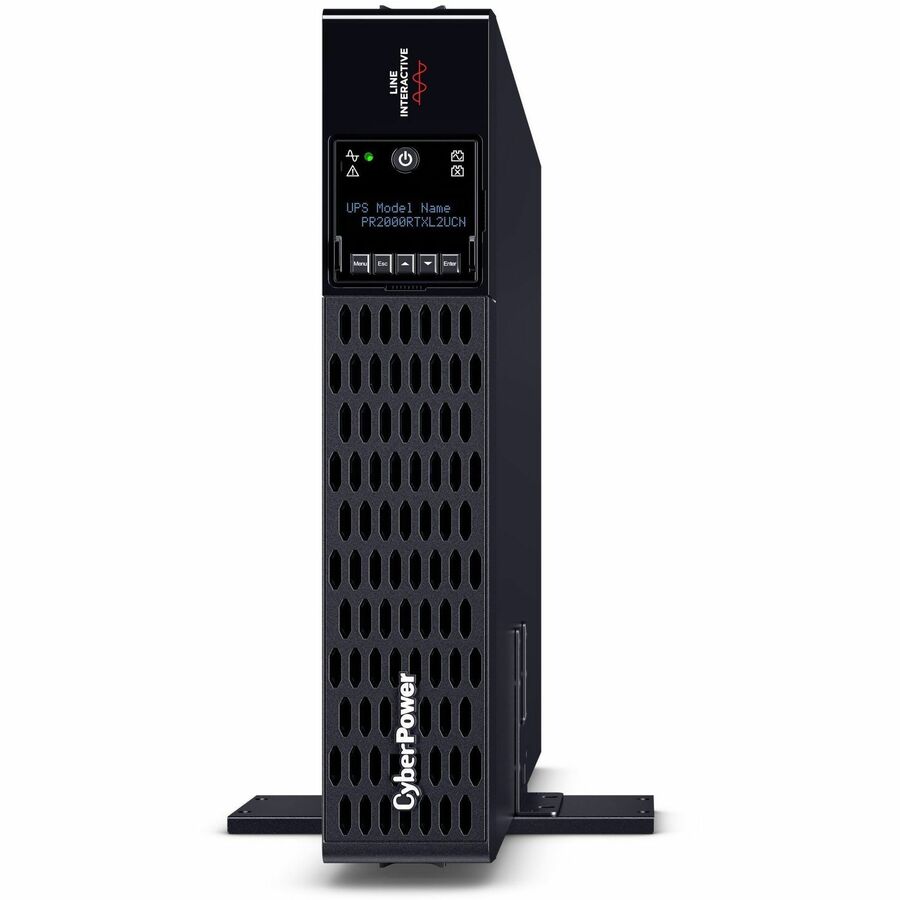

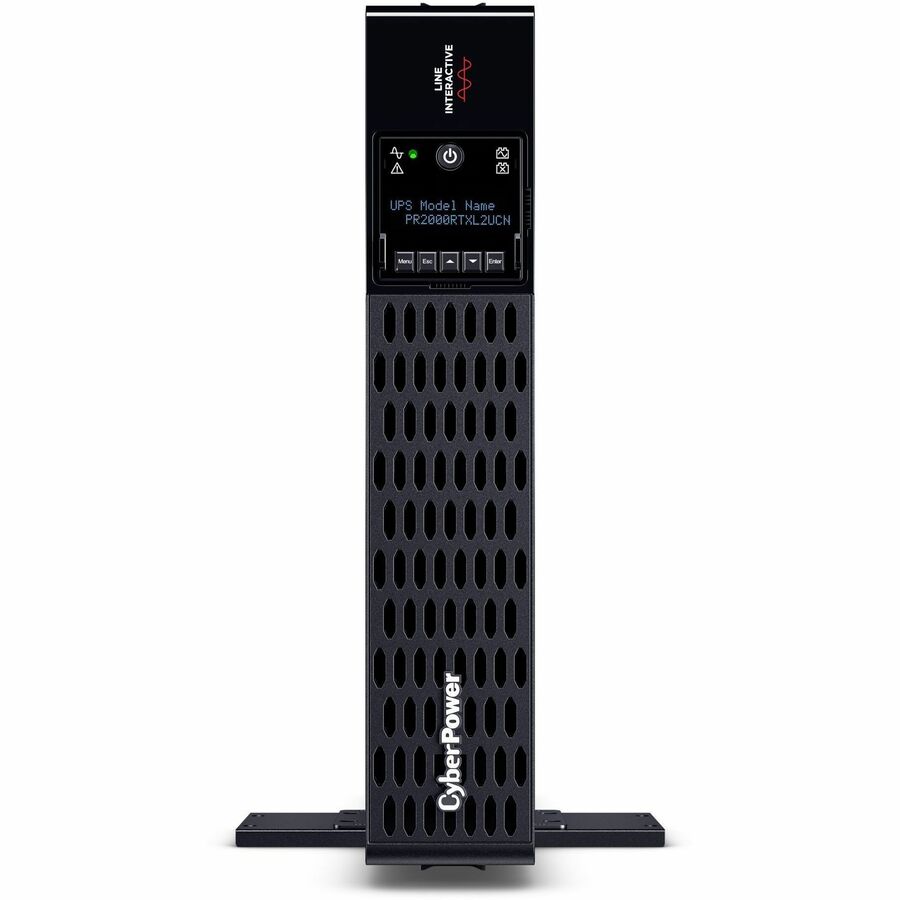

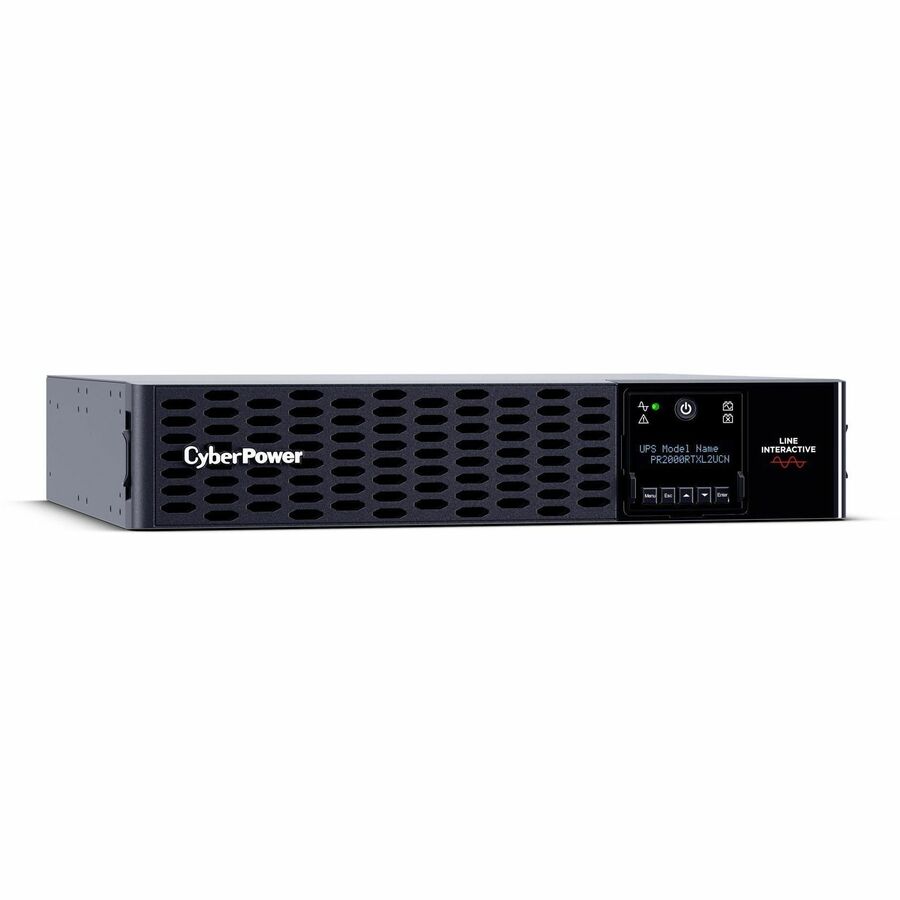

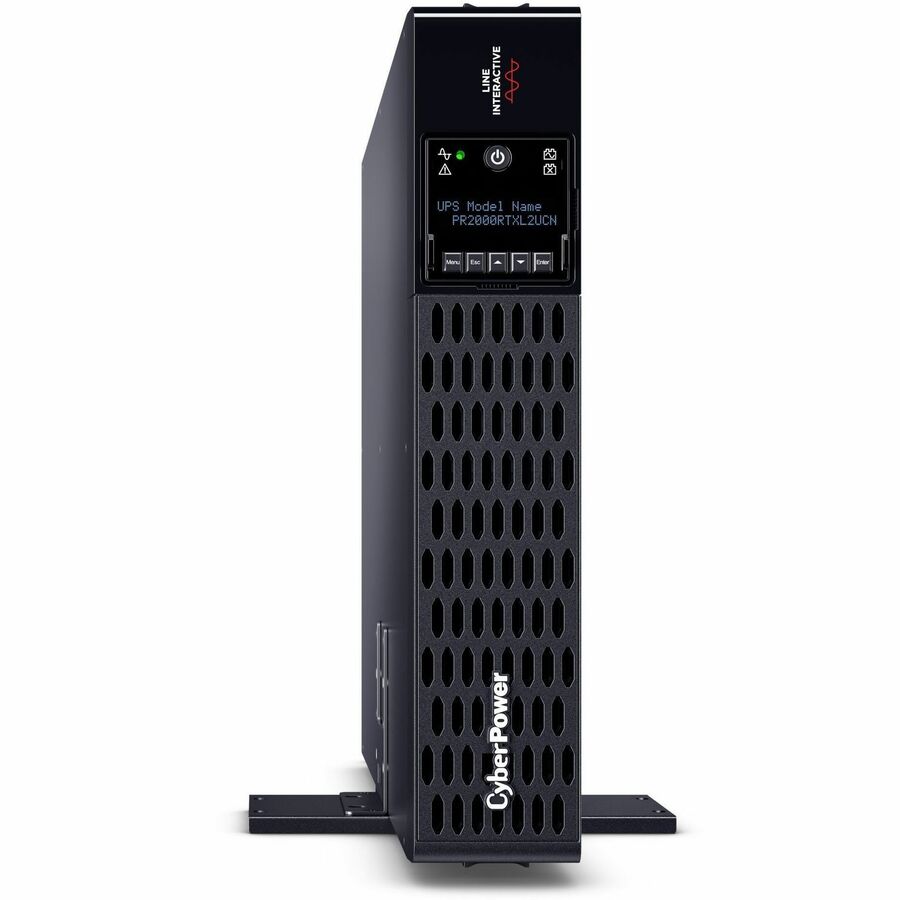

CyberPower PR2000RTXL2UCN New Smart App Sinewave UPS Systems

• The PR2000RTXL2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

  The Smart App Sinewave PR2000RTXL2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2000RTXL2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

  This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. Built-in Cloud Monitoring.

  With a

• 400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2000RTXL2UCN.

• Server
• Storage Device
• VoIP
• Network Device
• Telecommunication
• Equipment

• 75 V AC - 149 V AC
• 100 V AC - 125 V AC

• 100 V AC
• 110 V AC
• 120 V AC
• 125 V AC

• 47 Hz
• 63 Hz

• 50 Hz
• 60 Hz

• SNMP/HTTP Remote Monitoring
• Relay-MS Card
• Dry Contact

• Battery Mode
• Low Battery
• Overload
• Over-charge
• Fault

LED Indicators:

• Power On
• Line Mode
• Battery Mode
• Fault

• Active PFC Compatible : Yes
• Energy Saving : GreenPower UPS™ Bypass Technology
• Energy Star Certified : Yes
• UPS Topology : Line Interactive
• Battery Quantity : 4
• Battery Size : 12 V / 9 Ah
• Battery Type : Sealed Lead-Acid Battery
• Extended Battery Module : BP48VP2U02
• Hot Swappable : Yes
• Replacement Battery Cartridge : RB1290X4J
• Replacement Battery Cartridge Quantity : 1
• Runtime at Full Load : 4.3 min
• Runtime at Half Load : 12.2 min
• Typical Recharge Time : 3 Hours (0% to 90% charged)
• User Replaceable Battery : Yes
• Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm)
• Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in)
• Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 500 (mm)
• Weight (kg) : 33.79
• Weight (lb) : 74.5
• Shipping Dimensions - (WxHxD) (cm) : 55.88 x 26.67 x 60.96 (cm)
• Shipping - Dimensions (WxHxD, in) : 22 x 10.5 x 24 (in)
• Shipping - Dimensions (WxHxD, mm) : 558.8 x 266.7 x 609.6 (mm)
• Shipping - Weight (kg) : 40.23
• Shipping - Weight (lb) : 88.7
• Adjustable Voltage Range : 70 - 155 VAC
• Circuit Breaker : 20 A
• Cord Length : 10 ft (3.0 m)
• Input Frequency Range : 47 Hz - 63 Hz
• Input Plug Type : NEMA L5-20P (5-20P Adapter)
• Input Voltage : 100 - 125 VAC
• Input Voltage Range : 75 VAC - 149 VAC
• Nominal Input Voltage : 120 VAC
• Plug Style : Right Angle - 0° Offset
• Automatic Voltage Regulation : Double Boost
• On AC WaveForm : Sine Wave
• On Battery Frequency : 50/60 Hz ± 1%
• On Battery Voltage : 100/110/120/125 VAC ± 5%
• On Battery Waveform : Sine Wave
• Outlets - Battery & Surge Protected : 8
• Outlets - Critical Load : 4
• Outlets - Total : 8
• Outlet Type COMPUTED : 8 - NEMA 5-20R
• Output Power Factor : 1
• Overload Protection : On Battery: Internal Circuitry Limiting
• Typical Transfer Time : 6ms; Max 11ms at normal sensitivity
• USB Charge Port : No
• VA : 2000 VA
• Watts : 2000 W
• EMI/RFI Filtration COMPUTED : Yes
• Surge Suppression (Joules) : 2430 J
• EMI/RFI Filtration COMPUTED : Yes
• Surge Suppression (Joules) : 2430 J
• Audible Alarms : Battery Mode
• Emergency Power Off (EPO) Port : Yes
• HID Compliant USB Port : Yes
• LCD : Multifunction LCD
• LED Indicators : Power On
• Management Cable : USB Cable
• Serial Port : 1 Serial
• SNMP / HTTP Remote Monitoring : Yes - RMCARD205 pre-installed
• Software (Free Download) : PowerPanel® Business
• Color : Black
• Form Factor : Rack / Tower
• Material of Construction : Metal
• Rack Height : 2U
• Audible noise at 1m from surface of unit : 57.5 dBA
• Online Thermal Dissipation : 130 BTU/hr
• Operating Elevation : 0 - 9843 ft (0 - 3000 m)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Temperature : 32 - 104 °F (0 - 40 °C)
• Storage Elevation : 0 - 49213 ft (0 - 14999 m)
• Storage Relative Humidity : 0 - 95% (non-condensing)
• Storage Temperature : 5 - 113 °F (-15 - 45 °C)
• Environmental : RoHS Compliant
• Safety : UL1778
• CEG Amount :
• 400000
• Connected Equipment Guarantee : Lifetime
• Extended Warranty Option : WEXT5YR-U4B
• Product Warranty : 3 Year Limited Warranty

Connected Equipment Guarantee: Lifetime

• 400000 Lifetime
