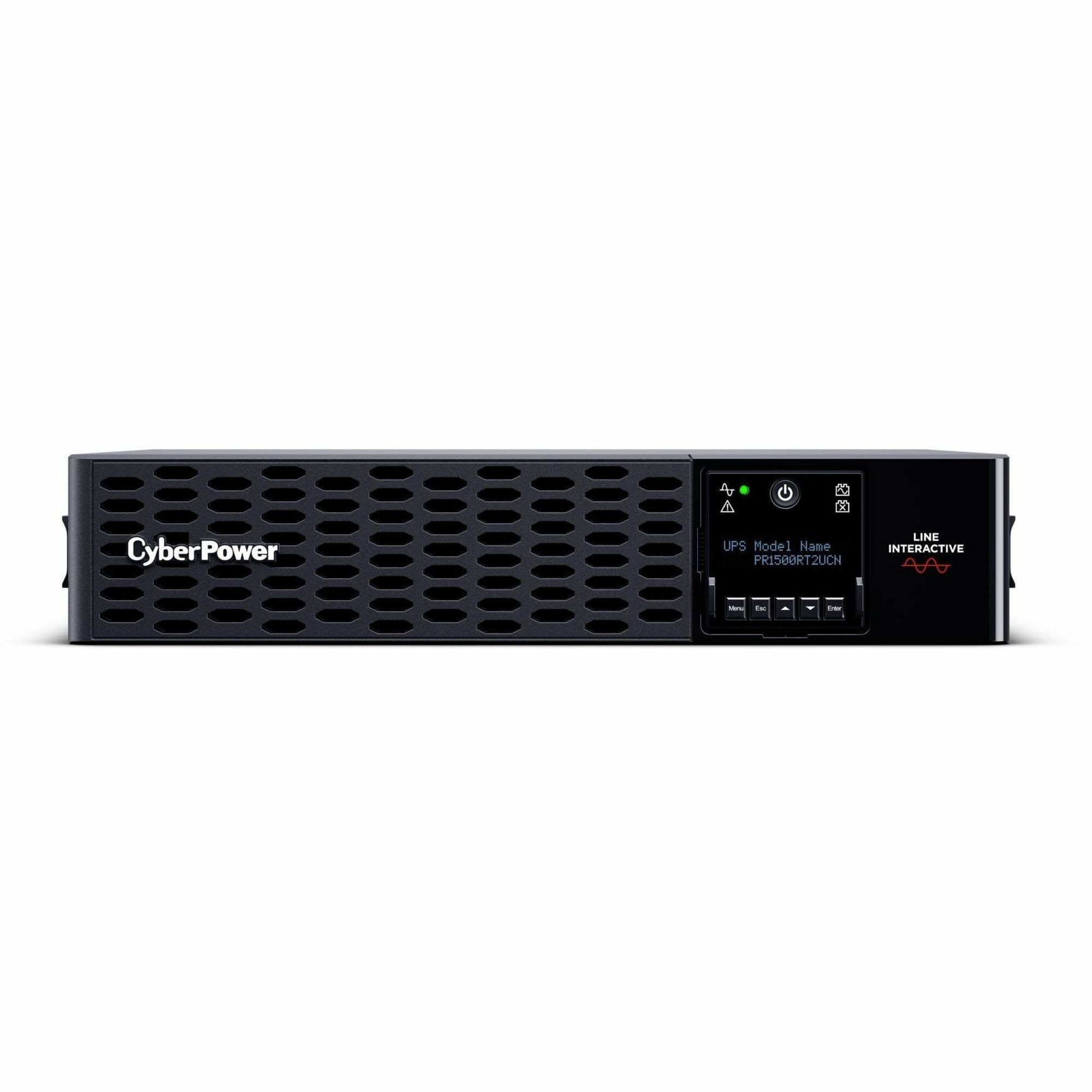

CyberPower Smart App Sinewave PR1500RT2UCN 1500VA Rack/Tower UPS

by
CYBERPOWER
PCN#
HL2445
MFG#
PR1500RT2UCN
$1,375.95
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1500VA/1500W, 120 VAC, NEMA 5
  • 15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
Product Condition: New and Factory Fresh
Limited Warranty3 YearAdditional Warranty InformationConnected Equipment Guarantee: LifetimeDirectly Connected Equipment Guarantee400000 Lifetime
Shipping Weight: 64 lbs.
CyberPower PR1500RT2UCN Smart App Sinewave UPS Systems
Tech Specs
Specifications

Manufacturer

CyberPower Systems, Inc

Manufacturer Part Number

PR1500RT2UCN

Manufacturer Website Address

https://www.cyberpowersystems.com

Brand Name

CyberPower

Product Line

Smart App Sinewave

Product Model

PR1500RT2UCN

Product Name

PR1500RT2UCN Smart App Sinewave UPS Systems

Marketing Information

  • The PR1500RT2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

    The Smart App Sinewave PR1500RT2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1500RT2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

    This model includes pre-installed remote management card RMCARD205, which provides remote management and configuration of the UPS via a standard web browser or network management system. Built-in Cloud Monitoring.

    With a

  • 400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR1500RT2UCN.

Product Type

Line-interactive UPS
Technical Information

AVR

Yes

Plug/Connector Type

NEMA 5-15P

Receptacle Type

NEMA 5-15R

Receptacle Detail

8 x NEMA 5-15R

Number of Battery & Surge Outlets

8

Number of Critical Load Outlets

4

Overload Protection

Yes

Cord Length

10 ft

Transfer Time

6 ms

EMI/RFI Noise Filter

Yes

Energy Saving

GreenPower UPS™ Bypass Technology

Application/Usage

  • Corporate
  • Network
  • Server
  • Telecommunication
  • VoIP
  • Storage Device
  • Network Device
Power Description

Load Capacity (VA)

1500 VA

Load Capacity (Watt)

1500 W

Input Voltage

120 V AC

Input Voltage Range

70 V AC - 155 V AC

Output Voltage

  • 100 V AC
  • 110 V AC
  • 120 V AC
  • 125 V AC

Input Frequency

  • 50 Hz
  • 60 Hz

Output Frequency

  • 50 Hz
  • 60 Hz

Waveform Type

Sine Wave

Surge Energy Rating

2430 J

Output Power Factor

1
Display & Graphics

Display

LCD
Management

Network Management

SNMP/HTTP Remote Monitoring

Alarm

Battery Mode
Controls/Indicators

Status Indicators

Power On
Interfaces/Ports

Serial Port

Yes

USB

Yes

EPO Port

Yes

USB (HID Compliant) Port

Yes
Battery Information

Number of Batteries

4

Battery Characteristics

Sealed

Battery Chemistry

Lead Acid

Battery Size

12V

Battery Capacity

9000 mAh

Backup/Run Time (Full Load)

6.50 Minute

Backup/Run Time (Half Load)

18.20 Minute

Typical Battery Recharge Time

3 Hour

Hot Swappable

Yes

Replaceable Battery

Yes
Environmental Conditions

Maximum Operating Temperature

104°F (40°C)

Storage Temperature

5°F (-15°C) - 113°F (45°C)

Maximum Operating Elevation

9843 ft

Maximum Storage Elevation

49213 ft

Operating Humidity

0% - 95%

Storage Relative Humidity

0% - 95%

Sound Emission (A-Weighted)

52.5 dB(A)

Thermal Dissipation

27.34 W
Physical Characteristics

Color Family

Black

Product Color

Black

Height

3.40"

Width

17.10"

Depth

16.20"

Length

22"

Rack Height

2U

Form Factor

Rack/Tower

Weight (Approximate)

55.80 lb
Miscellaneous

Additional Information

  • Automatic Voltage Regulation: Double Boost
  • Management Cable: USB Cable
  • Material of Construction: Metal
  • Overload Protection: On Battery: Internal Circuitry Limiting
  • Plug Style: Right Angle - 45° Offset
  • Serial Port: 1 Serial
  • Software (Free Download): PowerPanel® Business
  • USB Charge Port: No
  • Certifications & Standards

    UL1778

    Energy Star

    Yes

    Country of Origin

    China

    Environmentally Friendly

    Yes

    Environmental Compliance

    Restriction of Hazardous Substances (RoHS)
    Warranty

    Limited Warranty

    3 Year

    Additional Warranty Information

    Connected Equipment Guarantee: Lifetime

    Directly Connected Equipment Guarantee

    • 400000 Lifetime
