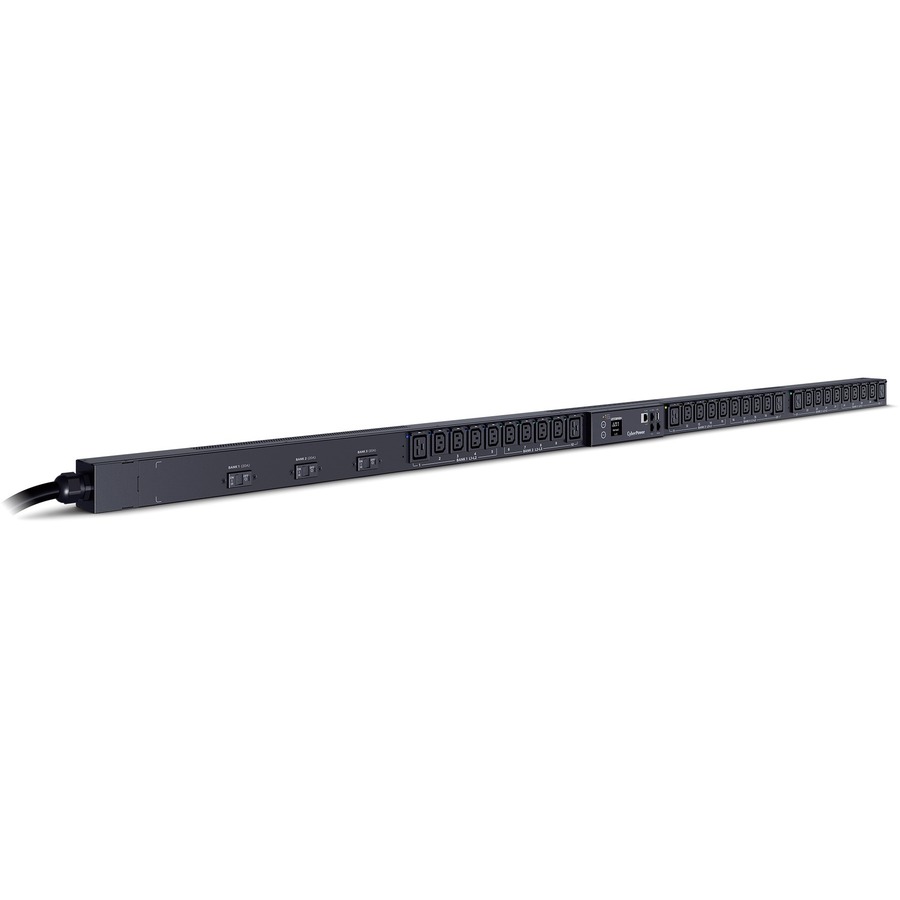

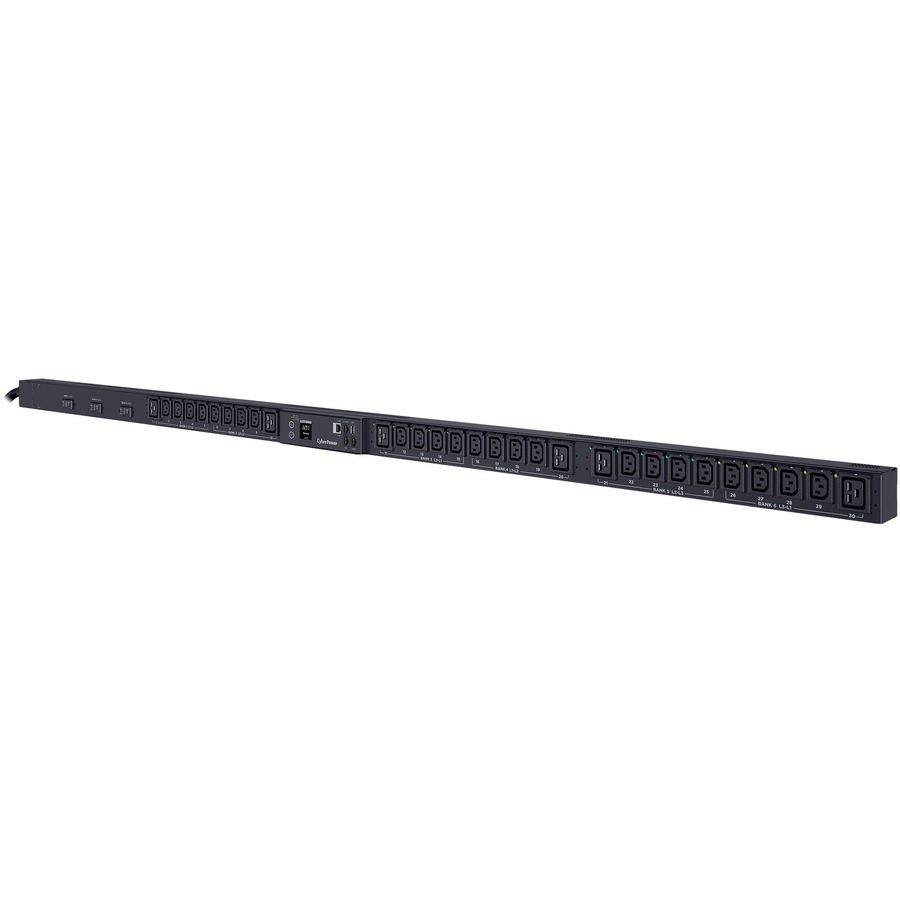

CyberPower PDU83107 3 Phase 200 - 240 VAC 50A Switched Metered-by-Outlet PDU

Streamline capacity planning and power management with the CyberPower PDU83107 switched metered-by-outlet 3-Phase PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling, and more.

The PDU83107 supports inputs between 200-240V and includes 30 IEC-320 outlets. Other features include ultra-low power consumption, multi-color outlet LEDs, an interactive digital display with selectable background color, high operating temperature range, built-in web interface, and power event notifications. The CyberPower PDU83107 is protected by a three-year limited warranty.

• IEC 60320 C13
• IEC 60320 C19

• 24 x IEC 60320 C13
• 6 x IEC 60320 C19

• IPv4
• TCP/IP
• UDP
• SNMPv1
• HTTP
• NTP
• DNS
• Telnet
• DHCP
• SMTP
• FTP
• IPv6
• SNMPv3
• HTTPs
• SSH
• SSL
• TLS
• LDAP(S)
• RADIUS
• Syslog
• CLI
• Windows AD

• Derated Input Current | 35 A

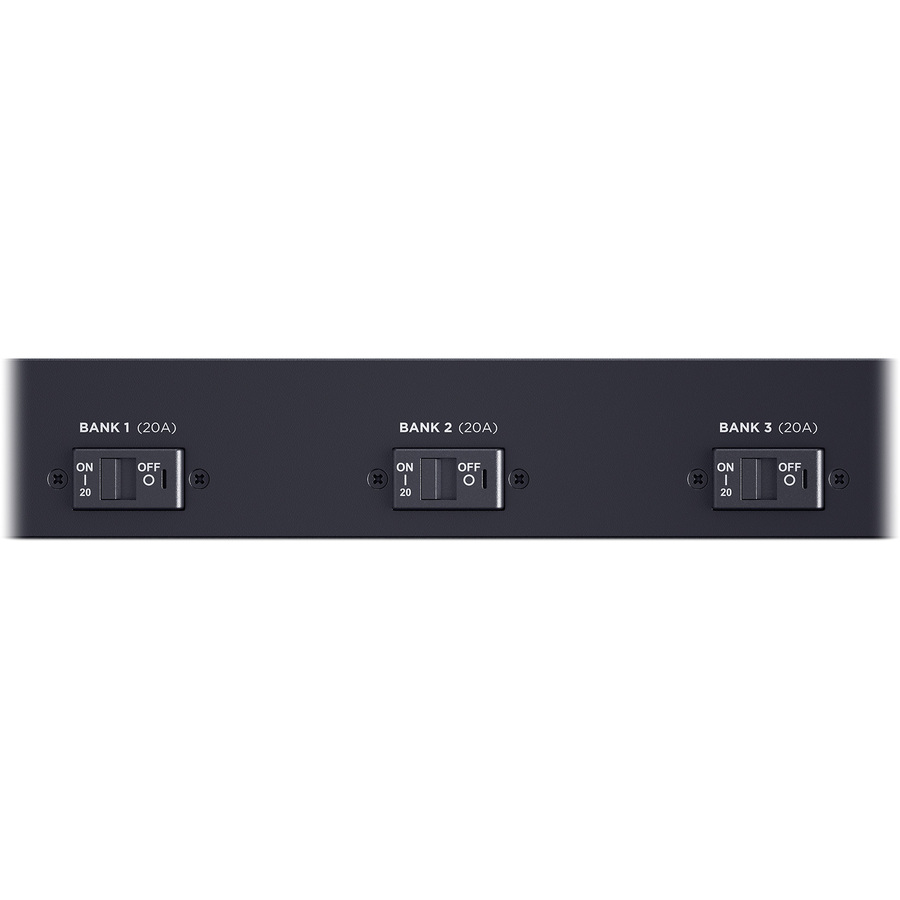

• Overload Protection | 20A X 3
• Environmental Sensor | Optional, via RJ45

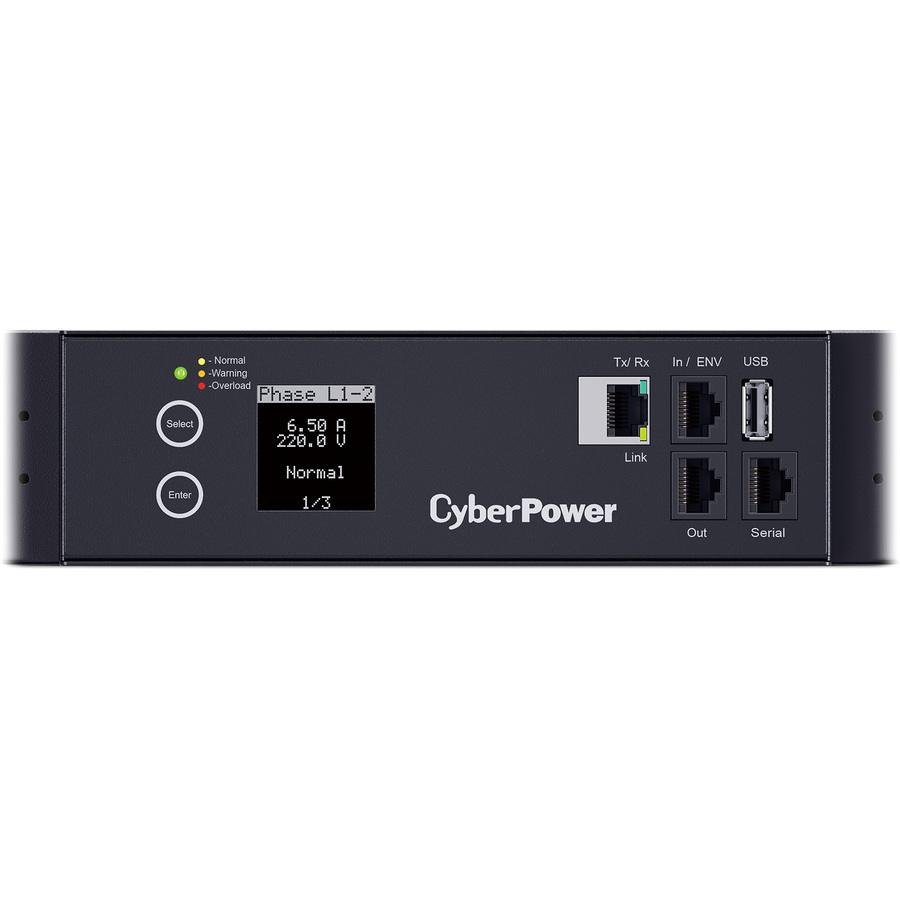

• LCD | Multifunction LCD
• LED Indicators | Tx/Rx
• Modular Expandability (Cascading) | Yes, via RJ45
• Monitoring Level | Input
• Outlet switching | Yes
• Software (Free Download) | PowerPanel® Business
• Upgradeable firmware | Yes
• Adjustable Mounting Brackets | 1 set
• Cord Retention Tray/Cord Organizers | Yes
• Material of Construction | Metal
• Operating Elevation | 0 - 11480 ft (0 - 3499 m)
• Operating Relative Humidity | 0 - 95 % (non-condensing)
• Operating Temperature | 23 - 140 °F (-5 - 60 °C)
• Storage Elevation | 0 - 50000 ft (0 - 15239 m)
• Storage Temperature | -4 - 113 °F (-20 - 45 °C)

• UL60950-1
• UL62368-1
• FCC Class A
