CyberPower PDU81104 200 - 240 VAC 20A Switched Metered-by-Outlet PDU

Name: CyberPower PDU81104 200 - 240 VAC 20A Switched Metered-by-Outlet PDU
Brand: CYBERPOWER
SKU: 9JN641
Price: 1492.46 USD
Availability: InStock

CYBERPOWER

PCN#

9JN641

MFG#

PDU81104

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,492.46

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Outlets, 10 ft, NEMA L6
20P, Vertical, 0U, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyApplication/UsageData CenterNetwork ClosetCertifications & StandardsUL 60950-1Energy StarNoCountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)UL ListedYesWarranty

Shipping Weight: 19 lbs.

CyberPower PDU81104 200 - 240 VAC 20A Switched Metered-by-Outlet PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU81104
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Switched Metered-by-Outlet PDU
Product Model	PDU81104
Product Name	PDU81104

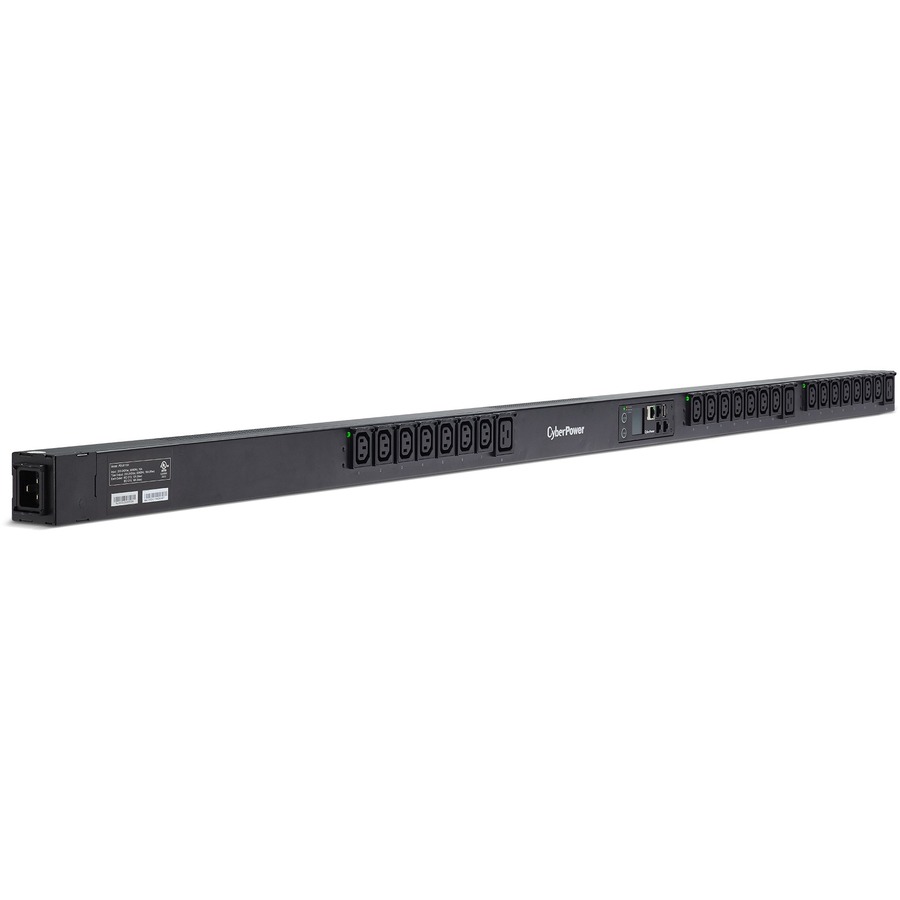

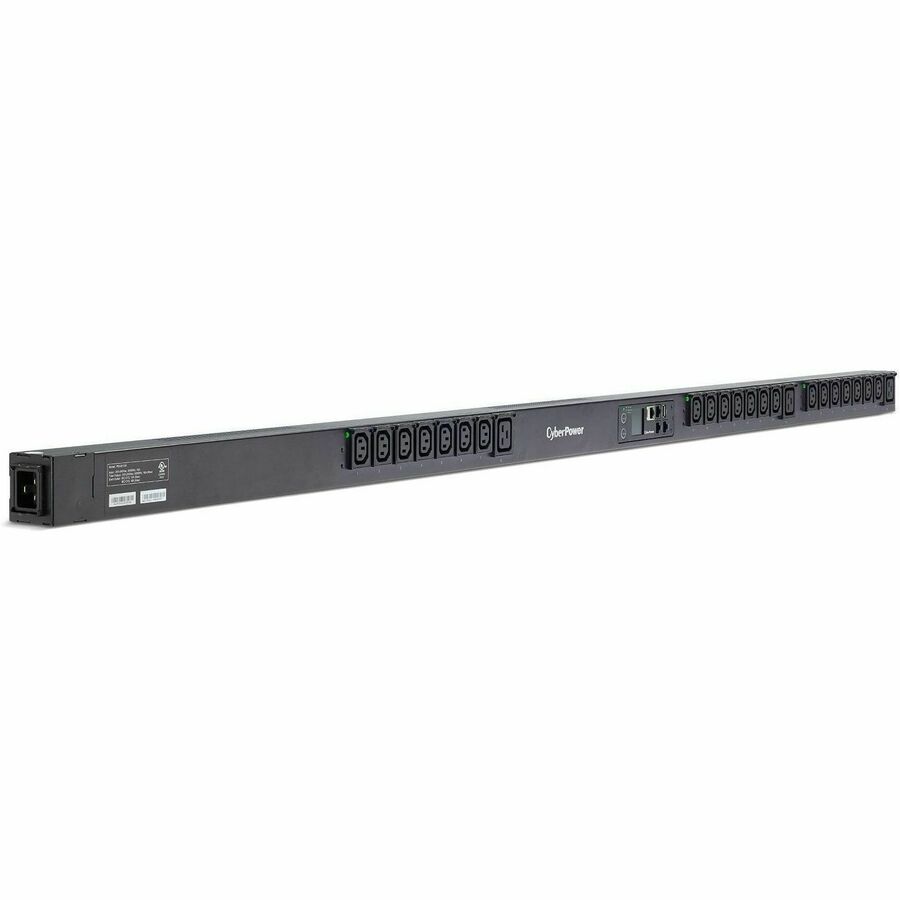

Marketing Information	Streamline capacity planning and power management with the CyberPower PDU81104 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more. The PDU81104 supports inputs between 200-240V and includes 21 C13 and 3 C19 outlets. Other features include a rack mount design (0U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81104 is protected by a three-year limited warranty.
Product Type	PDU

Technical Information

PDU Type	Switched with Metered-by-Outlet
Phase	Single Phase
Plug/Connector Type	NEMA L6-20P
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	21 x IEC 60320 C13 3 x IEC 60320 C19
Protection Type	Accidental Power Shutdown
Features	LCD Display

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage Range	200 V AC - 240 V AC
Input Current	20 A
Input Frequency	60 Hz

Management

Management	IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD EnergyWise v1.2
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	0U
Cord Length	10 ft
Height	65.6"
Width	2.2"
Depth	1.9"
Weight (Approximate)	17.20 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	149°F (65°C)

Miscellaneous

Package Contents	PDU81104 2 x Mounting Brackets 6 x M4x5 Screws 6 x M5x12 Screws/Washers 6 x M3x6 Screws Cord Retention Tray Cable Ties RJ45/DB9 Cable User's Manual Registration Download Cards
Additional Information	Physical Dimensions - (WxHxD) (cm) : 5.59 x 166.62 x 4.8 (cm) Physical Dimensions - (WxHxD) (in) : 2.2 x 65.6 x 1.89 (in) Physical Dimensions - (WxHxD) (mm) : 56 x 1666 x 48 (mm) Weight (kg) : 7.8 Weight (lb) : 17.2 Shipping Dimensions - (WxHxD) (cm) : 18.75 x 11.43 x 189.23 (cm) Shipping - Dimensions (WxHxD, in) : 7.38 x 4.5 x 74.5 (in) Shipping - Dimensions (WxHxD, mm) : 187.45 x 114.3 x 1892.3 (mm) Shipping - Weight (kg) : 8.53 Shipping - Weight (lb) : 18.8 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L6-20P Maximum Input Current : 20A Power Cord Length : 10 ft (3 m) Circuit Quantity : 1 Nominal Output Voltage : 200 - 240 VAC Number of Outlets : 24 Outlets - Total : 24 Outlet Type COMPUTED : 21 - IEC-320 C13 Overload Protection : None USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD Outlet switching : Yes Protocols : IPv4\|TCP/IP\|UDP\|SNMPv1\|HTTP\|NTP\|DNS\|Telnet\|DHCP\|SMTP\|FTP\|IPv6\|SNMPv3\|HTTPs\|SSH\|SSL\|TLS\|LDAP(S)\|RADIUS\|Syslog\|CLI\|Windows AD Upgradeable firmware : Yes Color : Black Form Factors Supported : 0U Vertical Rackmount Material of Construction : Metal Rack Height : 0U Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Safety : UL 60950-1 Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Application/Usage	Data Center Network Closet
Certifications & Standards	UL 60950-1
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
