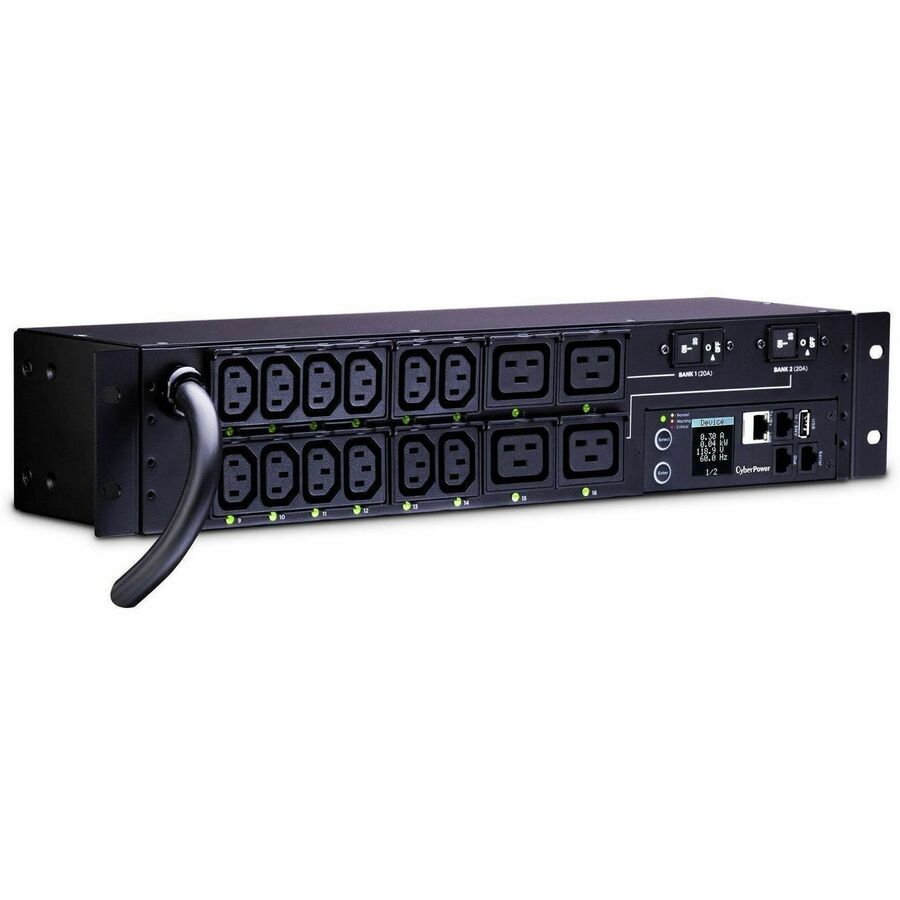

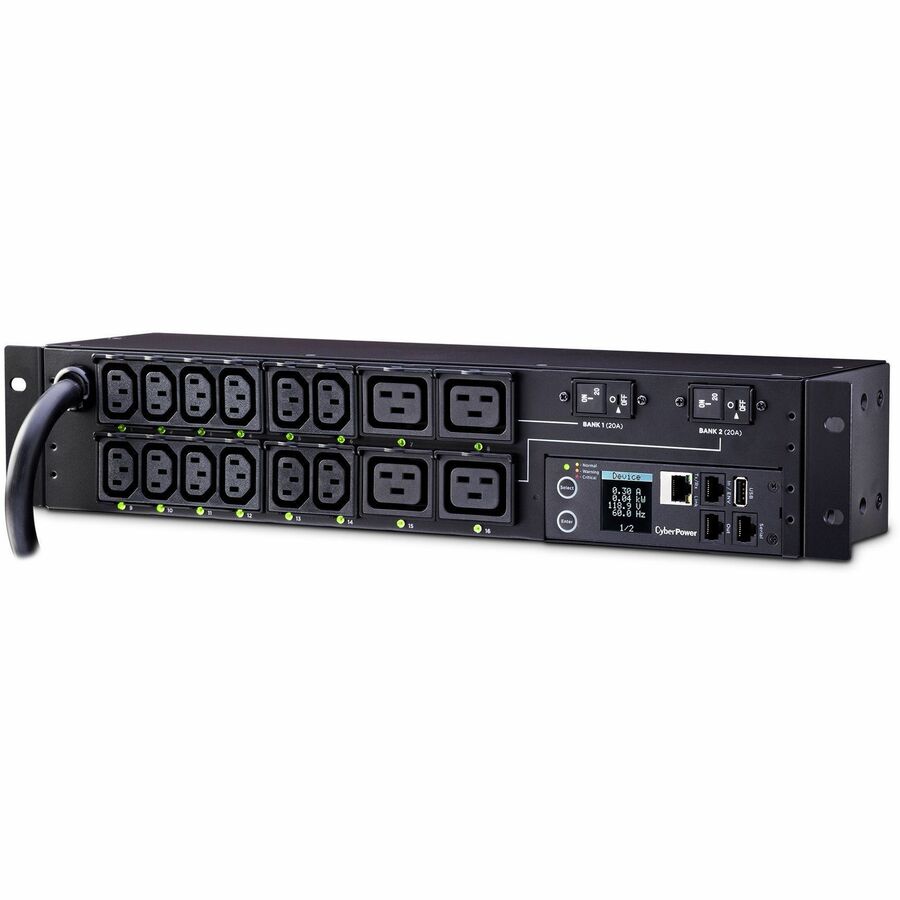

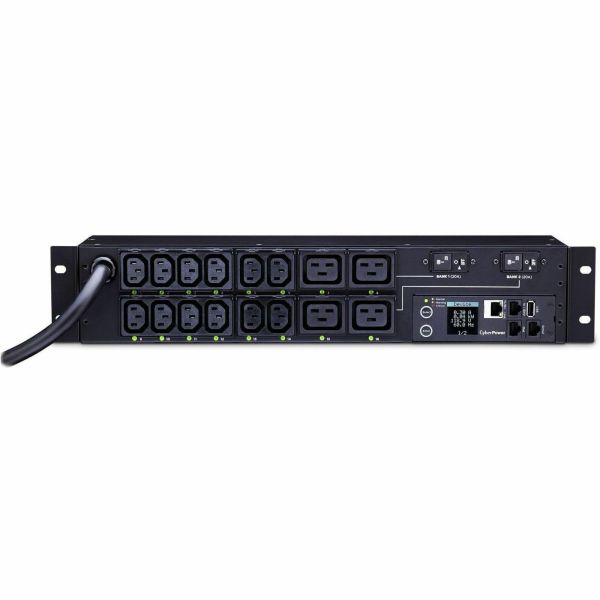

CyberPower PDU81008 200 - 240 VAC 30A Switched Metered-by-Outlet PDU

Name: CyberPower PDU81008 200 - 240 VAC 30A Switched Metered-by-Outlet PDU
Brand: CYBERPOWER
SKU: 9GM261
Price: 1795.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM261

MFG#

PDU81008

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,795.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

16 Outlets, 12 ft, NEMA L6
30P, Horizontal, 2U, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyApplication/UsageData CenterNetwork ClosetCertifications & StandardsUL 60950-1Country of OriginChinaUL ListedYesWarranty

Shipping Weight: 15 lbs.

CyberPower PDU81008 200 - 240 VAC 30A Switched Metered-by-Outlet PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU81008
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Switched Metered-by-Outlet PDU
Product Model	PDU81008
Product Name	PDU81008
Marketing Information	Streamline capacity planning and power management with the CyberPower PDU81008 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more. The PDU81008 supports inputs between 200-240V and includes twelve (12) IEC C13 and four (4) IEC C19 outlets, and a single NEMA L6-30P input power plug. Other features include a rack mount design (2U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81008 is protected by a three-year limited warranty.
Product Type	PDU

Technical Information

PDU Type	Switched Metered-by-Outlet
Phase	Single Phase

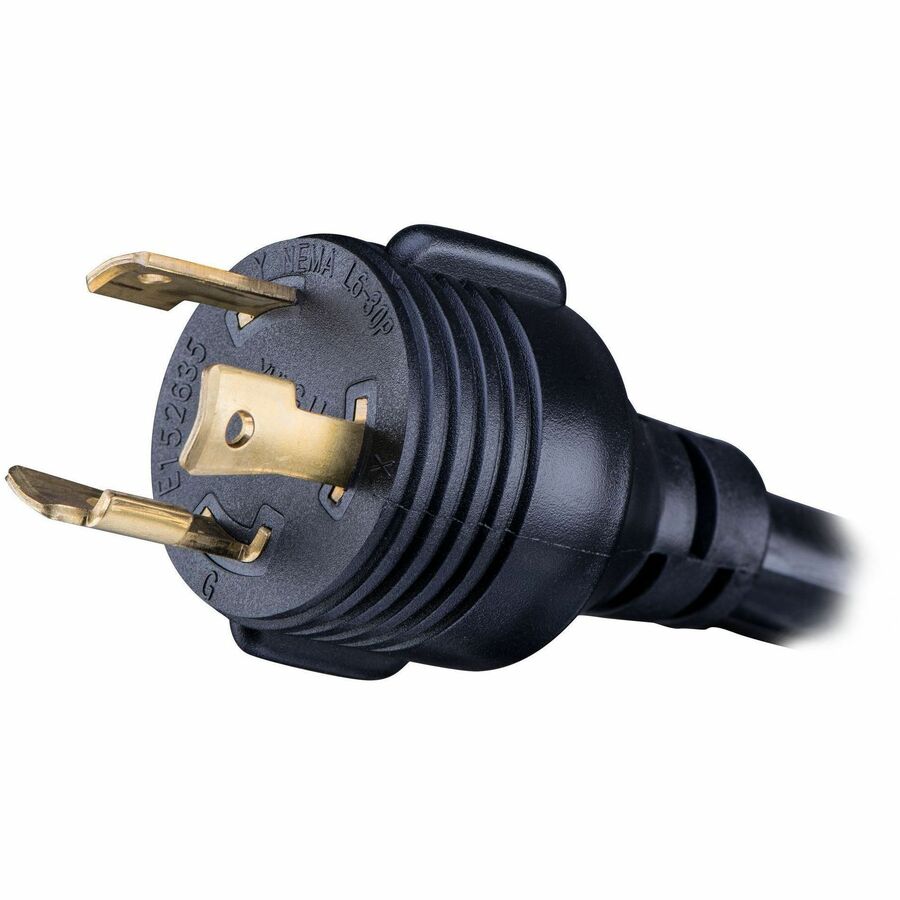

Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	12 x IEC 60320 C13 4 x IEC 60320 C19
Protection Type	Overload Protection
Features	LCD Display

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage Range	200 V AC - 240 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	2U
Cord Length	12 ft
Height	3.5"
Width	17.1"
Depth	4.4"
Weight (Approximate)	9.91 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	113°F (45°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	131°F (55°C)

Miscellaneous

Package Contents	PDU81008 2 x Short Mounting Brackets 2 x Long Mounting Brackets 12 x M4x8 Screws 6 x M5X12 Screws/Washers 2 x Cord Retention Trays 12 x M3x6 Screws 48 x Cable Ties RJ45/DB9 Serial Cable User's Manual Registration & Download Cards
Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 8.89 x 11.2 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 3.5 x 4.41 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 89 x 112 (mm) Weight (kg) : 4.5 Weight (lb) : 9.91 Shipping Dimensions - (WxHxD) (cm) : 24.92 x 15.24 x 51.13 (cm) Shipping - Dimensions (WxHxD, in) : 9.81 x 6.0 x 20.13 (in) Shipping - Dimensions (WxHxD, mm) : 249.17 x 152.4 x 511.3 (mm) Shipping - Weight (kg) : 9.33 Shipping - Weight (lb) : 20.56 Cord Length : 12 ft (3.7 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L6-30P Maximum Input Current : 30A Nominal Input Voltage : 200 - 240 VAC Power Cord Length : 12 ft (4 m) Circuit Quantity : 2 Nominal Output Voltage : 200 - 240 VAC Number of Outlets : 16 Outlets - Total : 16 Outlet Type COMPUTED : 12 - IEC-320 C13 Overload Protection : 20A x 2 USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD Outlet switching : Yes Protocols : IPv4\|TCP/IP\|UDP\|SNMPv1\|HTTP\|NTP\|DNS\|Telnet\|DHCP\|SMTP\|FTP\|IPv6\|SNMPv3\|HTTPs\|SSH\|SSL\|TLS\|LDAP(S)\|RADIUS\|Syslog\|CLI\|Windows AD Upgradeable firmware : Yes Color : Black Form Factors Supported : 2U Rackmount Material of Construction : Metal Rack Height : 2U Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C) Safety : UL 60950-1 Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Application/Usage	Data Center Network Closet
Certifications & Standards	UL 60950-1
Country of Origin	China
UL Listed	Yes

Warranty

Limited Warranty

3 Year
