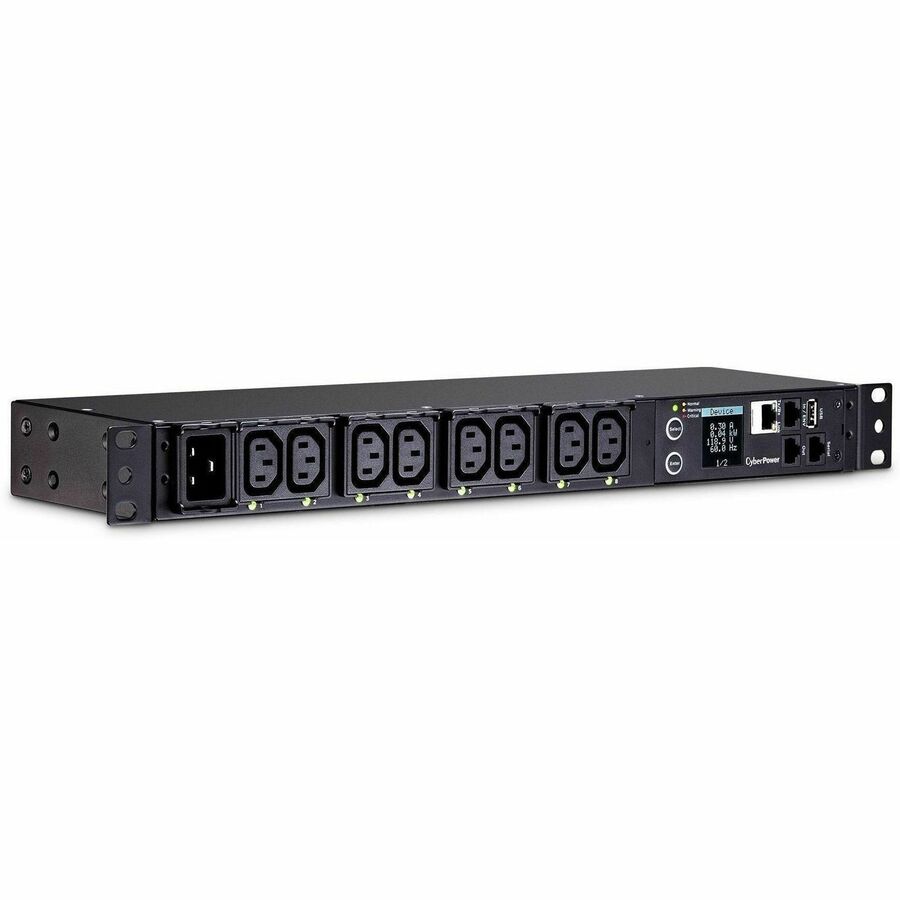

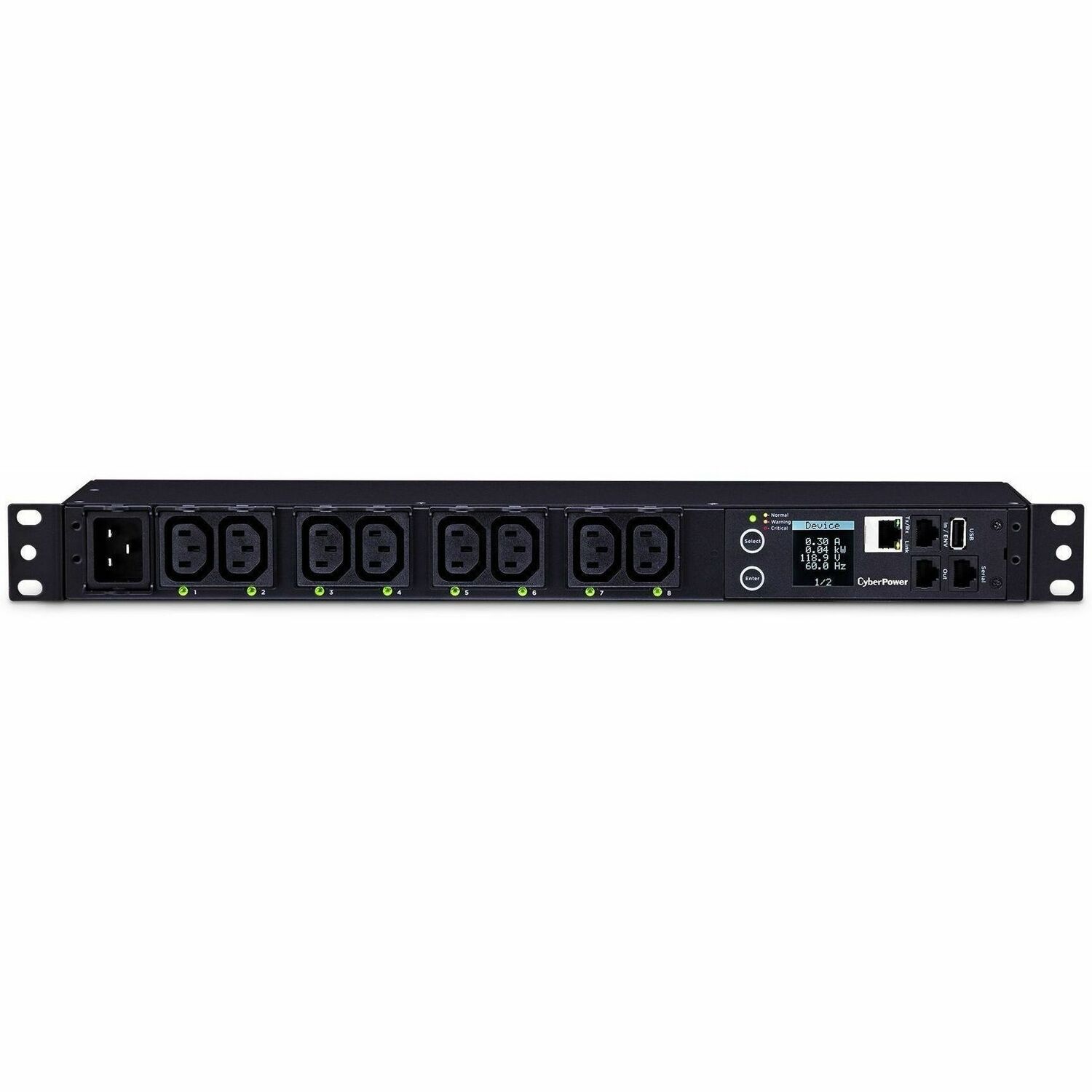

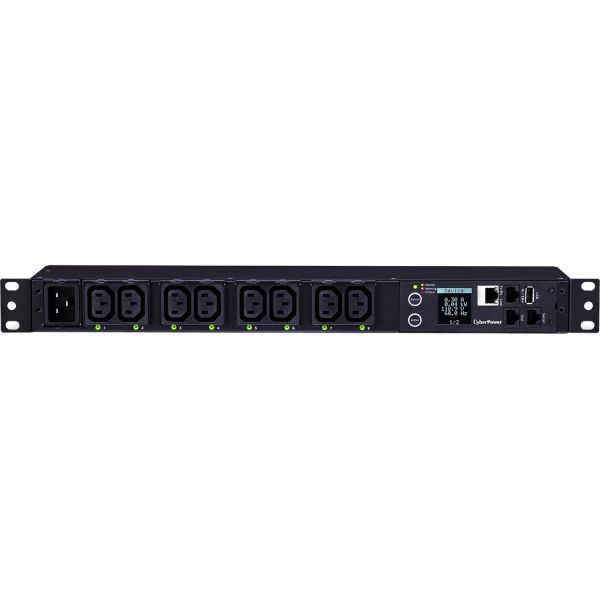

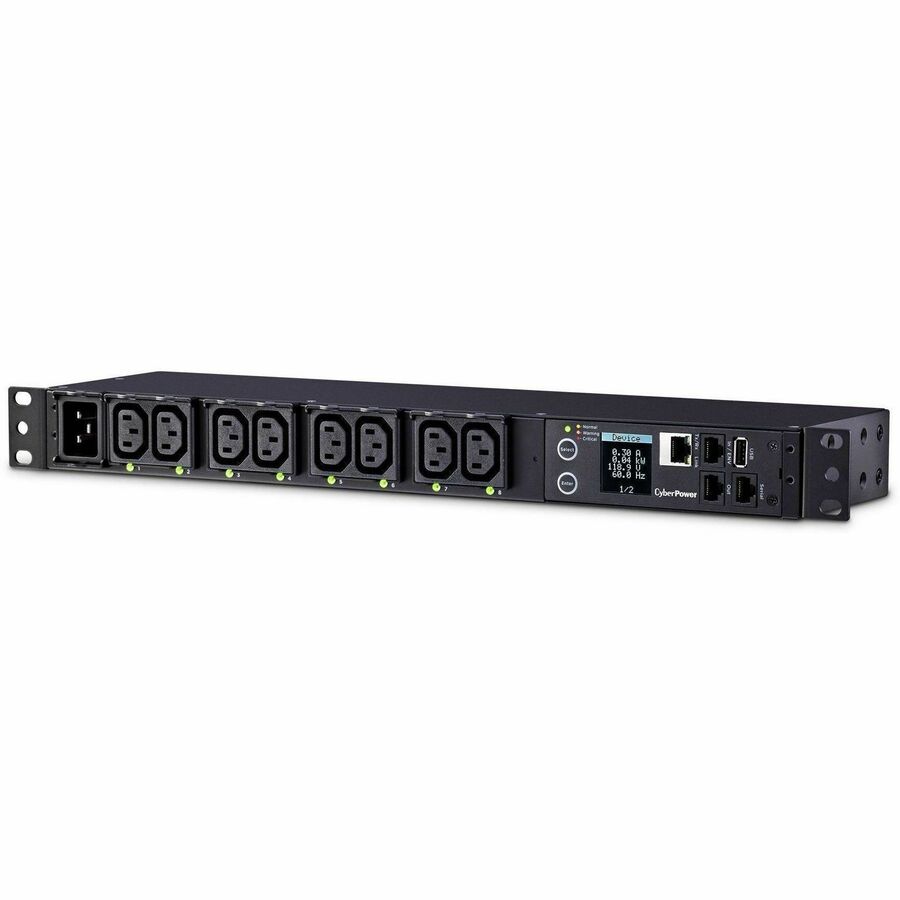

CyberPower PDU81005 100 - 120 VAC 20A Switched Metered-by-Outlet PDU

Name: CyberPower PDU81005 100 - 120 VAC 20A Switched Metered-by-Outlet PDU
Brand: CYBERPOWER
SKU: 9GM326
Price: 949.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM326

MFG#

PDU81005

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$949.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Outlets, 10 ft, IEC
320 C20, Horizontal, 1U, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyApplication/UsageData CenterNetwork ClosetCertifications & StandardsUL62368FCC Class AICES-003: Issue 7Country of OriginChinaUL ListedYesWarranty

Shipping Weight: 9 lbs.

CyberPower PDU81005 100 - 120 VAC 20A Switched Metered-by-Outlet PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU81005
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Switched Metered-by-Outlet PDU
Product Model	PDU81005
Product Name	PDU81005
Marketing Information	Streamline capacity planning and power management with the CyberPower PDU81005 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more. The PDU81005 supports inputs between 100-240V and includes eight (8) IEC-320 C13 outlets and a single IEC-320 C20 input power plug. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81005 is protected by a three-year limited warranty.
Product Type	PDU

Technical Information

PDU Type	Switched Metered-by-Outlet
Phase	Single Phase
Plug/Connector Type	IEC 60320 C20
Receptacle Type	IEC 60320 C13
Receptacle Detail	8 x IEC 60320 C13
Features	LCD Display

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	100 V AC - 120 V AC
Output Voltage	100 V AC 120 V AC
Output Voltage Range	100 V AC - 120 V AC
Input Current	20 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	Protocols: IPv4 TCP IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD SNMP
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	1U
Cord Length	10 ft
Height	1.8"
Width	17.1"
Depth	4.4"
Weight (Approximate)	4.63 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	149°F (65°C)

Miscellaneous

Package Contents	PDU81005 2 x Short Mounting Brackets 2 x Long Mounting Brackets 12 x M4x8 Screws 6 x M5X12 Screws/Washers Cord Retention Tray 6 x M3x6 Screws 27 x Cable Ties RJ45/DB9 Serial Cable 10ft Power Cord User's Manual Registration & Download Cards
Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 11.2 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 4.41 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 112 (mm) Weight (kg) : 2.1 Weight (lb) : 4.63 Shipping Dimensions - (WxHxD) (cm) : 25.4 x 6.35 x 50.17 (cm) Shipping - Dimensions (WxHxD, in) : 10.0 x 2.5 x 19.75 (in) Shipping - Dimensions (WxHxD, mm) : 254.0 x 63.5 x 501.65 (mm) Shipping - Weight (kg) : 9.19 Shipping - Weight (lb) : 20.25 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : IEC-320 C20 Maximum Input Current : 20A Power Cord Length : 10 ft (3 m) Circuit Quantity : 1 Nominal Output Voltage : 100 - 120 VAC Number of Outlets : 8 Outlets - Total : 8 Outlet Type COMPUTED : 8 - IEC-320 C13 Overload Protection : None USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD Outlet switching : Yes Protocols : IPv4, TCP/IP\|UDP\|SNMPv1\|HTTP\|NTP\|DNS\|Telnet\|DHCP\|SMTP\|FTP\|IPv6\|SNMPv3\|HTTPs\|SSH\|SSL\|TLS\|LDAP(S)\|RADIUS\|Syslog\|CLI\|Windows AD Upgradeable firmware : Yes Color : Black Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 131 °F (0 - 55 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 140 °F (-15 - 60 °C) Safety : UL62368 Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Application/Usage	Data Center Network Closet
Certifications & Standards	UL62368 FCC Class A ICES-003: Issue 7
Country of Origin	China
UL Listed	Yes

Warranty

Limited Warranty

3 Year
