CyberPower Metered ATS PDU PDU44007 19-Outlets PDU

Name: CyberPower Metered ATS PDU PDU44007 19-Outlets PDU
Brand: CYBERPOWER
SKU: 08AU72
Price: 1345.95 USD
Availability: InStock

CYBERPOWER

PCN#

08AU72

MFG#

PDU44007

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,345.95

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

19 Outlets, 10 ft, 2 x NEMA L6
30P, Horizontal, 2U, SNMP, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyApplication/UsageData CenterNetwork ClosetCertifications & StandardsUL62368 via cTUVusFCC Class AICES-003: Issue 7Country of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)UL ListedYesWarranty

Shipping Weight: 21 lbs.

CyberPower PDU44007 Single Phase 240 - 200 VAC 30A Switched ATS PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU44007
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Switched ATS PDU
Product Model	PDU44007
Product Name	PDU44007

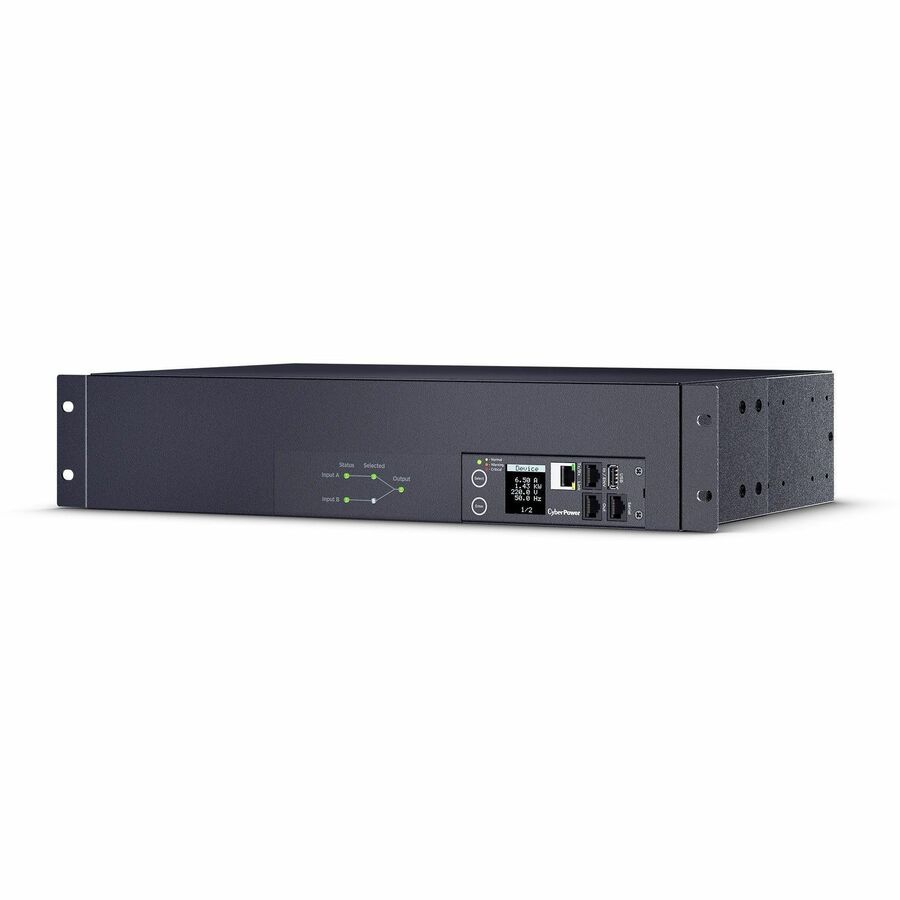

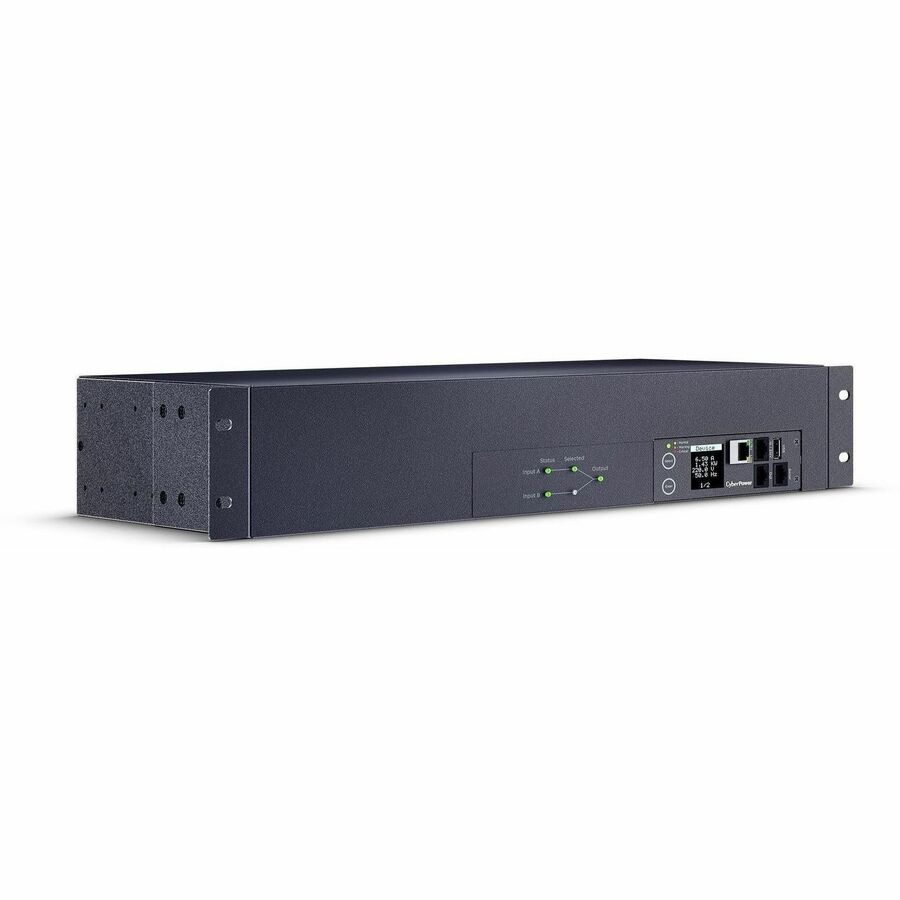

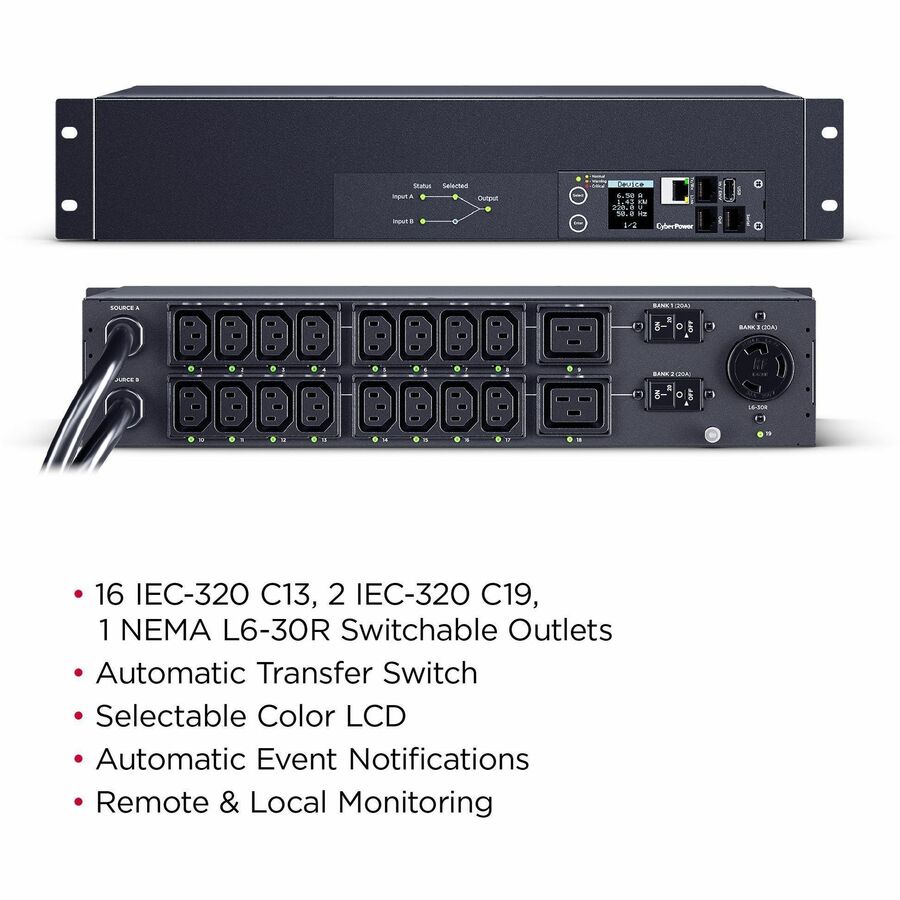

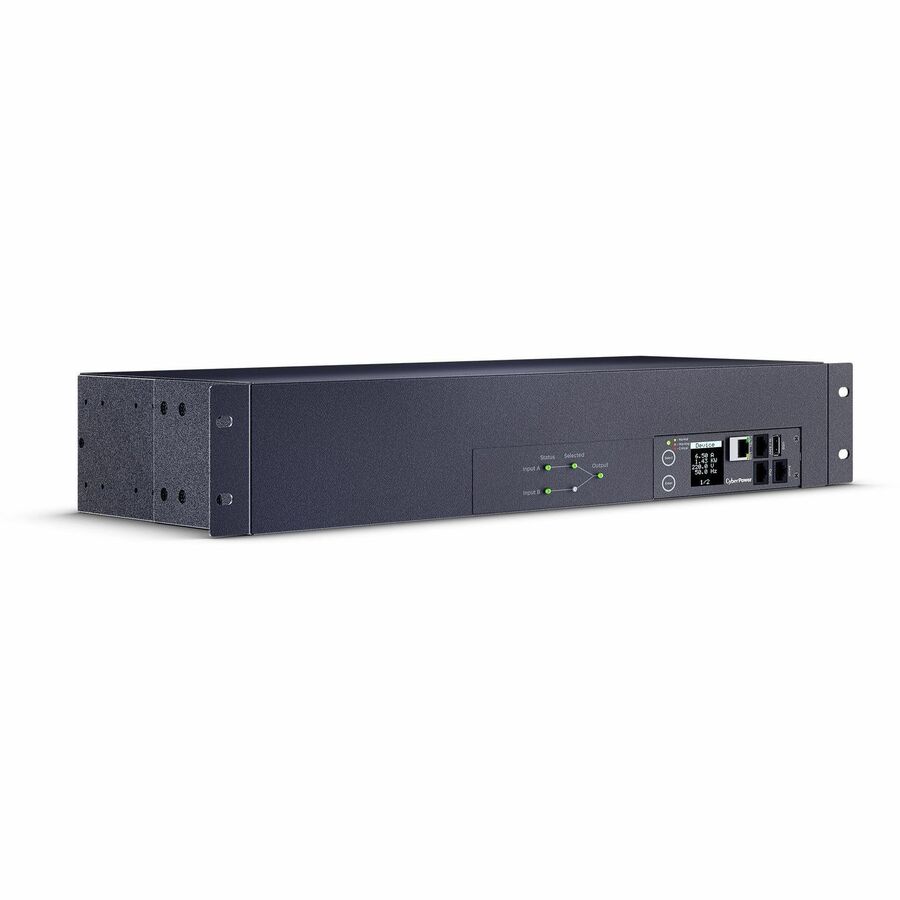

Marketing Information	Ensure continued operation of critical devices with the CyberPower PDU44007 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management. The PDU44007 supports inputs between 200-240V and includes (16) IEC C13, (2) IEC C19, and (1) NEMA L6-30R outlets. Dual NEMA L6-30P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44007 is protected by a three-year limited warranty.
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Single Phase
Plug/Connector Type	NEMA L6-30P
Plug/Connector Detail	2 x NEMA L6-30P
Receptacle Type	IEC 60320 C13 IEC 60320 C19 NEMA L6-30R

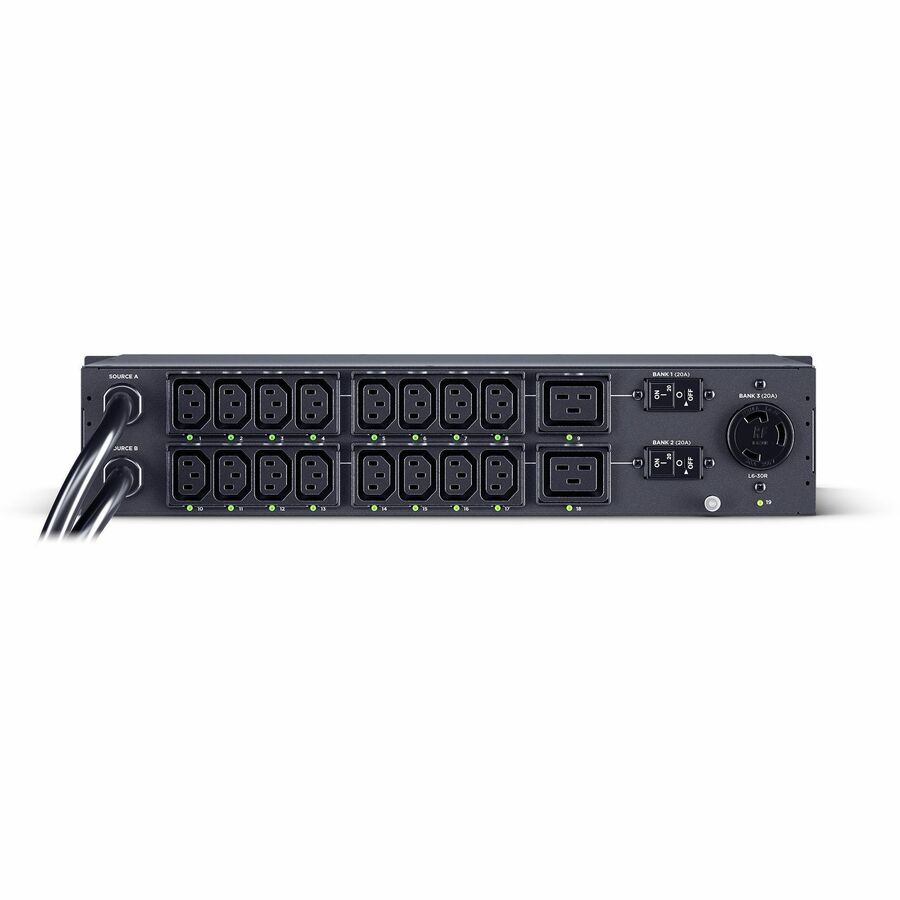

Receptacle Detail	16 x IEC 60320 C13 2 x IEC 60320 C19 1 x NEMA L6-30R
Protection Type	Overload Protection
Locking Receptacles	Cord Retention Tray
Features	LCD Display LED Status Indicator

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	200 V AC 240 V AC
Output Voltage Range	200 V AC - 240 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	Protocols: IPv4 TCP IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD SNMP
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	2U
Cord Length	10 ft

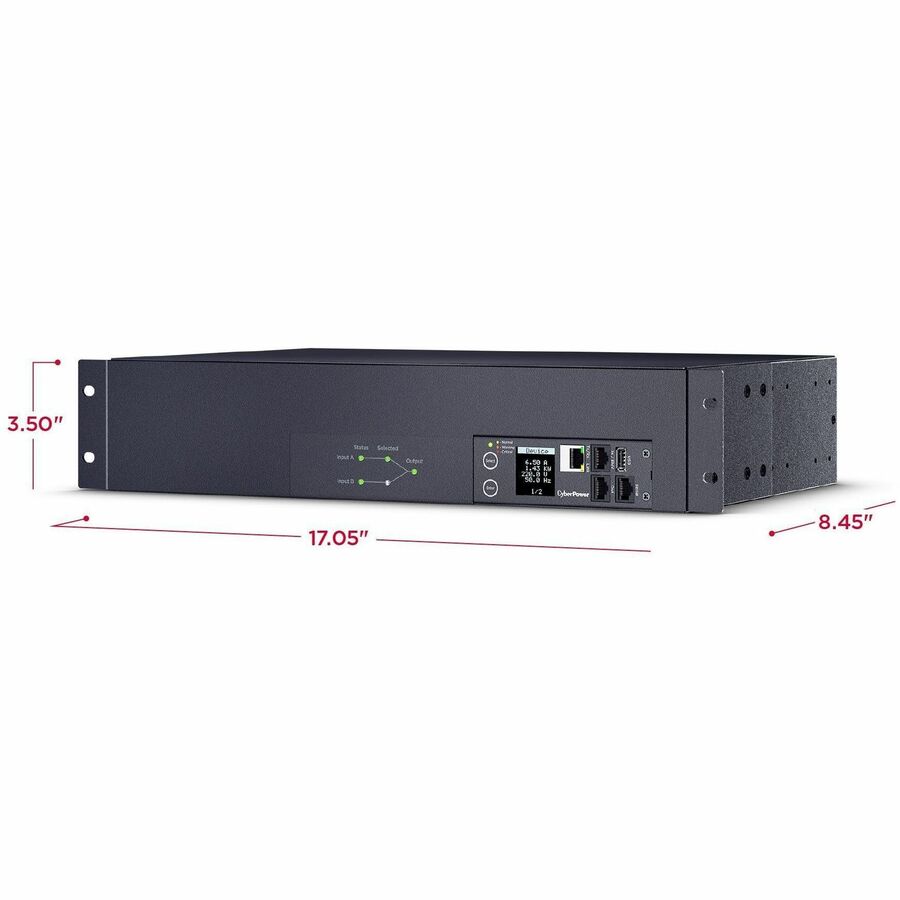

Height	3.5"
Width	17.1"
Depth	8.4"
Weight (Approximate)	17.59 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	113°F (45°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	131°F (55°C)

Miscellaneous

Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 8.89 x 21.46 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 3.5 x 8.45 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 89 x 215 (mm) Weight (kg) : 7.98 Weight (lb) : 17.6 Shipping Dimensions - (WxHxD) (cm) : 54.61 x 17.78 x 40.64 (cm) Shipping - Dimensions (WxHxD, in) : 21.5 x 7 x 16 (in) Shipping - Dimensions (WxHxD, mm) : 546.1 x 177.8 x 406.4 (mm) Shipping - Weight (kg) : 9.34 Shipping - Weight (lb) : 20.6 Cord Length : 10 ft (3.0 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : 2 x NEMA L6-30P Maximum Input Current : 30A Nominal Input Voltage : 240 - 200 VAC Phase : Single Phase Plug Style : Straight Nominal Output Voltage : 240 - 200 VAC Outlet Banks : 2 Outlets - Total : 19 Outlet Type COMPUTED : 16 - IEC-320 C13 Overload Protection : 20A x 2 Power Source Transfer Time : 2-7 ms Source Failure Detection Time : 2-3 ms Total Transfer Time : <10 ms Environmental Sensor : Optional, via RJ45 Hardware Connection Port : Ethernet (RJ45) LCD : Multifunction LCD LED Indicators : Source Status Modular Expandability (Cascading) : Yes, via RJ45 Outlet switching : Yes SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD Upgradeable firmware : Yes Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 2U Rackmount Material of Construction : Metal Rack Height : 2U Style : Rackmount Operating Elevation : 0 - 13123 ft (0 - 4000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C) Environmental : RoHS Compliant Safety : UL62368 via cTUVus Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Application/Usage	Data Center Network Closet
Certifications & Standards	UL62368 via cTUVus FCC Class A ICES-003: Issue 7
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
