CyberPower Metered ATS PDU PDU44003 17-Outlets PDU

by
CYBERPOWER
PCN#
08AU71
MFG#
PDU44003
$899.95
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Metered
  • NEMA L5
  • 30P

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 21 lbs.
CyberPower Metered ATS PDU PDU44003 17-Outlets PDU
Tech Specs
Specifications

Manufacturer

CyberPower Systems, Inc

Manufacturer Part Number

PDU44003

Manufacturer Website Address

https://www.cyberpowersystems.com/

Brand Name

CyberPower

Product Series

Metered ATS PDU

Product Model

PDU44003

Product Name

Metered ATS PDU PDU44003 17-Outlets PDU

Marketing Information

Ensure continued operation of critical devices with the CyberPower PDU44003 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

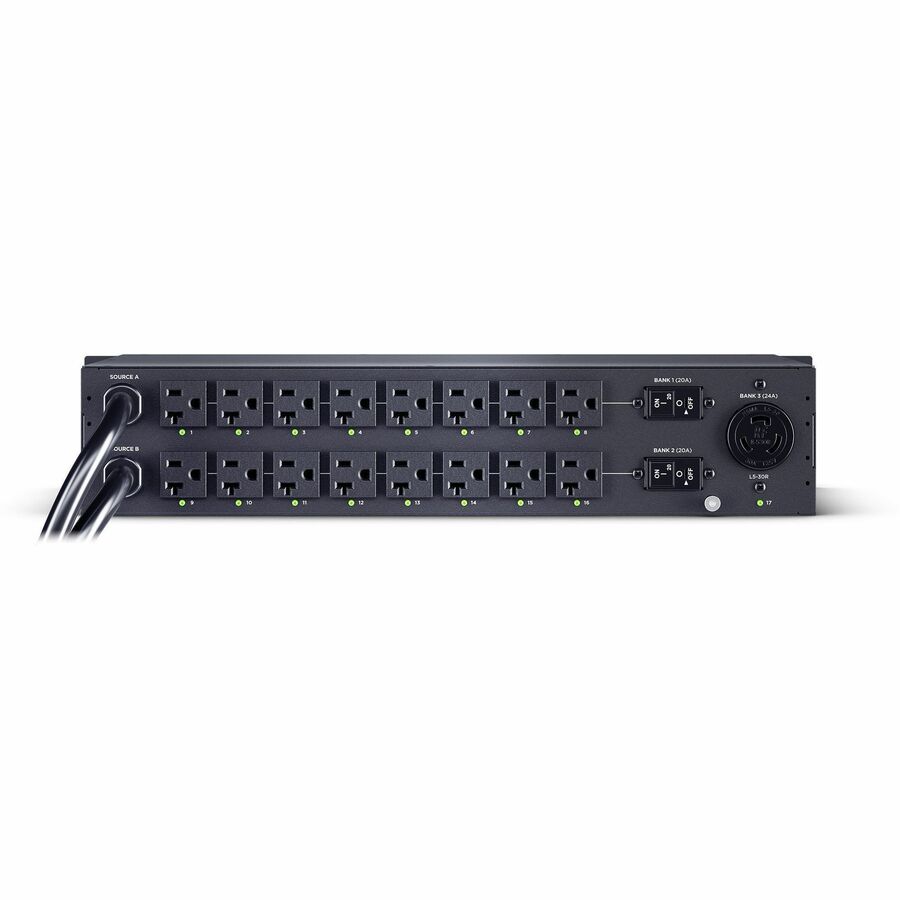

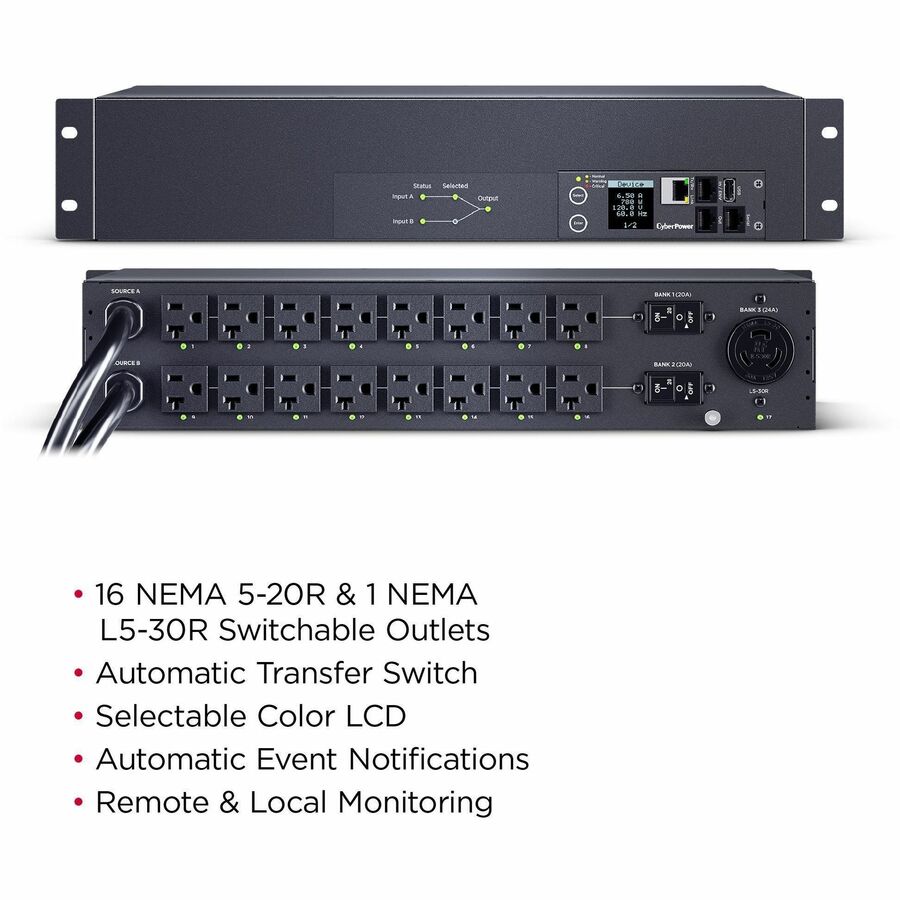

The PDU44003 supports inputs between 100-120V and includes (16) NEMA 5-20R and (1) L5-30R outlets. Dual NEMA L5-30P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44003 is protected by a three-year limited warranty

Product Type

PDU
Technical Information

PDU Type

Metered

Phase

Single Phase

Plug/Connector Type

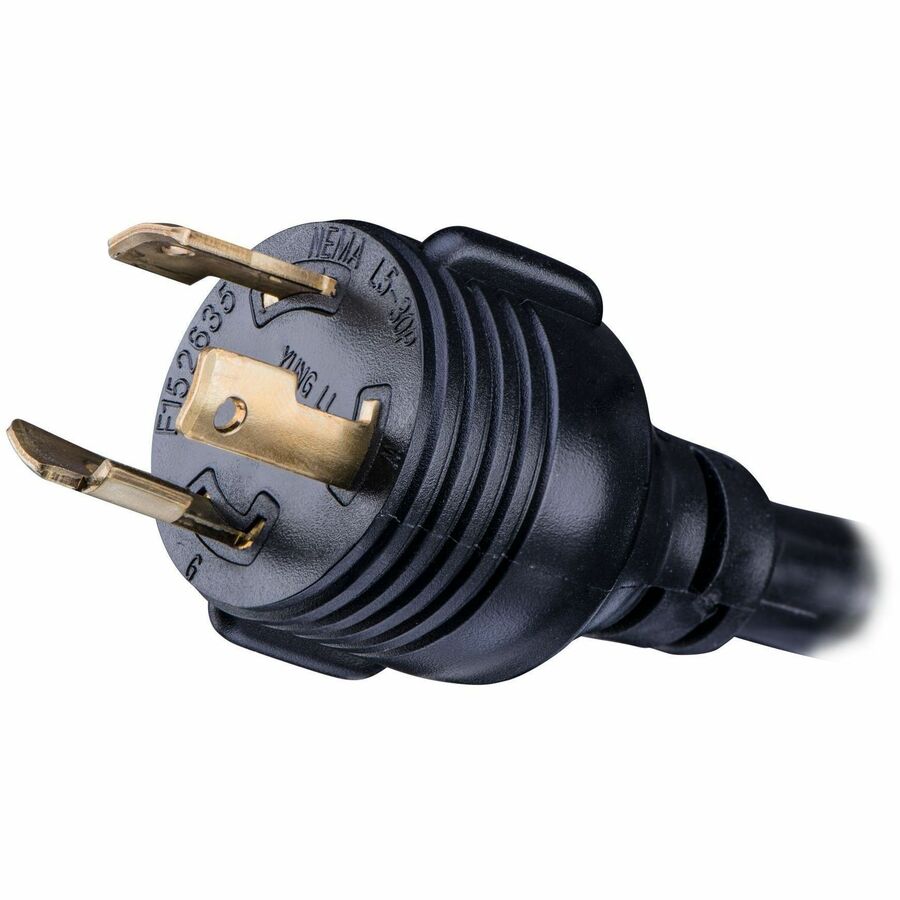

NEMA L5-30P

Plug/Connector Detail

2 x NEMA L5-30P

Receptacle Type

  • NEMA 5-20R
  • NEMA L5-30R

Receptacle Detail

  • 16 x NEMA 5-20R
  • 1 x NEMA L5-30R

Protection Type

Overload Protection
Power Description

Input Voltage

120 V AC

Input Voltage Range

100 V AC - 120 V AC

Output Voltage

120 V AC

Output Voltage Range

100 V AC - 120 V AC

Input Current

30 A
Management

Management

  • IPv4
  • TCP/IP
  • UDP
  • SNMPv1
  • HTTP
  • NTP
  • DNS
  • Telnet
  • DHCP
  • SMTP
  • FTP
  • IPv6
  • SNMPv3
  • HTTPs
  • SSH
  • SSL
  • TLS
  • LDAP(S)
  • RADIUS
  • Syslog
  • CLI
  • Windows AD
Interfaces/Ports

Network (RJ-45)

Yes
Physical Characteristics

Product Color

Black

Mounting Orientation

Horizontal

Mount Type

Rack-mountable

Rack Height

2U

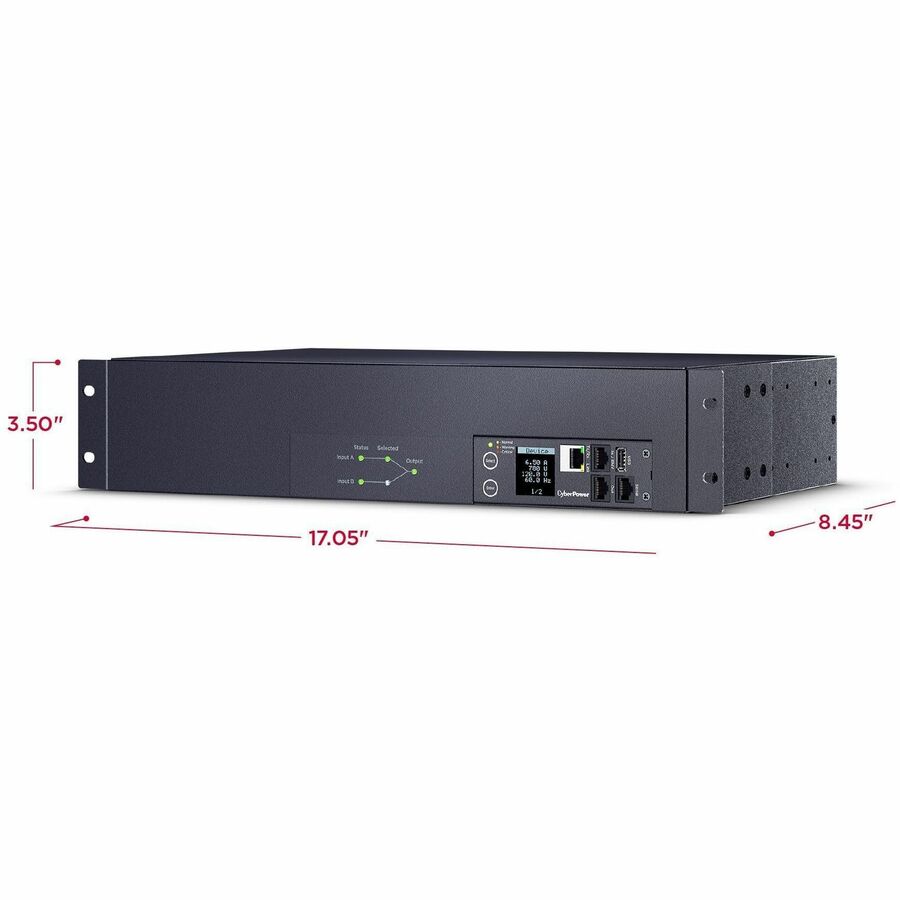

Height

3.5"

Width

17.1"

Depth

8.4"

Weight (Approximate)

17.59 lb
Miscellaneous

Country of Origin

China

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

3 Year
