CyberPower PDU41104 Single Phase 200 - 240 VAC 20A Switched PDU

Name: CyberPower PDU41104 Single Phase 200 - 240 VAC 20A Switched PDU
Brand: CYBERPOWER
SKU: 9GM267
Price: 1079.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM267

MFG#

PDU41104

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,079.95

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Outlets, 10 ft, NEMA L6
20P, Vertical, 0U, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL 60950-1FCC Class ACountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)UL ListedYesWarranty

Shipping Weight: 22 lbs.

CyberPower PDU41104 Single Phase 200 - 240 VAC 20A Switched PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU41104
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Name	24-Outlets PDU

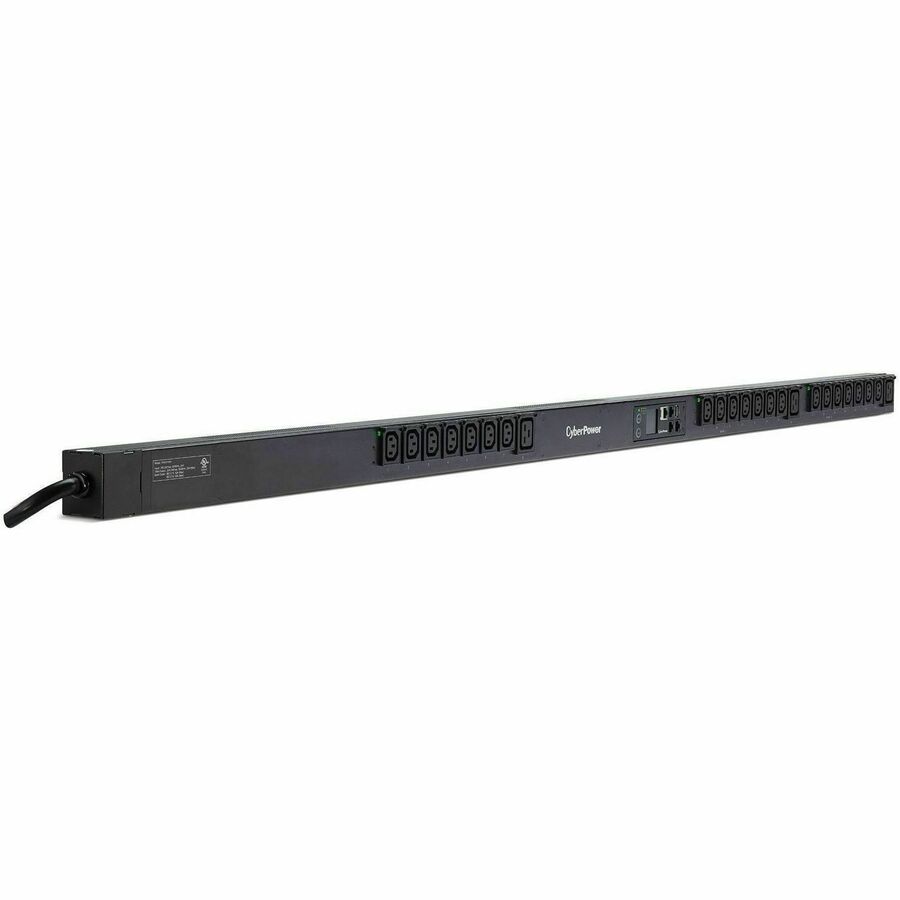

Marketing Information	The CyberPower PDU41104, a 0U rackmount switched power distribution unit (PDU), provides 200-240V 20A output via 21 IEC-320 C13 + 3 IEC-320 C19 receptacles from a single NEMA L6-20P input power plug. The switched outlet receptacles can be managed over the network by using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control display. The PDU41104 offers outlets that can be turned on, turned off, or recycled on demand. Outlets can be programmed to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. With a three-year limited warranty, you can trust CyberPower's commitment to high quality.
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Single Phase
Plug/Connector Type	NEMA L6-20P
Plug/Connector Detail	1 x NEMA L6-20P
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	21 x IEC 60320 C13 3 x IEC 60320 C19
Locking Receptacles	Cord Retention Tray
Features	LCD Display LED Status Indicator

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	230 V AC
Output Voltage Range	200 V AC - 240 V AC
Input Current	20 A
Input Frequency	60 Hz

Management

Management	IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Vertical
Mount Type	Rack-mountable Wall-mountable
Form Factor	Rack
Rack Height	0U
Cord Length	10 ft
Height	65.5"
Width	2.2"
Depth	1.9"
Weight (Approximate)	17.20 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	149°F (65°C)

Miscellaneous

Additional Information	Physical Dimensions - (WxHxD) (cm) : 5.59 x 166.37 x 4.83 (cm) Physical Dimensions - (WxHxD) (in) : 2.2 x 65.5 x 1.9 (in) Physical Dimensions - (WxHxD) (mm) : 56 x 1664 x 48 (mm) Weight (kg) : 7.8 Weight (lb) : 17.2 Shipping Dimensions - (WxHxD) (cm) : 18.49 x 189.51 x 11.51 (cm) Shipping - Dimensions (WxHxD, in) : 7.28 x 74.61 x 4.53 (in) Shipping - Dimensions (WxHxD, mm) : 184.91 x 1895.09 x 115.06 (mm) Shipping - Weight (kg) : 7.8 Shipping - Weight (lb) : 17.2 Cord Length : 10 ft (3.0 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L6-20P Maximum Input Current : 20A Nominal Input Voltage : 200 - 240 VAC Phase : Single Phase Nominal Output Voltage : 200 - 240 VAC Outlets - # of Banks : 1 Outlets - Total : 24 Outlet Type COMPUTED : 21 - IEC-320 C13 Overload Protection : None USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : Ethernet (RJ45) LCD : Multifunction LCD LED Indicators : Tx/Rx Modular Expandability (Cascading) : Yes, via RJ45 Monitoring Level : Input Outlet switching : Yes Protocols : IPv4\|TCP/IP\|UDP\|SNMPv1\|HTTP\|NTP\|DNS\|Telnet\|DHCP\|SMTP\|FTP\|IPv6\|SNMPv3\|HTTPs\|SSH\|SSL\|TLS\|LDAP(S)\|RADIUS\|Syslog\|CLI\|Windows AD Software (Free Download) : PowerPanel® Business Upgradeable firmware : Yes Adjustable Mounting Brackets : 1 set Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 0U Vertical Rackmount Material of Construction : Metal Rack Height : 0U Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Environmental : RoHS Compliant Safety : UL 60950-1\|FCC Class A Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL 60950-1 FCC Class A
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
